Hans888
Member
Anybody know how to turn off the headlight heigh adjuster motor? I know its a connector cable but I cant seem to find it. There is a strange noise coming from my headlight and I know its caused a broken adjuster motor.
Technical Turning off headlight height engine fiat panda 2004
- Thread starter Hans888
- Start date
Currently reading:
Technical Turning off headlight height engine fiat panda 2004
No obvious GUIDE,
Several threads about damp/moisture effecting the motor and wiring
Several threads about damp/moisture effecting the motor and wiring
I beleive if you take the light out you get to the motor from behind the cover and unscrew it or disconect it, they are replacable,
Would involve taking the bumper top bolts out to peel it down a bit
Or you could just cut the wires from the body computer at the headlight connector after first measuring with a volt meter to check the wiring colours are correct, they aren't always

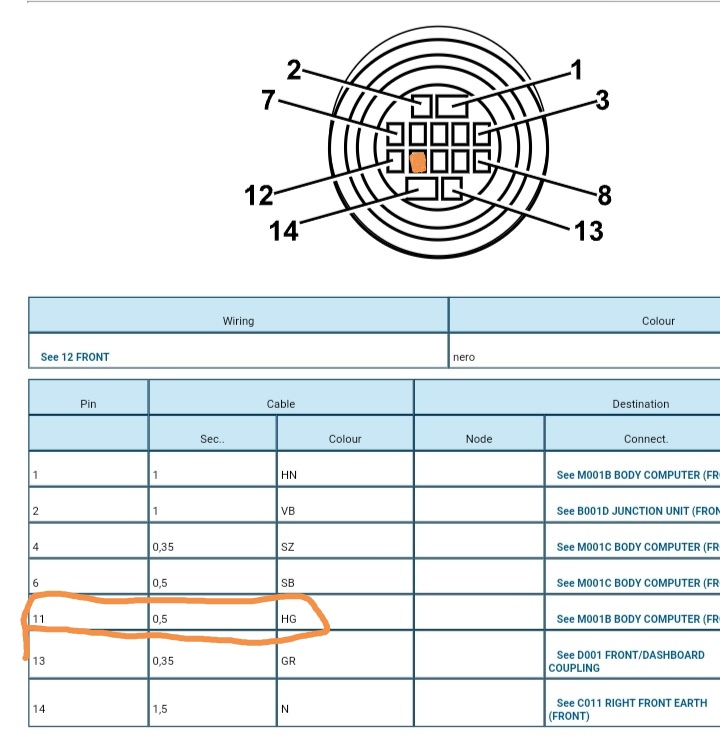

If this diagram is correct it should be the grey and yellow wire
I would probable pop the pin out of the connector and insulate so it's easily reversible
I don't know if it's possible to disable it with MultiEcuScan proxi, I don't have a version up and running at the moment
Would involve taking the bumper top bolts out to peel it down a bit
Or you could just cut the wires from the body computer at the headlight connector after first measuring with a volt meter to check the wiring colours are correct, they aren't always
If this diagram is correct it should be the grey and yellow wire
I would probable pop the pin out of the connector and insulate so it's easily reversible
I don't know if it's possible to disable it with MultiEcuScan proxi, I don't have a version up and running at the moment
Does it have it's own fuse you could remove, it could save you a lot of hassle if it has.
Nope it's shared F13 with the dipped headlights
Last edited:
You know it will fail APK if the adjuster don't work? Had this on my Stilo. Worked at home, but not when the random RDW recheck was done.
On the Stilo I could reach the motor when the rearcover was off. Just 2 screws and a small connector. Replaced with a (cheap) Bosch part that was supposed to be used in a Skoda. IIRC the connector could only be dis- and connected with the motor out.
gr J
On the Stilo I could reach the motor when the rearcover was off. Just 2 screws and a small connector. Replaced with a (cheap) Bosch part that was supposed to be used in a Skoda. IIRC the connector could only be dis- and connected with the motor out.
gr J
