Re: Hawk remote locking not working

Excellent,

So when you were doing your testing, were you touching the earth cable onto the metal bridge thats underneath the little flap on the connector? And this was causing the doors to lock?

And now when you touch the earth cable to the white cable at the white connector end, nothing happens?

If the above is the case, then its likely that the connector hasn't cut into the end of the white cable correctly. Therefore the next step would be to remove the connector (you can do this by using a pair of pliers to pull the metal bridge straight up and out of the connector)

Then manually connect the two cables.

Alan

Hi yes that exactly right, how do you mean connect the wires manually?

Thanks
Russ



[a1ant]

Re: Hawk remote locking not working

Hi,

Strip about 10mm from the end of the white wire like this.....

Then strip about 10mm from the middle of the white/green wire like this....

If you dont have wire strippers that do this for you, then you can use a stanley knife or similar to carefully cut away a section of the insulation. (mind your fingers)

Then lay the two wires across each other like this....

And twist them together tightly like this....

The next step would then be to solder them once you have tested its working, and use some heat shrink tubing to insulate the bare connection... HOWEVER...

If you dont have access to a soldering iron etc, then you can tape it tightly with some insulation tape to a) prevent the bare wire making contact with anything it shouldn't, and b) prevent the connection coming apart.

Alan



[oXRUSSXo]

Re: Hawk remote locking not working

Hi,

Strip about 10mm from the end of the white wire like this.....

Then strip about 10mm from the middle of the white/green wire like this....

If you dont have wire strippers that do this for you, then you can use a stanley knife or similar to carefully cut away a section of the insulation. (mind your fingers)

Then lay the two wires across each other like this....

And twist them together tightly like this....

The next step would then be to solder them once you have tested its working, and use some heat shrink tubing to insulate the bare connection... HOWEVER...

If you dont have access to a soldering iron etc, then you can tape it tightly with some insulation tape to a) prevent the bare wire making contact with anything it shouldn't, and b) prevent the connection coming apart.

Alan

ALAN!!!!!!!!!!!!

ITS WORKING!

Thank you so much, I just quickly popped to maplins and got some different crimps that are for thinner wire. Got home connected it and hay presto it worked.

Thanks so much

Russell



[a1ant]

Re: Hawk remote locking not working

WELL DONE for sticking in there and not just giving up

Told you that you would get there in the end! :woot:

Alan



[Mike60]

Re: Hawk remote locking not working

It is not finish yet
Hi
I understand that for connecting my keyless entry system to my Punto i need to connect some wires.

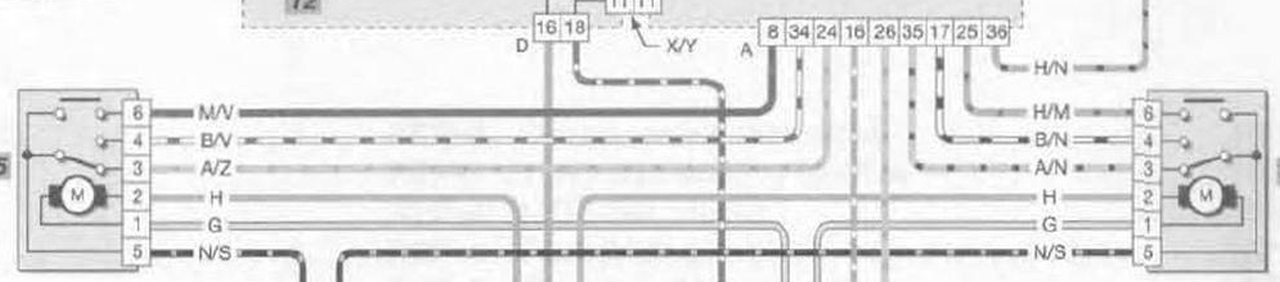

In attachment ( picture ) pin 34 & 24 or 35 & 17 need to be connected to keyless box.
I need to cut this wires from motor. Left or right door.
After that to look what color i need to connect from box to this two wires.
I suppose you understand :idea: I am right ?
I know electricity enough for this challenge but : Sorry for my poor English

Regards
Mike
