Technical Hole in heater hose pipe?

[olydabest]

Hi all,

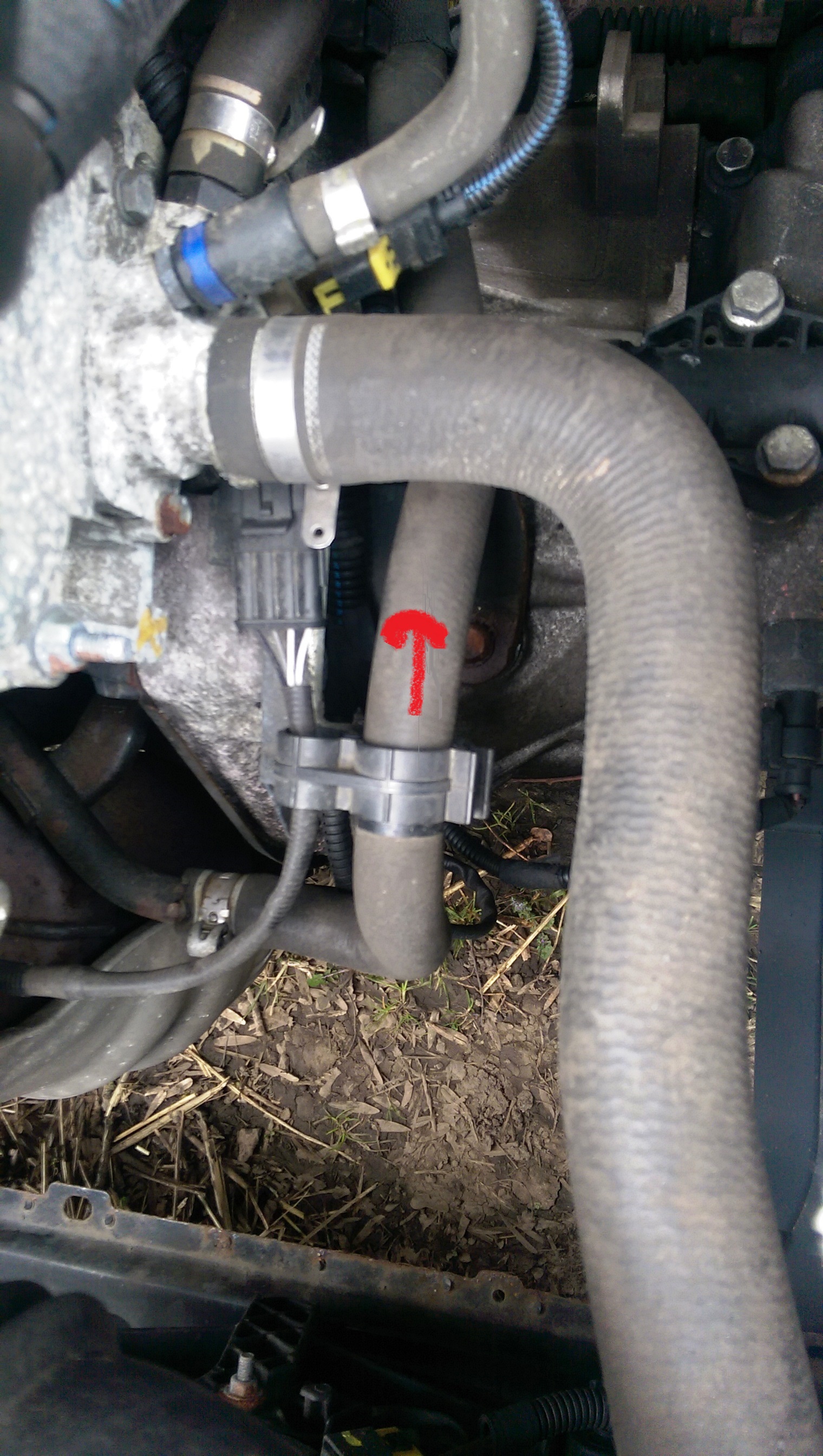

Can someone tell me the name and if possible part number of the hose highlighted with a red arrow in the first diagram please? One end of the hose is connected to the heater source of the car and the guy who checked it for me called it the 'heater hose pipe'.

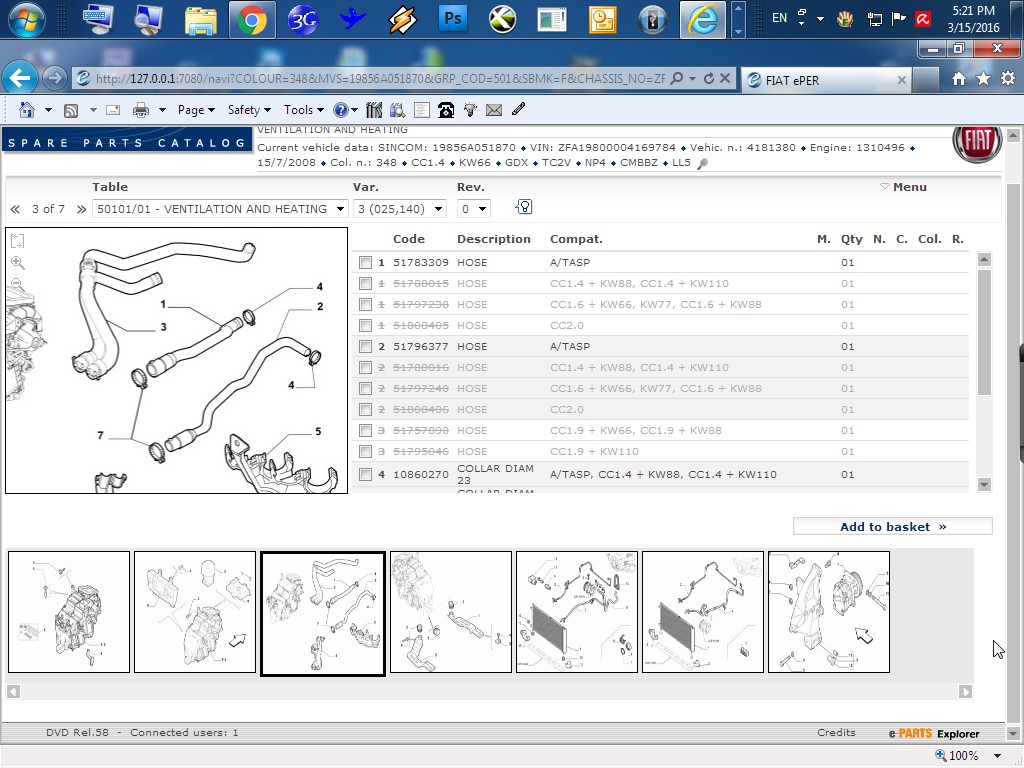

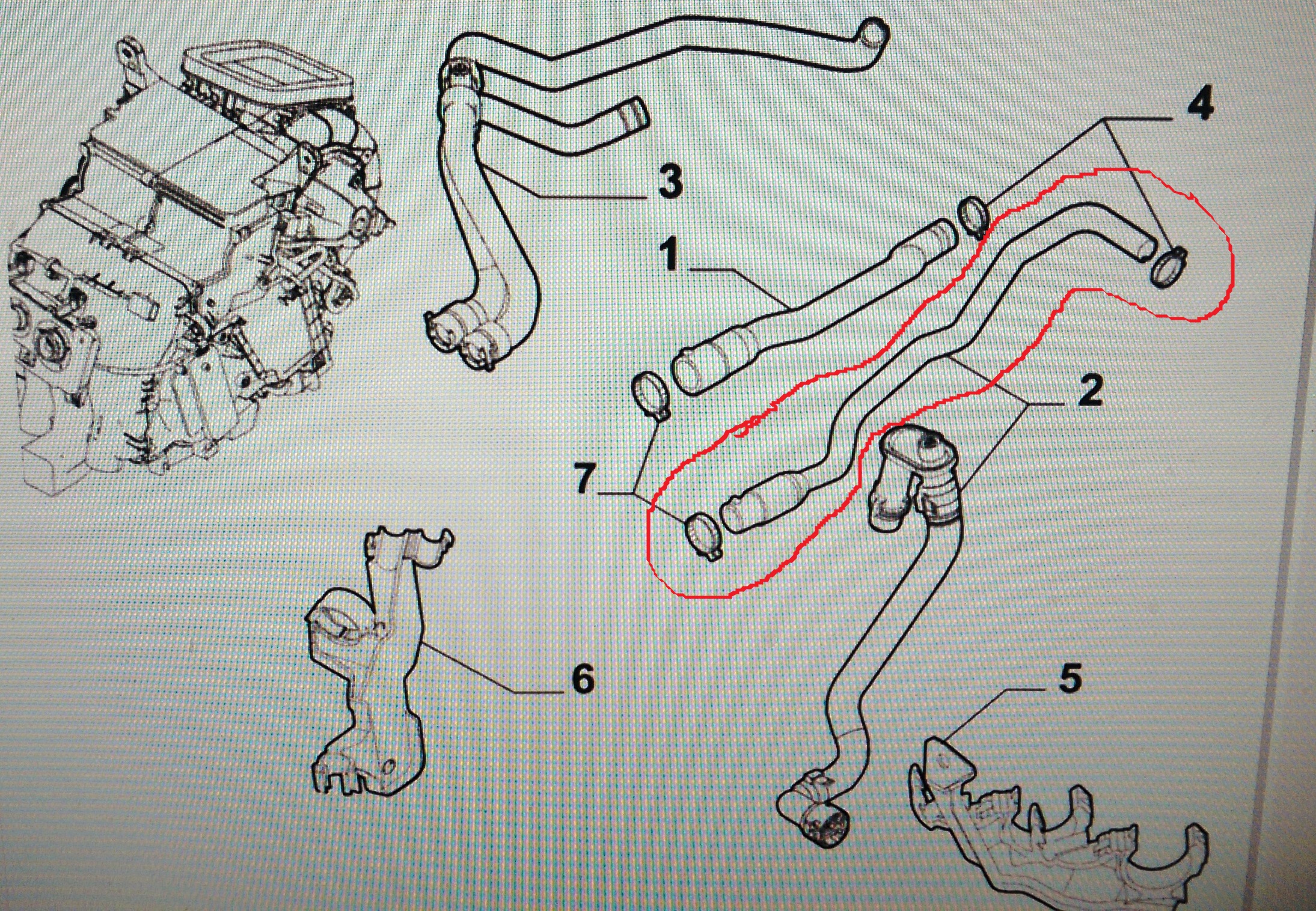

Basically, it had been resting on the clutch and the heat generated from the clutch has made a big hole in it. Consequently, I'm losing significant amounts of antifreeze from the hole in this hose. I'm trying to get a replacement hose but I'm not 100% sure what the part is. I think it's the long hose numbered 2 in the 2nd attached diagram?


Any help/suggestions will be greatly appreciated.



[aschiuta]

Post the VIN number = zfa.......... of the car.



[olydabest]

19800004169784

Thanks



[aschiuta]

1.4, 90cv, emotion, euro4.



[olydabest]

Thanks for your reply. So it's definitely the hose numbered 2 in your diagram?
Also, do you think that I should get the end clips i.e. 4 and 7 along with the hose?
