Technical Cruise retrofit on Punto

[fv43576]

My new HGT 1.9 has not got a cruise control as my other HGT 1.9 which have cruise control, I really wish that I have took it off before scrap the car.
I don't see any stalk with smooth head dome at the end with button.
On eBay etc don't sell, only from Fiat dealer cost £287.55. I have cruise plug 5 pins under steering wheel cover.
Will it the stalk from Grande Punto & Stilo 5pins can fit direct to the steering below indicator stalk?
I have Multiecuscan to learn cruise control and I have a clutch & a brake switch for switch off when touch the pedal.



[varesecrazy]

My new HGT 1.9 has not got a cruise control as my other HGT 1.9 which have cruise control, I really wish that I have took it off before scrap the car.
I don't see any stalk with smooth head dome at the end with button.
On eBay etc don't sell, only from Fiat dealer cost £287.55. I have cruise plug 5 pins under steering wheel cover.
Will it the stalk from Grande Punto & Stilo 5pins can fit direct to the steering below indicator stalk?
I have Multiecuscan to learn cruise control and I have a clutch & a brake switch for switch off when touch the pedal.

any form of switch is pretty simple,
BUT have you got the wiring loom in place..??

that was my issue - ECU supported cruise though - 1242 sporting



[fv43576]

On Eleganza and HGT cruise control was on option. I see a loom wire with black tape and with connect hang in air and it is already to fit, one connect inside cover at near indicator stalk and other connect find near the clutch pedal. I have fit a switch and put the connect on top. But now I am look for cruise control stalk from Alfa/Fiat with 5 pins from scrapyard at the moment.



[fv43576]

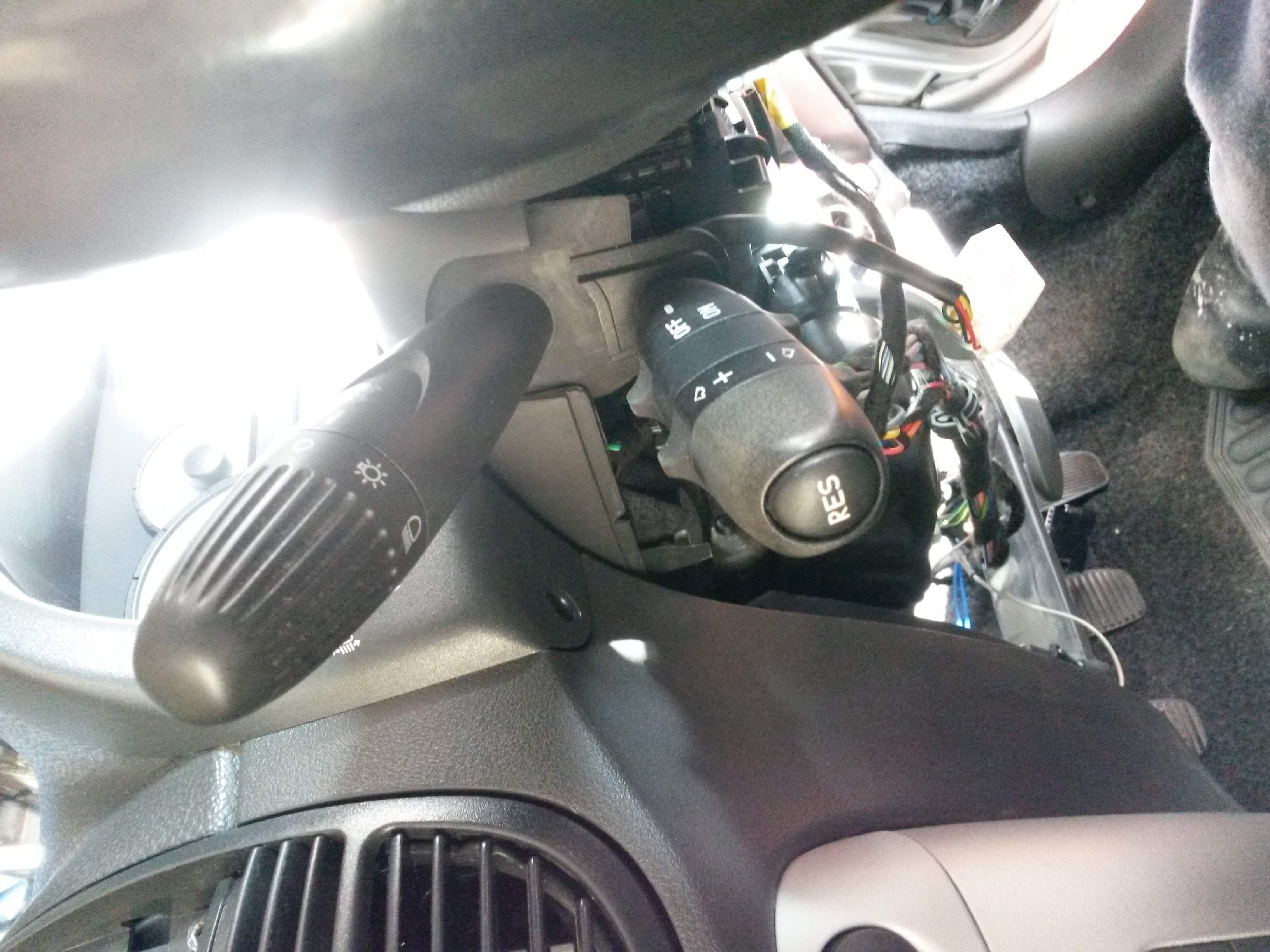

Bought Alfa 147 cruise stalk £14.99 from scrapyard near my home, and fit but with a little modifier.

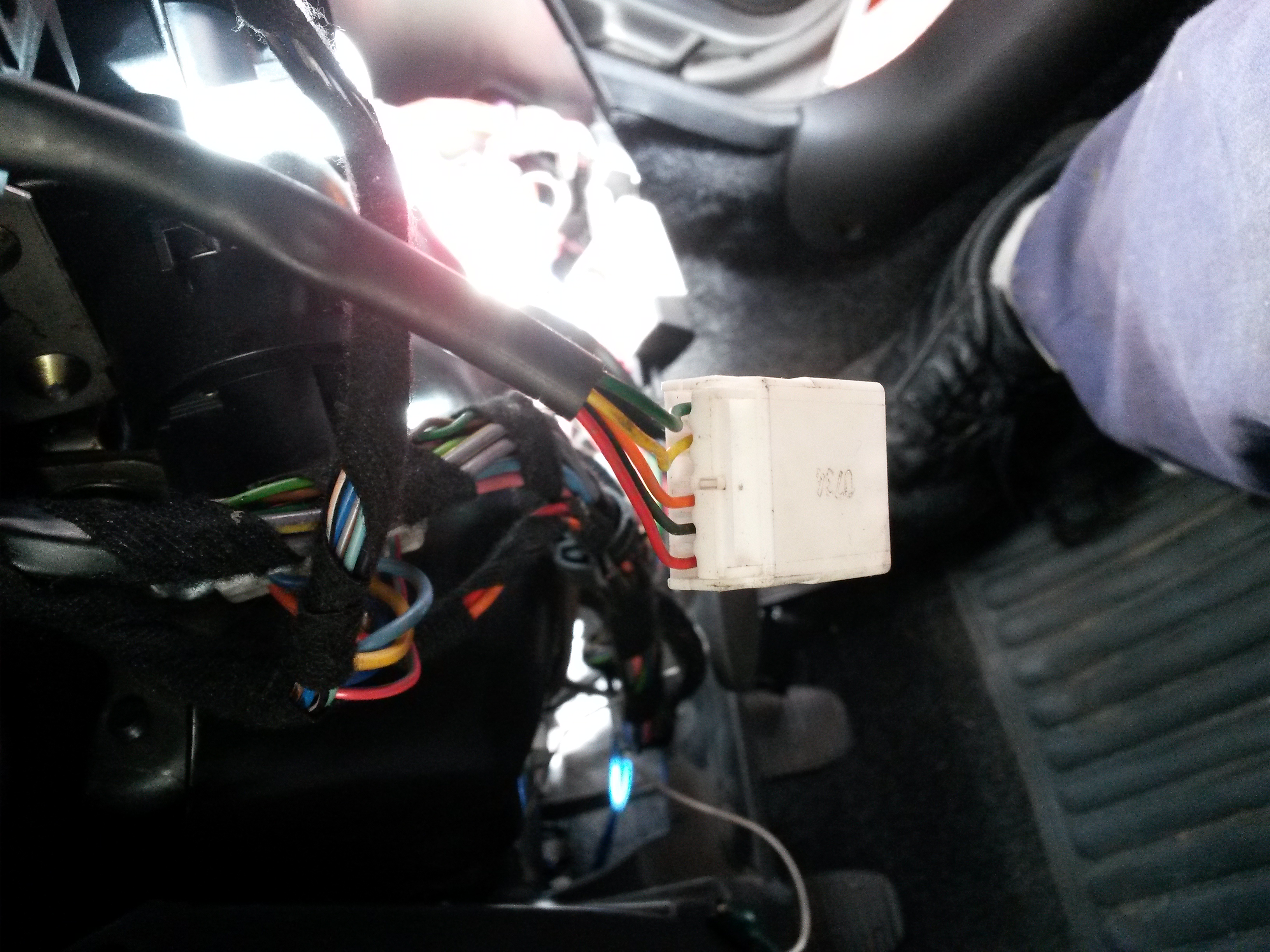

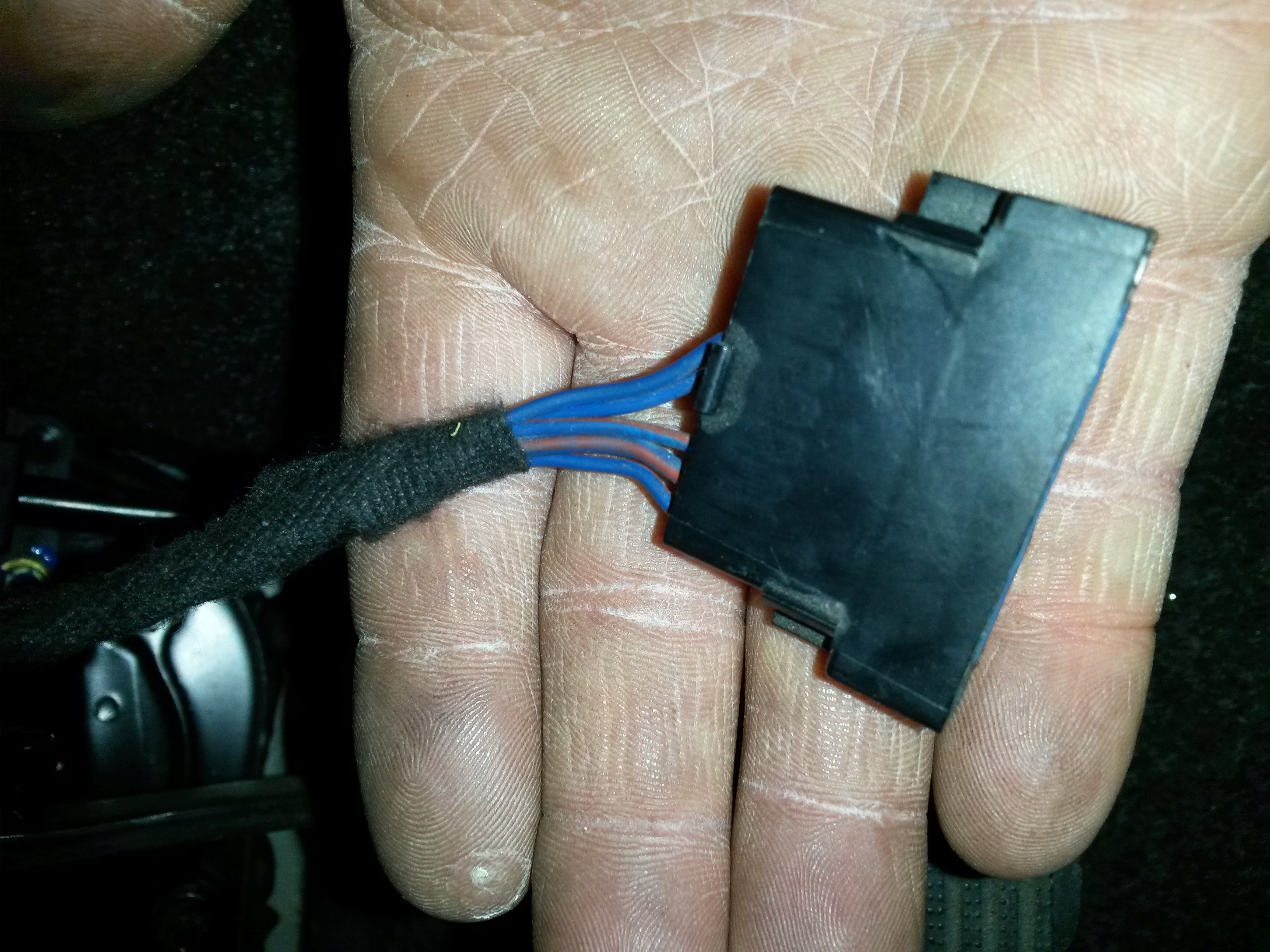

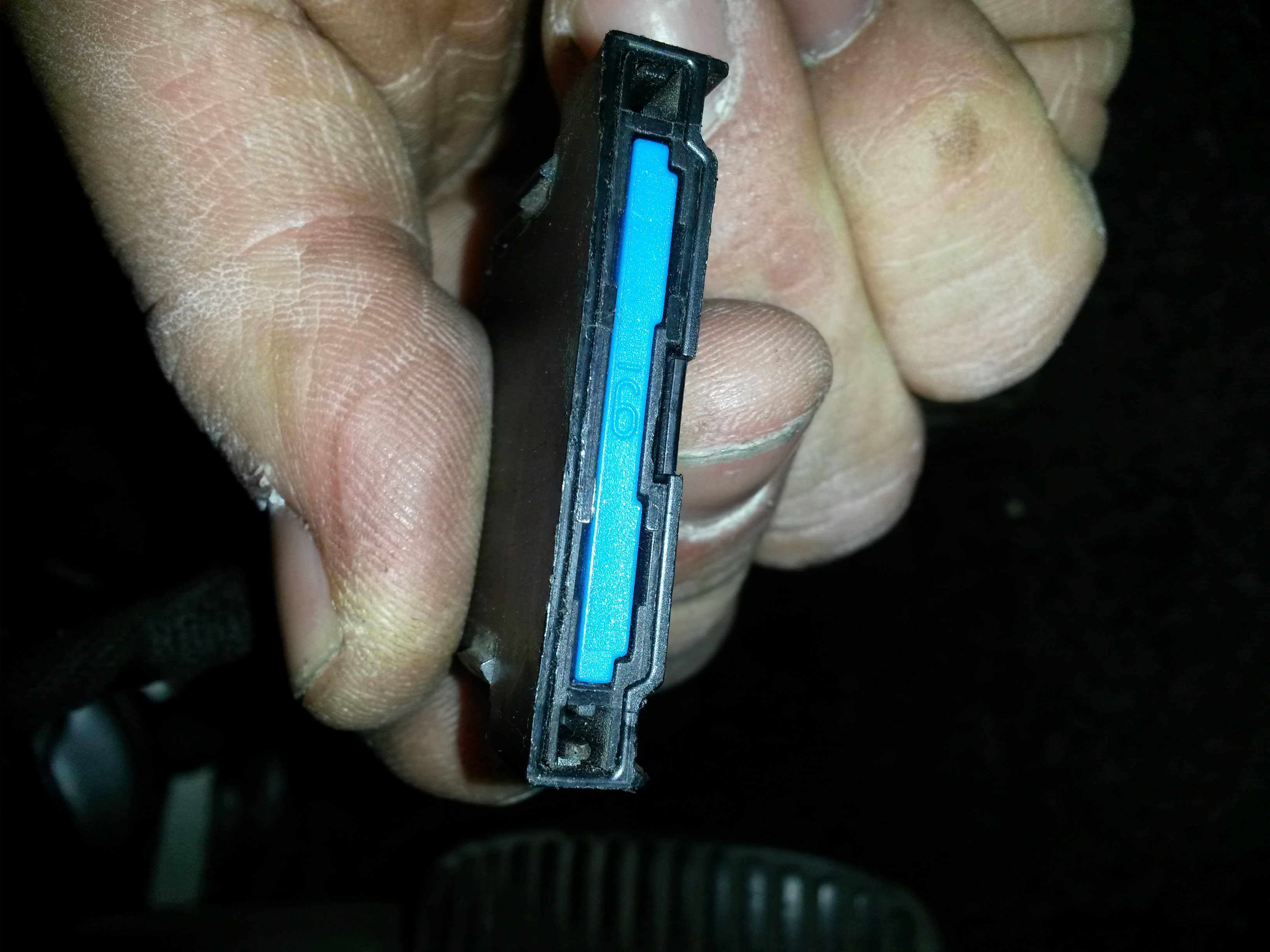

I have been search for the connect to plug the stalk it was suppose to be in somewhere in near the steering wheel column. My brother's Punto 1.9jtd 85 had plug hang 5 pins white connect but my is not there, I have found one connect but not sure if this is the right one but I don't think so
I have search other Fiat forum for similar cruise fit but I have not see it.



[flisko]

so it works?



[varesecrazy]

Bought Alfa 147 cruise stalk £14.99 from scrapyard near my home, and fit but with a little modifier.
I have been search for the connect to plug the stalk it was suppose to be in somewhere in near the steering wheel column. My brother's Punto 1.9jtd 85 had plug hang 5 pins white connect but my is not there, I have found one connect but not sure if this is the right one but I don't think so
I have search other Fiat forum for similar cruise fit but I have not see it.

Hi,
AndyRKett had a punto with cruise.. he MAY still have photo's..?,

Charlie



[AndyRKett]

Photos here, https://www.facebook.com/media/set/?set=a.141951695946211.29042.102615323213182&type=3

The connector in the pictures above looks like an earthing block joining a number of earths together which is why it's blanked off.

From the pictures you posted it doesn't look like the wiring is there



[fv43576]

Oh da*n, I don't have the connect but found a instruction from German have the diagram and I think it is possible I will be able do myself follow the wiring or make my own wiring.



[fv43576]

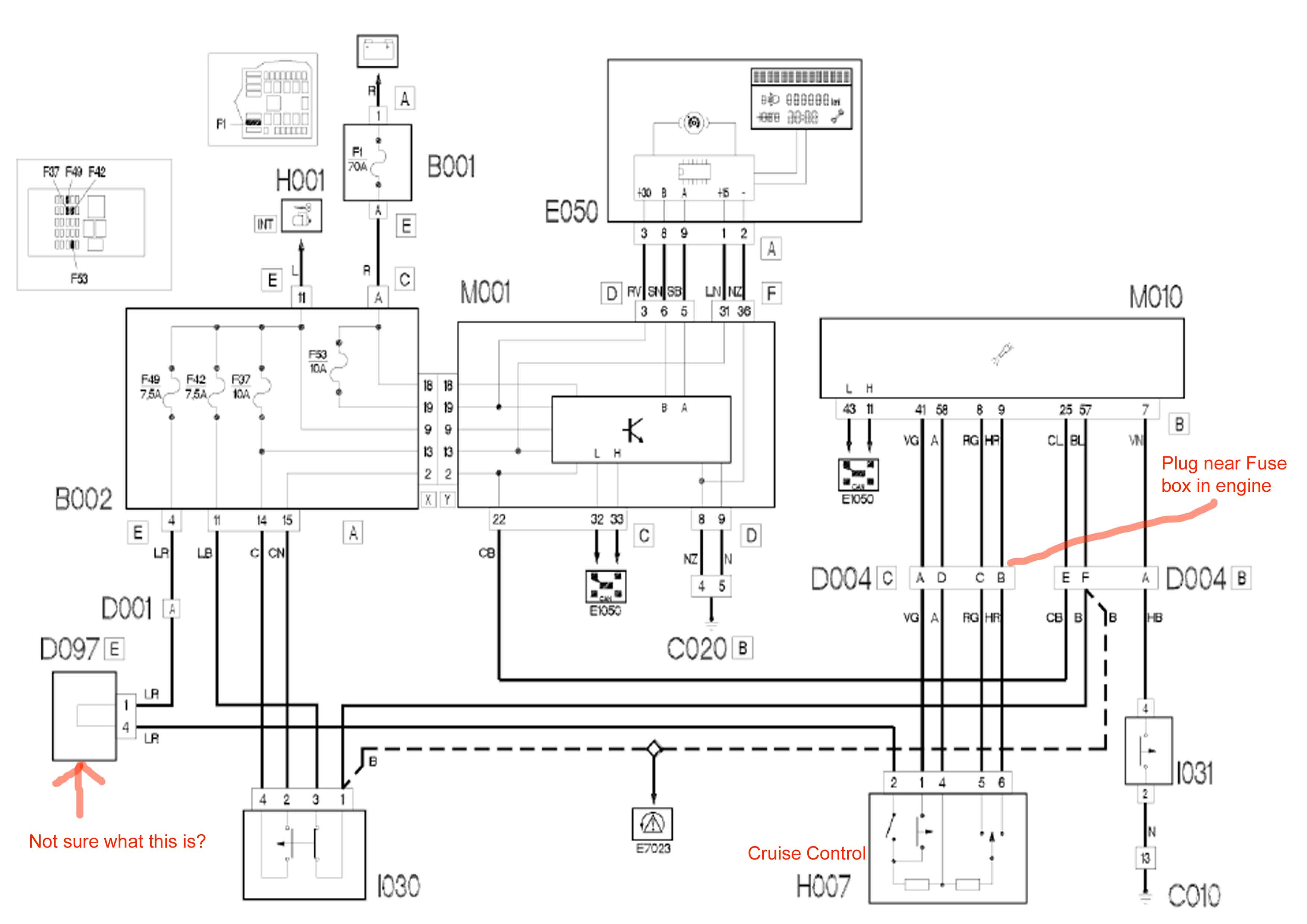

Update: found the plug under the engine fuse box, colour wire is match to the diagram but in wrong order. Later try fit temporary wire from the plug to the cruise stalk plug see what happen, but one more wiring colour is Red/Blue still have not got a clue what is the picture in diagram number D097? is that relay or resistance?



[fv43576]

Finished my cruise control have work! not required to relearn from Multiecuscan because it is already setting.
I will do guides how to do it for other people who want to fit theirs cruise control on Punto



[flisko]

Finished my cruise control have work! not required to relearn from Multiecuscan because it is already setting.
I will do guides how to do it for other people who want to fit theirs cruise control on Punto

nice, what do you need to wire and where?
from which car you took cruise control stuff?



[fv43576]

I have make a guide with picture and explain how do it (sorry my English is not perfect)
see https://www.fiatforum.com/punto-mk2-2b-guides/435272-fit-your-own-cruise-control.html



[flisko]

you could add some pictures



[fv43576]

The picture is already in guide see paper clip on top right click that one
https://www.fiatforum.com/misc.php?do=showattachments&t=435272



[flisko]

cant see paperclip, i think you need to add pictures in guide cuz probably only you can see them



[Ziggy122]

cant see paperclip, i think you need to add pictures in guide cuz probably only you can see them

Snap
I cant see paperclip or pictures

Only can see pictures on the guide link you posted for pictures

Ziggy



[fv43576]

I have been log out like I am new person and still work and I can see picture



[fv43576]

I think too much memory, I am try to down size!



[fv43576]

I can't understand why you all can't see my picture something gone wrong here I am investigation



[fv43576]

Still have not a clue why it not work but I will post here again:

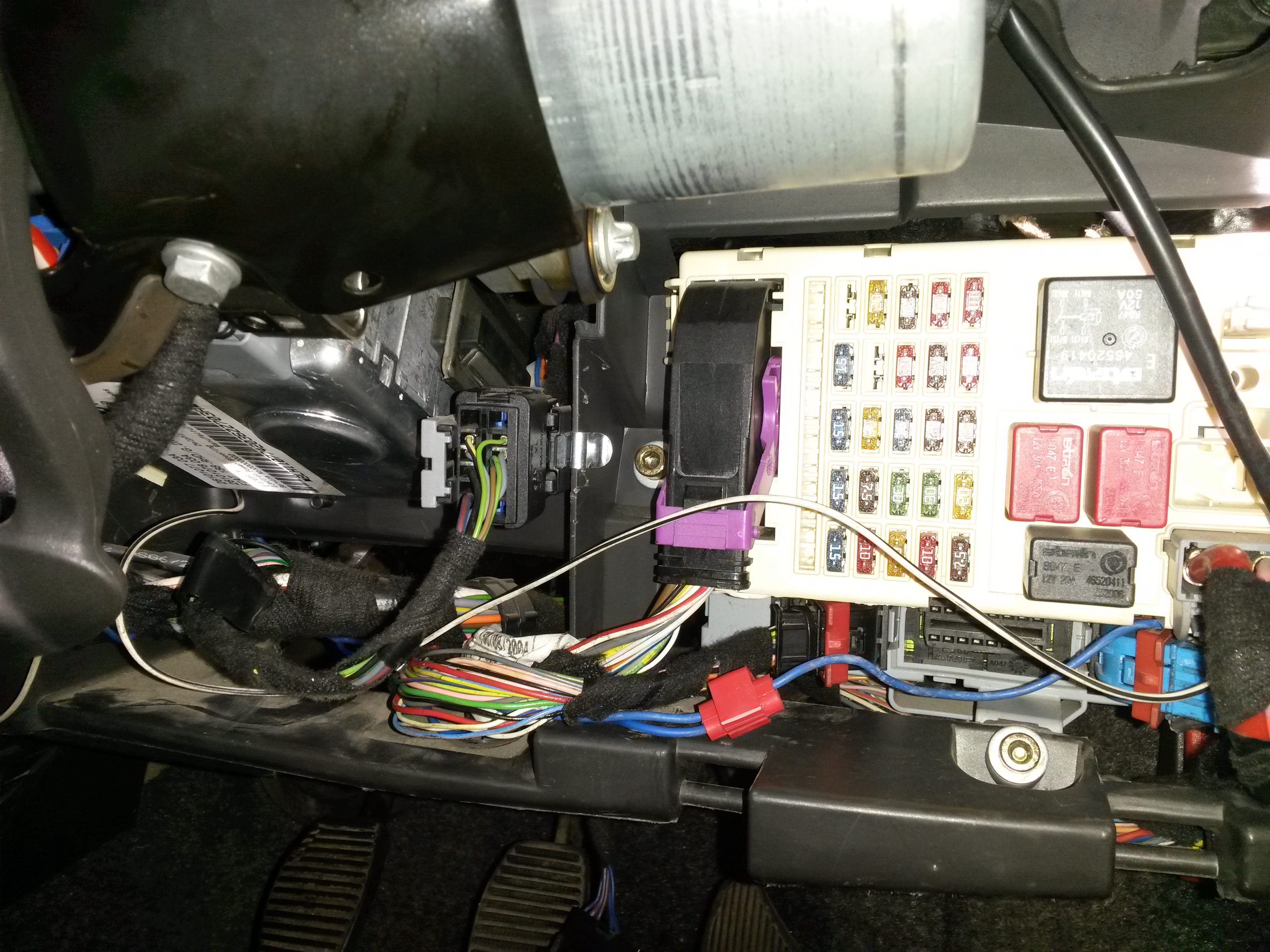

Look at the fuse box near the battery under there is 4 wiring plug. If your don't have then you need to wiring up from ECU pin number 41, 58, 8 and 9 (SEE WIRING DIAGRAM)

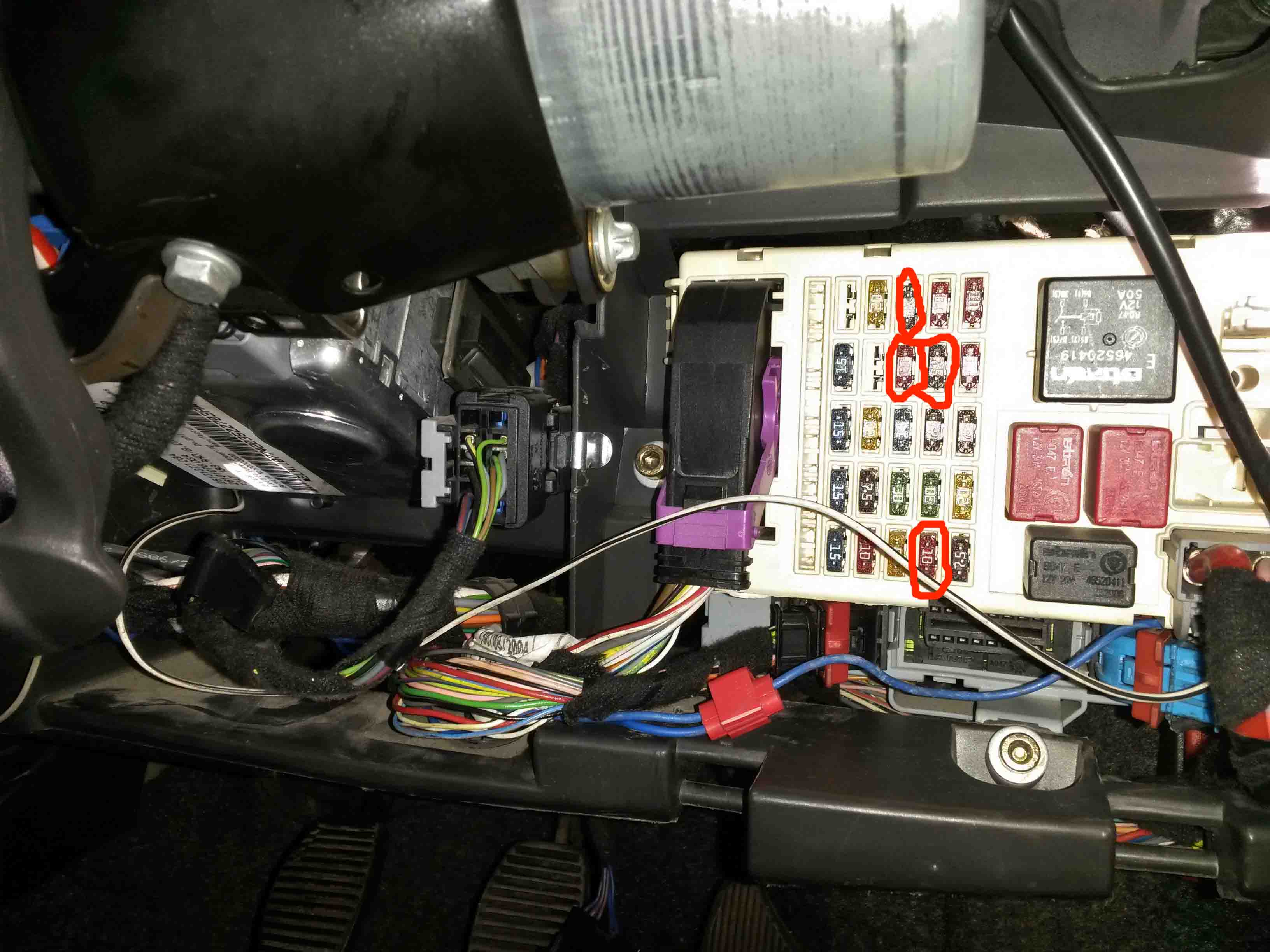

1) Check the fuse number F1 70amps is insert and go interior look at the fuse number F37 10amps, F42 7.5amps, F49 7.5amps and F53 10 amps if your is not there insert it. The clutch switch check if your still have them if not you can buy them from EBay £6

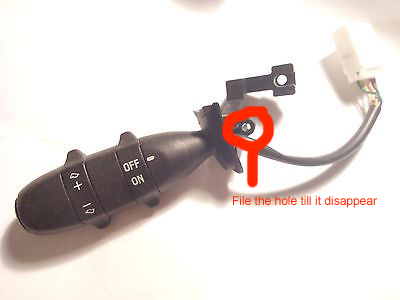

2) My Alfa 147 cruise control stalk from scrapyard £14.99 with 5 pins (5 wiring) remove undercover from steering wheel, the cruise stalk arm holder remove the second hole (see picture) with file till the hole disappear otherwise it won't fit, tight up with one screw.


3) Drill a 7mm hole under near the heated fan motor on the passenger side, buy 4 of 5amps 3 meters wiring and put it through the hole from inside it will be more easy.

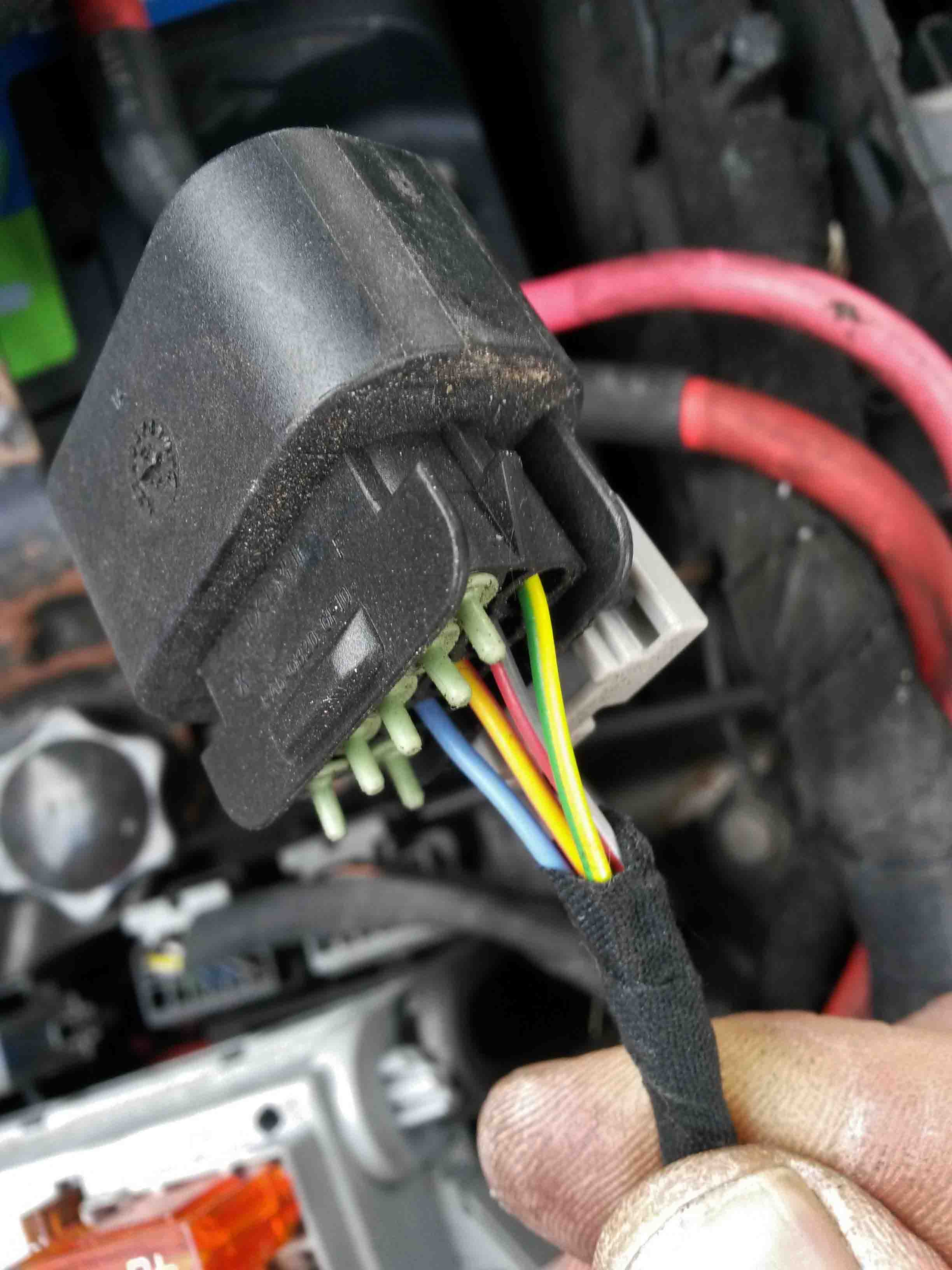

4) Cut the plug off from fuse box in the engine and tight it up 4 wires with pearl terminal blocks, and connect it to your own 5amps wiring from the interior (to make sure to put up label and write the colour name at end of wire at interior)


5) Cut off the cruise stalk plug and fit same 5 pearl terminal blocks


the colour wiring match is:

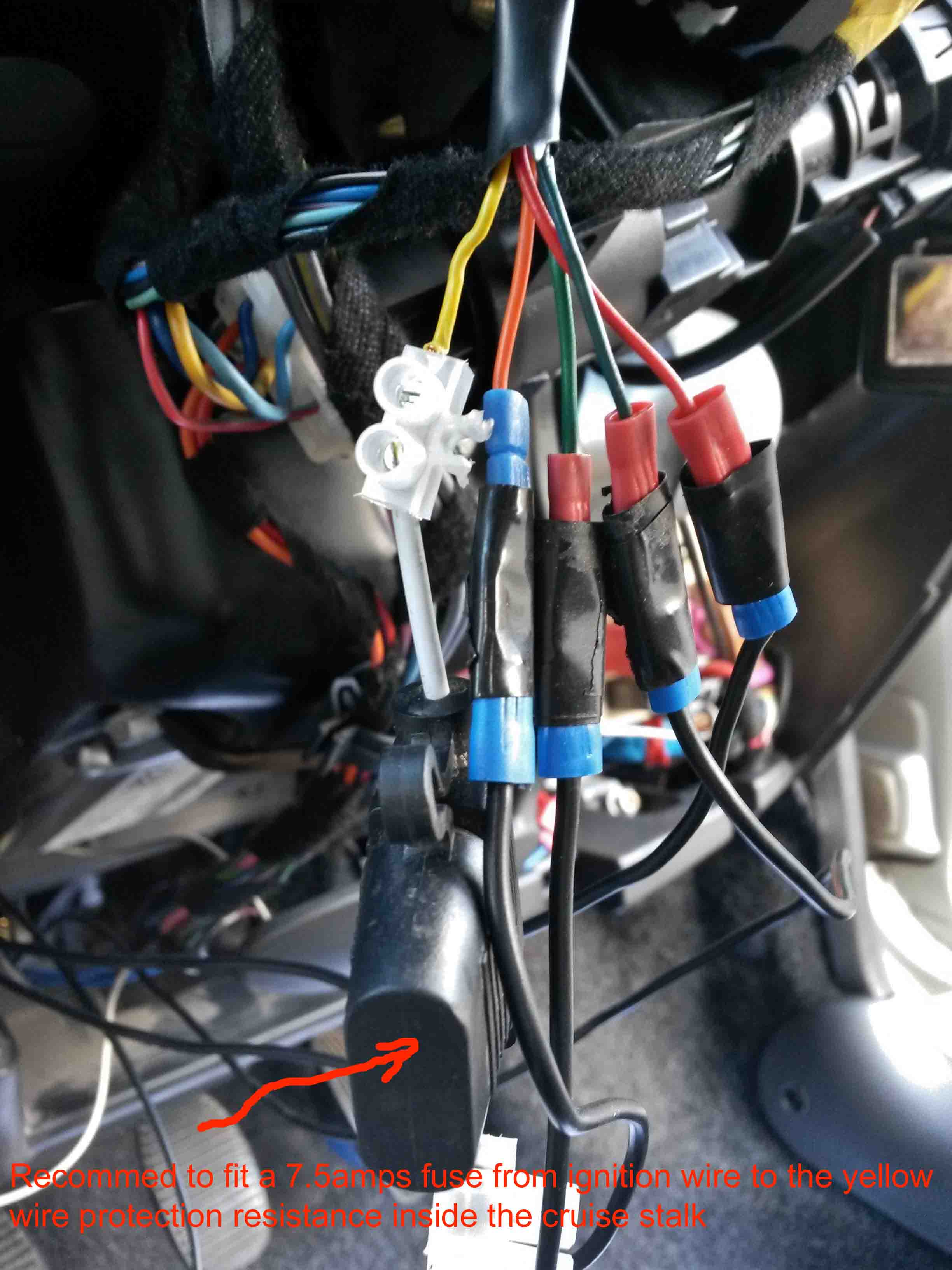

Switch on/off: yellow to the ignition wire with 7.5amps fuse


Resume button: green with green/yellow


info send to ECU: orange with light blue


- decrease speed: dark green (some have black or navy) with red/grey


+increase speed: red with red/yellow


6) On HGT and Eleganza already have setting from ECU which is not required to relearn, you can see cruise light icon on speedometer when you switch it on.
(But I am not sure about the Sporting, Dynamic and the Active mind need to use Multiecuscan and relearn it)


Test drive to make sure the cruise go off when touch the brake, clutch some other Fiat it will go off when apply the handbrake and pull out of gear.
Try to use the increase and decrease speed knob and the resume button,


if everything is works fine then tape up all the connect to protection from damp/wet and short circuit then refit the undercover.


Good luck!
