Thanks. The wiring diagram for the Bosch’s radio seems hard to come by.

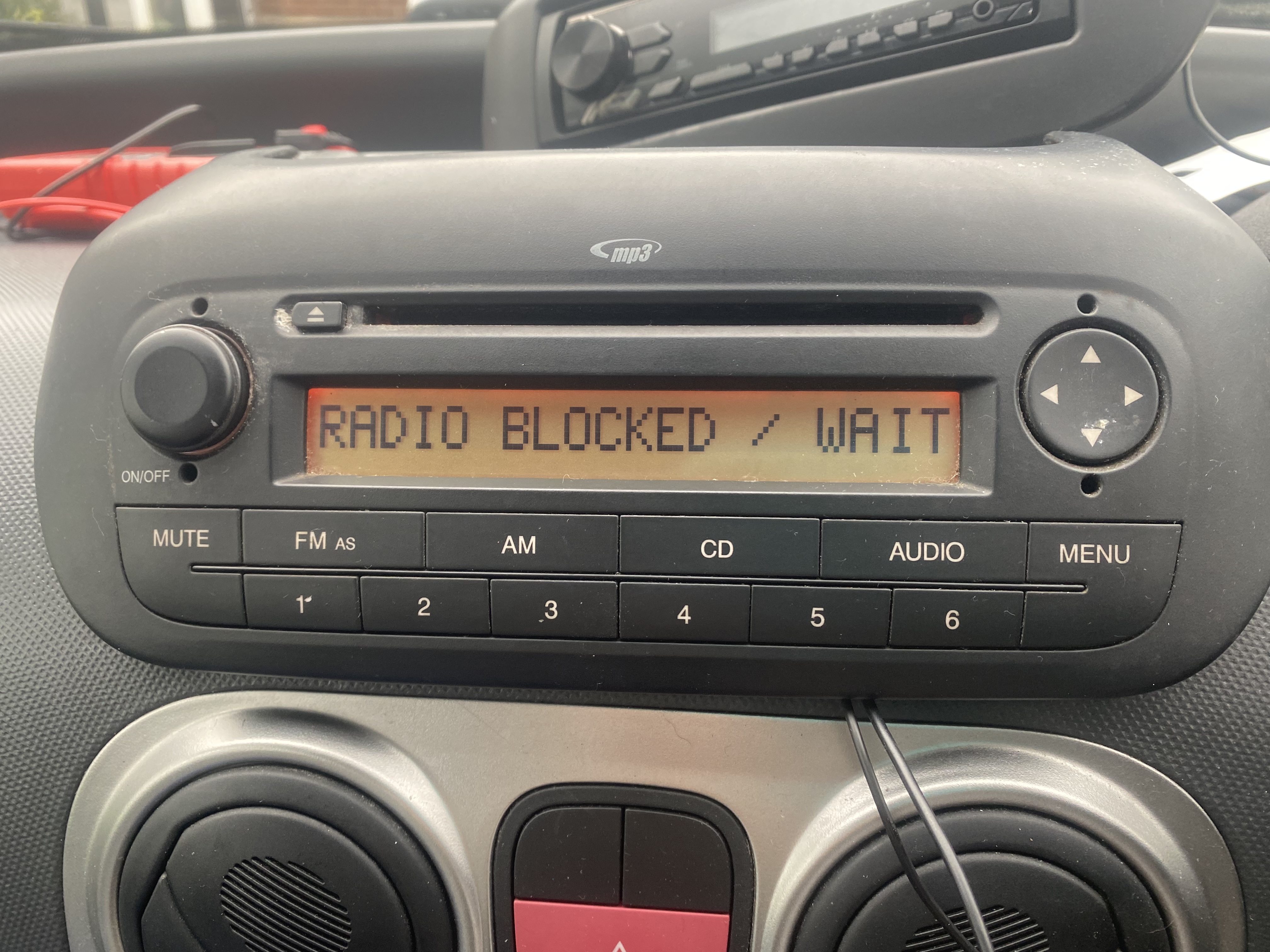

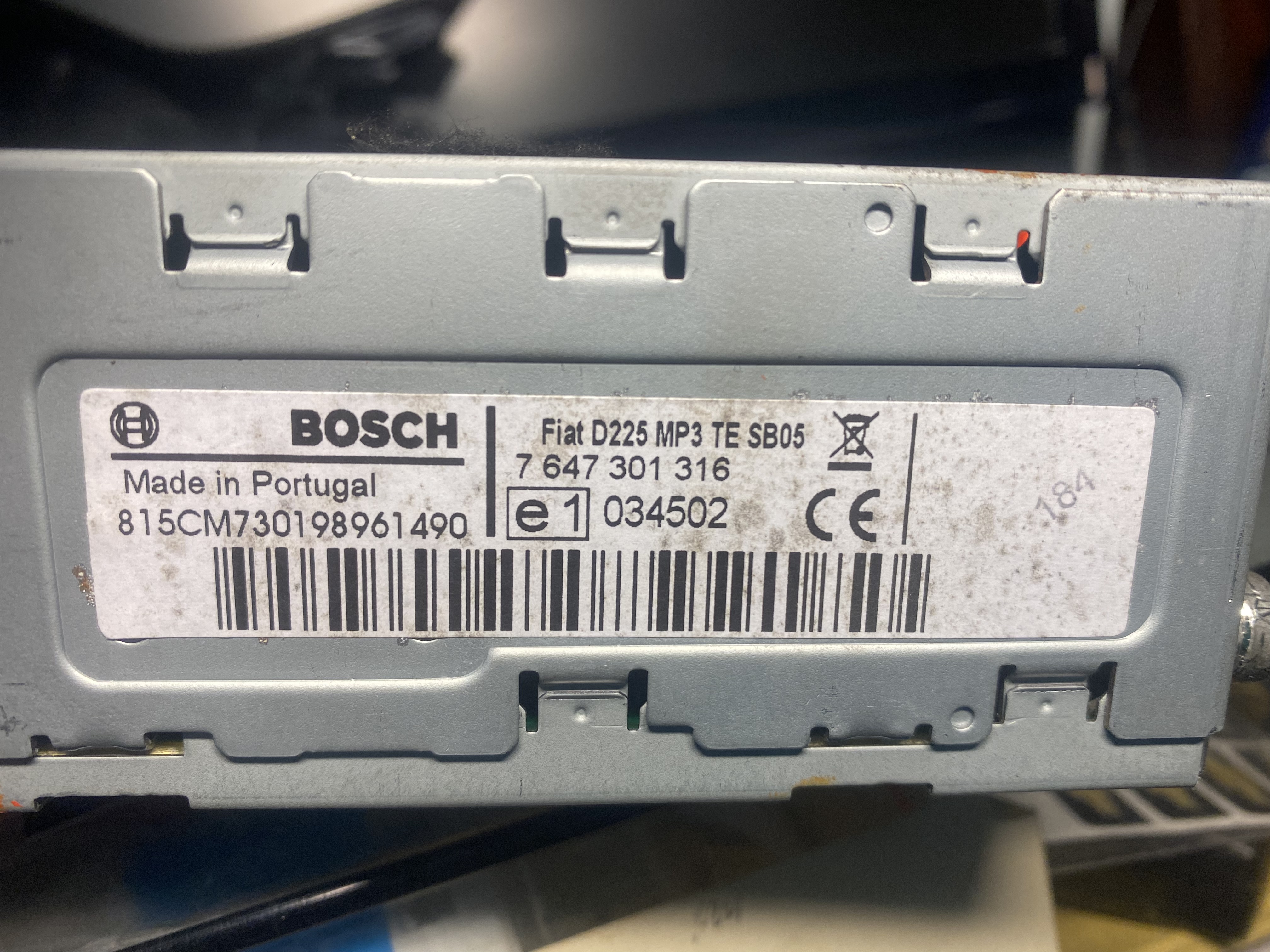

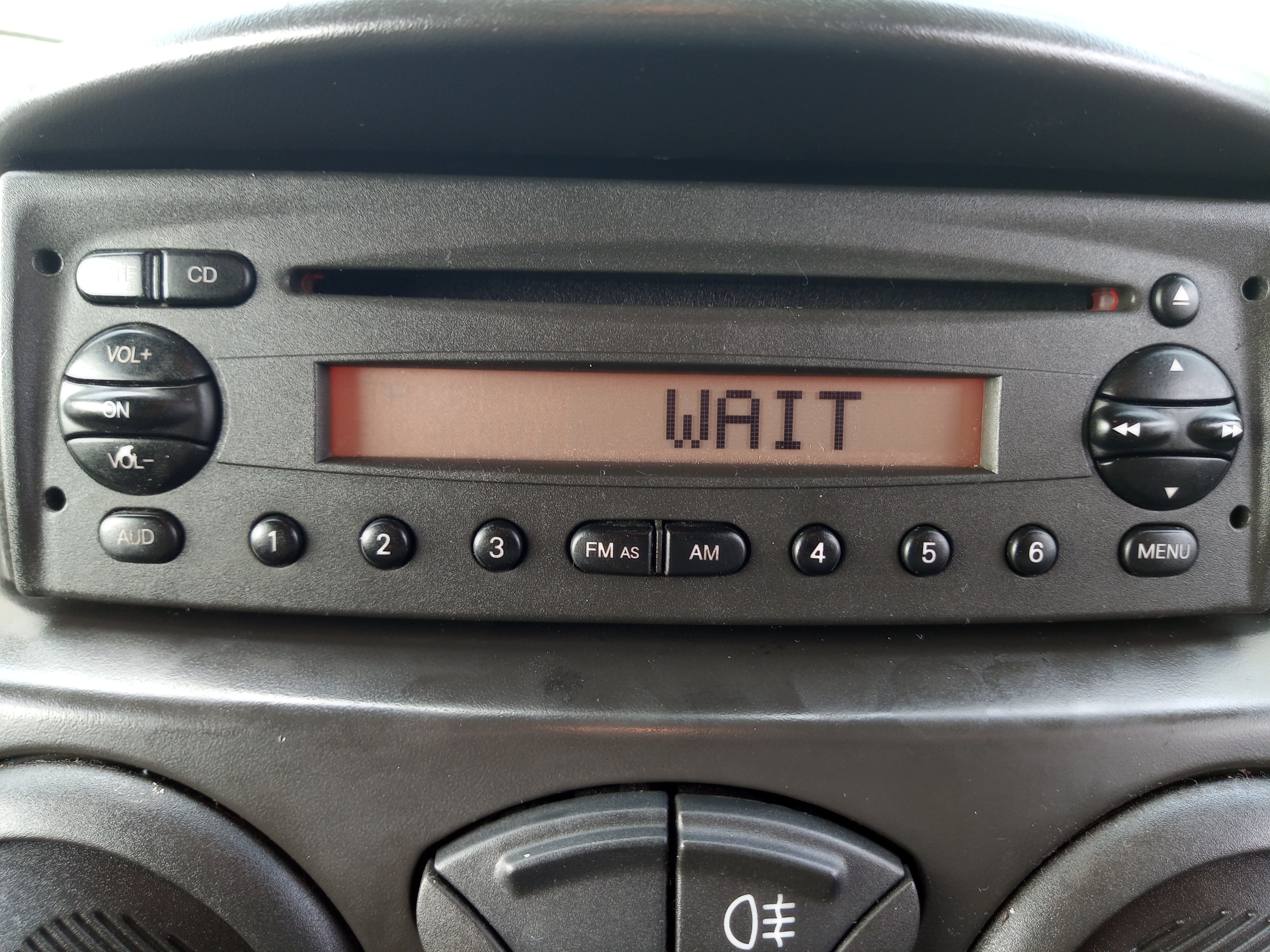

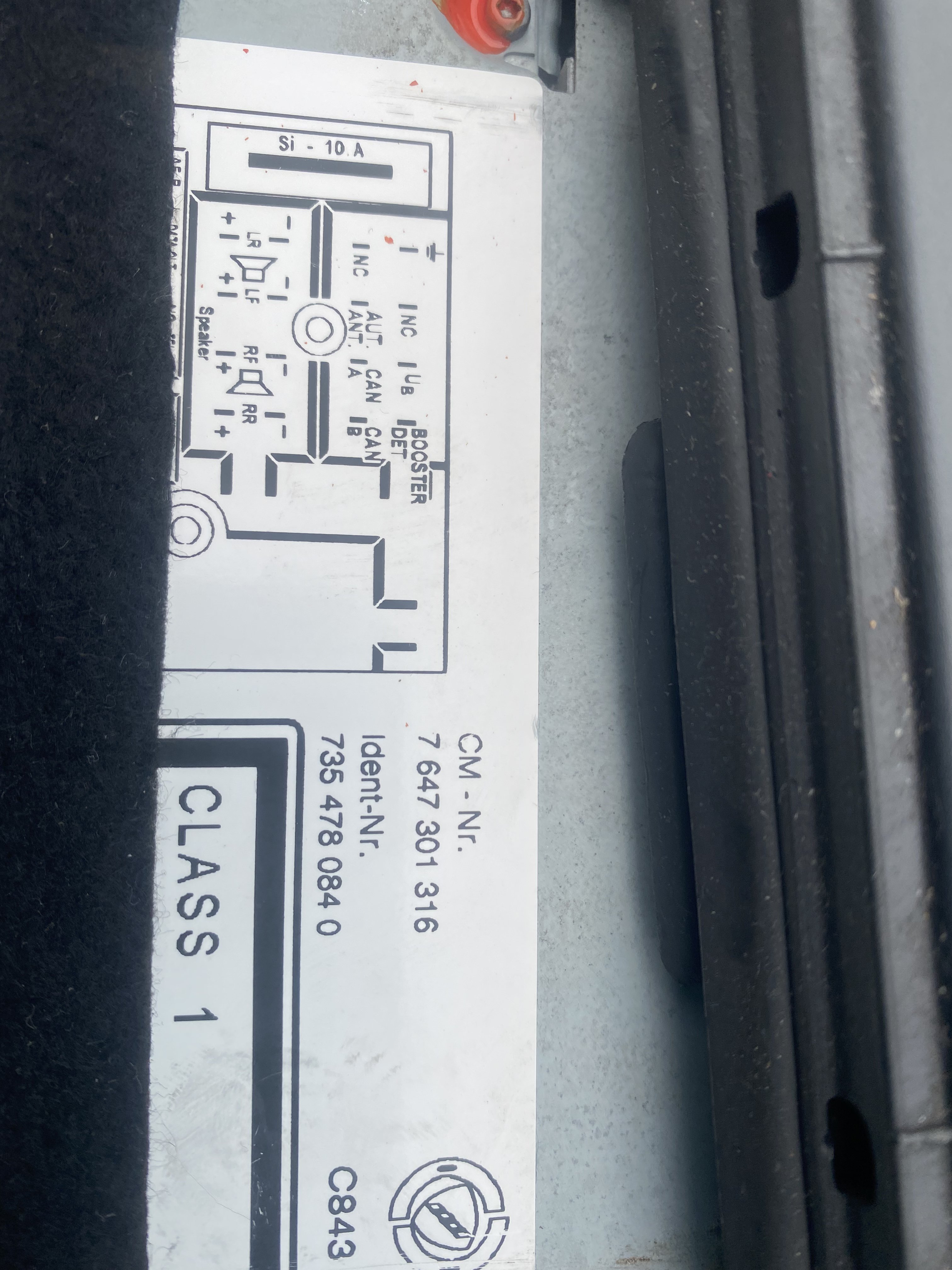

You do have the wiring diagram, it is that label in one of your pics, showing the pin connections of the connector.

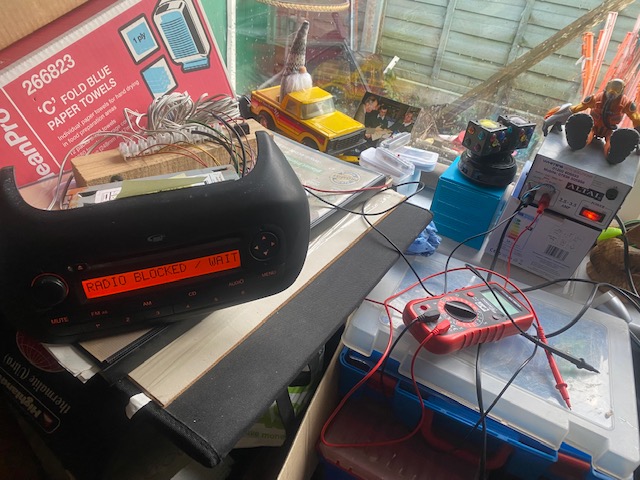

Sadly, this radio is for a CanBus vehicle, which is probably correct for your vehicle. That means that bench testing is much more difficult.
You get a permanent live feed, and an earth, and the two CanBus wires. (They'll be quite thin wires) The radio is told whether the ignition is on by the CanBus data, which is difficult to replicate, unless you have the necessary equipment. The blue wire is usually the feed out to the aerial. Used for electric aerials years ago, now used to power the aerial amplifier, and the radio outputs 12v to this when switched on. Not a good idea to put 12v in. Also, putting 12v into either CanBus wires can lead to tears.
I think the body computer has the radio data in it, so will need to be connected to the car when the code is input, for the car to accept it. I'm not sure how this works, but I'd have hoped the car would just accept the code when entered into the radio, but might need the diagnostic software (
MES) plugged in.
Edit: Just checked
MES (
MultiECUscan). Radio is listed as one of the CanBus nodes, but not as a separate item available for specific actions. I'd guess from that, the radio needs its code entered, and afterwards, may need a proxy alignment with
MES to make it part of the team.
