General 2.0 20v turbo in Brazil

Currently reading:
General 2.0 20v turbo in Brazil

zovin

New member
Joined
May 25, 2005
Messages
9
Location
São Paulo - Brasil
I saw a thread were is on discussion the horse-power of the Marea Turbo produced in Brazil.

As a own of Marea Weekend Turbo, I can say: this car has, originally, 182 hp.

This reducion (220 hp to 182 hp) is due the project of the car (it´s designed for familiys here in Brazil, and the Fiat Brazil was not interested in serious modifications on it´s project, like brakes, suspension,...), not because the fuel sold in Brazil (by the way, the alcohol is better to do an improvement on the engine of the Marea Turbo).

My car has some modifications, and it´s have about 240 hp´s.

I have made exhaust and admission improvements, and remap.

I hope I can solve some doubts...

OP
OP
Z

zovin

New member
Joined
May 25, 2005
Messages
9
Location
São Paulo - Brasil
My car already has air filter.

By the way, here it´s my car:



(in the next two photos it´s the second in the line)



Last edited:

bulldog5046

faster! FASTER!!!
Joined
May 8, 2005
Messages
9,053
:worship: your car is so sexy, what suspension did you use to lower it? over here we cant get anything specific for the Marea Weekend.

and would you mind telling me how much Marea Weekend Turbos go for in brazil? i would damn like to import one (y)

Thank You,
Ryan Edge


Fernando

New member
Joined
Aug 26, 2003
Messages
59
Location
Brazil.
bulldog5046 said:
:worship:
and would you mind telling me how much Marea Weekend Turbos go for in brazil? i would damn like to import one (y)
Ryan Edge

A brand new Marea Turbo goes for around 20-21k pounds, although you could find a used one for much less... For example a 2004 turbo weekend goes at about 16k pounds...


Fernando

New member
Joined
Aug 26, 2003
Messages
59
Location
Brazil.
Hellcat said:
I think you want to be exporting to Brazil, not importing!

Kerching!

:D
Exactly! Despite the fact that this particular model has ABS, EBD, Electrochromic Rear View mirrors, dual airbags and the works, prices in Brazil for new cars are soaring :(
For instance, do you know how much one has to pay for a new Corolla SE-G around here? 21k pounds!
But, as in England, depreciation hits Mareas hard, so we less fortunate ones can buy good cars for much less than those prices :D


Fernando

New member
Joined
Aug 26, 2003
Messages
59
Location
Brazil.
bulldog5046 said:
hmmm...could you just bolt the turbo on a 2.0 20v here?

As far as I know (but you should probably confim it with Zovin if there are not any more differences) the engines are the same but the 2.0 20v turbo uses Graphited pistons (I'm pretty sure they are coated with the stuff rather than being made out of graphite, kinda like forjed)...
Aside from that, I bet you could easily turn your 2.0 into a factory turbo (you would need to buy the intercooler as well, of course), although I think you won't want to import the original turbine, since 'everyone' around here tends to upgrade the turbine to a bigger one when they want more power. So, since you'll be buying one, I think you would rather want to buy the bigger one instead.
If only you could read portuguese (can you?), I could point you to quite a few topics on the Brazilian Marea Club (www.clubedomarea.com.br) that are about this specific conversion...
Anyways, if you choose to do it, I am sure me and Zovin can try and translate some of the more important information about it for you :D

P.S. By the way, at least here, the break callipers and disks on the 2.0 20v and the 2.0 20v turbo are different (the turbo's are bigger)... although the 2.4 and the turbo callipers are the same, so maybe you could upgrade yours to the 2.4's and have more breaking power on your soon to be 2.0 turbo ;)

Last edited:

bulldog5046

faster! FASTER!!!
Joined
May 8, 2005
Messages
9,053
Fernando said:
As far as I know (but you should probably confim it with Zovin if there are not any more differences) the engines are the same but the 2.0 20v turbo uses Graphited pistons (I'm pretty sure they are coated with the stuff rather than being made out of graphite, kinda like forjed)...
Aside from that, I bet you could easily turn your 2.0 into a factory turbo (you would need to buy the intercooler as well, of course), although I think you won't want to import the original turbine, since 'everyone' around here tends to upgrade the turbine to a bigger one when they want more power. So, since you'll be buying one, I think you would rather want to buy the bigger one instead.
If only you could read portuguese (can you?), I could point you to quite a few topics on the Brazilian Marea Club (www.clubedomarea.com.br) that are about this specific conversion...
Anyways, if you choose to do it, I am sure me and Zovin can try and translate some of the more important information about it for you :D

P.S. By the way, at least here, the break callipers on the 2.0 20v and the 2.0 20v turbo are different (the turbo's are bigger)... although the 2.4 and the turbo callipers are the same, so maybe you could upgrade yours to the 2.4's and have more breaking power on your soon to be 2.0 turbo ;)

wow, thanks for all that info, if you could post the links to the threads i would be most greatful, i will try use google translator to translate it and then repost it here for the benifit of our members.

Cheers,
Ryan Edge


Fernando

New member
Joined
Aug 26, 2003
Messages
59
Location
Brazil.
bulldog5046 said:
wow, thanks for all that info, if you could post the links to the threads i would be most greatful, i will try use google translator to translate it and then repost it here for the benifit of our members.

Cheers,
Ryan Edge

Will do. :D

http://www.clubedomarea.com.br/forum/index.php?showtopic=9348 (info on the original turbo (Garret) that the Marea Turbo uses).

http://www.clubedomarea.com.br/forum/index.php?showtopic=7707 (info on turbo pressures (factory defaults) - see post by GUSTAVO79)

http://www.clubedomarea.com.br/forum/index.php?showtopic=6563 (post about one Marea turbo that reached 314 BHP with the original turbine - didn't last very long though... ;) thus the upgrade :D )

http://www.clubedomarea.com.br/forum/index.php?showtopic=6637 (post about one person wanting to use a Garret GT25 turbine and what parts he would use)

http://www.clubedomarea.com.br/forum/index.php?showtopic=5757 (pictures and info on a modded Marea Turbo (turbo and muffler upgrades)

http://www.clubedomarea.com.br/forum/index.php?showtopic=8808&hl=turbina (this post, specially the answer by WEILER describes the differences between the 2.0 and the 2.0 turbo, but don't be discouraged by them, you can still do a great upgrade on yours ;) )

Well, I hope this helps out a bit... If you have problems with the translation, just ask, I'll try to help you out.
Cheers

Last edited:
OP
OP
Z

zovin

New member
Joined
May 25, 2005
Messages
9
Location
São Paulo - Brasil
bulldog5046 said:
:worship: your car is so sexy, what suspension did you use to lower it? over here we cant get anything specific for the Marea Weekend.

and would you mind telling me how much Marea Weekend Turbos go for in brazil? i would damn like to import one (y)

Thank You,
Ryan Edge

Ryan, I use standard shock absorbers and springs made by AG Kit (www.agkit.com.ar).

As I know, you have the Eibach springs for Marea Weekend. Some guys here in Brazil has Eibach springs on his Marea´s Weekend, and they say that is much better than AG Kit springs. I can't say, for sure, what is better, but I'm very happy with the suspension of my car.

As Fernando sads, Marea Weekend Turbo goes for around 20k pounds. In this price you'll have to include all taxes that is charged by the government of your country.

OP
OP
Z

zovin

New member
Joined
May 25, 2005
Messages
9
Location
São Paulo - Brasil
bulldog5046 said:
hmmm...could you just bolt the turbo on a 2.0 20v here?

It depends of how much money you are disposed to spend!

If I was you, I would try to improve 2.0 20v with the performance parts that are sold around you.


Clain

New member
Joined
Feb 17, 2006
Messages
1
Hey zovin, good see u here!
I´m from CDM too :)

Ur car looks great!!!


oldracer

save me iam bored
Joined
Feb 6, 2006
Messages
153
i have a merea saloon wich is 40mm lowered .it looks a lot lower than yours,is it just the picture. what is your lowered by


bulldog5046

faster! FASTER!!!
Joined
May 8, 2005
Messages
9,053
i signed upto the forum but still havent received the email to be able to activate my account so i cant access any of the threads:(


Fernando

New member
Joined
Aug 26, 2003
Messages
59
Location
Brazil.
bulldog5046 said:
i signed upto the forum but still havent received the email to be able to activate my account so i cant access any of the threads:(

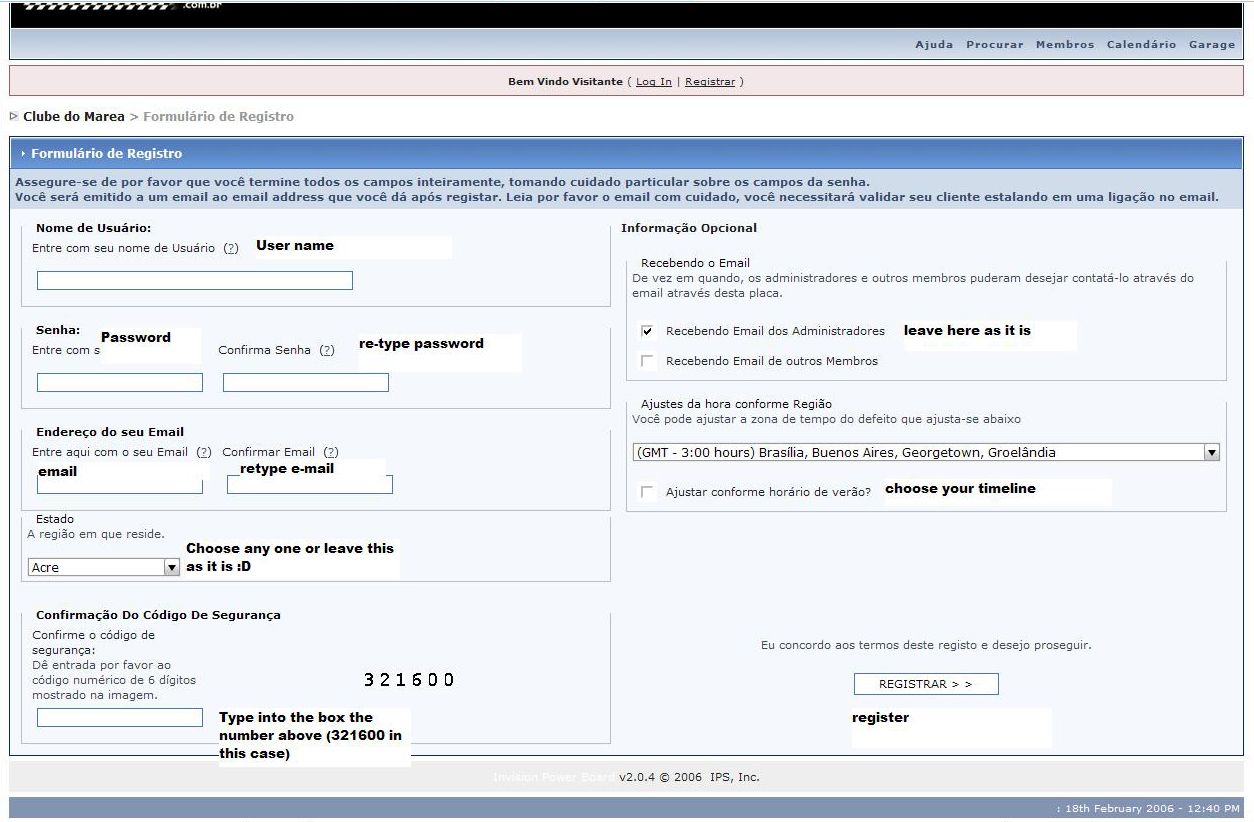

Hi, I've translated (loosely ;) )the subscription steps for you just in case you misunderstood something...
Also, I"m not sure about .co.uk email adresses so you might want to use a hotmail account or the likes (.com)
Hope it works this time :D
P.S. The last one of the pics you'll only see after having received the confirmation email and having clicked on the second link on it (under where it says "activation instructions")


Attachments

  • registration0.JPG
    488.6 KB · Views: 9
  • registration1.JPG
    552.6 KB · Views: 4
  • registration2.JPG
    443.2 KB · Views: 7
Last edited:

bulldog5046

faster! FASTER!!!
Joined
May 8, 2005
Messages
9,053
zovin said:
Ryan, I use standard shock absorbers and springs made by AG Kit (www.agkit.com.ar).

As I know, you have the Eibach springs for Marea Weekend. Some guys here in Brazil has Eibach springs on his Marea´s Weekend, and they say that is much better than AG Kit springs. I can't say, for sure, what is better, but I'm very happy with the suspension of my car.

As Fernando sads, Marea Weekend Turbo goes for around 20k pounds. In this price you'll have to include all taxes that is charged by the government of your country.

hay, i just looked at the Eibach springs but can only get them for upto the 1.8, now its highly likley they will physically fit but whats the engine weight difference? dont want the front to sink in to the floor :rolleyes:

also it's only the springs i can get here, not the shocks :(

Cheers,
Ryan Edge


Fernando

New member
Joined
Aug 26, 2003
Messages
59
Location
Brazil.
There are differences between eibach's springs for the 1.8 and the 2.0s.
The model numbers differ... the 1.8's are E3024-140, the front ones come stamped with: EW 3023001 VA, while the back ones: EW 3008002 HA; the 2.0's are E3022-140, the front ones being stamped with: EW 3021001 VA, although the rear axel ones have the same numbers as the 1.8's....
As for shock absorbers, eibach's springs are designed so you can keep using your factory default's, although, of course, they have to be in good working conditions...
Sadly, according to eibach's site, the 2.0s are not in production anymore, but I'm willing to bet you can get them online...

Last edited:
