Hi Has anyone got the panda 100HP wiring diagram (for the engine ecu) or 1.4 16v 500
cheers
Andy
cheers
Andy
Technical 100HP ecu wiring diagram
- Thread starter shakey_hand_man
- Start date
Currently reading:
Technical 100HP ecu wiring diagram
tah very much
Please please, post up the rest of the ECU such as the plugs and everything. I am currently wiring Project panda...and Struggling!!!
I wouldn't mind some diagrams of M001 as well??????????? (Body Computer)
I wouldn't mind some diagrams of M001 as well??????????? (Body Computer)
Laverda don't suppose you have the ECU plug side connectors diagram?
- Joined
- Feb 16, 2005
- Messages
- 5,983
- Points
- 988
The full 100hp workshop manual would be a godsend. DO you have it?
Taking everything apart is so easy isn't it?
Taking everything apart is so easy isn't it?
Thanks for your valuable comment there.....
Truth is, I want to get rid of the body computer, without totally rewiring the car. It would apperar that the body computer carries a few relays as well as chips etc. It's totally solid state, and as far as I can see houses the indicator relay
If thats the case, the whole computer would need replacement just cos your bflasher relay has blown???
Wasn't trying to suggest that you were inept or anything (your pictures, updates and attitude suggest very much otherwise!!!). I was just saying that everyone's had an experience of taking something apart and not quite getting it back together properly
Last edited:

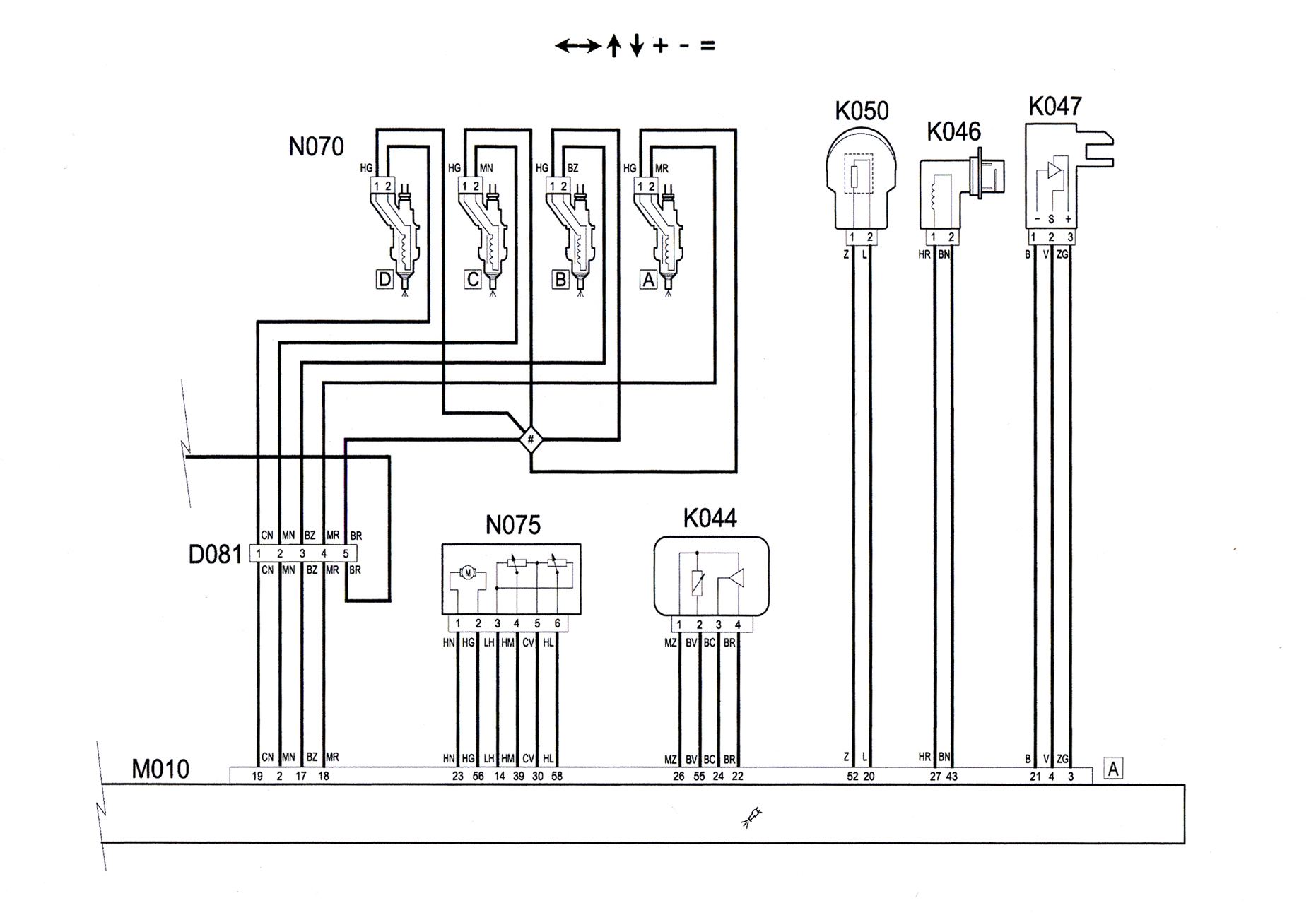

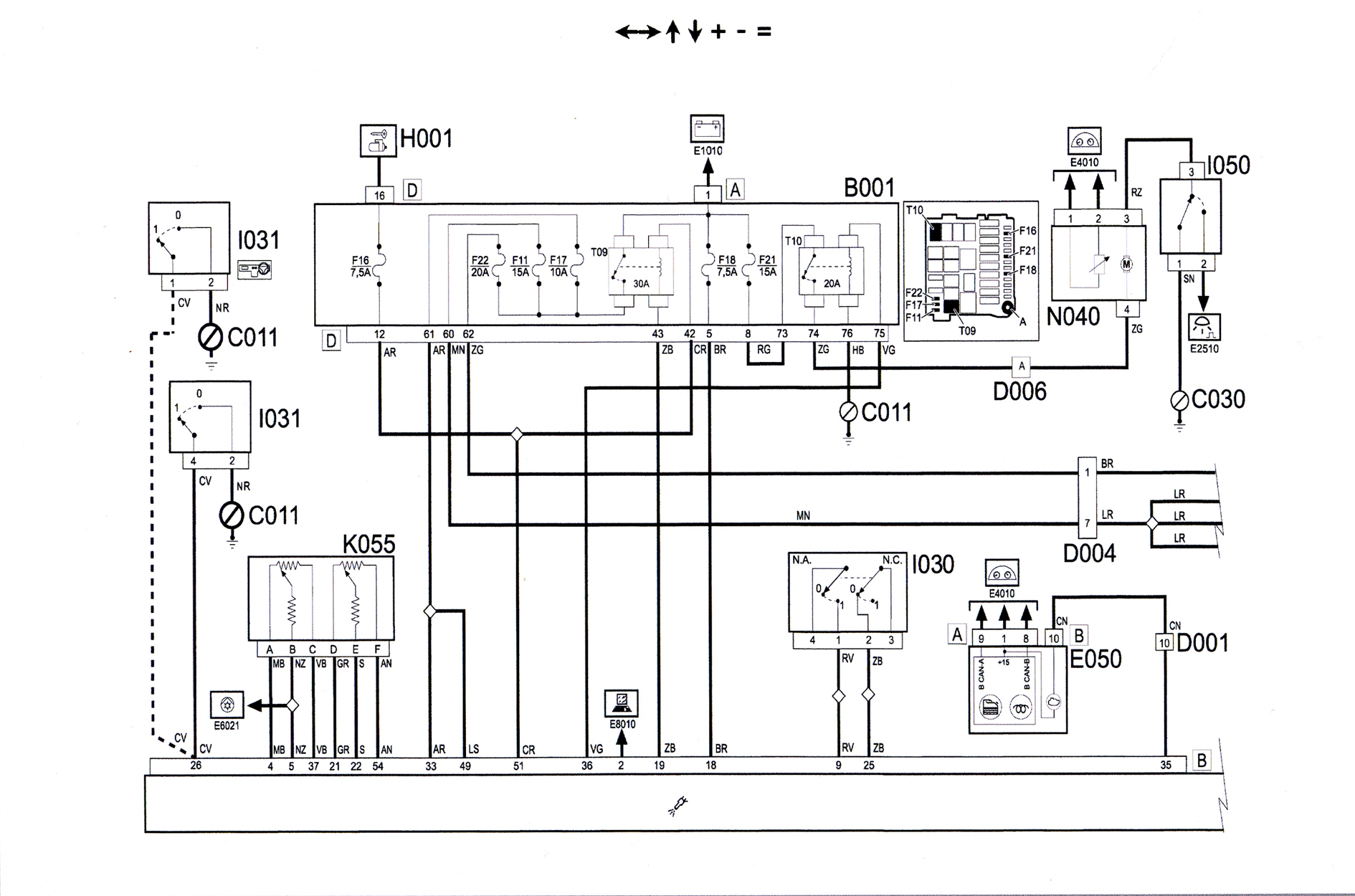

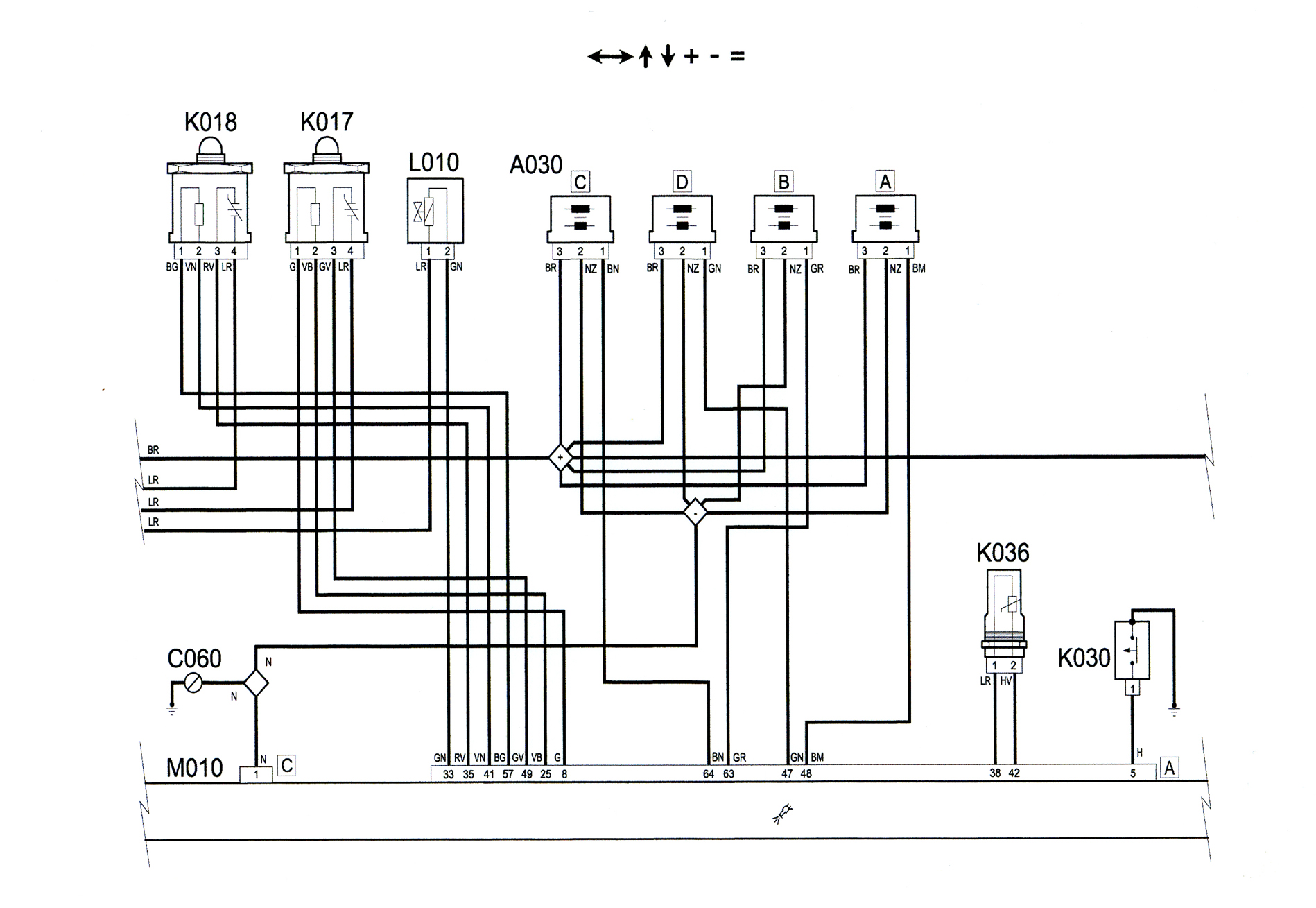

Just wanted to say, thank you! These wiring diagrams were invaluable in helping me wire up an AEM FIC.
Does anyone know why the elearn CD's don't have the wiring diagrams in them?
I've looked at the 100hp and the grande punto eLearns, and both have everything other than the wiring.
I'm curious now to see the rest of the cars wiring, for more informed installations at a later point.
Cheers
Does anyone know why the elearn CD's don't have the wiring diagrams in them?
I've looked at the 100hp and the grande punto eLearns, and both have everything other than the wiring.
I'm curious now to see the rest of the cars wiring, for more informed installations at a later point.
Cheers
