Hi all
Fiat Fiorino van 2008
1.3 diesel multijet
Have started changing timing chain and need to lock camshaft. Purchased timing lock kit about 2 years ago. So now I need it, i find it does not quite do the job.
First dia was too thick ,but only by a miniscule amount. So small in fact I ground if off with emery cloth in seconds.
It is however too long because no play in it when threads just start.

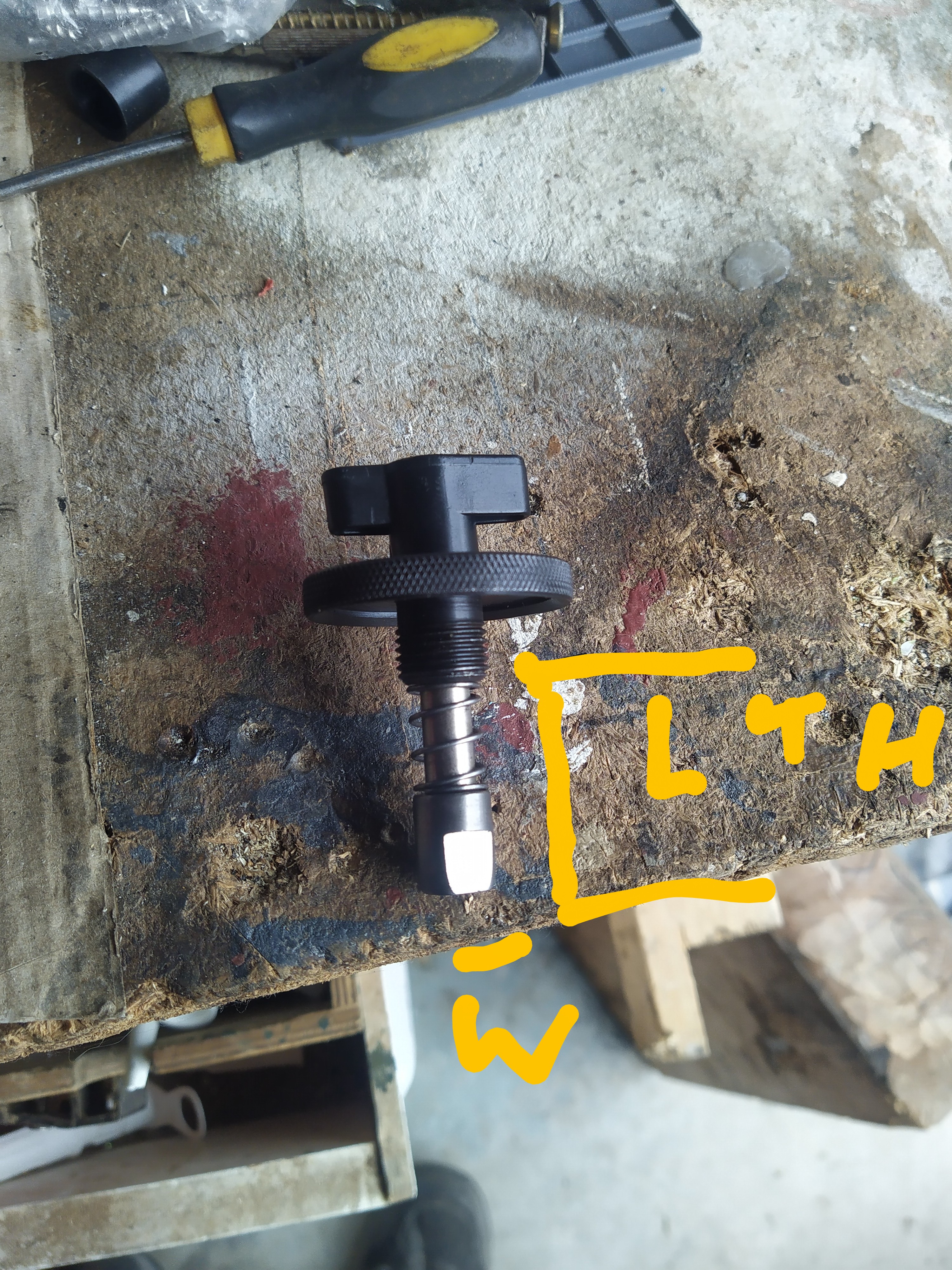

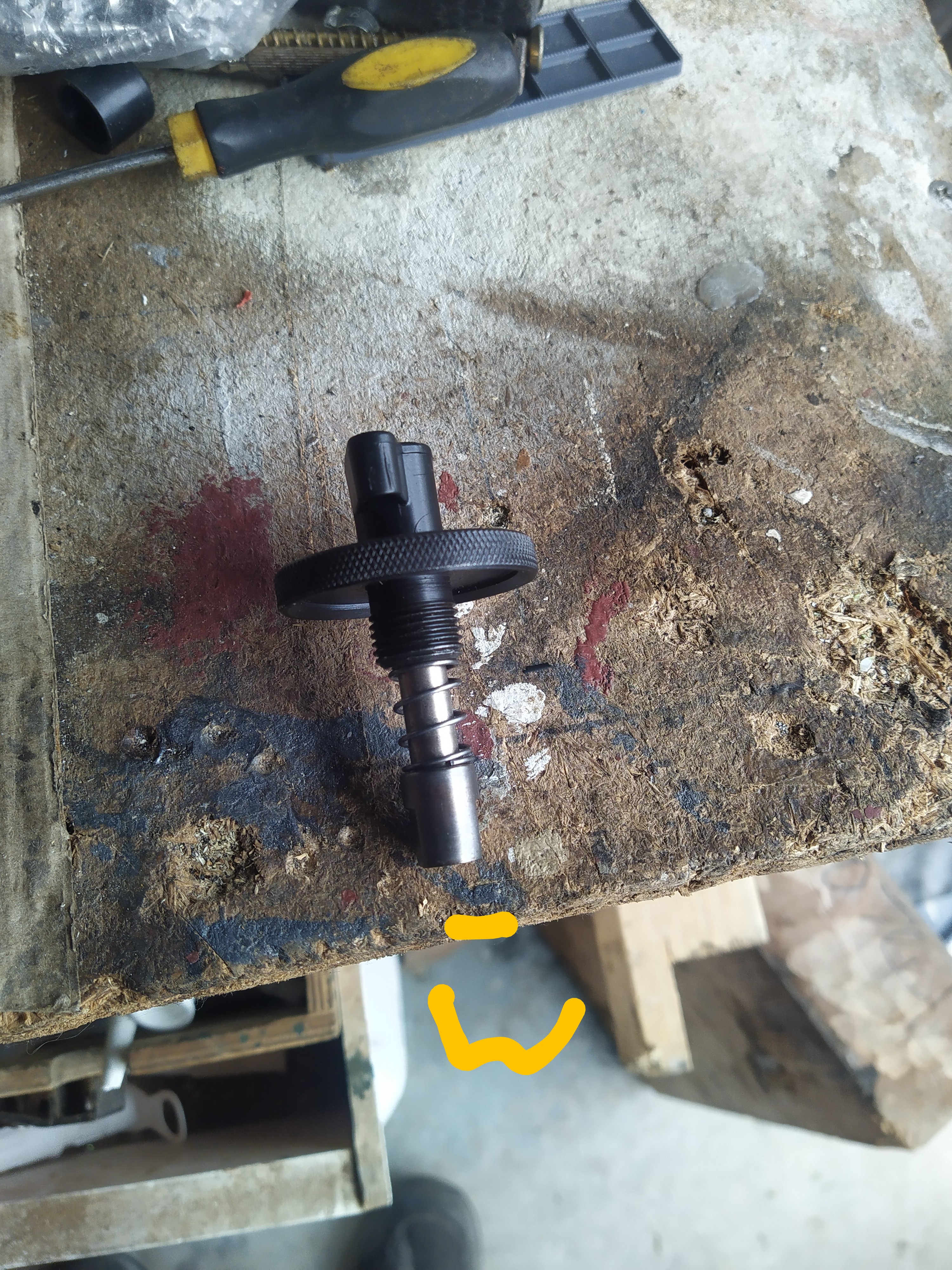

What I need to know is ...has anybody got locks as shown in photos below. I can make it easily fit if I know what size it should be.
1 What is the length of silver part of the pin
2 what is dimension a cross flats
3 what is pin diameter .
Many thanks for any help or advice
gromit

Hi all
Fiat Fiorino van 2008
1.3 diesel multijet
Have started changing timing chain and need to lock camshaft. Purchased timing lock kit about 2 years ago. So now I need it, i find it does not quite do the job.
First dia was too thick ,but only by a miniscule amount. So small in fact I ground if off with emery cloth in seconds.
It is however too long because no play in it when threads just start.
What I need to know is ...has anybody got locks as shown in photos below. I can make it easily fit if I know what size it should be.
1 What is the length of silver part of the pin
2 what is dimension a cross flats
3 what is pin diameter .
Many thanks for any help or advice
gromit
View attachment 446122View attachment 446123

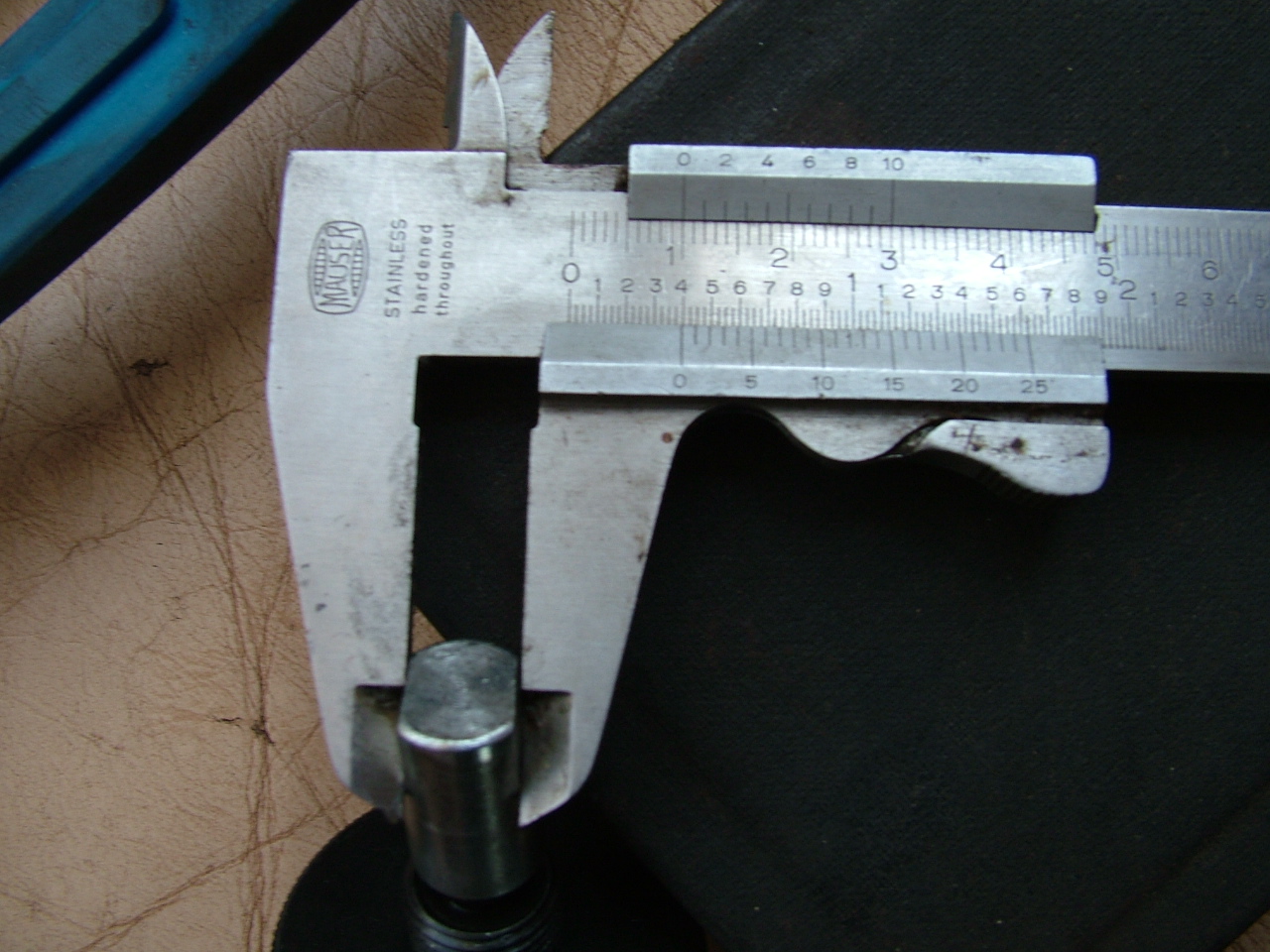

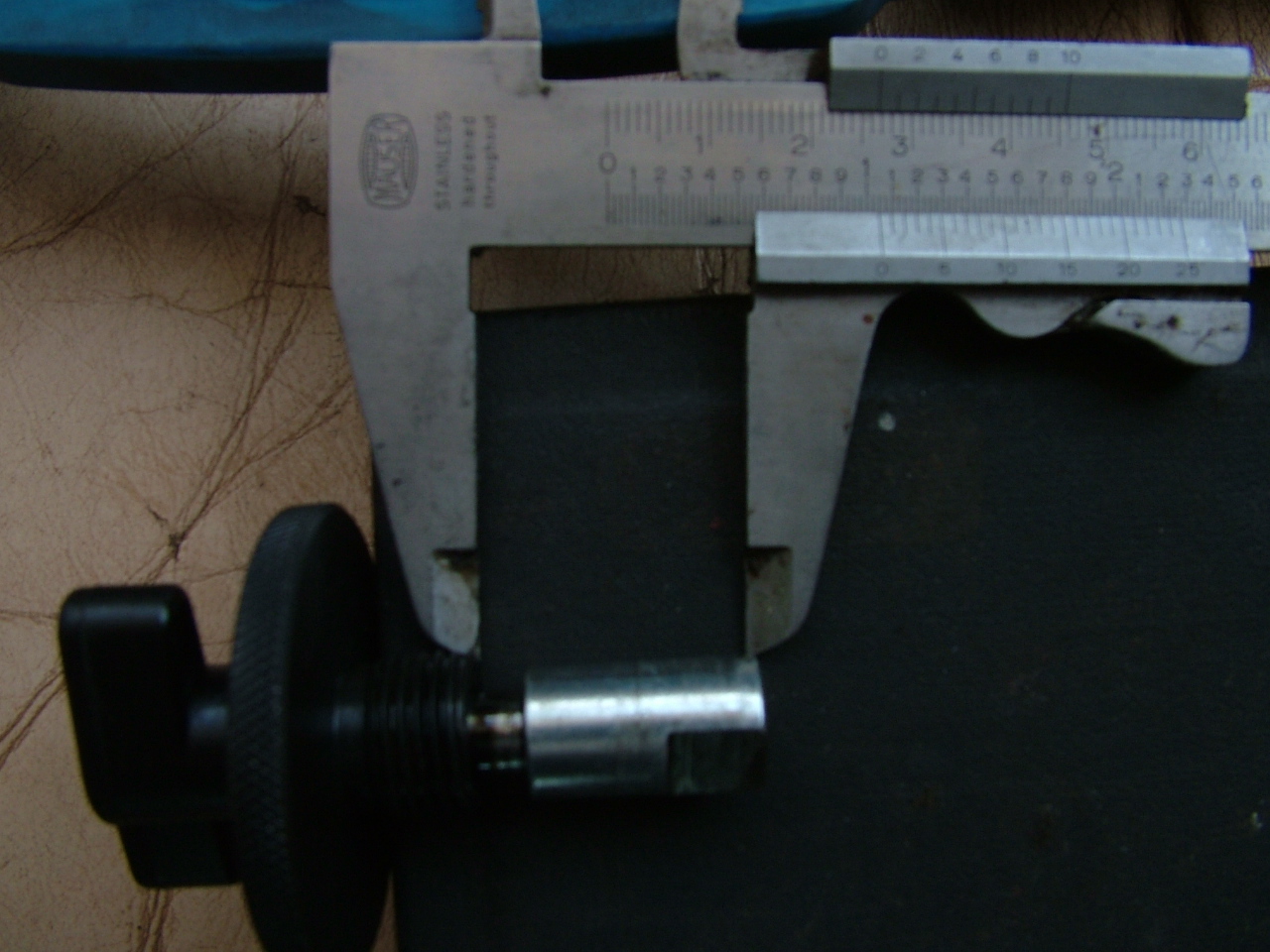

If your kit is similar to mine which I used on a 2006 1.3 Grande Punto Multijet then I have these measurements, length as photo 27.5 mm, across flats 10, and shaft diameter 13mm. I see mine doesn't have the springs like yours, however it worked fine but I did have to rock the individual sprockets and flywheel etc. to line up.
Don't forget crank pulley bolt anticlock to tighten and correct torque etc.


Attachments

  • DSCF1410.JPG
    469.5 KB · Views: 12
  • DSCF1411.JPG
    436.8 KB · Views: 13
  • DSCF1413.JPG
    440.1 KB · Views: 13
  • DSCF1414.JPG
    427 KB · Views: 14
BIG BIG THANKS
Bugsymike
That will help tremendously i have managed to screw it in ,,,just,,, .Only when flat is lined up to slot .I will now cut the length of the flat . I think I am correct in saying that the slot is shallow . Once again big thanks.
Let you know outcome.
Am doing van in between running round on other stuff. May be a while before I get back to you.
