punto mk2 blue dash lights

Punto (Mk2/2b) punto mk2 blue dash lights

  • Thread starter nica_ro
  • Start date Apr 14, 2007
Guide Gallery Discussion
clicky to down load pdf fileView attachment DIALS FIAT Punto 188.pdf
Click to expand...
Prev
  • 1
  • 2
  • 3
  • 4
Next
First Prev 2 of 4

Go to page

Next Last
OP
OP
N

nica_ro

New member
Written a guide
Joined
Mar 29, 2007
Messages
4
Points
1
Location
Bistritza
  • Mar 10, 2009
  • #21
dreamertae said:
Do you know what size SMD LEDs you need for this?
Click to expand...

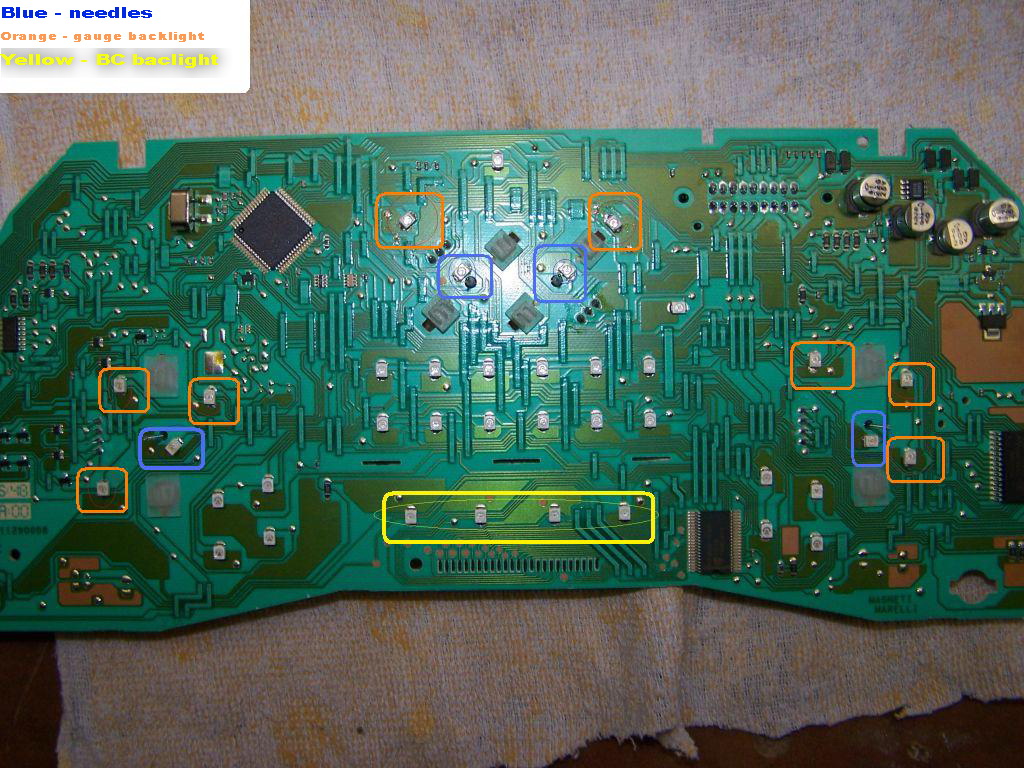

Yeas, you need 3528 type SMD LED s as follows:
4 - needles;
4 - BC display;
8 - gauge display;

You can also replace the center console lighting with SMD LED s. You need 6 LEDs.

Last edited: Mar 10, 2009
D

dreamertae

Patron member
Joined
May 8, 2007
Messages
170
Points
41
Location
Haywards Heath
  • Mar 10, 2009
  • #22
oops wrong link....

Last edited: Mar 10, 2009
S

Sergheiq

New member
Joined
Oct 20, 2008
Messages
4
Points
0
Location
Bucharest
  • Mar 27, 2009
  • #23
Hello!
I did this but I've encountered a problem: the temperature light and the fuel light won't work. As you can see in the picture above the LEDs have a resistance parallel and I think that's the reason they won't light up. Please if you can help me with an alternative place to supply power for the two LEDs.
I hope someone will give me a hint because I'm a little disappointed in me. :D

Thanks,
George

OP
OP
N

nica_ro

New member
Written a guide
Joined
Mar 29, 2007
Messages
4
Points
1
Location
Bistritza
  • Mar 30, 2009
  • #24
Sergheiq said:
Hello!
I did this but I've encountered a problem: the temperature light and the fuel light won't work.
Click to expand...
Sorry mate, it seems you've tried to start the car with the dials off.

B

Boothie9999

New member
Joined
Apr 27, 2009
Messages
3
Points
0
  • Apr 27, 2009
  • #25
Changing speedo?

I was just wondered, i have a punto with the standard dash in, no rev counter on it, is it possible for me to get the updated dash with rev counter on it and fit it straight in my car no problem?

Cheers

Matt

JackFi

JackFi

F*** Its A Turbo
Parked in the garage Written a guide
Joined
Apr 9, 2008
Messages
3,247
Points
615
Location
Reading, Berkshire.
  • May 7, 2009
  • #26
nica_ro said:
Sorry mate, it seems you've tried to start the car with the dials off.
Click to expand...

What you mean ive had the same problem im so annoyed

R

rbrocky

New member
Joined
Jun 29, 2009
Messages
1
Points
0
  • Jun 29, 2009
  • #27
ive aready done this on my clio, and all was fine, but i tried it on a mates mk2 punto and all i can seem to get working is the temp and fuel guage, but only the needles, any help?

i think it may be i got the polarity wrong but unsure on this
any one got any pics of their board close up? before or after is good
thanks

BROCKY

H

HgtBill

Patron member
Joined
Jan 3, 2009
Messages
277
Points
96
  • Aug 18, 2009
  • #28
I brought my smd's from a german company, they included the correct resistors too. It was years ago but if you don't get the right smd's or the right rating of resistor to run them they blow.


Munkul

Munkul

Just another nutter
Parked in the garage Written a guide
Joined
Jun 19, 2006
Messages
8,235
Points
1,014
Location
Cumbria
  • Aug 31, 2009
  • #29
what company was that then bill? looks really smart.

D

dstephens

New member
Joined
Sep 14, 2009
Messages
1
Points
0
  • Sep 14, 2009
  • #30
I have just finished doing my dash and have come across the same problem, the back lights for the temperature gauge and fuel gauge did not work with the new blue lights. I did not follow the guide posted at the beggining of this thread, rather opted for removal of the entire circuit board and replace everything at once, all the dials work. Oh and also it can be done without a full tank of fuel, heres how: remove all the dash bits until you can touch the needles, dont yet however, then turn the igniton on and mark the postion of the fuel gauge, turn igniton off and remove ciruit board and needle as described it the guide. when putting the dash back into the car leave the needles off, turn the igniton on then align the fuel needle to the mark made previously, align the speedo needle to zero and the temperature needle to cold. turn off ignition and align the rev needle to zero.
i have now got around the problem of the back lights by wiring the lights into other back lights, the temperature back light i wired into the rev back lights and the fuel backlight into the speedo. alternatively you could get a new resistor as i believe this is the issue

thassall4295

thassall4295

Not Speed. It's Style!
Joined
Jan 18, 2010
Messages
39
Points
22
  • Aug 3, 2010
  • #31
Me and my dad attempted this and it all went well brought the SMD's and a Draper Soldering Iron because you need a low wattage soldering iron with a good tip, preferably a 20 Watt me and my dad used a 25 watt, but that's good enough I suppose. Luckily my dad has some Soldering skills, but would recommend practising before doing this modification that's for sure.

The SMD's are very sensitive and do require careful handling. So some good tweezers, soldering iron, steady hand and patience, will help you.

The only thing that was a problem was the Air Bag light come on when I connected the Dashboard back together, but 'a' it only costs £7.99 to have it reset or I've heard the alternative way of getting the light off is by unplugging your battery for half hour and it resets everything.

Here's what mine looks like now:


Last edited: Aug 3, 2010
Eynonz

Eynonz

New member
Parked in the garage
Joined
Jul 30, 2010
Messages
207
Points
35
Location
Swansea, Wales
  • Aug 4, 2010
  • #32
Looks very attractive! :O ........ My dads an electrician so maybe he can do this for me XD

podvarak

podvarak

New member
Parked in the garage Written a guide
Joined
Oct 27, 2009
Messages
38
Points
9
  • Aug 5, 2010
  • #33
Here is mine dash with white lights with blue needles

Munkul

Munkul

Just another nutter
Parked in the garage Written a guide
Joined
Jun 19, 2006
Messages
8,235
Points
1,014
Location
Cumbria
  • Aug 5, 2010
  • #34
where do people buy their SMDs from?

JackFi

JackFi

F*** Its A Turbo
Parked in the garage Written a guide
Joined
Apr 9, 2008
Messages
3,247
Points
615
Location
Reading, Berkshire.
  • Aug 7, 2010
  • #35
Munkul said:
where do people buy their SMDs from?
Click to expand...
Brought mine from here

https://www.crazyleds.co.uk/home.php?cat=57

Munkul

Munkul

Just another nutter
Parked in the garage Written a guide
Joined
Jun 19, 2006
Messages
8,235
Points
1,014
Location
Cumbria
  • Aug 10, 2010
  • #36
cheers, ordered mine now!

JackFi

JackFi

F*** Its A Turbo
Parked in the garage Written a guide
Joined
Apr 9, 2008
Messages
3,247
Points
615
Location
Reading, Berkshire.
  • Aug 10, 2010
  • #37
Munkul said:
cheers, ordered mine now!
Click to expand...
Cool, what colour(s) did you get?

Munkul

Munkul

Just another nutter
Parked in the garage Written a guide
Joined
Jun 19, 2006
Messages
8,235
Points
1,014
Location
Cumbria
  • Aug 10, 2010
  • #38
all blue, to match my HU lol

was tempted by white, ah well.

AbyssmalShade

AbyssmalShade

New member
Parked in the garage
Joined
Oct 29, 2009
Messages
43
Points
12
  • Aug 11, 2010
  • #39
Does anyone know how to make the heater controls a different colour? I know they're blubs but you can buy blue blubs and Podvarak mentioned something about Nitro Solvent, anyone else have anymore info?

JackFi

JackFi

F*** Its A Turbo
Parked in the garage Written a guide
Joined
Apr 9, 2008
Messages
3,247
Points
615
Location
Reading, Berkshire.
  • Aug 11, 2010
  • #40
AbyssmalShade said:
Does anyone know how to make the heater controls a different colour? I know they're blubs but you can buy blue blubs and Podvarak mentioned something about Nitro Solvent, anyone else have anymore info?
Click to expand...
Basically you've got to get those blue thumbtack bulbs (cant remember what there called but halfords sell them) & you need to take the center console out then take the plastic inserts out what show the heater temperature, fan speed ect... then you will see a orange filter on the back of them & use a cotton bud and nail varnish remover to take it off, then put back together and put the new bulbs in.
