Technical Panda Cross 2010 Fuse Box

[hairybiker84]

I am trying to confirm connections to the main under bonnet fuse box but have been unable to find a match on the elearn site for the wires actually installed any ideas?
Many thanks in advance.



[koalar]

inconclusive

And to be diagnostic it does have to be while it's failing

But at least we have one reference as a starting place

While the yellow arrow should be over 200 rpm

The red arrow should be over 300 bar 4351 psi

Unfortunately with the quick start there's only two data points

Probably better graphing as bad to get the scale better or graph one above each other so the auto scale does not effect the results



[hairybiker84]

inconclusive

And to be diagnostic it does have to be while it's failing

But at least we have one reference as a starting place

While the yellow arrow should be over 200 rpm

The red arrow should be over 300 bar 4351 psi

Unfortunately with the quick start there's only two data points

Probably better graphing as bad to get the scale better or graph one above each other so the auto scale does not effect the results

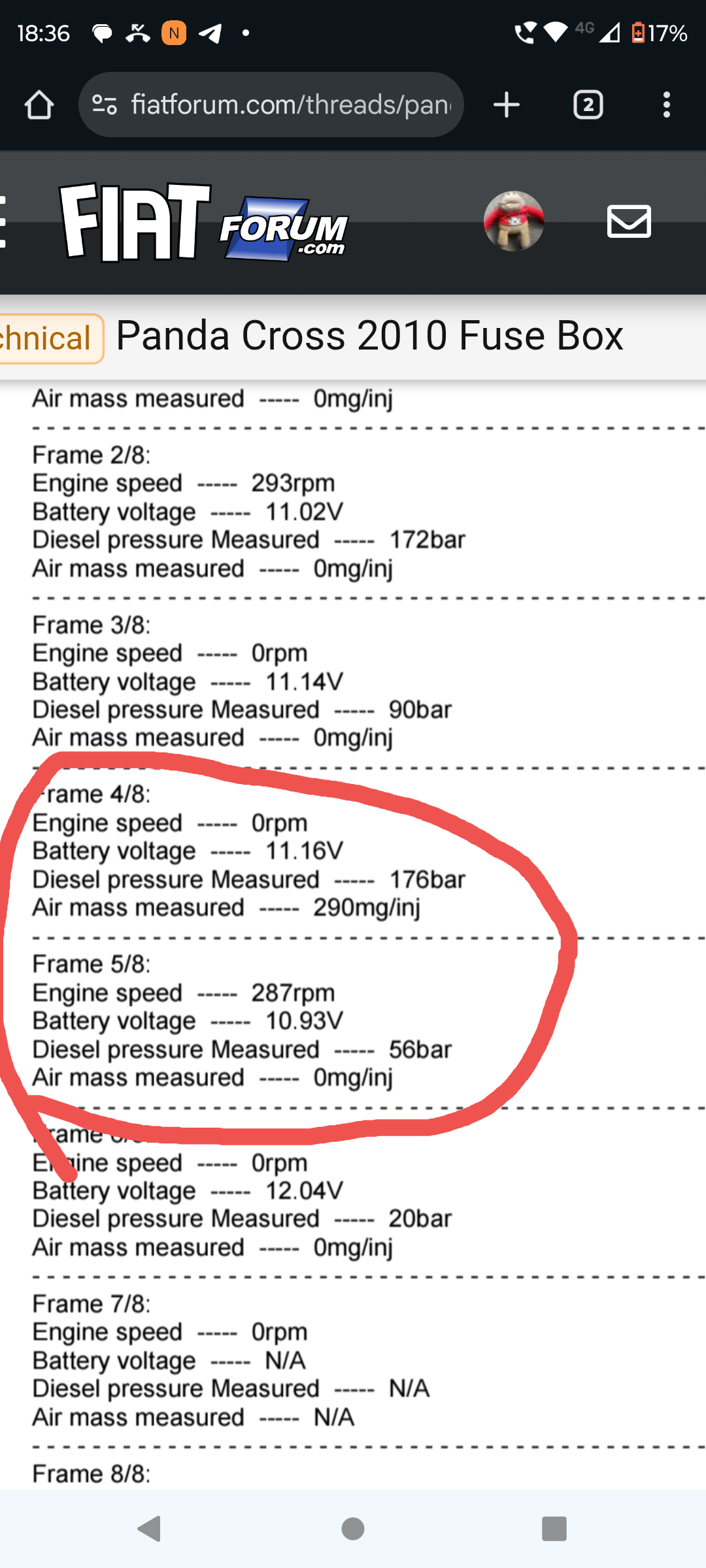

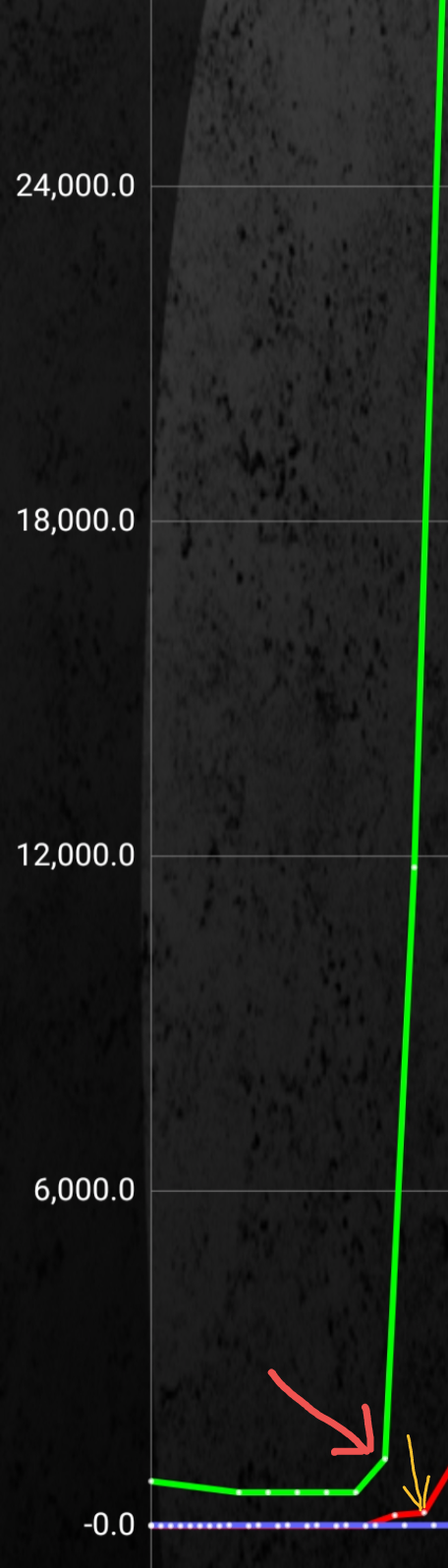

View attachment 469320

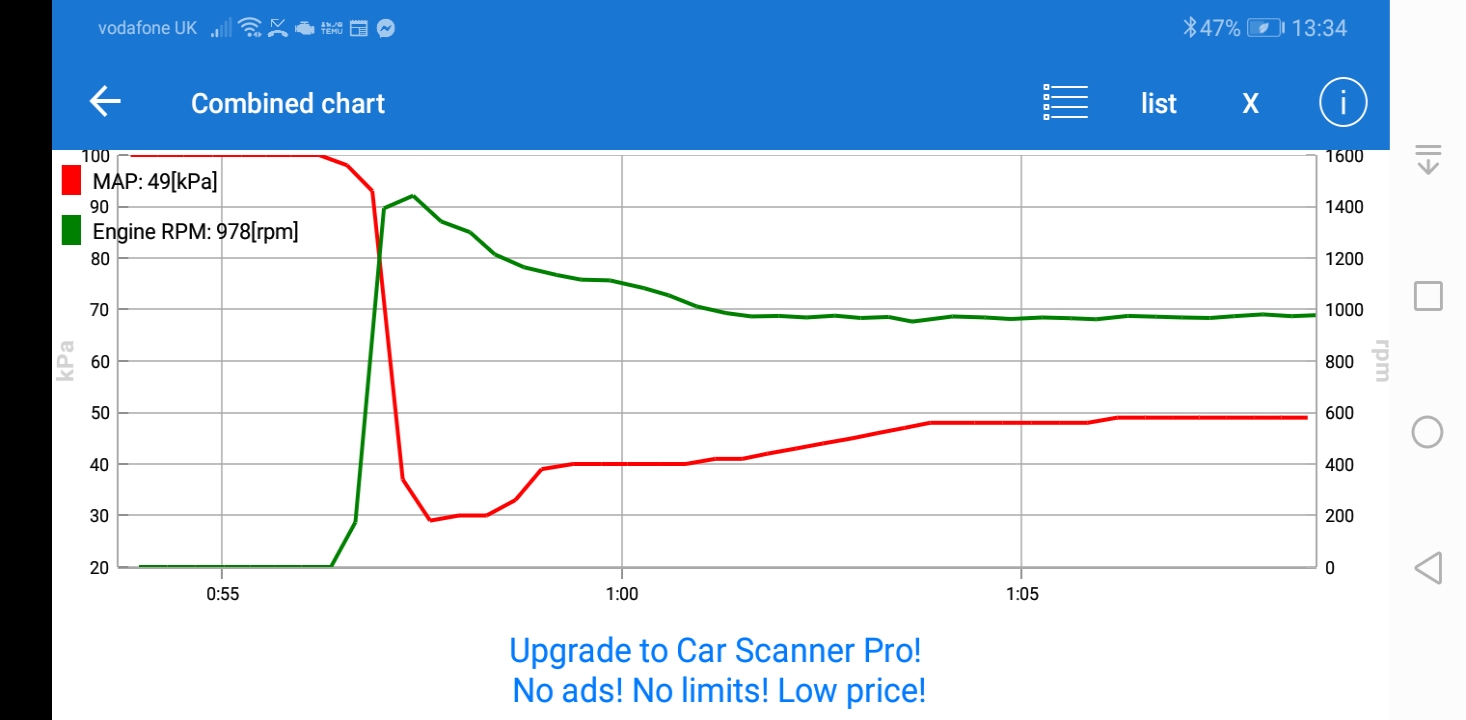

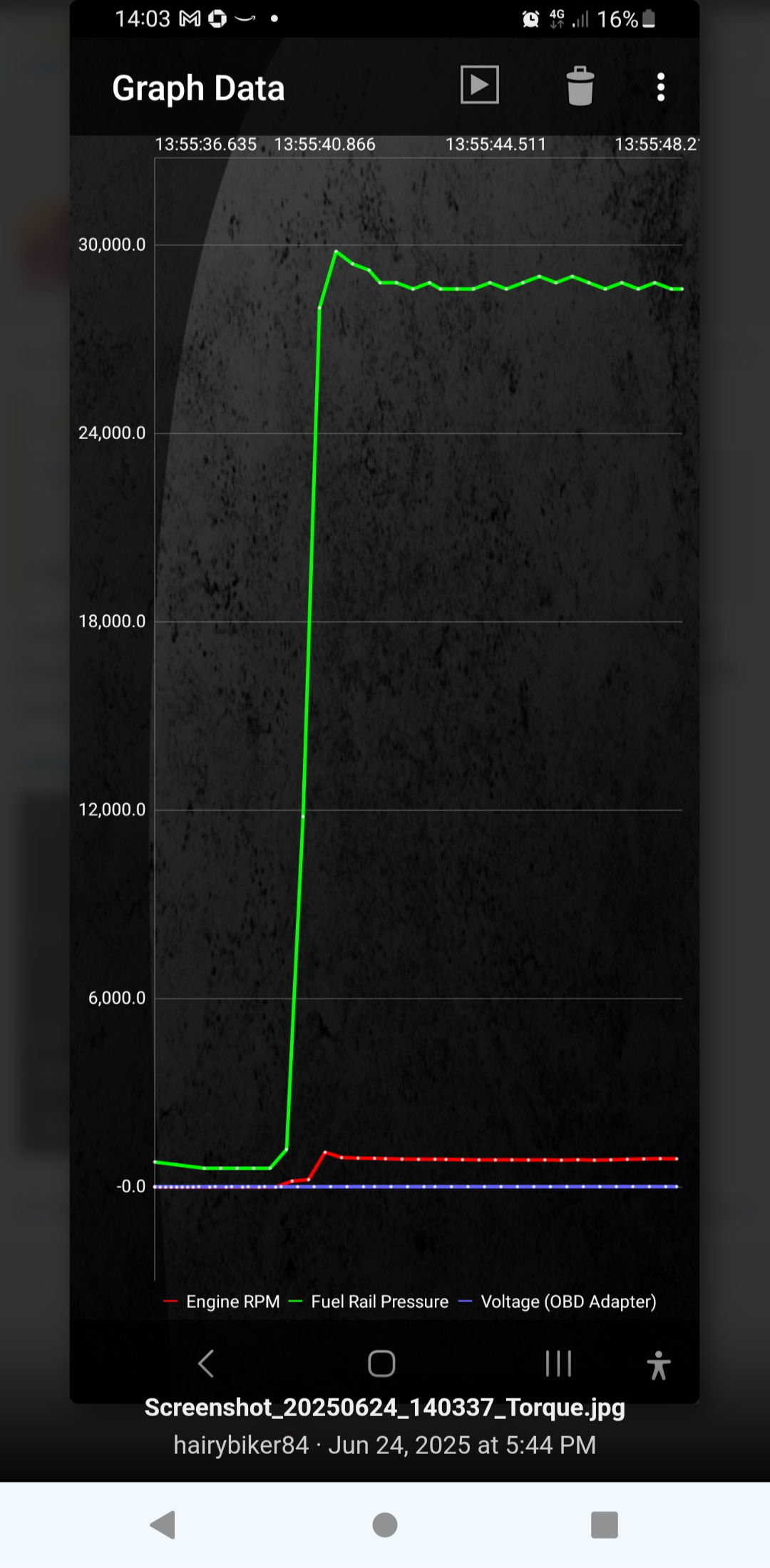

The one I did this morning (which took longer to start), the engine was cold and I saw 315 ish bar and 198 ish rpm. Not sure I've ever seen over 200rpm cranking.
I've bought the Torque app but when I scroll through parameters to record it looks like the vast majority are not available.
