locating OBD 2 Diagnostic socket - Marea JTD ,Bravo / A

O.K.
you'll be looking at this because you have an issue..,

the idea of the Standardised EOBD 2 Socket is that an over the counter product can be used to read the Fault Codes stored in the Vehicles ECU - Computer

generally they are located where access is "tool -free"

pull- off panels,
behind ash-trays,
or in the Punto - LARGE slotted screws you can undo with a coin..

Access is conventionally near the UK - Drivers right knee, and close to the main interior fuseboard.

on the Sample Marea (2001 110 JTD Weekend) the access is from BELOW the dashboard panel - involves some flexibility / contortion:eek:

[BREAK=the Socket itself]


In the pics I've removed the 3 x screws and the front panel from the main fuseboard.

marea 110 009.jpg

marea 110 011.jpg
At the lower edge of the plastic dash panel is a Steel Metal strip ( BLACK)
marea 110 014.jpg

Just behind the strip ( under dash ) is the BOTTOM of the Fuseboard
marea 110 017.jpg
on the Lowest point is a BLACK plastic cover ( with a squeeze tab);)
marea 110 023.jpg

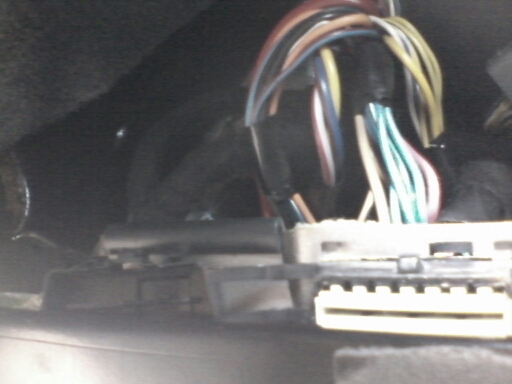

Remove the Cover , and you'll have the OBD 2 Socket - 16 pin with Tapered Sides


I'm using MultiECUScan on a Netbook, as it's designed specifically for FIAT Group Vehicles.

others use Torque App. etc for General Engine Fault code reading and clearing.
(I'm actually looking for Cruise Control Connectivity with MES Software.)


please feel free to add your experiences to the bottom of this guide.. as I'm sure there will be some changes over the models , and years.


Mamdouh

New member
Joined
Oct 17, 2015
Messages
33
Location
Cairo
mine is Marea 185 1.2 16v 2001, I searched and could not find it , I will give it another try after this guide and hope to have it , thanks


Mamdouh

New member
Joined
Oct 17, 2015
Messages
33
Location
Cairo
mine is Marea 185 1.2 16v 2001, I searched and could not find it , I will give it another try after this guide and hope to have it , thanks

My Marea is 1.2 16v , 2001 , I found 3pin diagnostic plug aside fuse box under the bonnet... should I forget about finding 16 pin OBD2 in my car??
Thanks in advance


Mamdouh

New member
Joined
Oct 17, 2015
Messages
33
Location
Cairo
Did you find it ?

I have the 1.2 too (LHD) and cannot find one on either side


if you followed this post photos and did not find the 16 pin, then you have only 3pin obd under bonnet attached to fusebox, the 3 pin with grey color
