Technical Lambda sensor Diagram

[Italian Job]

Today I finnaly got time to check the wiring for my Lambda Sensors, this is how my car is wired. It might help someone else.



[MikeSalt]

Excellent post Sir!



[oldhammer]

might save on downloading.



[Ziggy122]

If you wanted a wiring diagram for the ECU layout - shoulda asked

However tho - its nice and clear and its always nicer when there in colour instead of lines in black and colours in Numbers/codes/black

Ziggy



[oldhammer]

If you wanted a wiring diagram for the ECU layout - shoulda asked

However tho - its nice and clear and its always nicer when there in colour instead of lines in black and colours in Numbers/codes/black

Ziggy

(If you wanted a wiring diagram for the ECU layout - shoulda asked )

He did ask for ecu pin out in another thread iirc.



[Italian Job]

Re: UPDATED Lambda sensor Diagram

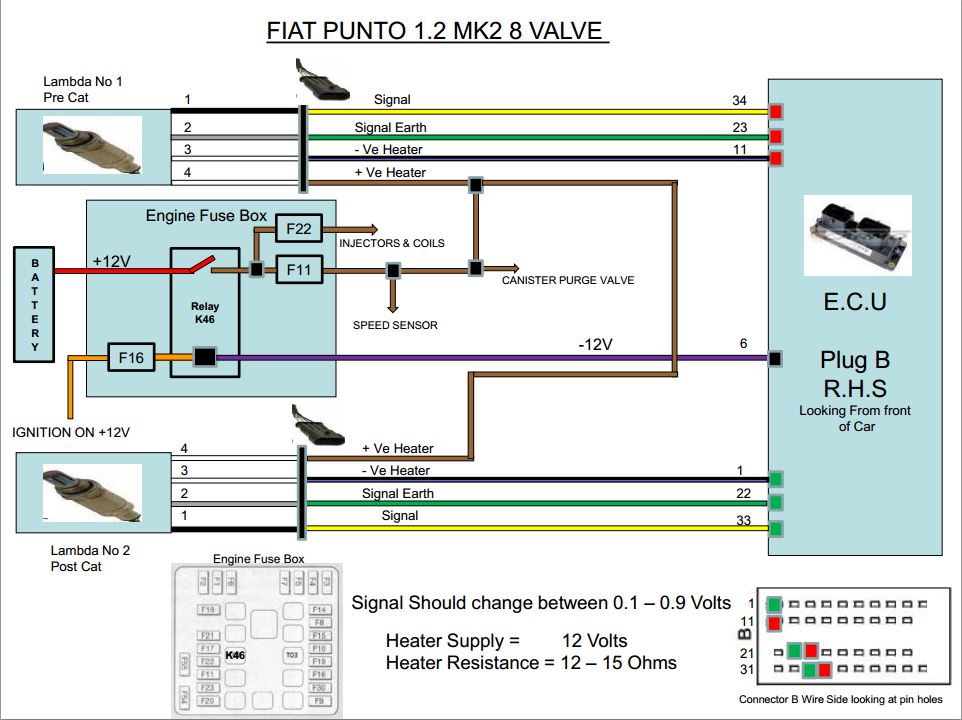

Sorry guys made a mistake when drawing the diagram. Correct pinout diagram attached.
