Technical Fiat 500 engine light

[Wouttie]

Hello
I have a fiat 500 312 1.2 69hp 2014 with a engine light. Fault codes p006962 and p222762 are the reason, also there is oil in the intake manifold and on the MAP sensor. Any ideas what it could be or where the oil can come from?
Thanks in advance,
Wout



[rmjbn1]

I clean the MAP and inlet manifold every year with brake cleaner.

Oil here is common, it gets in via the breather pipe.

Could be related to the error codes you have.

I would clear the codes, clean, and see if error codes come back



[Wouttie]

I have done that already and the faults did not come back, it was a lot of oil in my opinion. I wanted to know if this is “normal” or it was a known problem



[rmjbn1]

A small amount of oil is normal.

Depends how quickly it's oiling up. Maybe take a picture in a year, could help give an idea if it's excessive.

Throttle body oily? Is it running ok? Is it using any oil? Any oil on spark plugs?

A lot of oil in the inlet manifold could be because of blocked or split breather pipe, check pipes between inlet manifold and air box.

Inlet manifold 1.2 | FIAT Panda (Mk3)

MAP sensor is on the left side when looking from the front of the car just one TX25 and I pulls out The tip often gets covered in oil. Cleans up fine with a squirt of brake/carb cleaner. But keep the tip pointing down. Its best to keep the cleaner out of the sensor its not sealed. Poor...

www.fiatforum.com



[Wouttie]

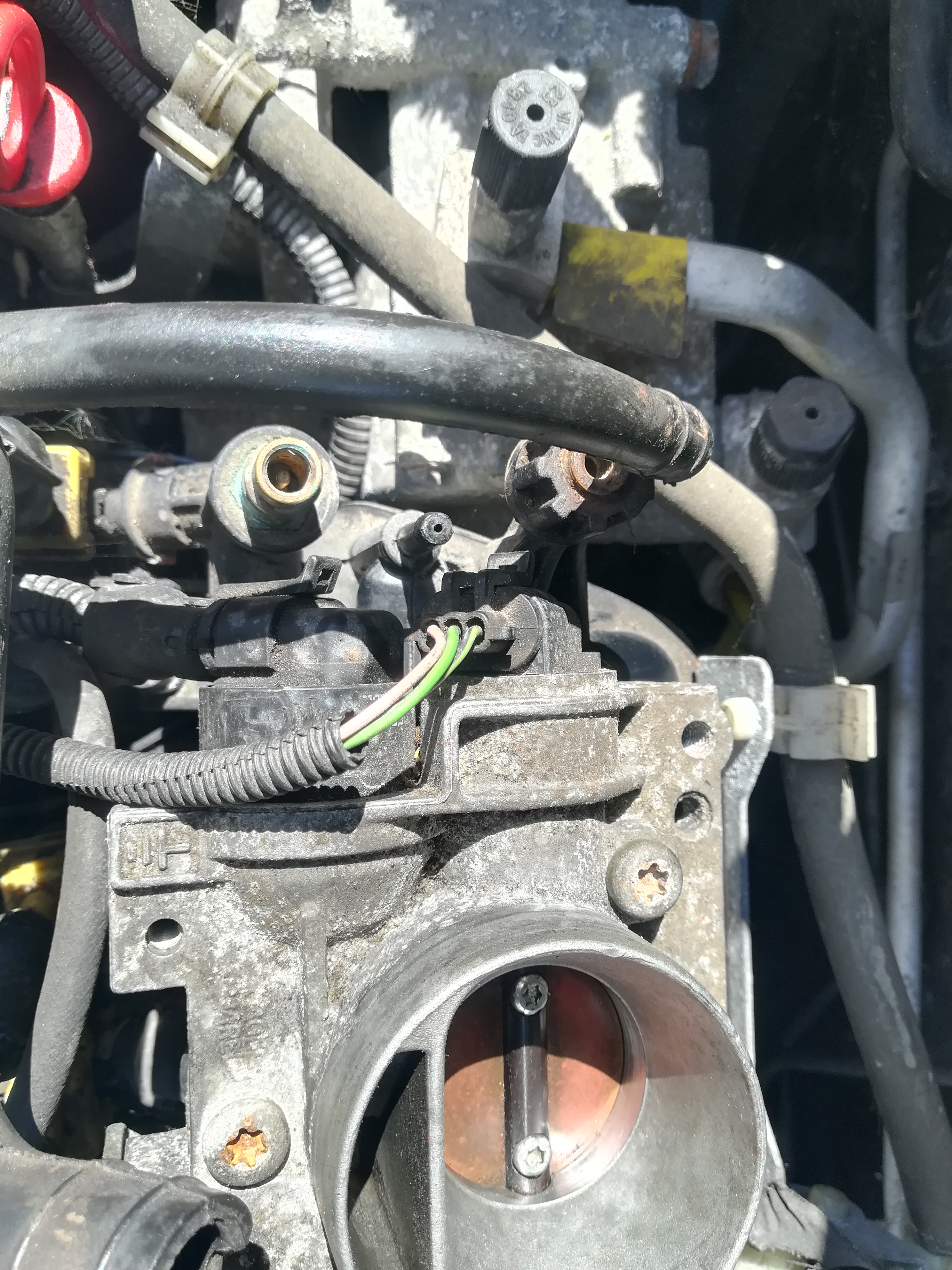

Now it is running good, cleaned the breather pipe from the air box to the manifold. The throttle body has oil on it too, it needs an oil change soon but checked the oil level and is still okay. Is it normal that the hole in the manifold where the breather pipe from the air box is attached to is very small? It is open but i don’t know how big it should be



[rmjbn1]

Sorry I don't have the same engine as you, so I'm not sure. Maybe someone else could confirm?
