Change Pollen / Cabin Filter

I discovered the filter whilst accessing the wiper motor..

it was filthy..so tapped out worst of the ditritis, and sourced a replacement

thanks to MODERN Bravo owner gadge for supplying one at a good price(y)


Lift the bonnet, use the prop in it's secured position.

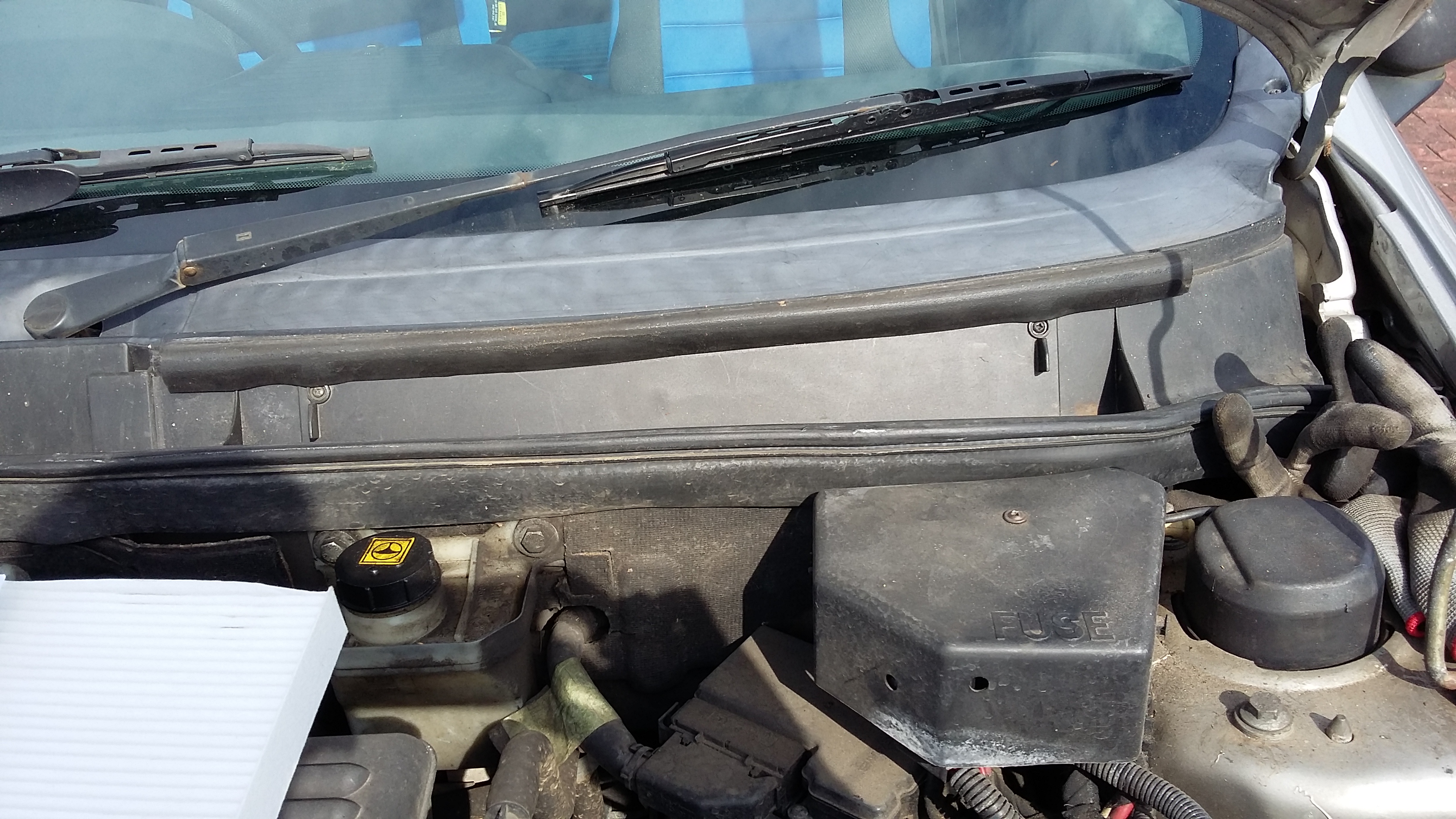

walk along the LEFT wing until the Black scuttle drain is in front of you,

the access panel is secured with 2 x self-tapper screws,
and then has 3 x location slots cast into the plastic
remove the 2 x screws
( the panel is then "free")

get a flat screwdriver under the rubber screen to bonnet trim - work/slide it along so that the TOP of the access panel is exposed
tilt the top of the panel FORWARD - away from the screen,

then LIFT the panel out of the 3 x retaining slots



the filter is sat in a rectangular plastic "tray",
and secured with a stretched rubber cord "o"- ring

IF it's covered in leaves / junk.. then get a hoover / etc in there to remove said junk

you do NOT want any of that to potentially fall into the fan housing..!!:bang:

GENTLY work the rubber cord over the small hook,
then the filter can be wriggled upwards




Have a look around the area,

is there any dust build-up inside the heater channels,

are the faces of the black plastic where the filter sits still clean and dry

now is the time to clean..;)



[BREAK=New Filter Installation]

there are some small ridges on the top faces where the filter sits,
where the "fins" of the filter nestle..so it will stop the panel filter moving under airflow..
or indeed extreme driving;)

at this point I had an issue,
the Mk1 bravo filter was physically too big / oversize
for my 2001 Marea JTD - aircon equipped car
so I had to offer -up the original .
and against the 2 decided the WIDTH was OK , but just TOO LONG
so used a sharp craft knife to trim the filter down- I went fractionally TOO LONG.. then offered against the filter box frame, ALMOST fitted.. but the filter would not sit flat.. arched like a bridge:eek:
removed another 2 x segments from the filter - SUCCESS..!!:D
laid the filter into the filter box frame,
the ridges on the frame do a good job of locating the filter,
CAREFULLY stretch / work the 16 year old o-ring.. into place

[BREAK=Replacing covers]

double check the area is still clean .. and you've left no tools in there..:rolleyes:

lower the trim panel down - locating on the 3 x tabs

then lean it BACK towards the screen

you will need to run the rubber sealing strip back over the panel,
it's now in place and reasonably stable.

refit the 2 x self-tapper screws.
double check everything looks good,

put ignition key in car, and test AIRFLOW - could be quite an improvement..!!:cool:

the supplied filter packaging for reference.:)
