Technical Blower not working

[Brian elberts]

Hi my doblo 2010 heater blowers not working been on utube and they’ve said could be resistor or fan and looks very easy to change but when l got under the passenger pocket mine looks totally different not sure how you get to either can anyone help
Thanks Brian



[varesecrazy]

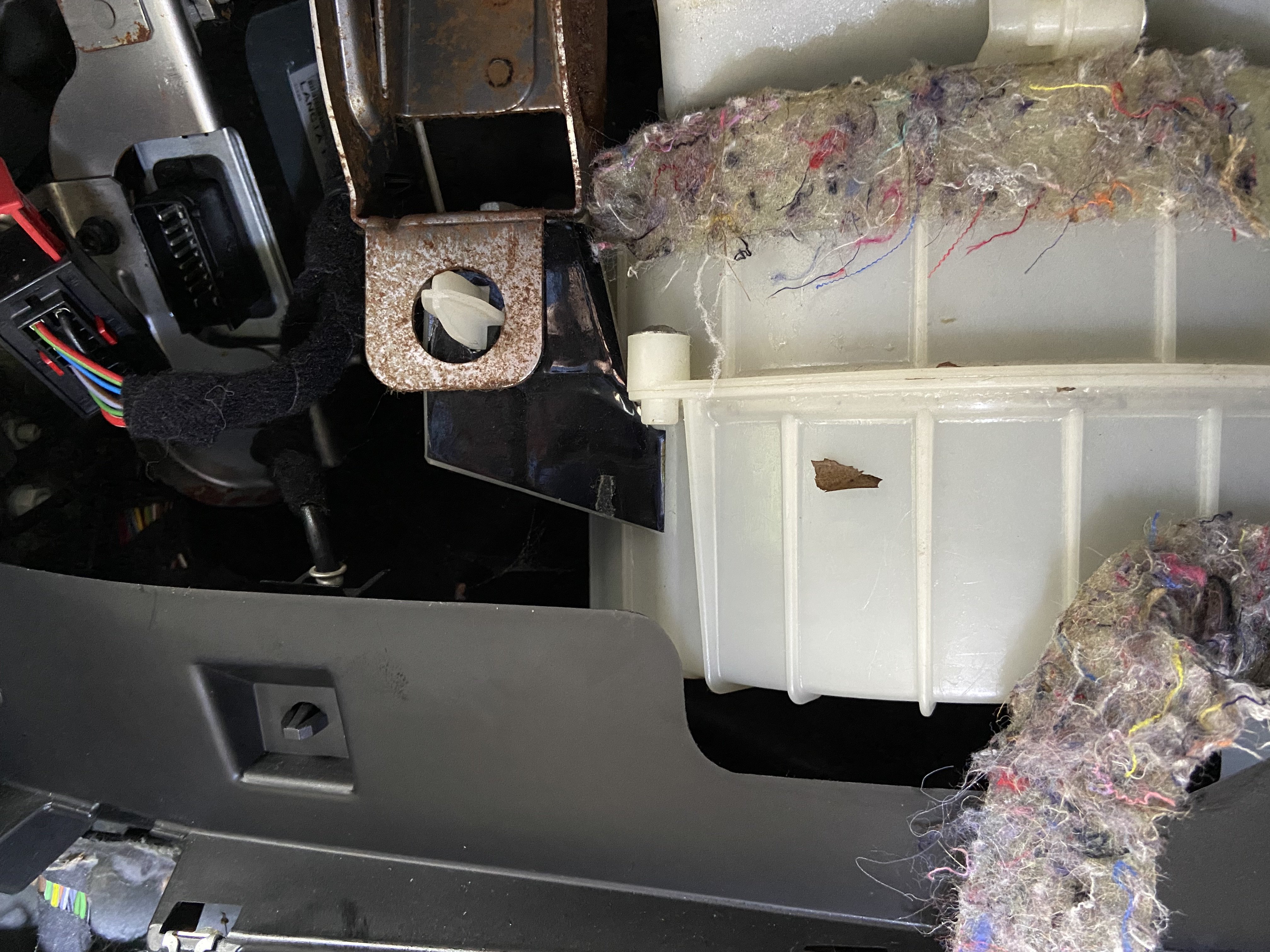

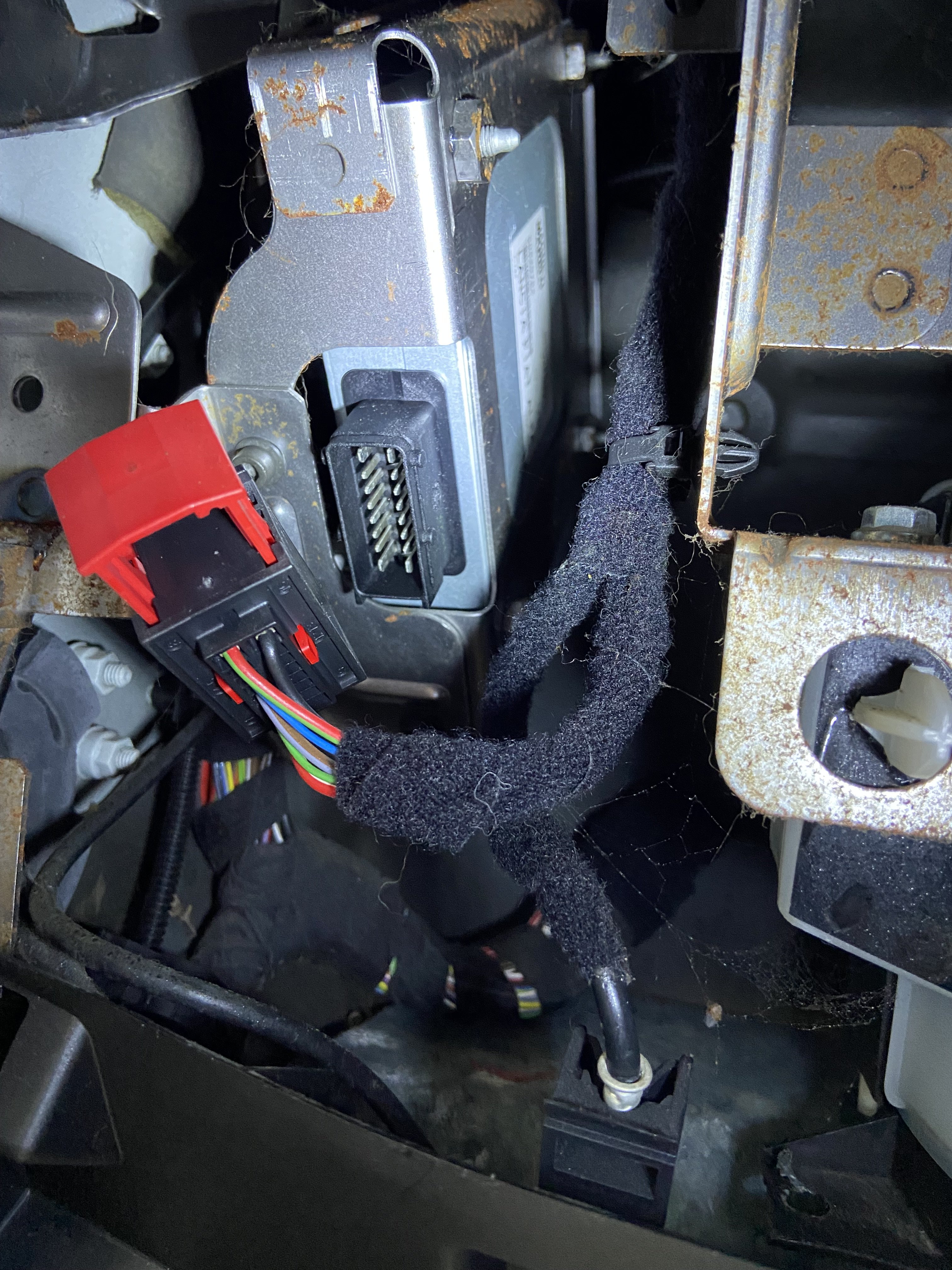

View attachment 434479View attachment 434479Hi my doblo 2010 heater blowers not working been on utube and they’ve said could be resistor or fan and looks very easy to change but when l got under the passenger pocket mine looks totally different not sure how you get to either can anyone help
Thanks Brian View attachment 434478View attachment 434478

Twisty control knobs.. Or pushbutton 'climate.'?



[varesecrazy]

This is the standard look FIAT setup:

The Heater FAQ........... | FIAT Grande Punto

There seems to be a fair few questions on the forum about this so here goes.............. My fan doesn't work: After checking the relevent fuses (check handbook for fuse locations) on the s1 model the fuse is here: First things first check the fan motor... (Im pinching a few members...

www.fiatforum.com



[Brian elberts]

Twisty control knobs.. Or pushbutton 'climate.'?

Twisty control knobs.. Or pushbutton 'climate.'?

Twist and push button air con



[varesecrazy]

Ok, at least that's simpler

It still has a resistor pack.. And probably a 5 wire plug

TBH. That looks just like the panel layout for the punto in the link I sent
