Hi

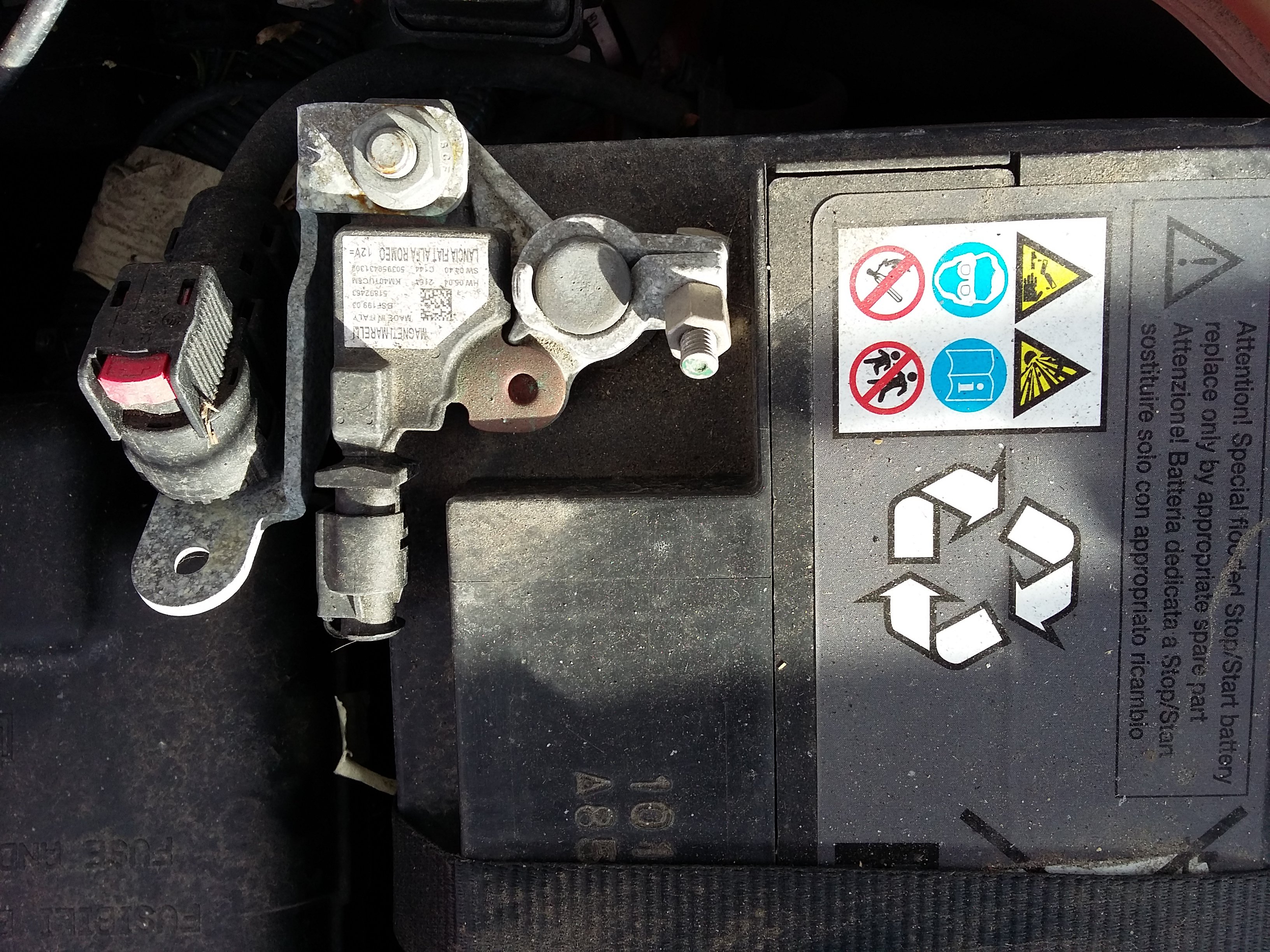

This is the factory battery set.up on a 2012 build Stop.Start equipped twinair (panda layout .. same battery arrangement in punto)

This battery is still starting the car in Feb 2021.. S:S function isnt required by me


Attachments

  • 20200629_111733.jpg
    2.6 MB · Views: 12
Last edited:
OP
OP
V
Joined
Apr 27, 2011
Messages
29,590
Location
Near the M4
This odd looking feature is the additional LARGE fuses mounted on the battery terminals
( the one replaced with household fusewire is 50A and supplies the GlowPlug circuit)


Attachments

  • 20191029_130827.jpg
    2.8 MB · Views: 10
OP
OP
V
Joined
Apr 27, 2011
Messages
29,590
Location
Near the M4
Views of a 2012 punto ( twinair) engine bays battery layout..
Sensors slide onto a 'spike' on the battery terminal to monitor battery condition for 'Stop: Start'


Attachments

  • 20210210_112337.jpg
    2.3 MB · Views: 11
  • 20210210_112344.jpg
    2.5 MB · Views: 9
  • 20210210_112348.jpg
    3.1 MB · Views: 8
