Technical 2014 Fiat Ducato Digital Climate Control Unit

[NZGrahamO]

Hi All


I have a problem with no power supply to the digital climate control unit on my 2014 Fiat Ducato.
This is bringing up a CAN fault the digital climate control unit has not been seen.
Electrical drawings I have show a Fuse F39 ???? supplies the 12 volt to the
digital climate control unit.
It could be that the electrical drawings I have are pre 2014.
Does anyone know where the supply fuse is located for the digital climate control unit.
I cannot find a F39 fuse on the documents supplied with the van.

Thank You



[HughJampton]

Fuse designation often seems fairly random for Ducatos, not necessarily lining up with documentation.

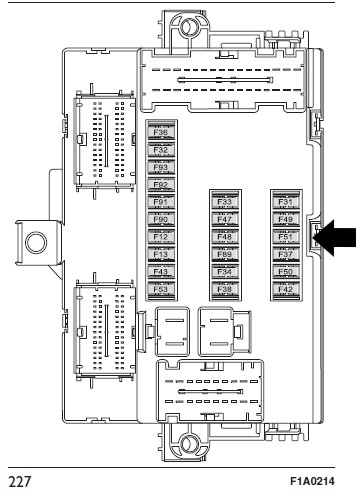

FWIW, however, 2014 and 2015 manuals I have copies of here both designate F51 in the dashboard fuse box as protecting climate control.



[HughJampton]

...and, to add...

2014 was the changeover to X/290 (to which my post above refers). If it is the previous X250, then F39 appears to be the designated suspect.

The info and diagrams available here:

https://fuse-box.info/fiat

...should allow you to identify the location of F39 (and also adds weight to F51 being the appropriate fuse for the later model).



[NZGrahamO]

Just like to say thanks the people for their information re my Fiat Ducato problems.
Having a Ducato that is a 2014 facelift model causes heaps of problems getting info re electrical drawings as the e learn info is generally for pre facelift models.

Thanks
Graham O
NZ



[chris3234]

Just like to say thanks the people for their information re my Fiat Ducato problems.
Having a Ducato that is a 2014 facelift model causes heaps of problems getting info re electrical drawings as the e learn info is generally for pre facelift models.

Thanks
Graham O
NZ

I think after around 2015 fiat moved all technical info to there very expensive online subscription service that's can only be accessed by vat registered garage's
