Hi Gary;
The systemthat you are thinking about is called "Nannoplex" and was used on the last of the air-cooled 126 cars (that were made in in Poland). Some of the parts required are available'on-line', but it would most probably be best to try and get a complete system from Poland, even if it is 2nd hand---I think that they can be obtained for about £200 (just under 1,000 Zloty). The system uses a crankshaft pulley specific to the system and does away with the distributor completely. (in fact the last of the air-cooled 126 models, the ELX variants, did not have the distributor mount casting machined for a distributor). I know a man in the UK who fits a lot of these systems, and says that he has very little trouble with them.
Hi Tom,
Had a very long chat today with kelvyne what a wealth of knowledge he is! He planted the seed about this system which he said was very reliable, Will also explore other options too Looking at Accuspark and 123 system I think is dutch.
He has a flywheel and will sort which is most suitable, have sent engine No to establish this.
the hobbler
Distinguished member
- Joined
- Jul 25, 2012
- Messages
- 4,672
- Points
- 1,185
Hi Gary;
I will e-mail you direct with regard to the "123" system and "Accuspark", which is a simple "Hall effect" system. Yes, Kelvyne does have wealth of knowledge, and I am not surprised that you had a long phone conversation with him-----in the very "nicest possible way", it is difficult to have a short phone conversation with him!
thefiatfactory
Member
I'm looking at this setup for my 126 704cc build,
dmdautomotors.com
which I think is basically the nanoplex system upgraded, rather than using a specific front pulley with the three lugs cast in, this system replaces the alloy oil centrifuge cover with one that locates three similar metal lugs, mounts a pickup in line with these and has all the needed wiring.
they also do this system
dmdautomotors.com
SteveC
MODIFICA ACCENSIONE ELETTRONICA ALTE PRESTAZIONI ELIMINA SPINTEROGENO
Porta le prestazioni del motore della tua Fiat 500 a un livello superiore con la nostra Modifica Accensione Elettronica ad Alte Prestazioni. Questo kit avanzato elimina lo spinterogeno, risolvendo tutti i problemi ad esso associati, e include componenti di alta qualità per garantire affidabilità...
dmdautomotors.com
which I think is basically the nanoplex system upgraded, rather than using a specific front pulley with the three lugs cast in, this system replaces the alloy oil centrifuge cover with one that locates three similar metal lugs, mounts a pickup in line with these and has all the needed wiring.
they also do this system
KIT ACCENSIONE ELETTRONICA SU SPINTEROGENO PER FIAT 500 F L R 126
Rinnova il sistema di accensione della tua Fiat 500 F, L, R o 126 con il nostro Kit Accensione Elettronica su Spinterogeno. Questo kit avanzato è progettato per sostituire il tradizionale sistema di accensione a puntine, offrendo una maggiore affidabilità e migliorando le prestazioni complessive...
dmdautomotors.com
SteveC
Looks interesting would like to know how well it works and anyone who is using it.I'm looking at this setup for my 126 704cc build,
MODIFICA ACCENSIONE ELETTRONICA ALTE PRESTAZIONI ELIMINA SPINTEROGENO
Porta le prestazioni del motore della tua Fiat 500 a un livello superiore con la nostra Modifica Accensione Elettronica ad Alte Prestazioni. Questo kit avanzato elimina lo spinterogeno, risolvendo tutti i problemi ad esso associati, e include componenti di alta qualità per garantire affidabilità...
which I think is basically the nanoplex system upgraded, rather than using a specific front pulley with the three lugs cast in, this system replaces the alloy oil centrifuge cover with one that locates three similar metal lugs, mounts a pickup in line with these and has all the needed wiring.
they also do this system
KIT ACCENSIONE ELETTRONICA SU SPINTEROGENO PER FIAT 500 F L R 126
Rinnova il sistema di accensione della tua Fiat 500 F, L, R o 126 con il nostro Kit Accensione Elettronica su Spinterogeno. Questo kit avanzato è progettato per sostituire il tradizionale sistema di accensione a puntine, offrendo una maggiore affidabilità e migliorando le prestazioni complessive...
SteveC
thefiatfactory
Member
like I said, it's basically the nanoplex setup, but uses an aftermarket (supposedly longer dwell) ignition module, but is the same setup as the FSM electronic, the main difference is in the pulley. The 126ELX uses a unique front pulley like this with the three lugs cast on the back

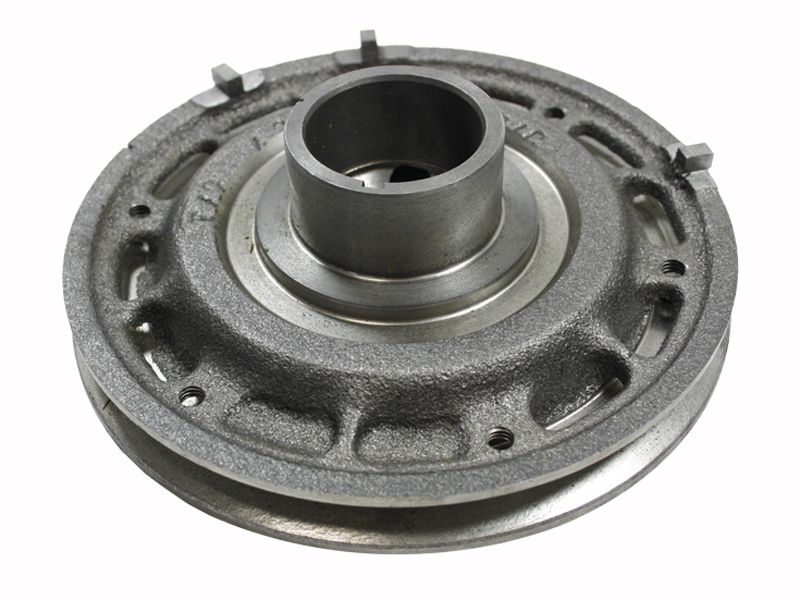

the setup from Italy replaces this with the alloy cover, if you look closely there are three slots machined into the rear outer edge, the kit includes three steel lugs that fit into these and act exactly like the lugs on the stock 126ELX pulley, look at the pics in the ad. So if anyone has recommended the 126ELX nanoplex setup to you, this is the same thing.
I would have bought one already, just trying to get the seller to give me a price exclusive of VAT as I don't live in the EU
SteveC
the setup from Italy replaces this with the alloy cover, if you look closely there are three slots machined into the rear outer edge, the kit includes three steel lugs that fit into these and act exactly like the lugs on the stock 126ELX pulley, look at the pics in the ad. So if anyone has recommended the 126ELX nanoplex setup to you, this is the same thing.
I would have bought one already, just trying to get the seller to give me a price exclusive of VAT as I don't live in the EU
SteveC
Last edited:
thefiatfactory
Member
I pulled the trigger on buying one of these sets, 400euro delivered to Australia, so I'll let you know what it all looks like in a few weeks when it gets here... turns out it only costs a slight bit more than a 123 ignition, and this kit has EVERYTHING ... that's a dual output coil, ignition module, wiring loom, pickup / trigger and mount and the oil centrifuge cover that makes it all work, and completely eliminates the distributor, even includes the plug to fill the unused hole!
SteveC
thefiatfactory
Member
First up I have to say this is in no way a paid ad... I bought this item retail for my own use, the seller gave me no discount except to round down 400 euro inclusive of freight to Australia, and I paid no GST or import fees as the package was under $1000aud. Landed cost was just shy of $700aud.
This cost compares very favourably with other options like 123 ignition. Yes this set is a little more expensive, but I like the idea of removing the distributor entirely. I also don't like electronic items positioned right near the hot exhaust, and IMO this is perhaps part of the reason a lot of the 123 sets fail in this application.

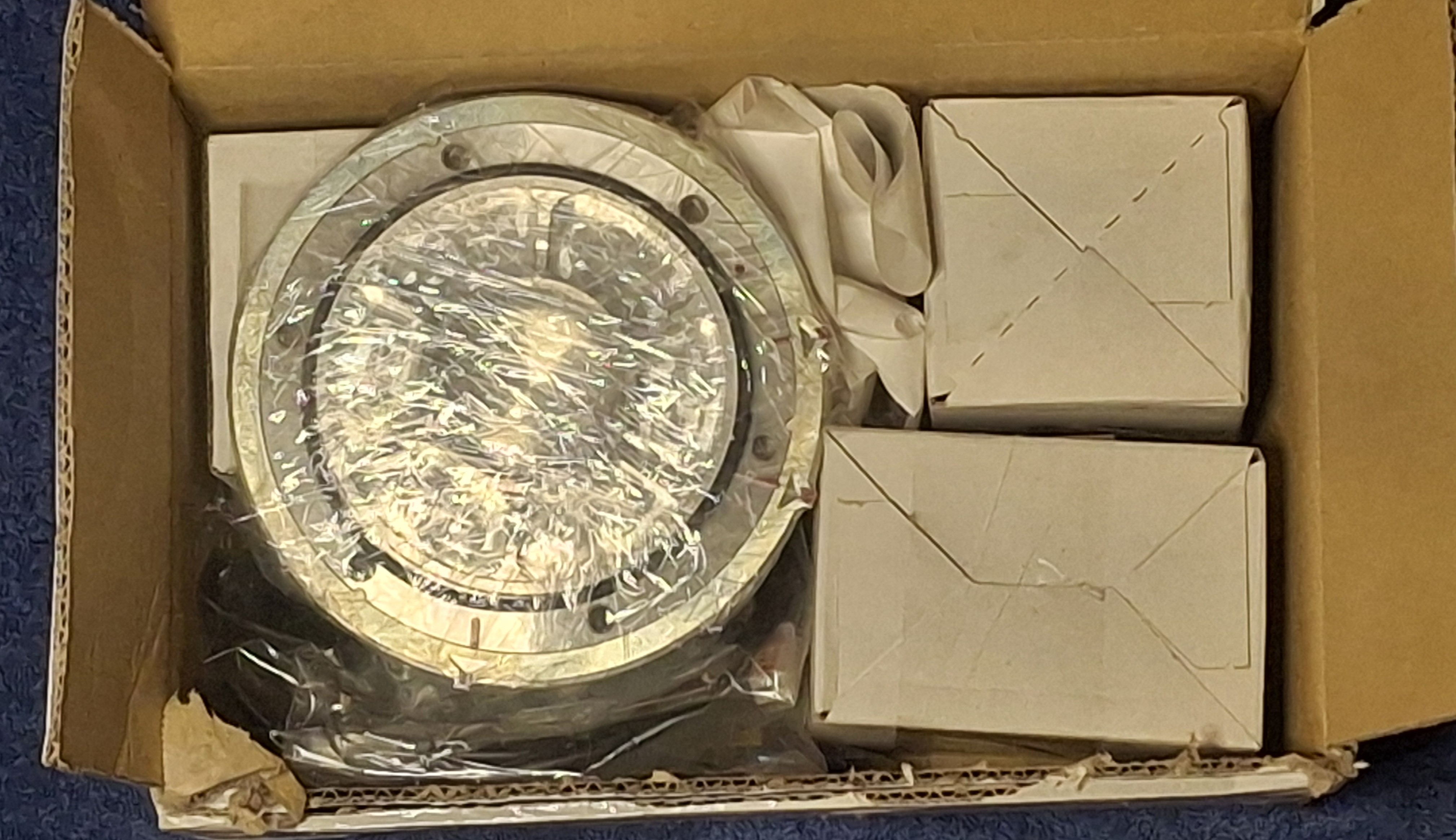

First thing I noticed is how well this was packed. I sell parts internationally and buy a lot of bits in from around Australia and overseas for various projects, and l believe how well someone parcels something up tells you something about how they view their products. Especially with electronics.

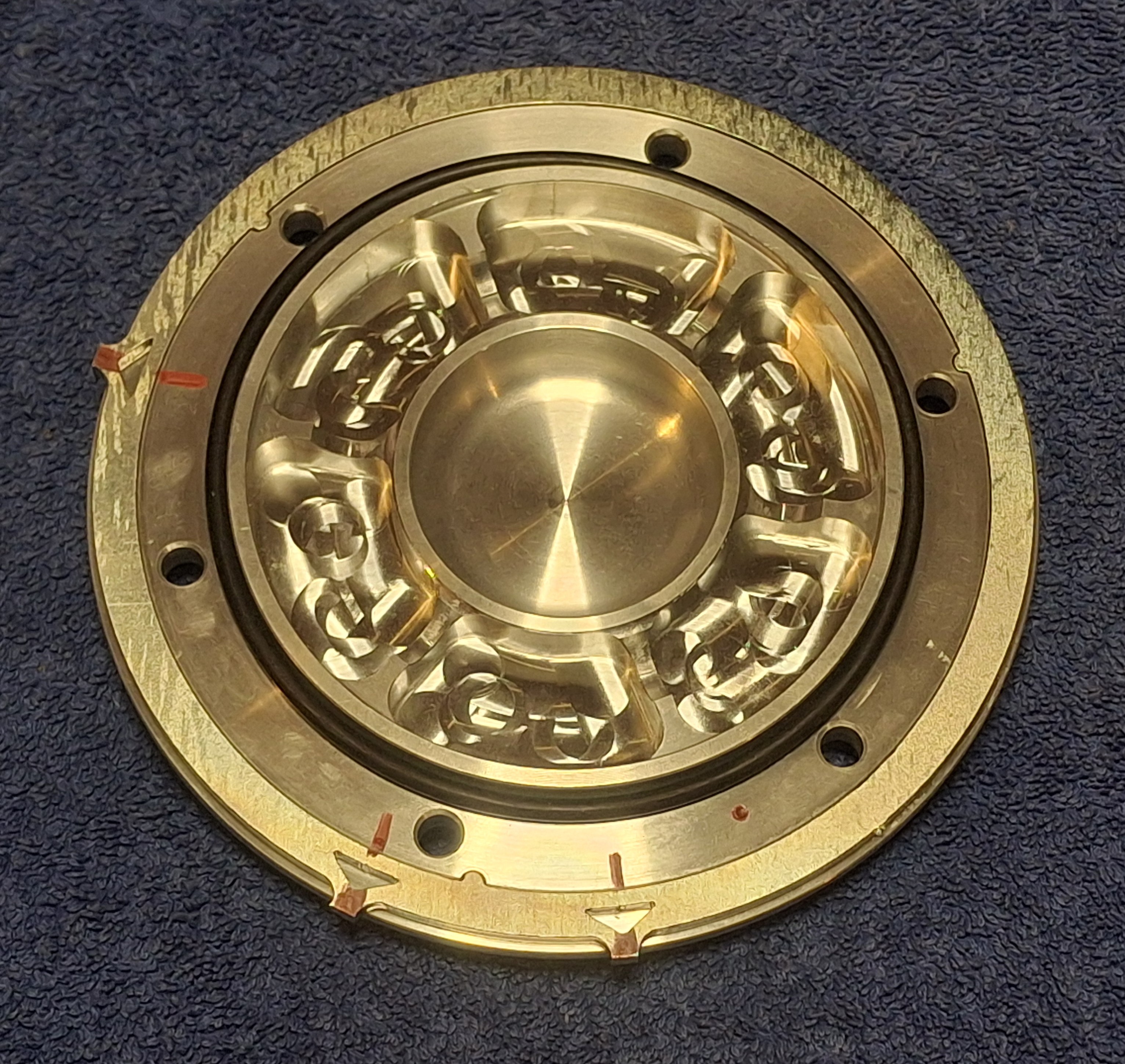

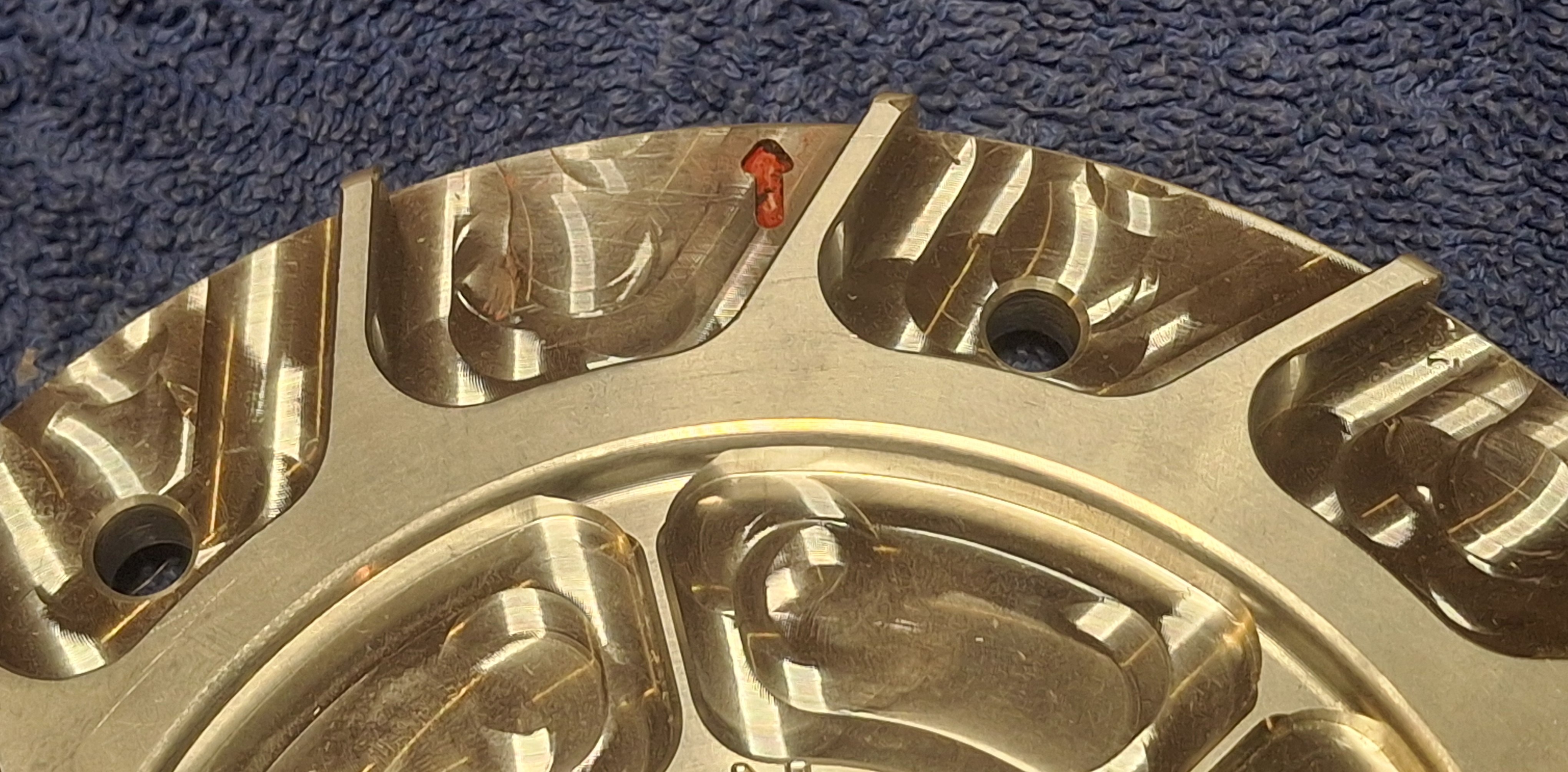

First item I looked at was the trigger wheel, the biggest shiny part. The tone ring is now a much nicer design than shown on the sales page. It's now a full circular ring, quite cleverly located and pinned, it's not a press fit, it just fits well. Cover comes with a new O ring which is nice. It's actually a nicer item than I was expecting because of the upgraded tone ring design.
Next I looked at all the plugwork on the wiring loom, very impressive. Really high-quality boots, fittings, plugs everywhere... the main harness plugs to the ICM trigger sensor and coil are all mil spec looking stuff... I can't see the actual mil. spec symbol, so they're not at THAT level, but have really nice multi-lipped sealing... like real modern cars have.

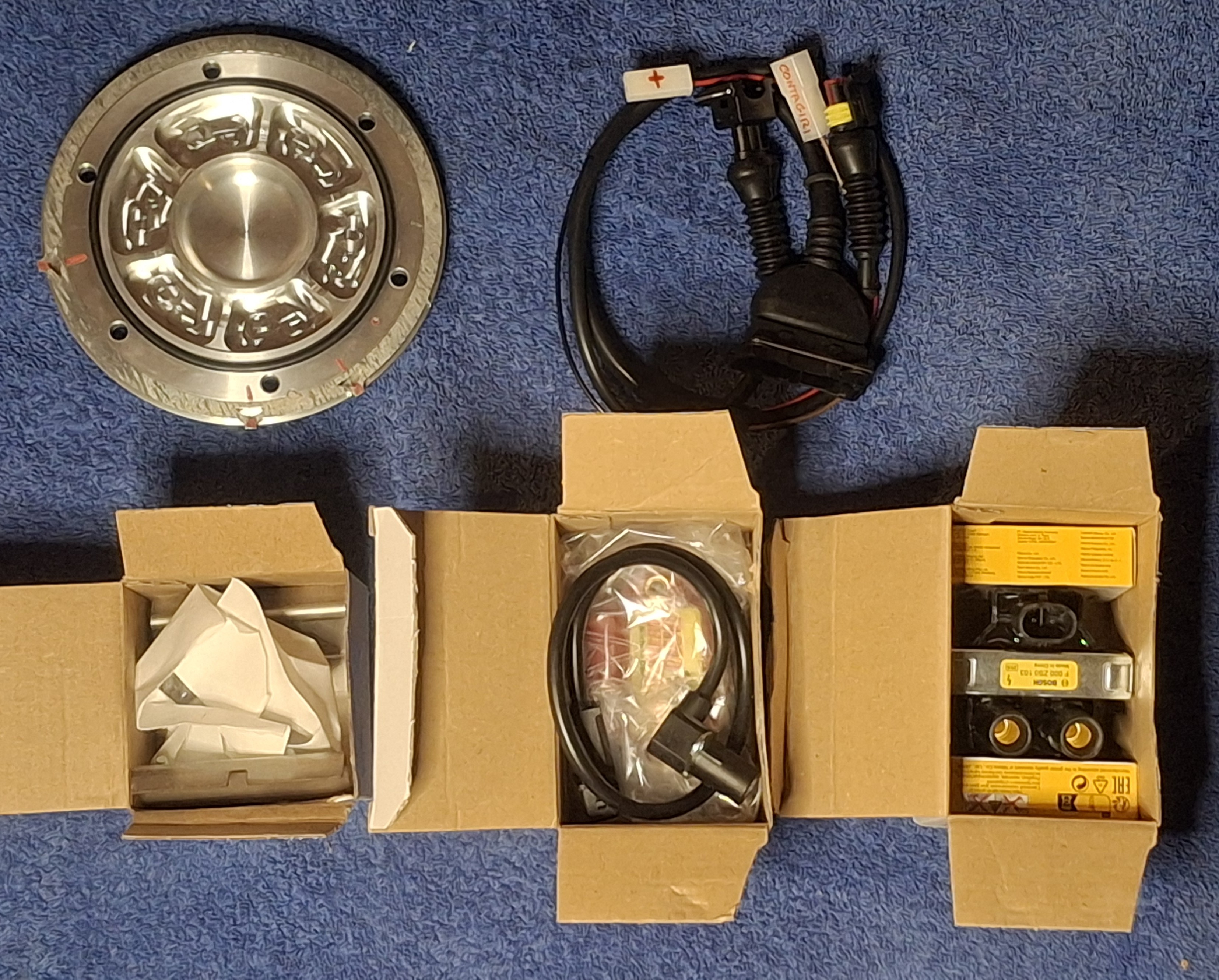

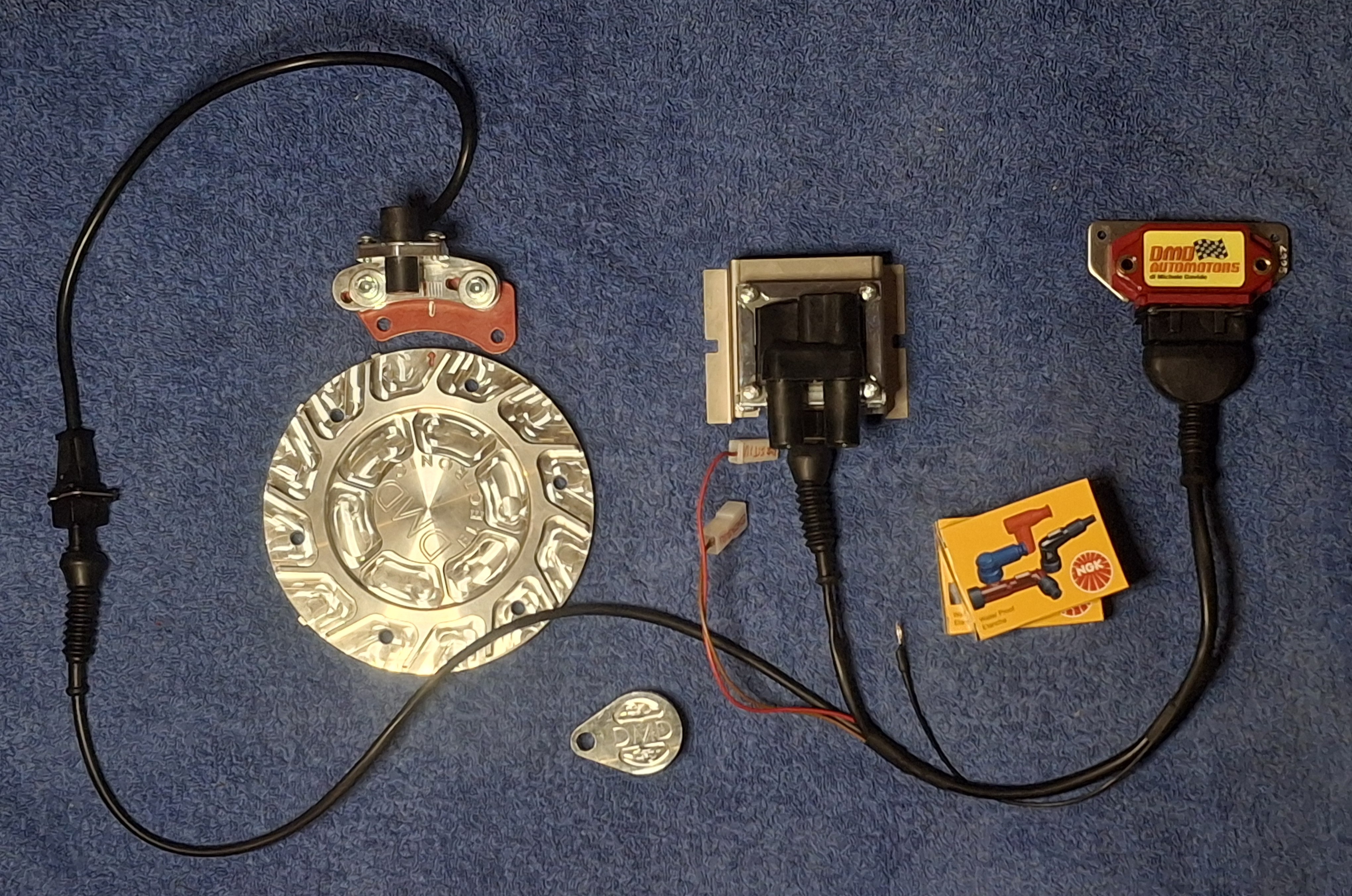

Lastly, I will say I'm very impressed with the design, engineering and quality, and I'll just let the pictures tell the rest of the story from here. Took me just a few minutes to lay it out and plug bits together, very intuitive, which again to me shows how well designed something is. It comes with no written instructions. If these guys had better pictures online and some pics of it mounted, I think they would sell a lot more of them.
How does it work, no idea yet, but I'll let you know. Would I buy again, based on what I've seen so far, yes.

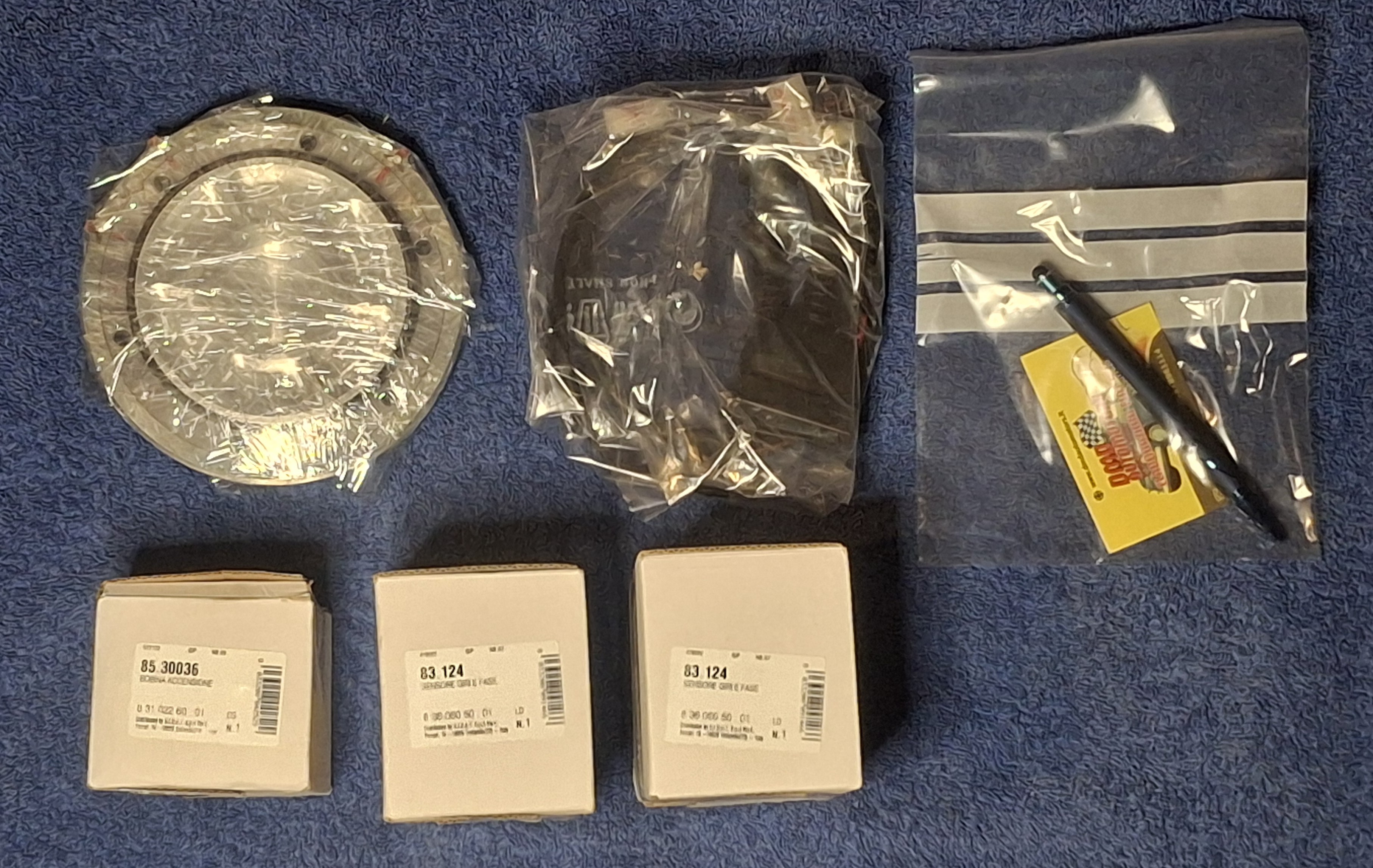

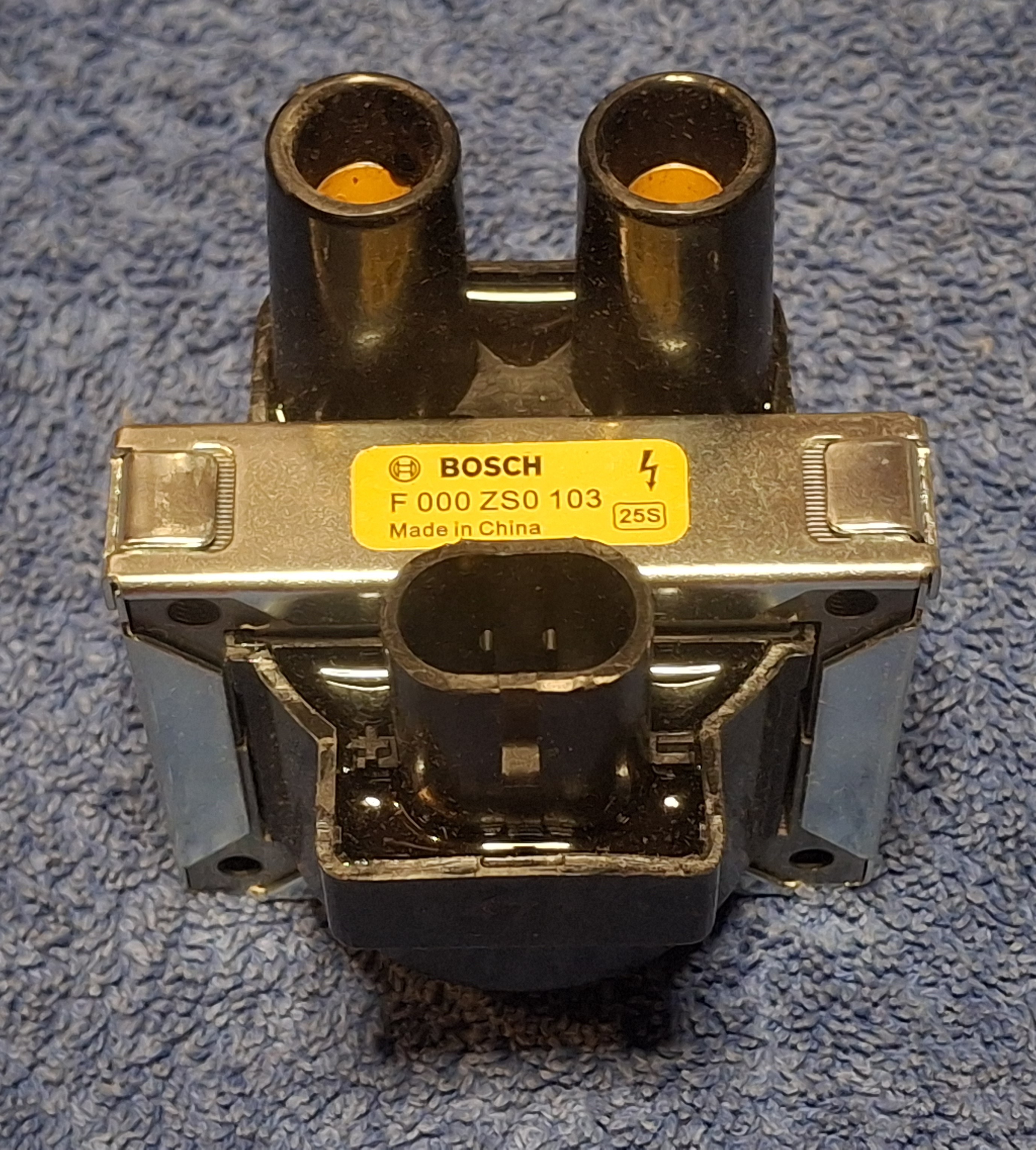

coil is Bosch, made in china

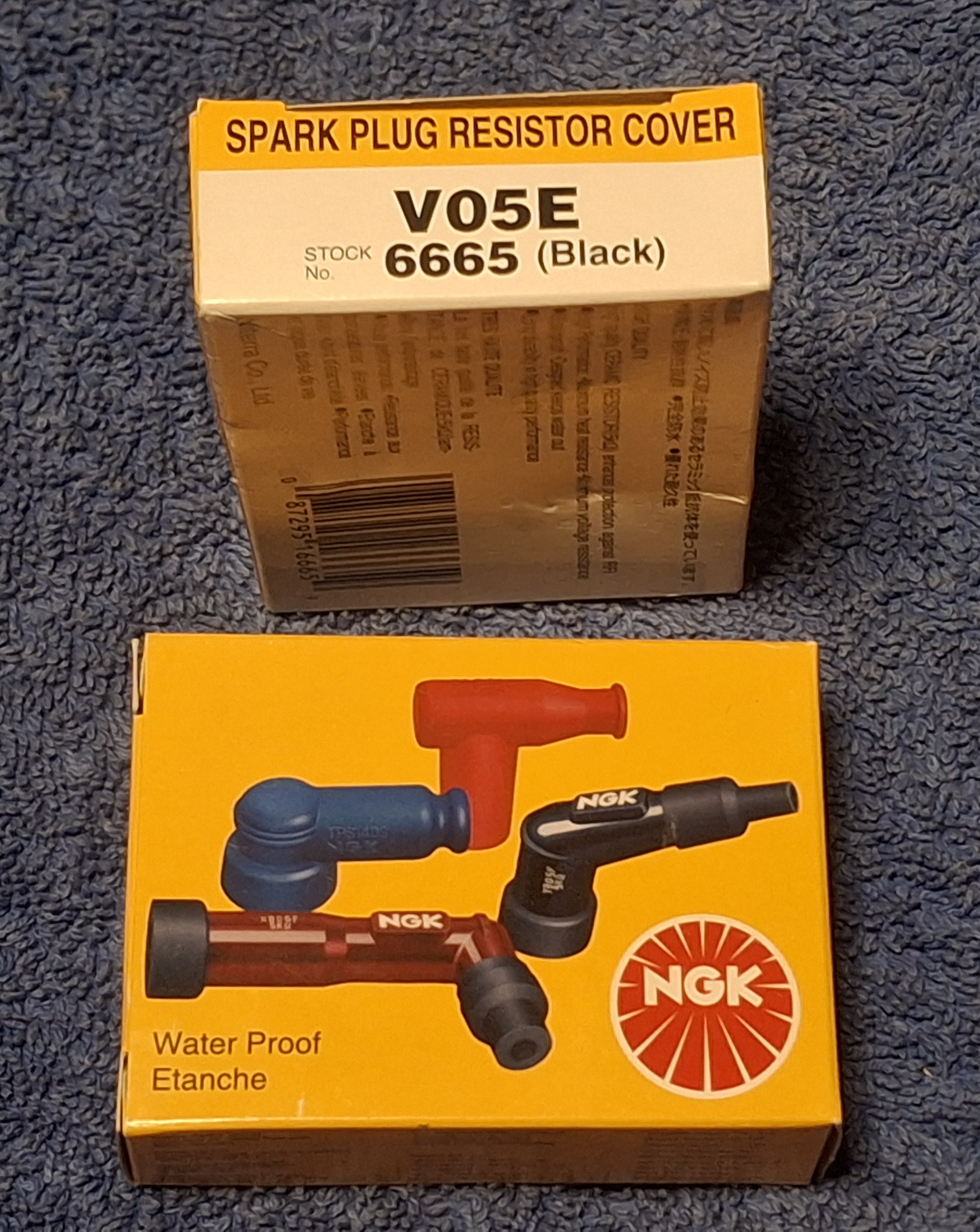

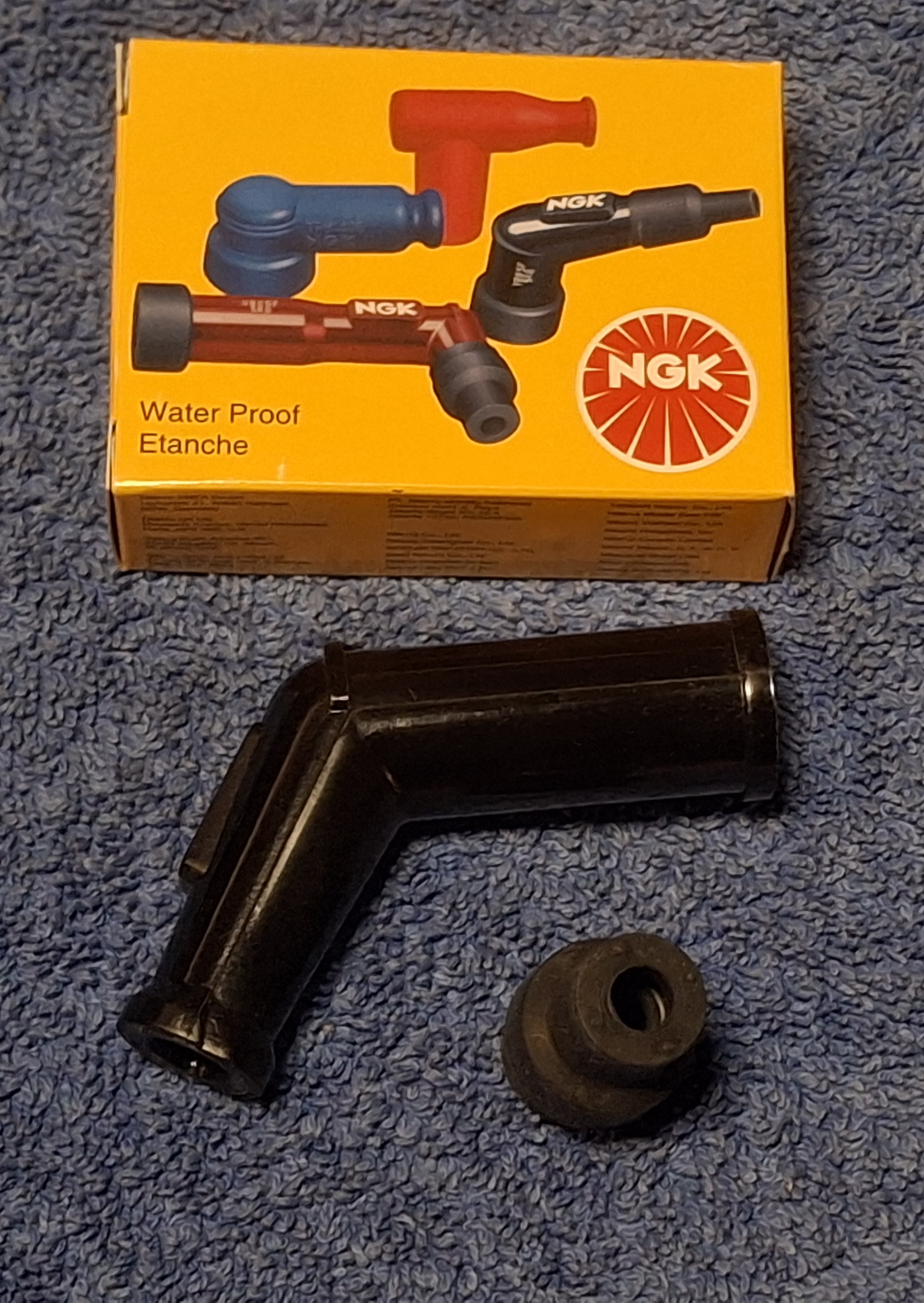

resistor plug ends are nice NGK made in Japan.

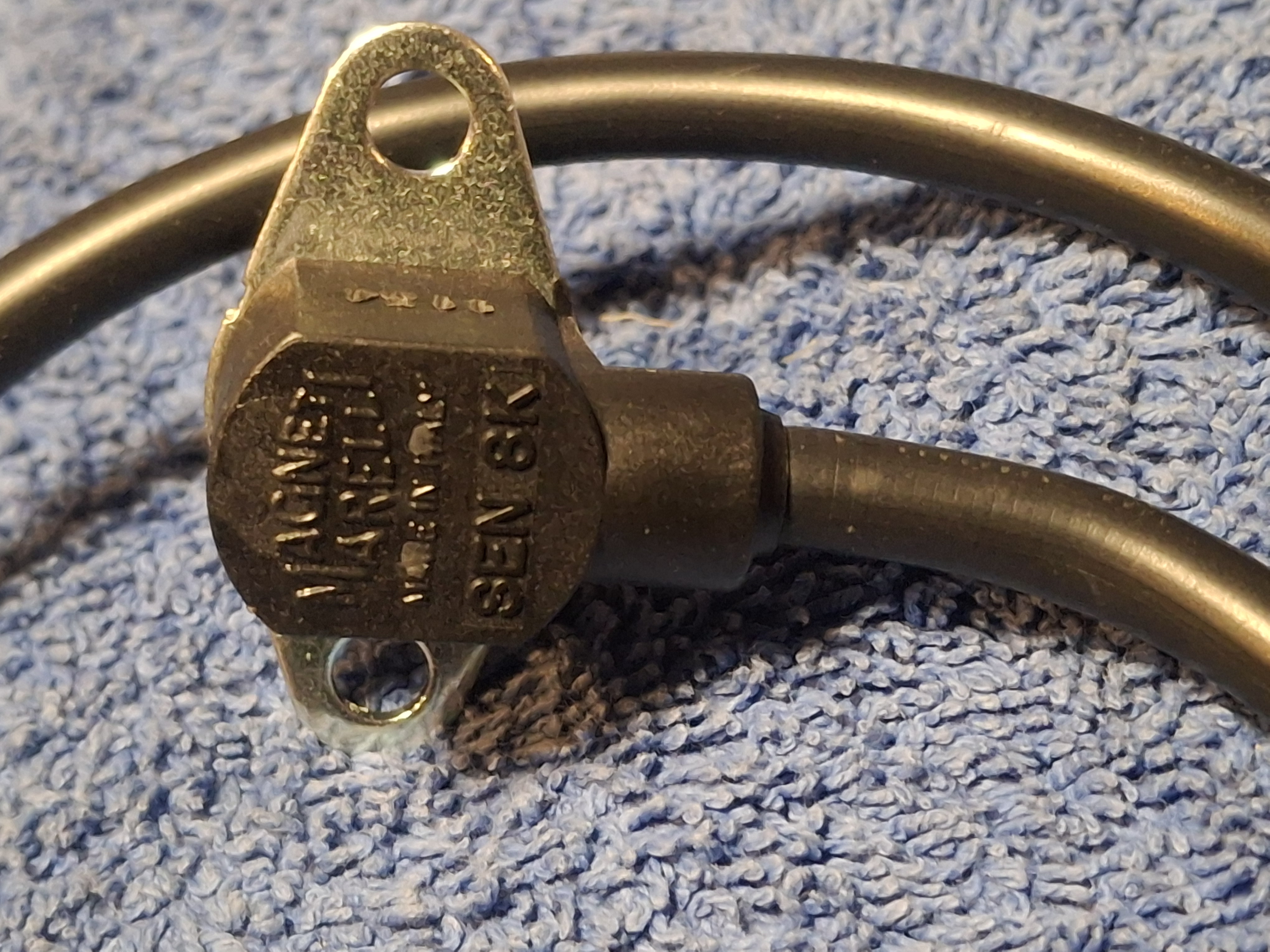

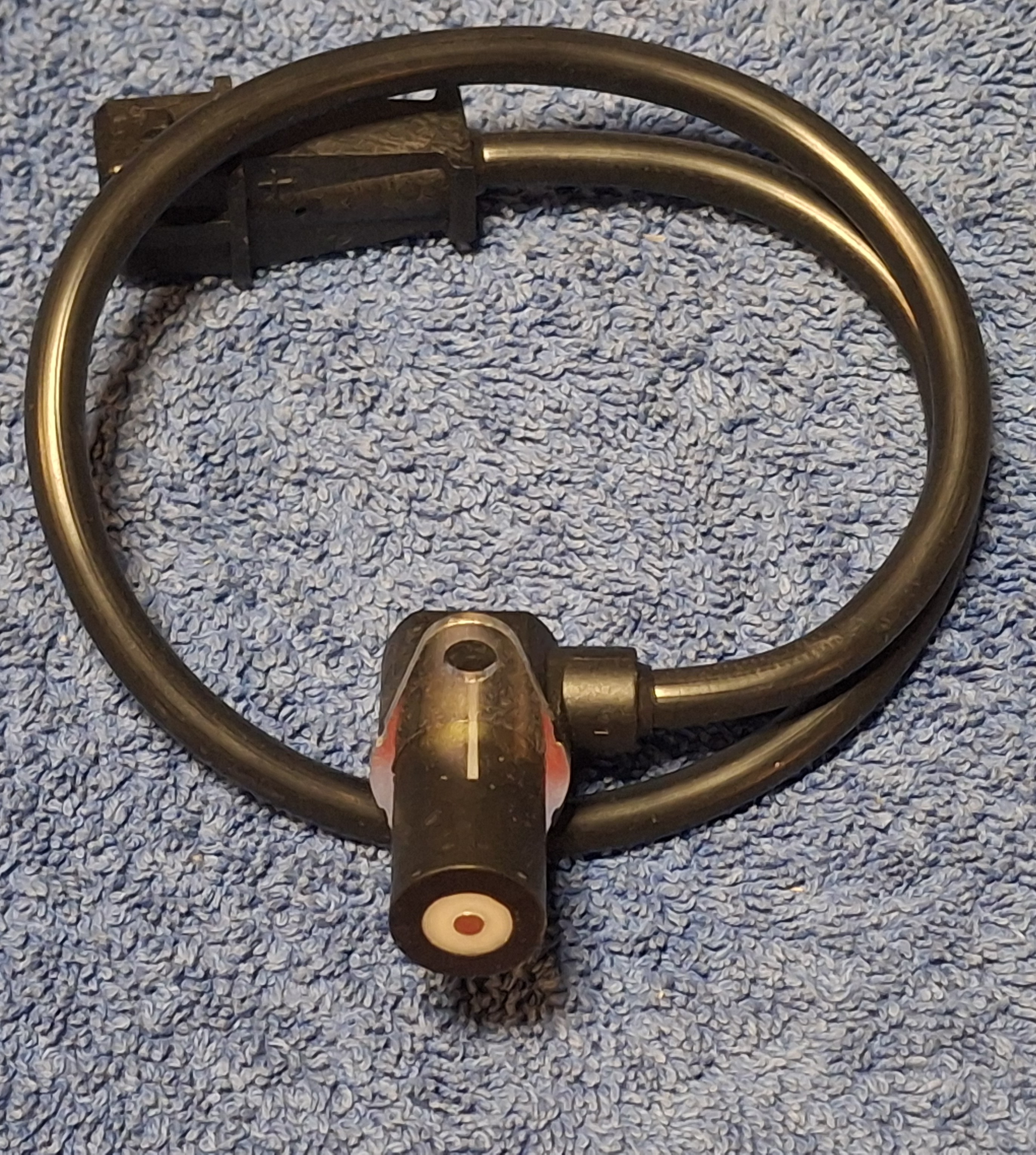

crank sensor, magneti marelli genuine part

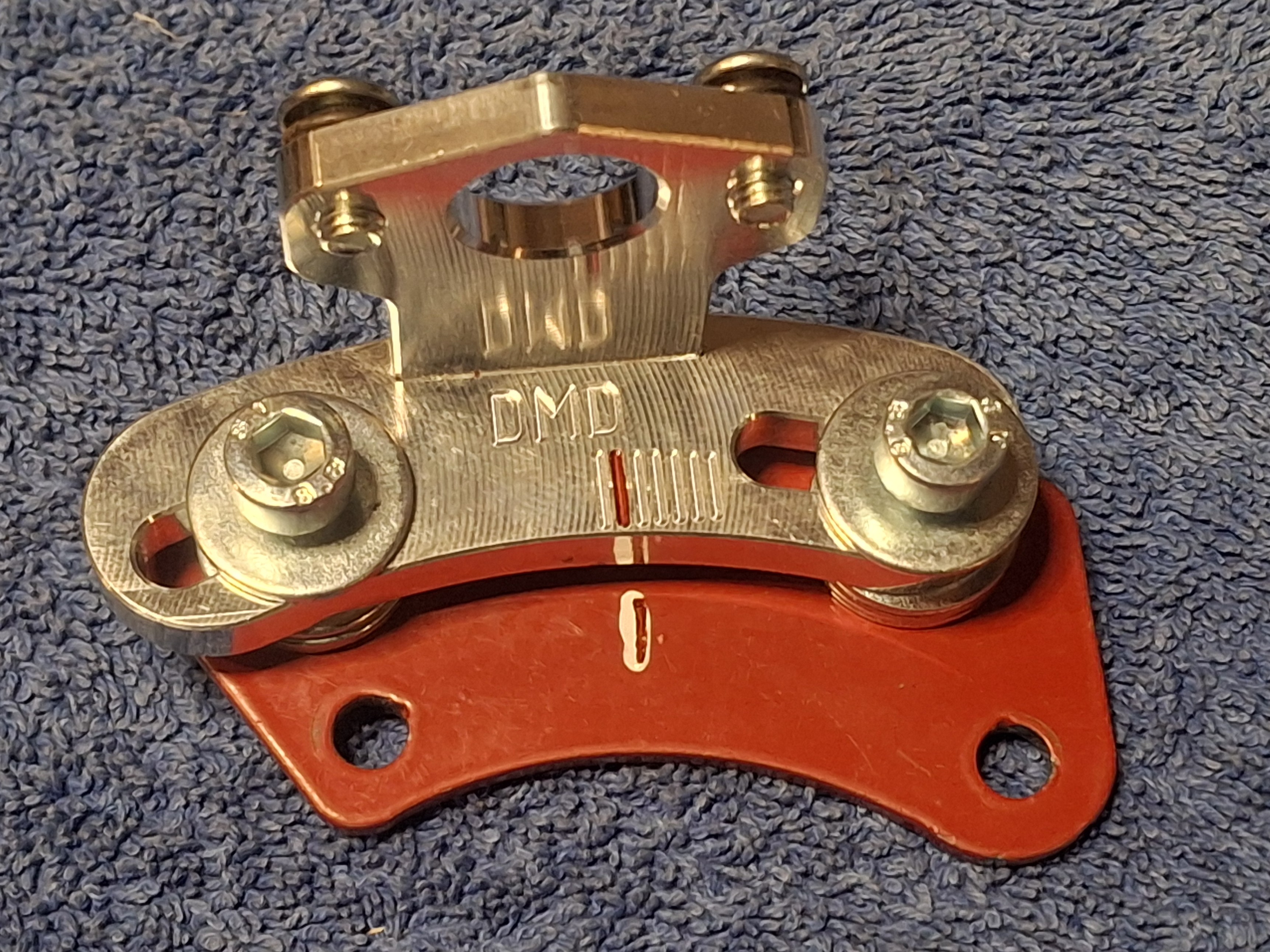

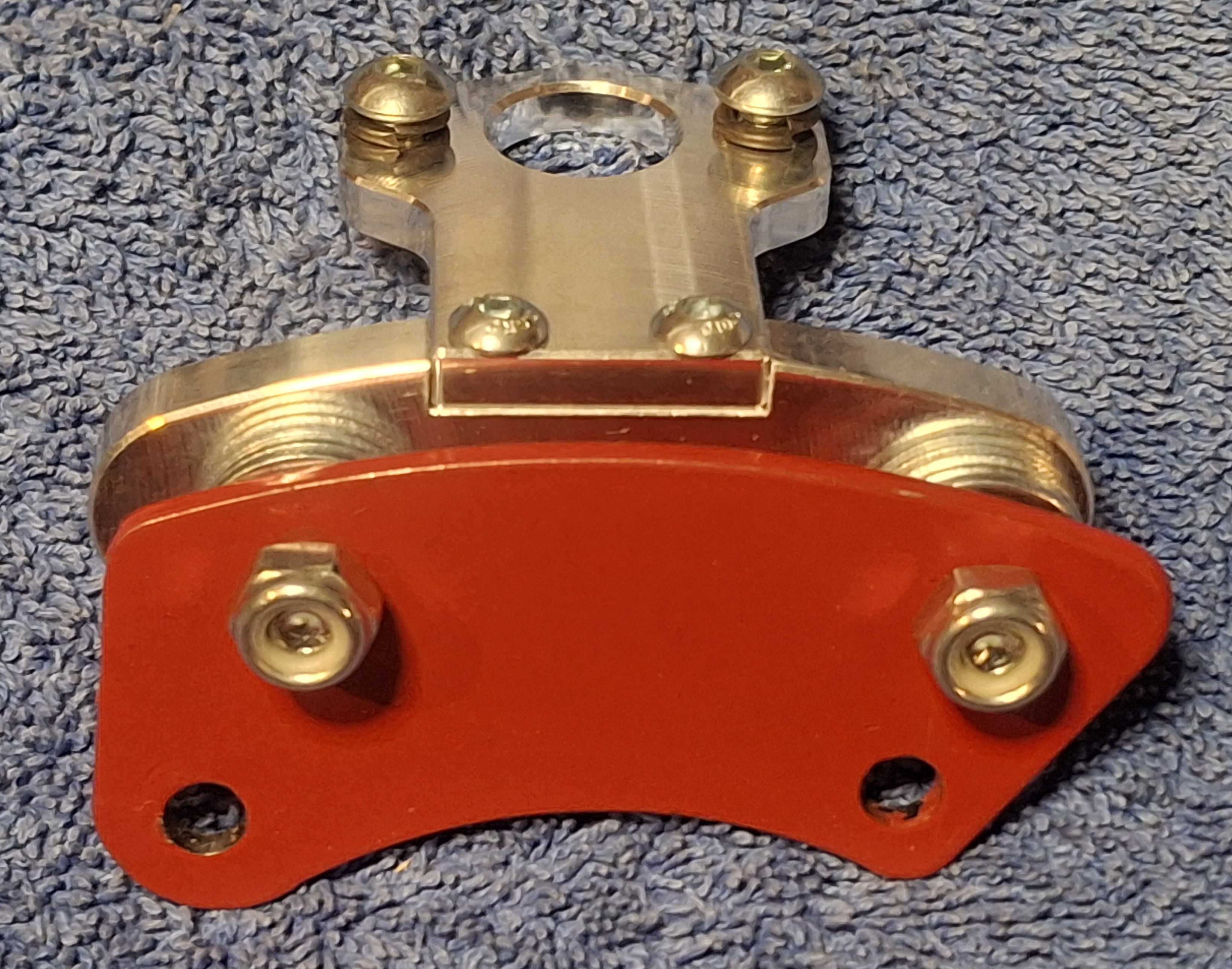

really nice sensor mount and all needed hardware

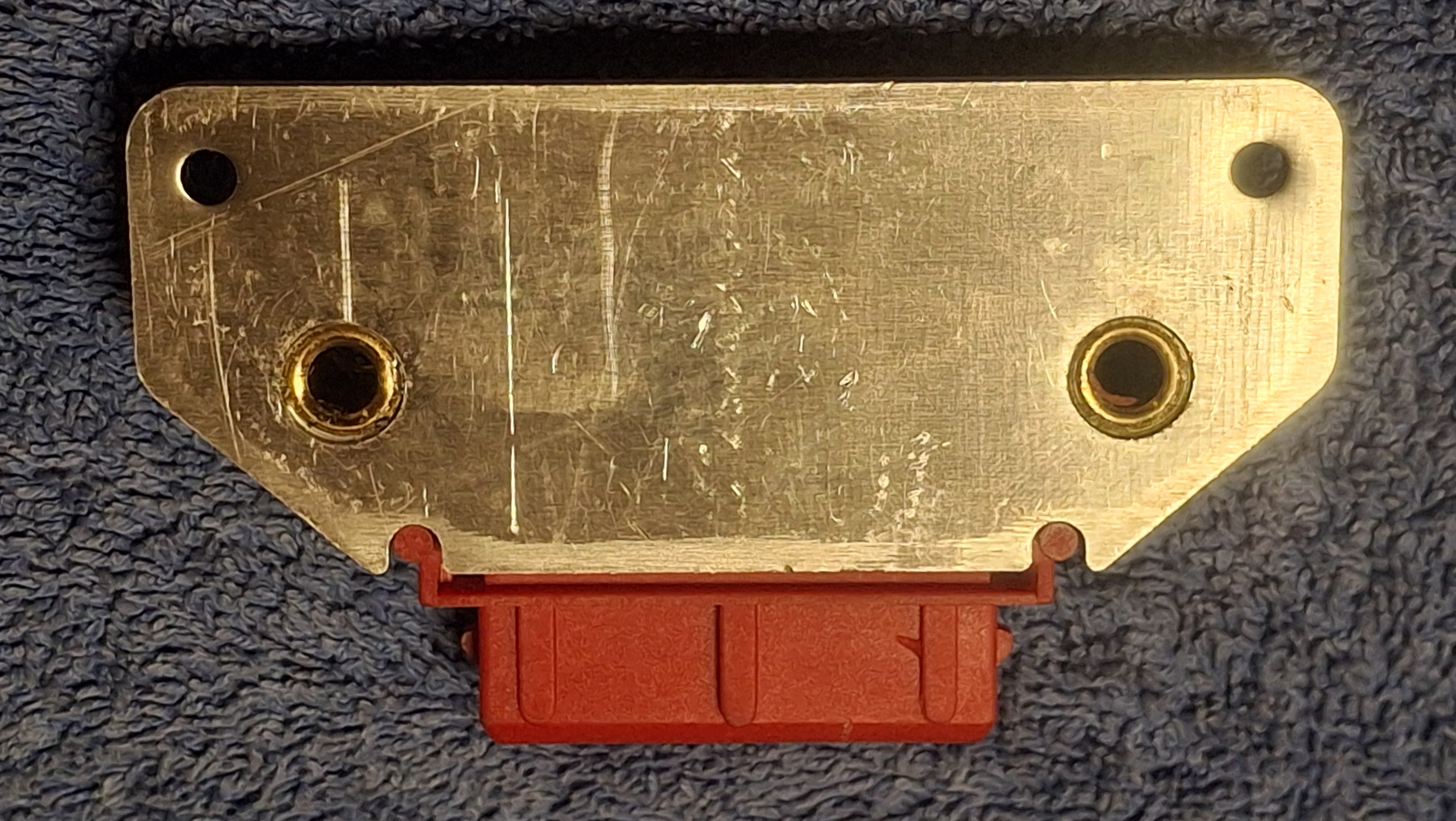

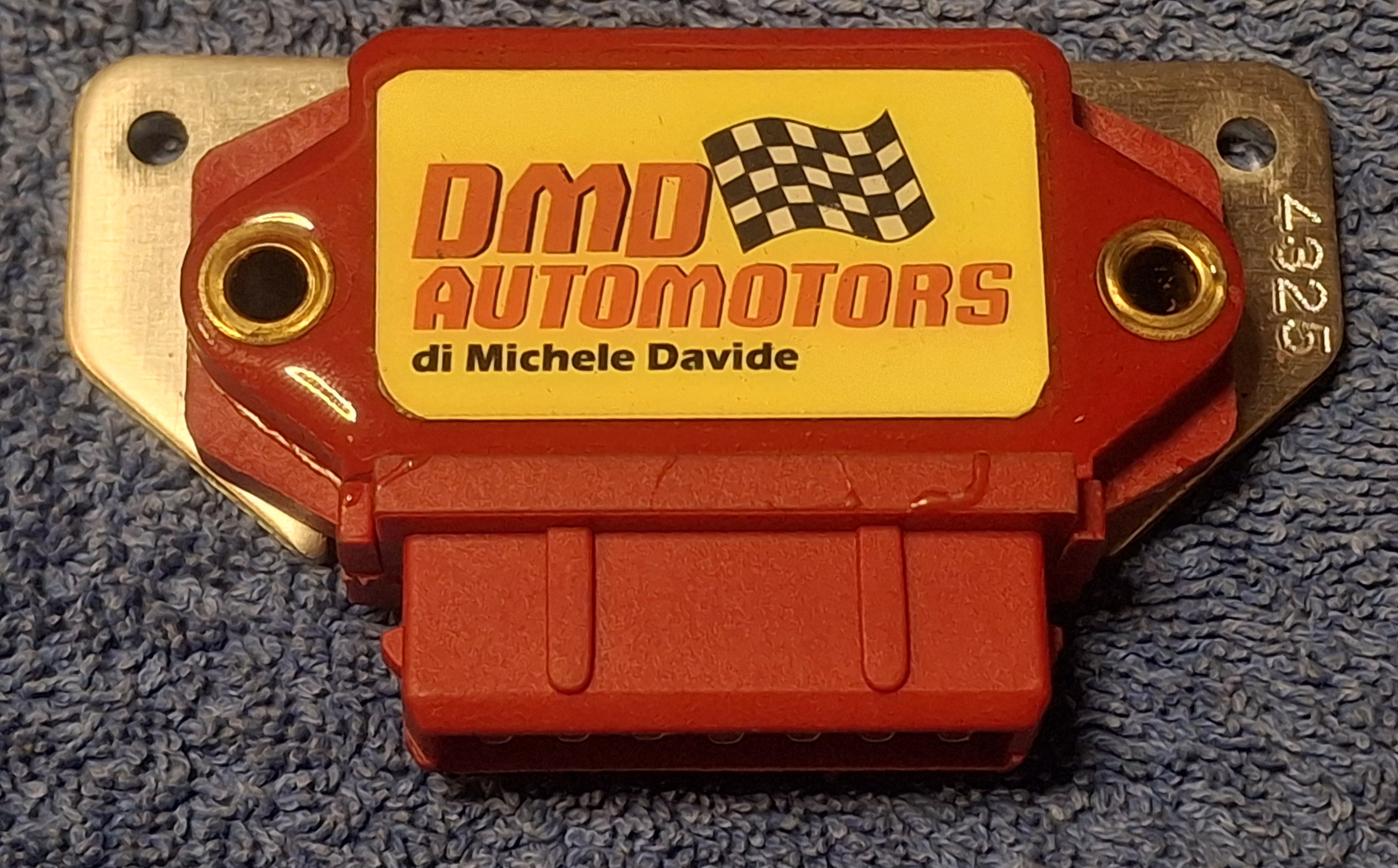

ICM looks nicely made and sealed, stainless mount

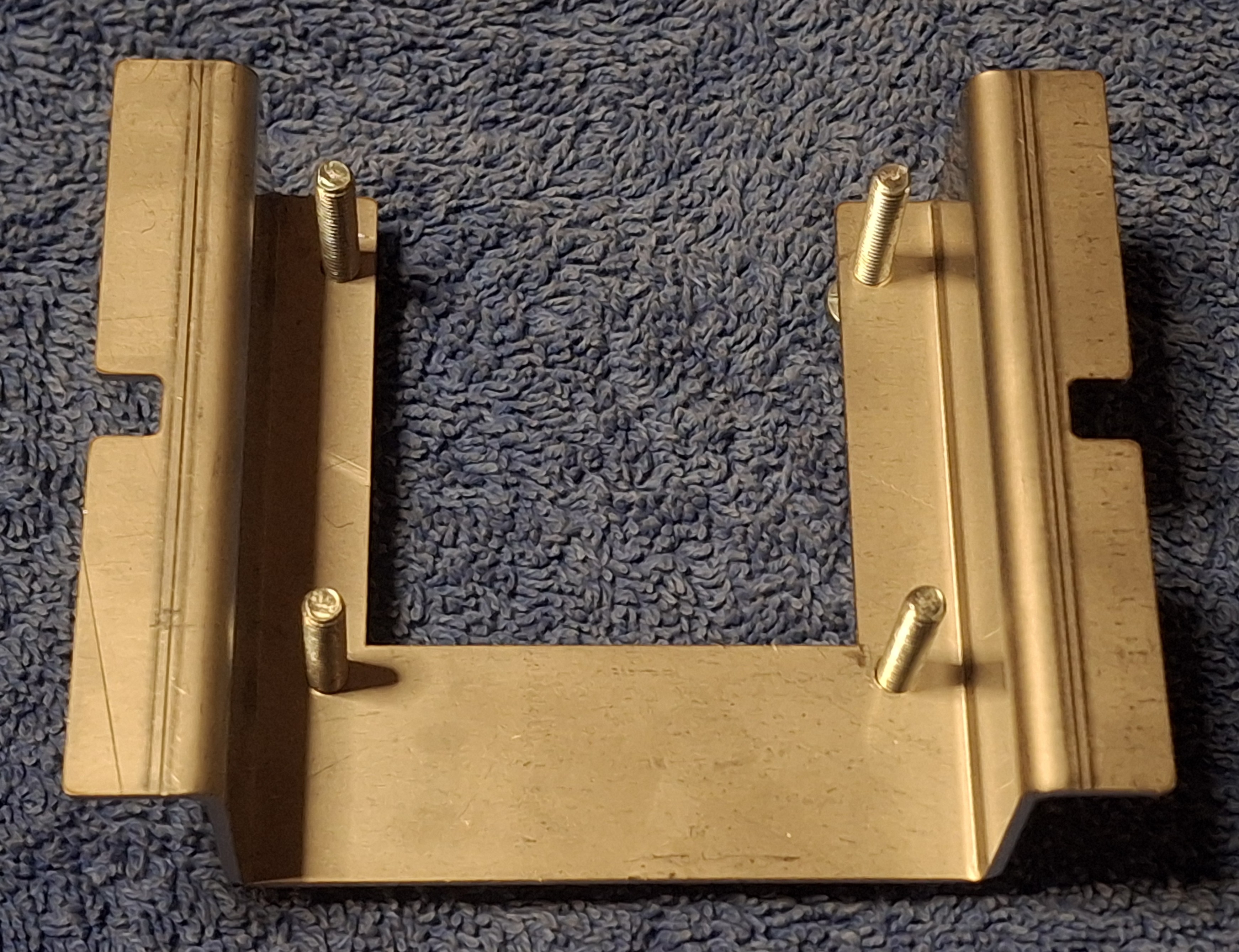

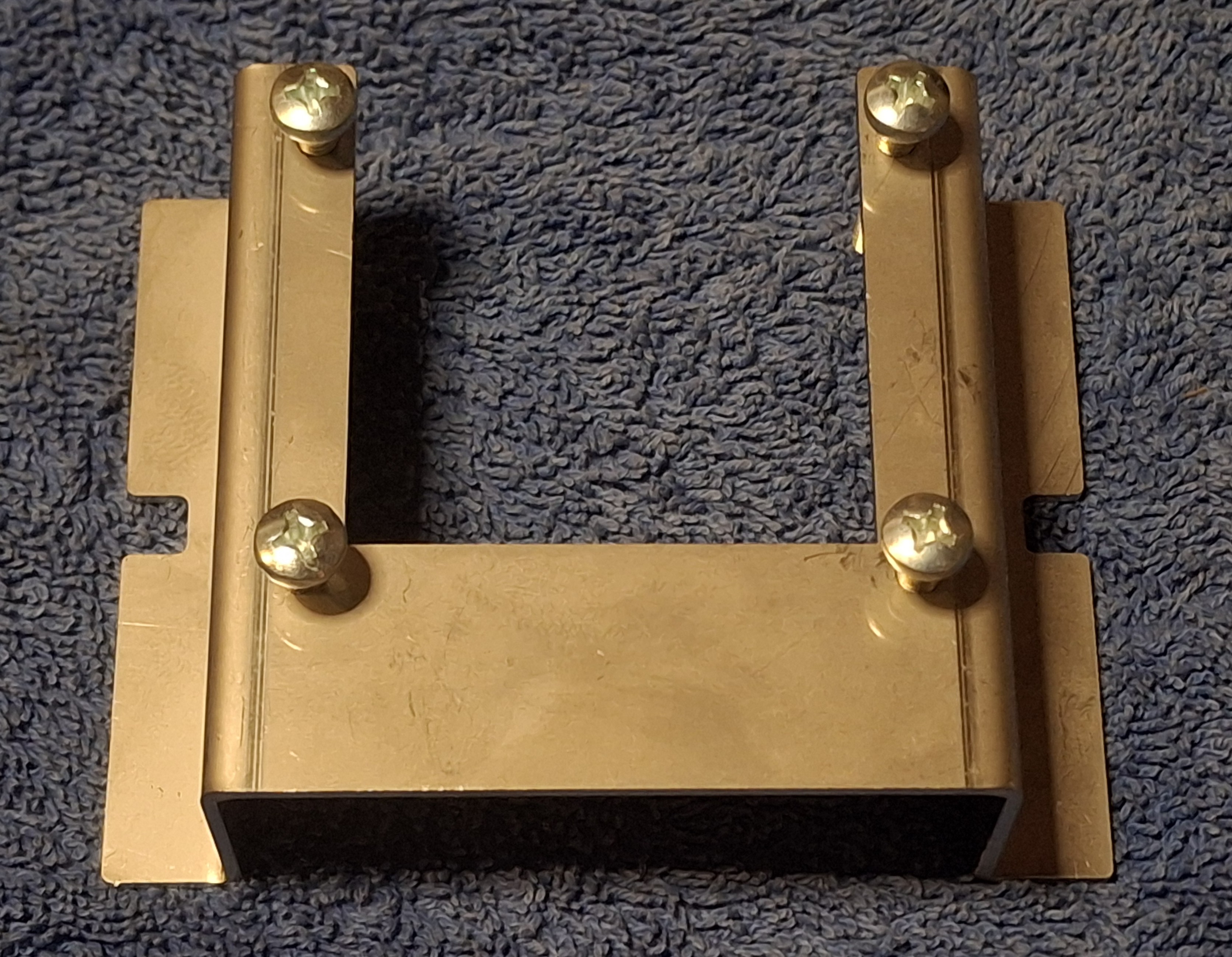

stainless steel coil mount and supplied hardware to mount the coil.

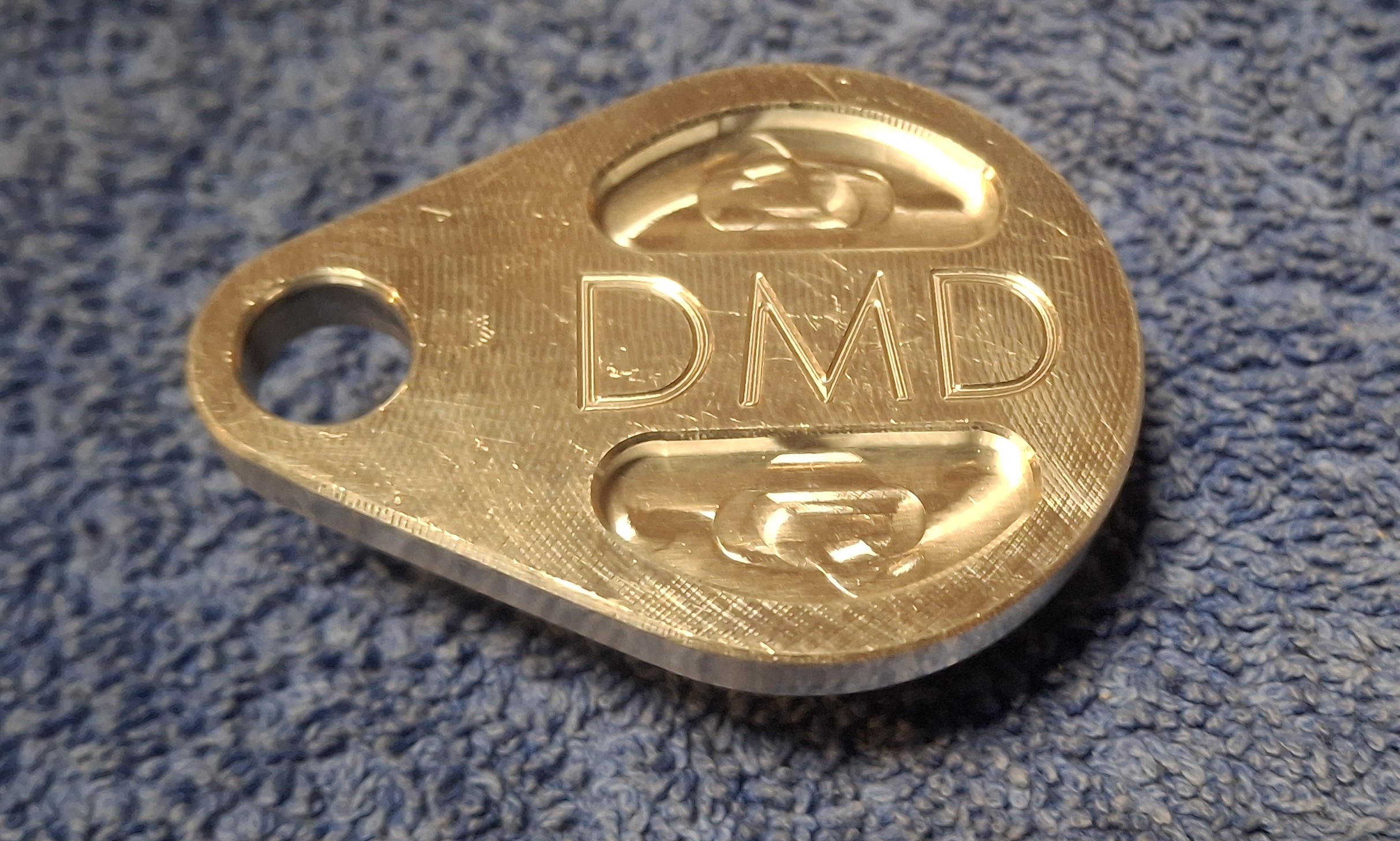

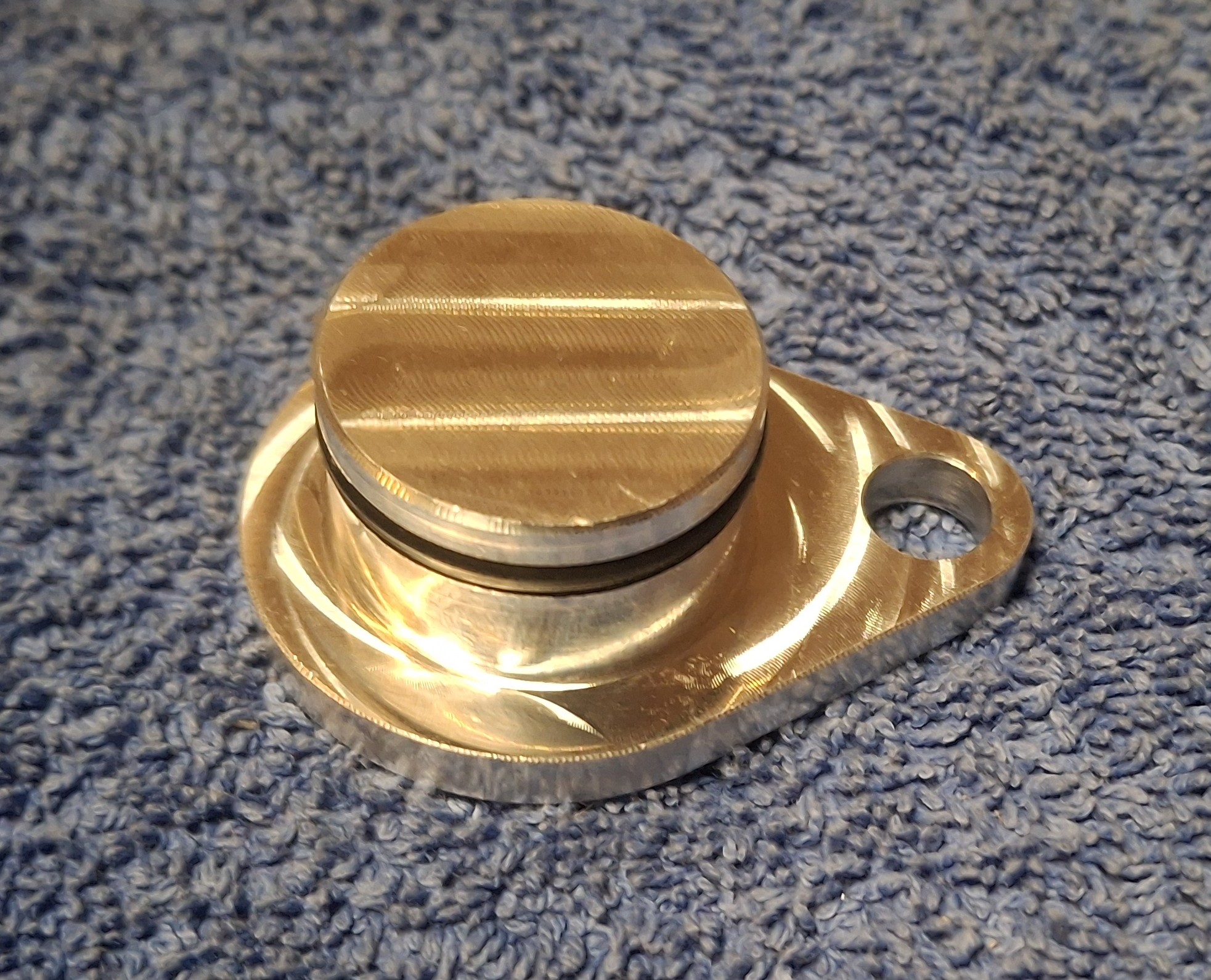

even the distributor blanking plugs is nicely made, O ringed, has built in tag to secure it so no need for the OE clamp to hold it down, nice.

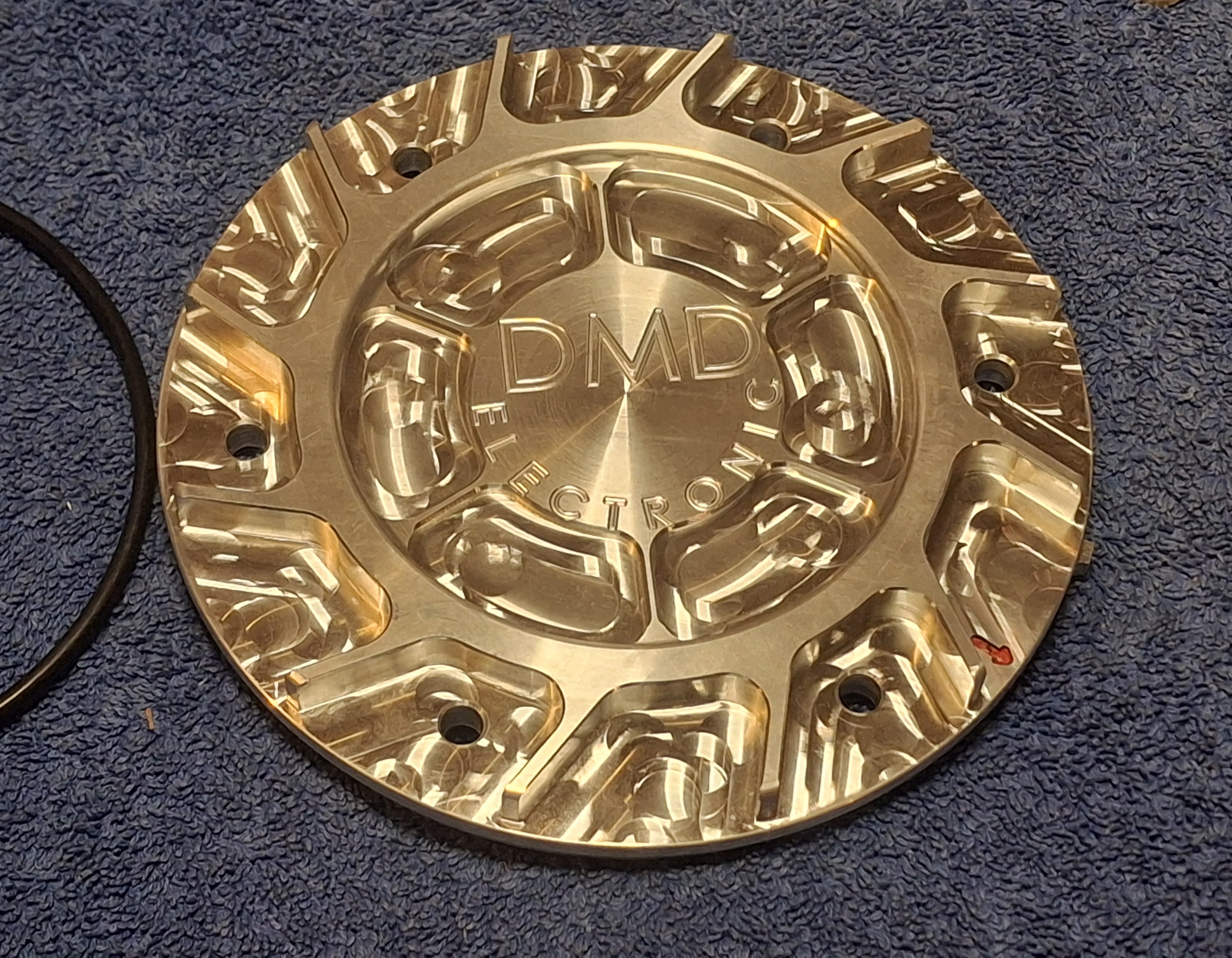

Also looking at it from a machinists view, I like how the CNC operator has taken the extra time to programme in the extra passes to break all the sharp edges on the alloy parts, it's those extra little things that make a nice product.
it took me about a minute to lay this out and plug together, super easy.
SteveC
This cost compares very favourably with other options like 123 ignition. Yes this set is a little more expensive, but I like the idea of removing the distributor entirely. I also don't like electronic items positioned right near the hot exhaust, and IMO this is perhaps part of the reason a lot of the 123 sets fail in this application.
First thing I noticed is how well this was packed. I sell parts internationally and buy a lot of bits in from around Australia and overseas for various projects, and l believe how well someone parcels something up tells you something about how they view their products. Especially with electronics.
First item I looked at was the trigger wheel, the biggest shiny part. The tone ring is now a much nicer design than shown on the sales page. It's now a full circular ring, quite cleverly located and pinned, it's not a press fit, it just fits well. Cover comes with a new O ring which is nice. It's actually a nicer item than I was expecting because of the upgraded tone ring design.
Next I looked at all the plugwork on the wiring loom, very impressive. Really high-quality boots, fittings, plugs everywhere... the main harness plugs to the ICM trigger sensor and coil are all mil spec looking stuff... I can't see the actual mil. spec symbol, so they're not at THAT level, but have really nice multi-lipped sealing... like real modern cars have.
Lastly, I will say I'm very impressed with the design, engineering and quality, and I'll just let the pictures tell the rest of the story from here. Took me just a few minutes to lay it out and plug bits together, very intuitive, which again to me shows how well designed something is. It comes with no written instructions. If these guys had better pictures online and some pics of it mounted, I think they would sell a lot more of them.
How does it work, no idea yet, but I'll let you know. Would I buy again, based on what I've seen so far, yes.
coil is Bosch, made in china
resistor plug ends are nice NGK made in Japan.
crank sensor, magneti marelli genuine part
really nice sensor mount and all needed hardware
ICM looks nicely made and sealed, stainless mount
stainless steel coil mount and supplied hardware to mount the coil.
even the distributor blanking plugs is nicely made, O ringed, has built in tag to secure it so no need for the OE clamp to hold it down, nice.
Also looking at it from a machinists view, I like how the CNC operator has taken the extra time to programme in the extra passes to break all the sharp edges on the alloy parts, it's those extra little things that make a nice product.
it took me about a minute to lay this out and plug together, super easy.
SteveC
Last edited:
the hobbler
Distinguished member
- Joined
- Jul 25, 2012
- Messages
- 4,672
- Points
- 1,185
A tip Steve---the 2 securing points for the "Sensor-mount"----use studs in the crankcase to mount this, or you will not be able to fit/remove it with the crank-pulley in place.The 126 engines tended to use long 6mm bolts (whereas the 500 uses studs) to secure the 'timing-chain' cover and they (the 2 required to hold the "sensor-mount") cannot be removed with the crank-pulley in place---seen the video, worn the'T'shirt!. I have also bought parts from "DMD"---always been of a very good quality
Looks very nice quality, looking forward to hear how it works !
thefiatfactory
Member
You'll be waiting a while, still machining and building of the engine first it might be 12 months away. Don't hold your breath, you'll turn a smurf shade of blue.
SteveC
My car is in a thousand bits, so I am going nowhere fast !
my car is in a thousand bits, so I am going nowhere!
