Working out Offset of Wheels

OFFSET

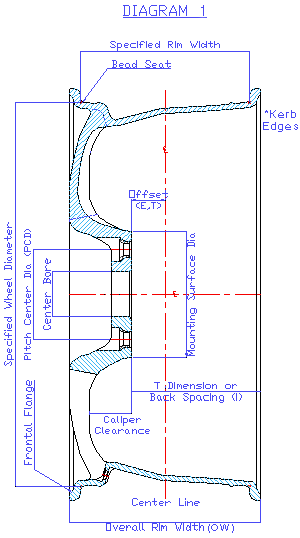

To work out the offset the wheel must be measured accurately using the following steps and using Diagram 1 & Diagram 2.

  • Measure the overall width of the wheel - OW *
  • Measure the ‘T’ dimension, which is the measurement from the back of the bolt up face to the outside of the inner rim
  • Divide the overall width by two which gives you the centre line.
  • Minus the ‘T’ dimension from the centre line.
