Technical Stilo connect nav wiring for mic

[iainbrown]

Hi all, have a RG3 connect nav monochrome, just fitted to my Stilo Active, I have used the wiring loom from the old Stilo, so got the white plug that fits into the nav. Does anyone know what colour the wires are coming from the plug for the mic?

Also does anyone have an idea how to wire up the reversing sensors to this unit

Cheers Iain



[danhans115]

Hi and welcome to the forum.

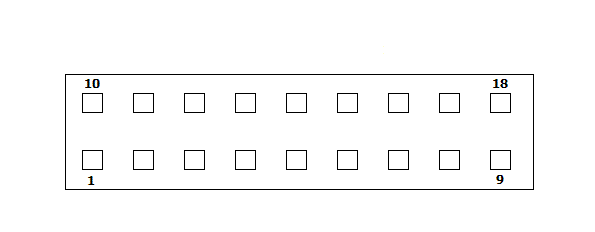

I do not know the actual colours, but the pins you are concerned with are pins 18 and Pins 9 on the diagram (view from back of stereo). I suppose you could work them out with a multitester or continuity tester, or from elearn maybe?

Pin 9 (Microphone GND)
Pin 18 (Microphone Input)

Im not actually sure the reversing sensors connect to the radio itself.

Hope its of some help

Dan



[iainbrown]

Hi and welcome to the forum.

I do not know the actual colours, but the pins you are concerned with are pins 18 and Pins 9 on the diagram (view from back of stereo). I suppose you could work them out with a multitester or continuity tester, or from elearn maybe?

Pin 9 (Microphone GND)
Pin 18 (Microphone Input)

Im not actually sure the reversing sensors connect to the radio itself.

Hope its of some help

Dan

Cheers Dan-will give it a go tomorrow

Iain



[johnson550]

mic wires are orange, one with white stripe and one with black stripe. If there hasnt been a connect nav in the stilo the wires wont be in the plug youll have to put them there.
