Technical picture help needed PAS

[sediciRich]

Hello all, this is a request for pas pump union pictures, either actual or diagrammatic for right hand drive sedicivalvole 3 door. I have put my pas pump back on, but I have a mix up of unions and some with interesting shapes, I'm having difficulty in seeing how its all meant to look. A picture will tell a thousand words.

cheers

rich



[SteveNZ]

Not exactly easy to take a picture of that!

I have a Dedra engine, rack and subframe etc out of the car I could photo if its any use.



[SteveNZ]

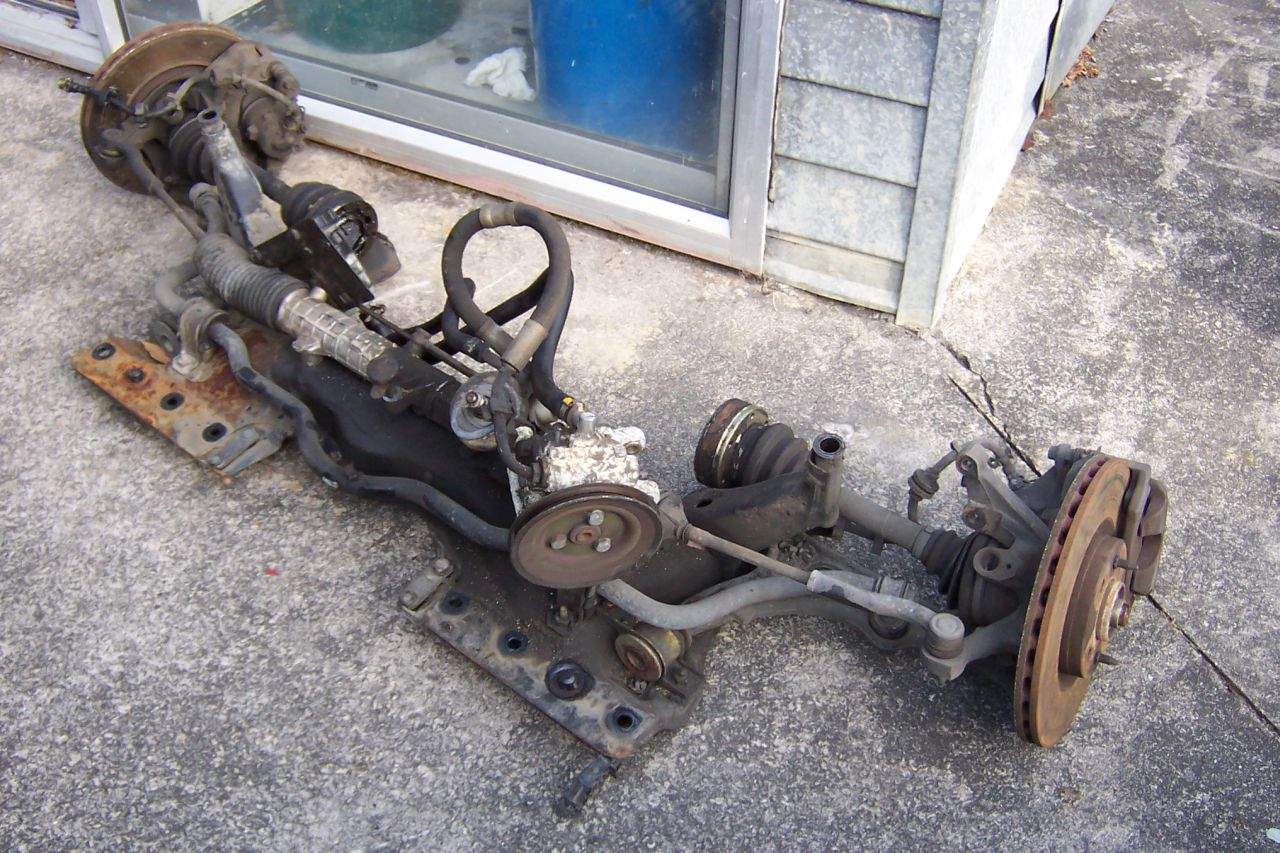

Oh Rich, here you go

from a 1994 Tipo 16V 3 door



[SteveNZ]

Did you notice the picture rich?



[sediciRich]

cheers steve, needed it a bit in the front of the rack to see the fittings shapes, no big deal the problem is the banjo 18mm I think on the zf pump, totally different from the coupe pump I have. Just another job on the list, I'll go to an industrial place to get one made up. Ho hum, just another day with the car.

rich



[Hellcat]

So you finally decided to keep your arms in proportion with your body, and re-fit the PAS?

I can't say I blame you. My sedici went through a phase of cutting out while the de-cat was fitted and boy.. it can be quite exciting losing the PAS as you zoom into a tight corner

Anyway I can assist with non-dismantled pics let me know.
