Technical inlet manifold help please

[david a j]

hi can anyone help I have a punto gt and I cant seem to get a book for it the turbo had gone so have changed it but cant remember where some of the pipes go I have fitted 2.25 intercooler pipes I which go from the throttle body to intercooler and from inter cooler to back of turbo but the inlet manifold has a hole on the side but cant remember what goes to it or does it need blanking of and also on the cam side there is a thin blue pipe does anyone no if this is a breather pipe please or has any one got any pics to help me out thanks



[dave]



[blu73]

can you get a pic of the bit you mean.... can't picture which bit you mean in my head.



[david a j]

can you get a pic of the bit you mean.... can't picture which bit you mean in my head.

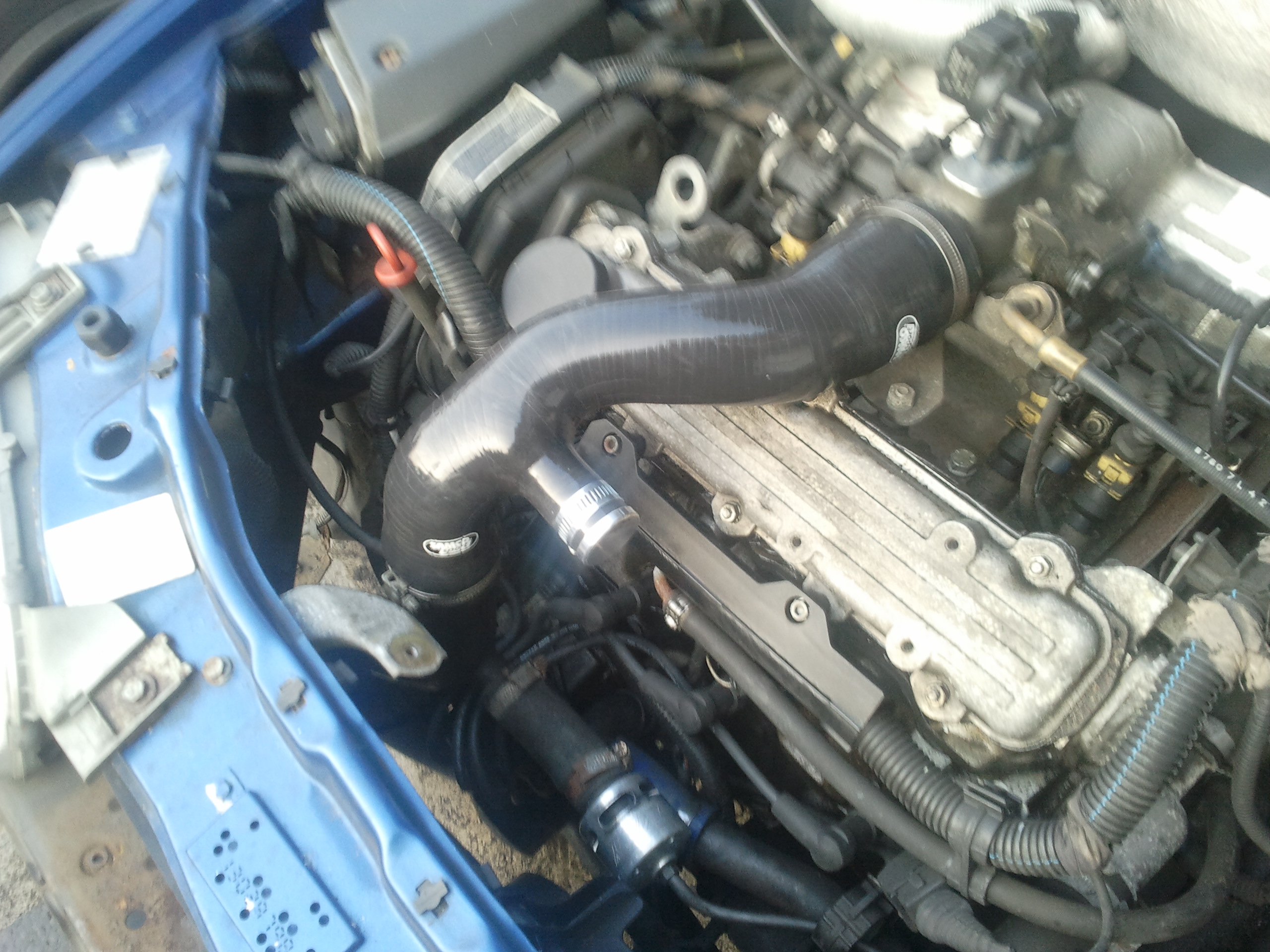

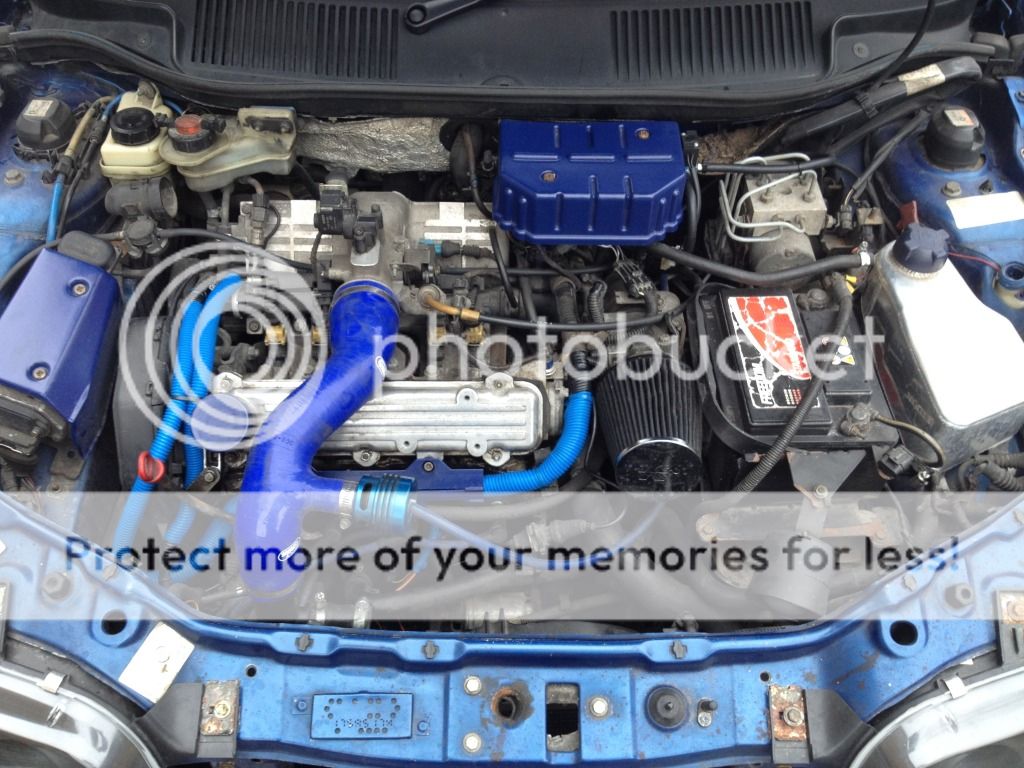

ok will do thanks for all the pics as you look at the air mass meter it just there on the side of the manifold when you look inside it looks like it just an intake to keep manifold cool but don't no thankyou



[lampy]

as i told you earlier it's the injector cooler pipe which is connected to the fan under the battery tray which goes in the side of the inlet.



[blu73]

ah yes, that thing confused the hell out of me when i first got a GT. Should be fine without in the UK, its not that hot here afterall. Think alot of GT's have had the whole thing removed but i left mine as the car was stock - don't have one anymore though



[david a j]

thank you that's why I have a connector with nothing going to it lol thanks for your help its just when you strip down then leave for 2 months you forget thanks david
