Technical Dashboard clocks, 2014 automatic Doblo.

[Manic mechanic]

OK, took a picture today, attached.

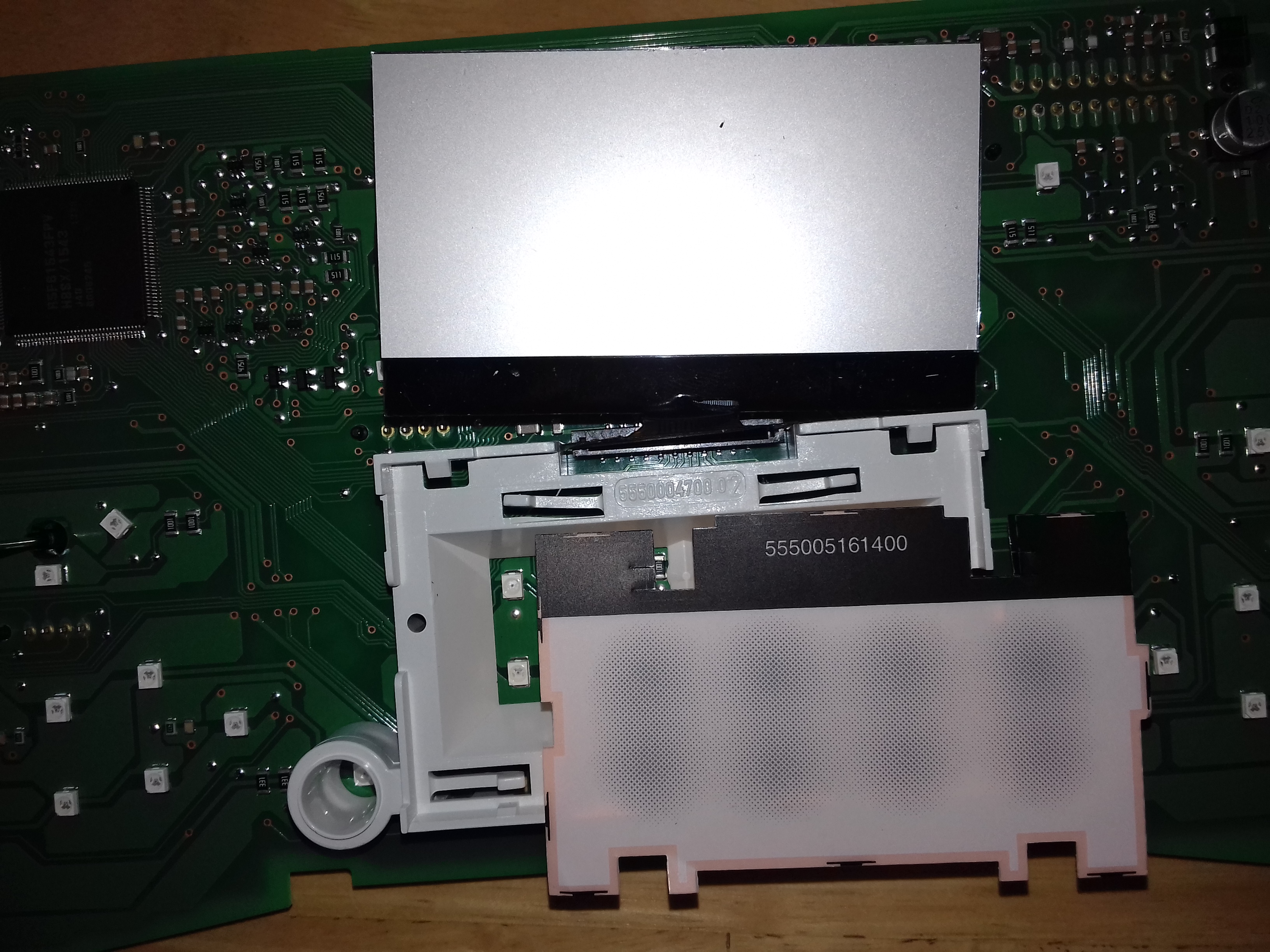

This shows the back of the panel (the one fitted should be theold one and the one lying to the side the new) and no numbers. What I thought was interesting was the difference in the panels, one is white at the back and one like a blue tinted glass but we know one is the wrong panel anyway. Tyeother thing I remembered is the orange plastic attachement which came with the old panel. It has it's own part number and must be something to do with making he pixels? I note the place tey fit into also has it's own part number and you shoild be able to see that in the picture. the ornge plastic part is like a thin plastic but it has been overlayed with a white vinyl on one side and I remember when fitting it we weren't entirely sure which way it went in. It is original to the panel and nothing similar came with the new panel. Hope that makes some sense.



[ZaphodB]

The bit with 555 written on it is just the diffuser for the led backlights to even out the LED back illumination so you don't see any bright spots.

That (orange on one side and white on the other attachment) will be to provide a tint to the backlight LED's.

The microprocessor (The large chip over to the left) appears to have been re-worked , maybe by the people that you sent it to.
