Punto (Mk2/2b) replace/change center console & h/brake section mk2

HOW TO REMOVE HANDBRAKE SECTION

remove the rear ashtray and undo the 10mm nut
this also give access to the hand brake adjuster.


remove the coin holder using the flat blade screwdriver, undo the two 10mm nuts


pull off the gear gaiter at the bottom and remove the two phillips screws

you should now be able to remove the handbrake section.


TO REMOVE THE CENTER CONSOLE

undo the lower vents either side of the console by removing the allen bolts and carefully removing the vents, there also held in by clips


undo the two allen bolts above the cup holders

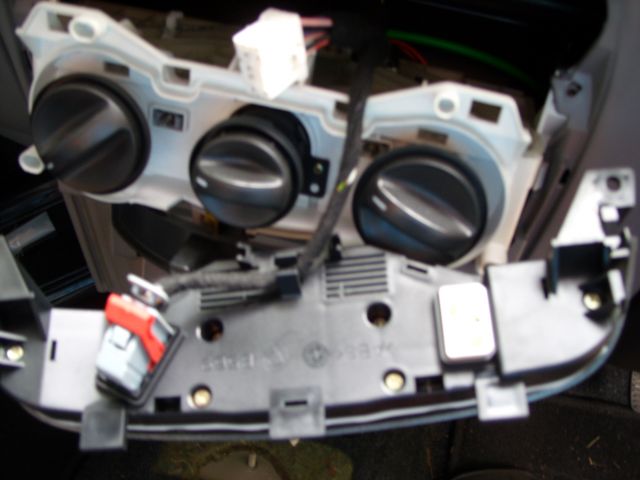

you should now be able to remove the lower part of the center console (upto the hazard switch) disconnect accessory socket,

to remove the switches undo the allen bolts either side and remove the connector blocks


REFITTING.
if refitting same parts just reverse removal

FITTING HGT CENTER CONSOLE

reconnect and refit the switches using the allen bolts

extend the wires for the accessory socket and reconnect


fit the center console and lower vents using the allen bolts


fit the handbrake section over the gearlever first then the handbrake

attach the handbrake section to the center console using the phillips screws into the sides and two allen bolts which will be covered by the gaiter.
refit the rear 10mm nut and ashtray.

refit gear gaitor
all finished now admire your new center console
