Cinquecento/Seicento cinquecento 899cc head gasket change

ive more then likely forgot to put something somewhere so add as you please so it can be tweaked a bit

stuff you will need
Tools
goggles, axle stands, jack socket set, breaker bar, torque wrench,angle gauge, pliers
Items
head gasket set, head bolts,

if your handy with a spanner you should be able to do this easily, i did and im 17

As working with a car you should disconnect the battery before working

On this job you will need to go under the car at some point so its best to chock the rear wheels and use use axle stands, never work under a car with just a jack

use the appropriate PPE e.g. overalls, boots, goggles for under the car and for some gloves

disconnect the battery negative calbe

drain the water from the cooling system

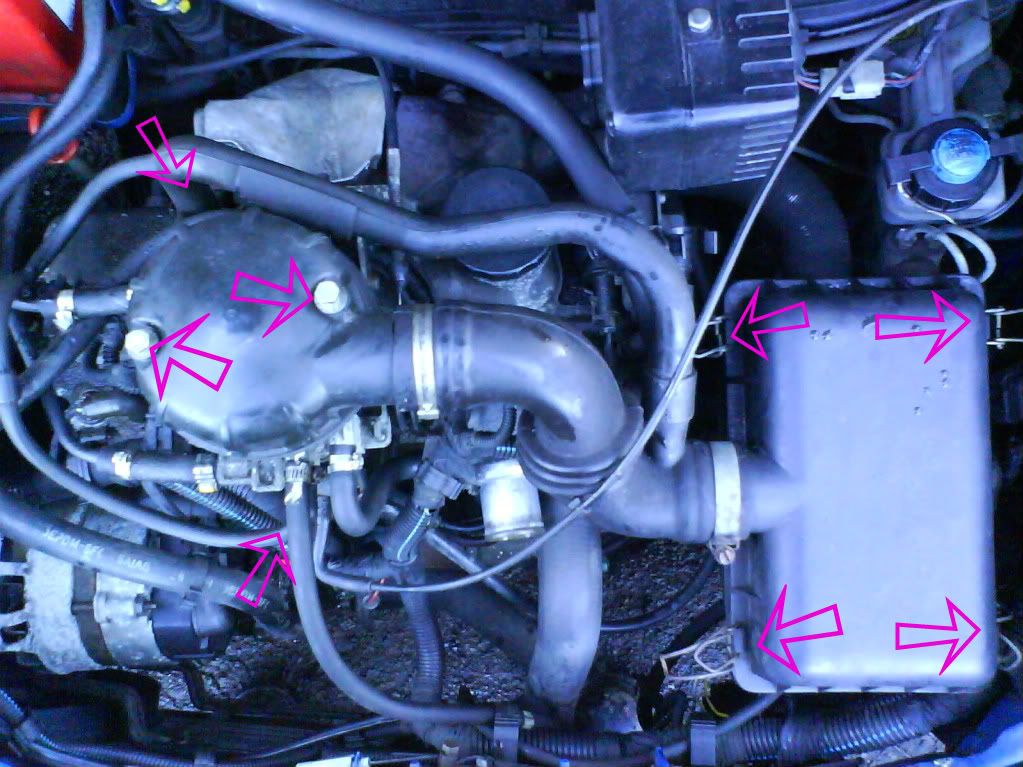

Un-clip the 4 clips holding the top of the airbox along with the 2 bolts onto of the TB (bob) with the two pipes onto the TB and rocker cover


unhook the the throttle cable


undo the bolts holing the injector/TB on along with the connector ontop


remove the throttle cable by undoing the bolt nearest to the front

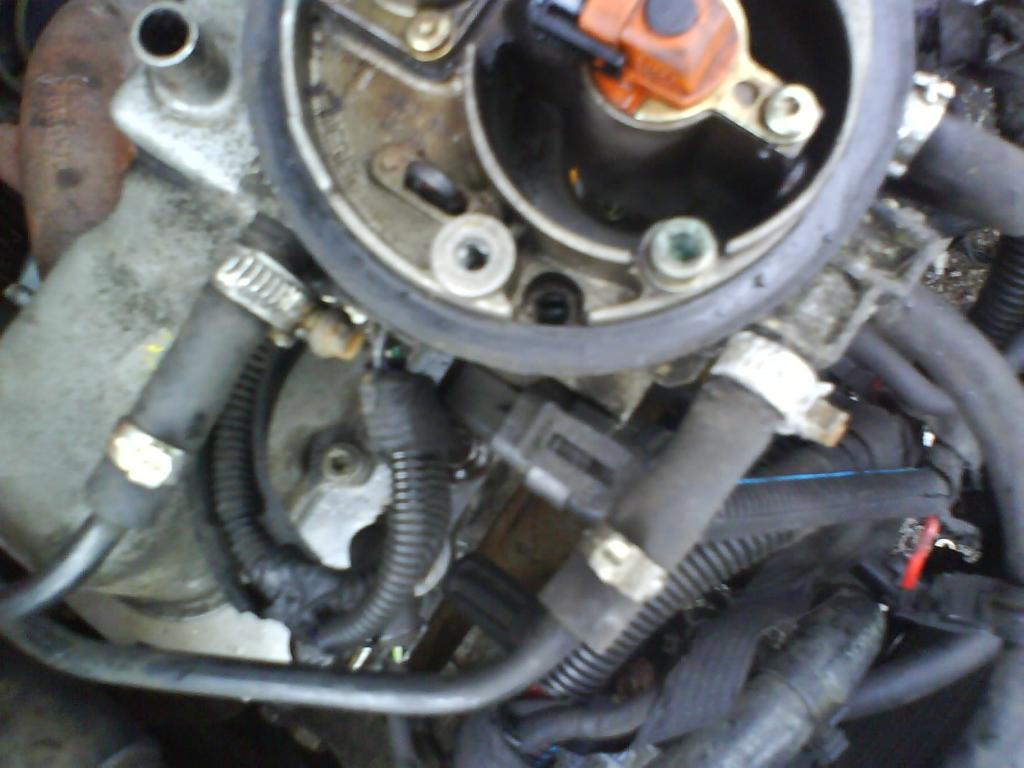

remove the electrical connections, pipes from the injector/TB and remove the injector/TB (there's is a water pipe to the back of the TB not shown in the photo)

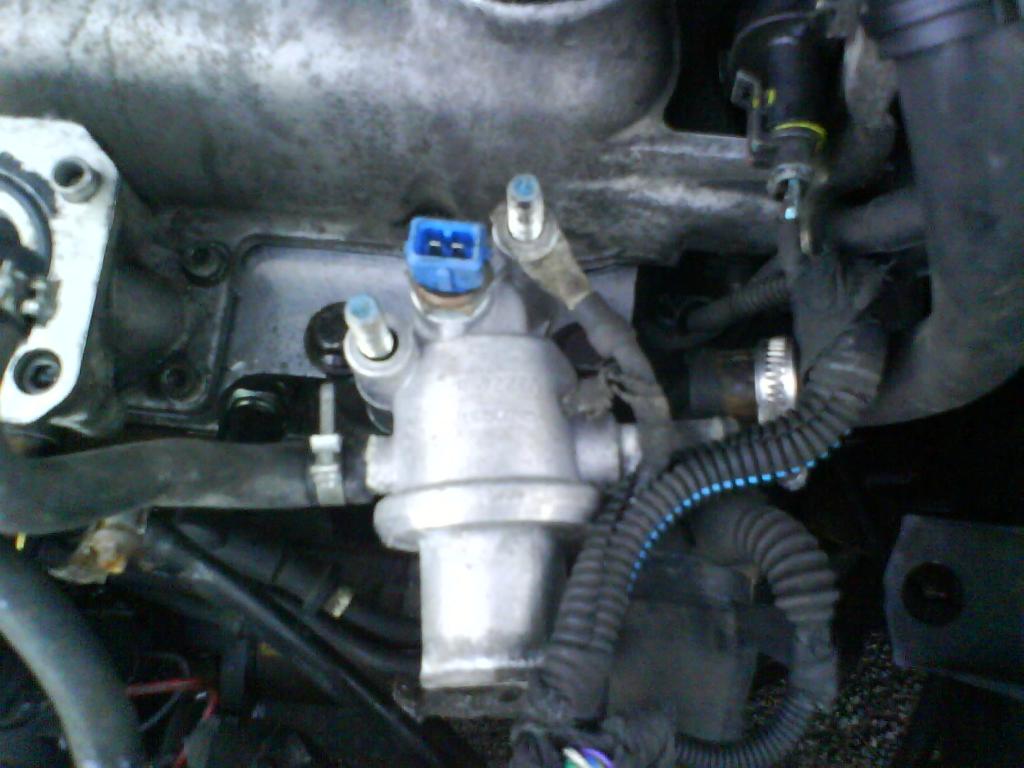

remove the 2 or 4 bolts on top of the thermostat and remove the pipe to the heater matrix and the electrical connector between the bolts

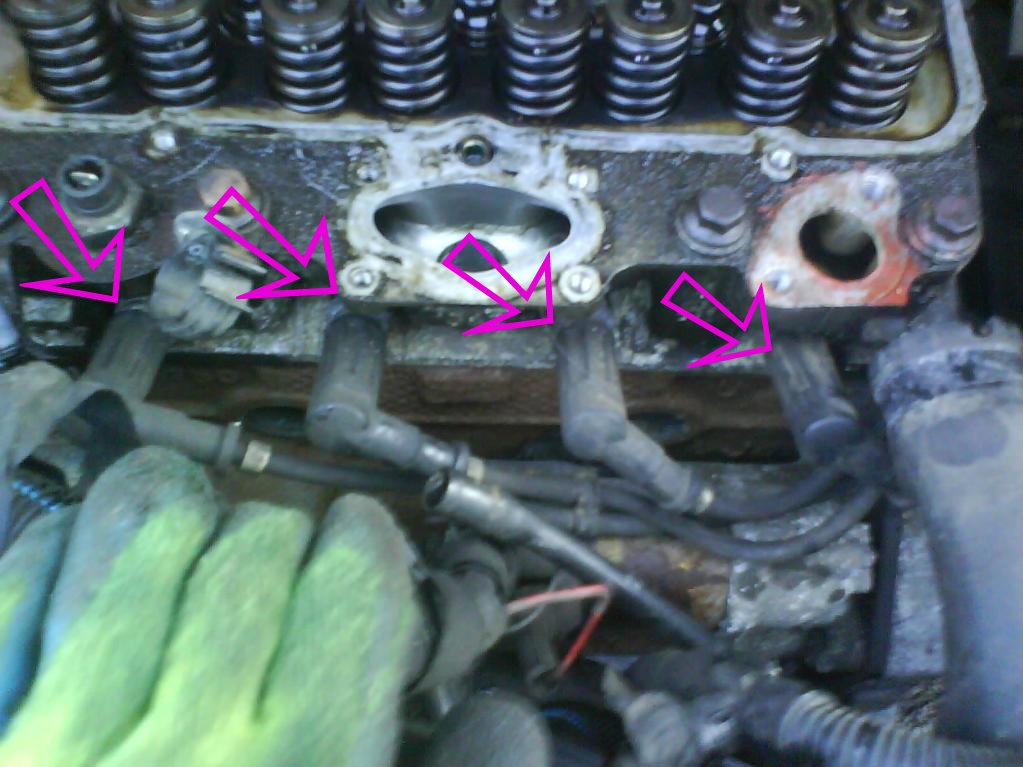

remove the electrical connectors and HT leads from the coil pack's


Un-clip the the wire holders on the left side of the block (cylinder 1 end) but do not undo the large bolts, remove the temp sender connector


remove the vacuum pipe that is just below were the TB/injector is/was


unscrew the 8 bolts holding the rocker cover on if they don't want to come out try a t35 star drive or hammer a T40 star drive crude but effective


remove the rocker cover

remove the 4 bolts and washers holding the rocker arm on and remove, i turned each of the 90 degrees going along them till no more tension was felt on them


remove the 8 push rods and keep them in order


chock the rear wheels and put the handbrake on firmly (if yours works ) then jack the front of the car up and support with axle stands high enough so you can easily get under the car

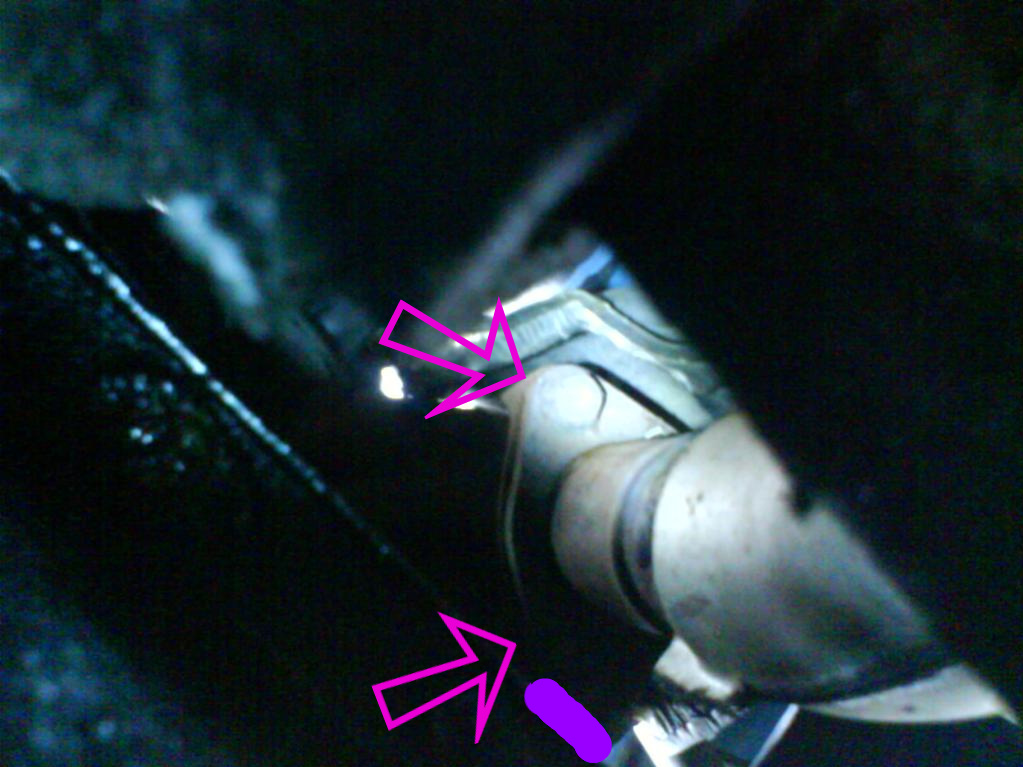

remove the 3 bolts from the exhaust manifold to the downpipe, id defiantly recommend eye protection from calling dirt

remove the dipstick securing bolt that bolts to the head


remove the HT leads from the spark plug end if you haven't already


remove the head bolts in order using a 90 degree turn in order until to more tension is felt on any of them


with the head bolts out lift the head up and give the exhaust manifold a swift tug to free it

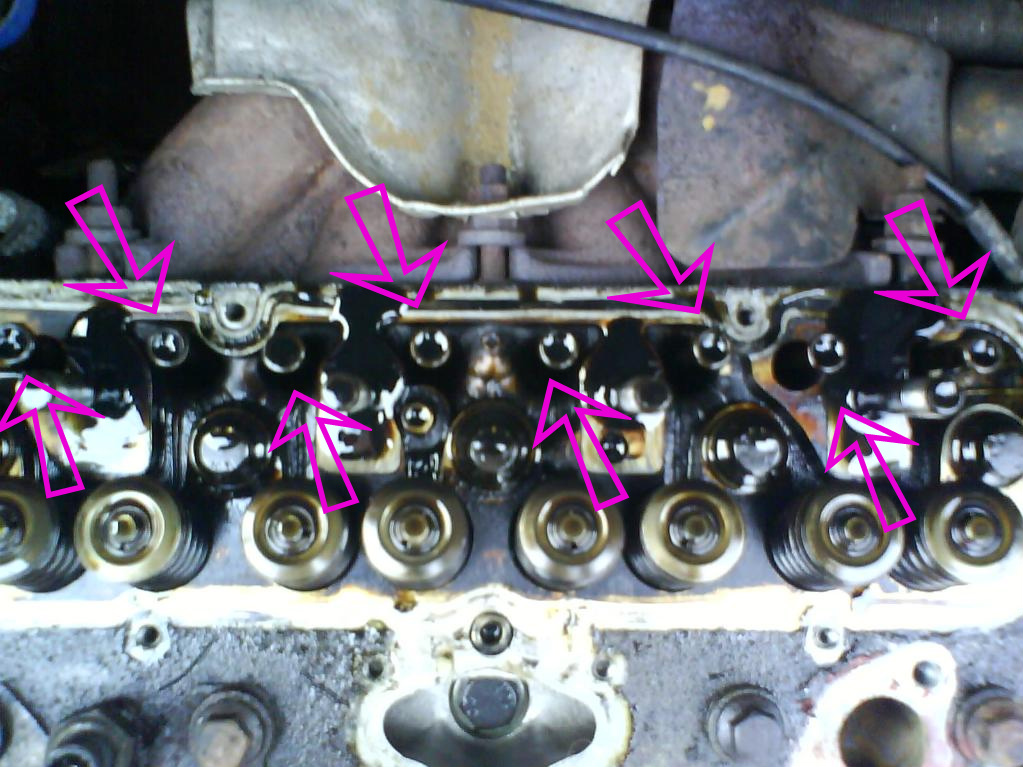

remove the old head gasket and inspect to see were it failed

prep time

while here i would clean up all the parts while there off and get the head skimmed

while you are here i would recommend a oil change as the filter is in really easy reach

remove the 5 bolts holing the exhaust manifold onto the head, replace the gasket and refit the exhaust manifold


place the thermostat gasket onto the head with the small indent in towards the centre otherwise a head bolt will rip it up a little bit ( gasket in the photo is the wrong way around )


take the oil filler cap off the rocker cover and take the rubber seal off of it, place the seal roughly in its place then screw the cap into the rocker cover this will push it into place evenly


insert the rocker cover gasket onto the the bottom of the rocker cover after clearing out the area it goes into (clear glue in mine)


place the head gasket on the block, flat edge on the right hand of the engine (cylinder 4) and the curved edge on the left (over cylinder 1)

align the head on the block making sure not the move the gasket, if not sure its lined up do it again to help place a head bolt on two opposite corners to help keep it all in line


pop all the head bolts in and finger tighten them all

you need to do the bolts up in stages;
.do bolts up to 30nm in order
.tighten 90 degrees in order
.tighten another and final 90 degrees in order


next is the exhaust manifold to downpipe, get under that car and put those 3 bolts back in and tighten up

re-insert the push-rods they should go in straight and not be at a kack angle

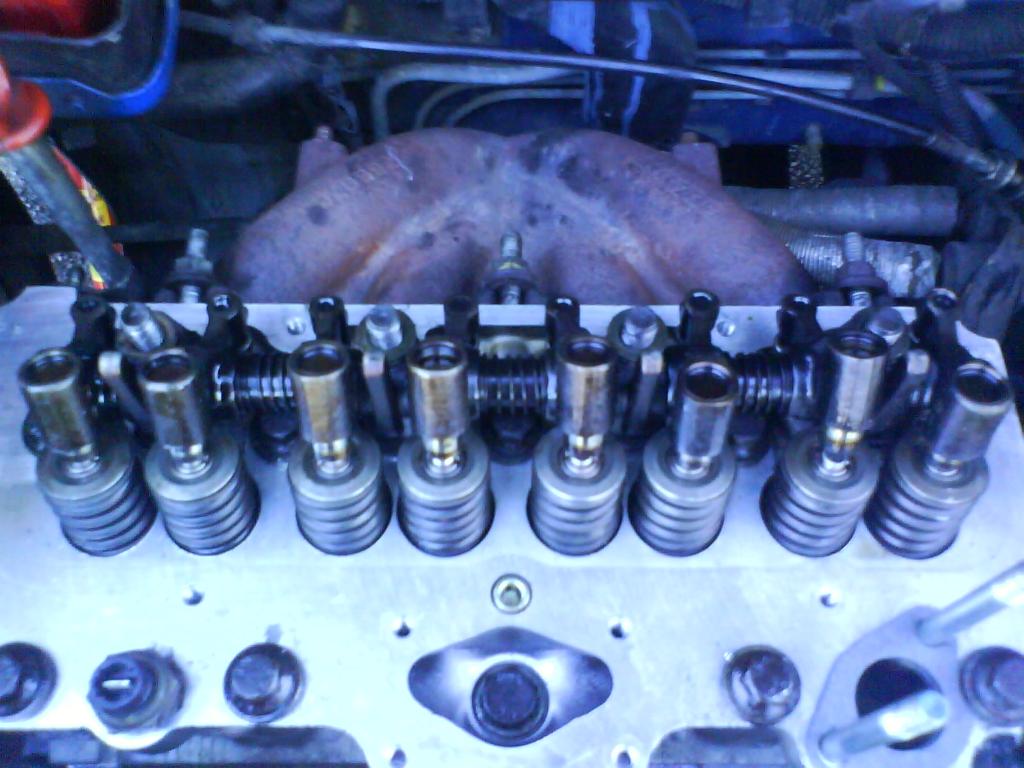

place the rocker arm into place and make sure all of the tappet and pushrods go into each other correctly


put the washers and bolts on and then torque them up-to 40nm


bolt up the dip stick bolt

bolt on the rocker cover


insert the spark plugs and tighten them


insert the plugs the coil packs along with HT leads


plug the temp sensor back in


insert the vacuum pipe to the bottom of the rocker cover and secure


bolt on the thermostat but don't forget the gasket or earth cable


place the throttle body and injector along with the lower gasket on with throttle cable holder towards cylinder 4 (N/S) and bolt on


connect the throttle cable and the connector on-top of the injector/TB


connect the pipe from the expansion tank to the rear of the TB along with the pipe fro the thermostat to the front of the TB


connect the 3 plugs on the left side of the TB/injector


connect the fuel line and return to the injector


connect the bob with the air box and secure the hoses

reconnect the small pipe from the front of the car to the front of the TB (cant remember were it trails off to)

double check all the connections are secure, tug, poke, pull, push everything yo make sure

top back up with water and anti-freeze 50/50 mix should be fine and bleed the system

reconnect the battery

hope you got it all right

start her up
