Cinquecento my green cinq project.

[centoproject]

Re: my green cinq project

another quick question do you reckon the 60 gearbox cope with the 16v engine ?



[centoproject]

Re: my green cinq project

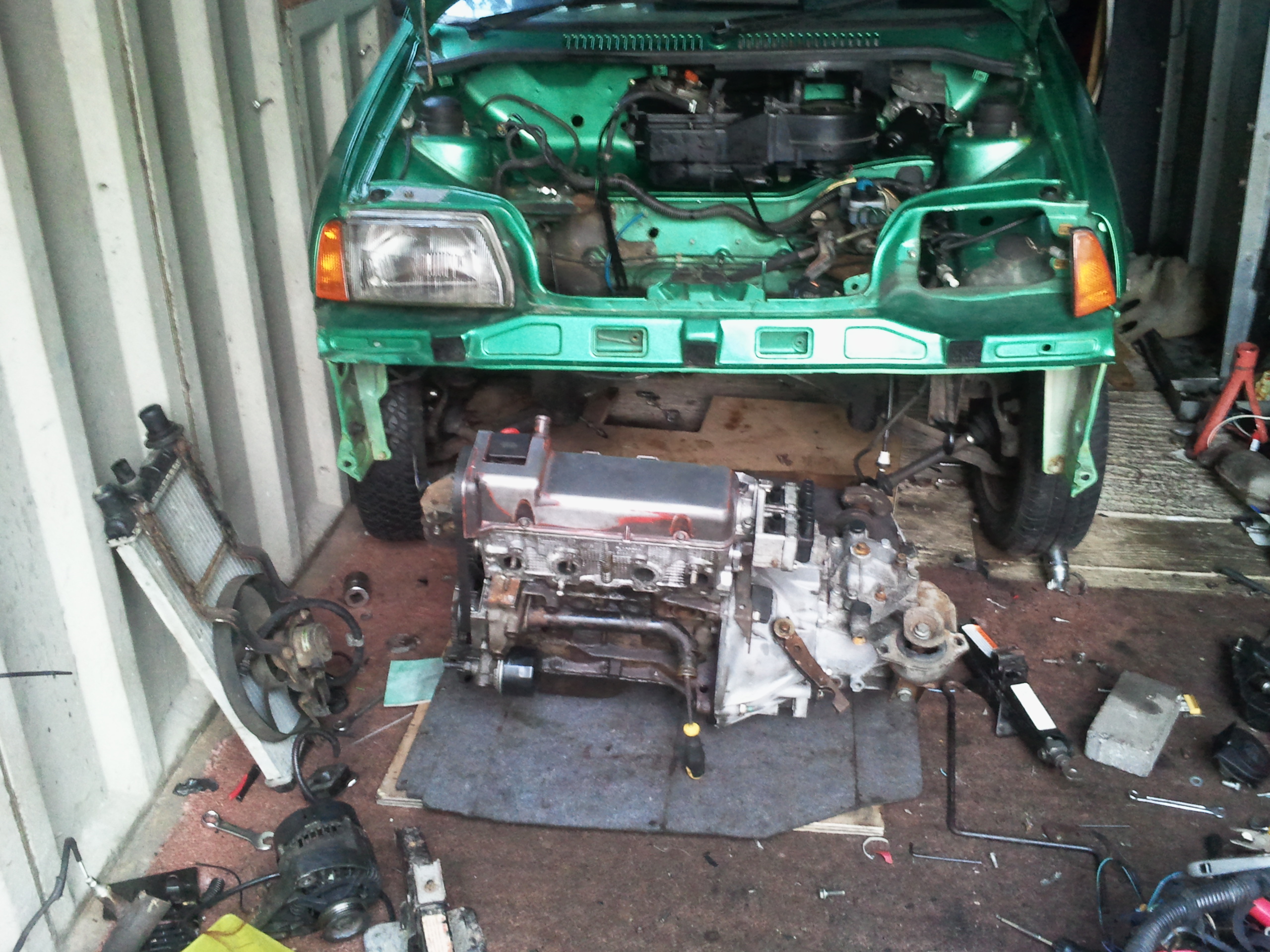

engine and gearbox came out today ?

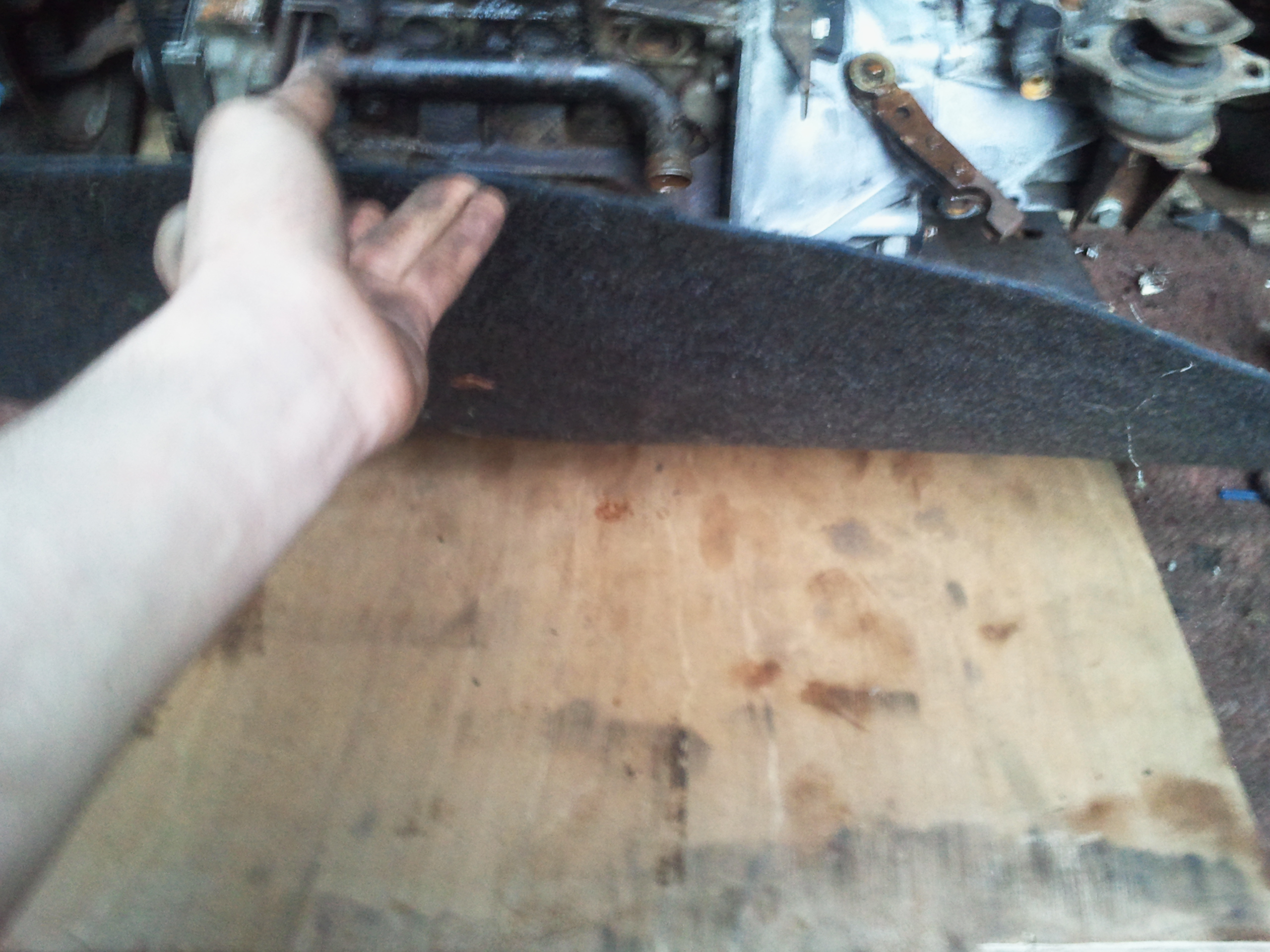

the best way to get the box and engine out is to get an punto mk1 boot carpet
or something similar then put it on a smooth surface ive used mdf




then drop it onto the the carpet



and in hardly any effort you have to hole lot slid out no need to jack it up aether



[BlueDan]

Re: my green cinq project

Heh, haven't seen that done before

I suppose the car would raise itself up a bit as well, as the engine is coming out.

Not sure about the ECU tbh, I know it can be done, it's been mentioned around here before and someone probably knows off the top of their head. But you can either get them blanked, so they re-learn the next blue key/code block combo they come across, or have the immobiliser part disabled altogether.



[centoproject]

Re: my green cinq project

ile look into it more tomorrow



[ycming]

yeah any gearbox will cope fine with the 16v! I would just use the a "known" good box!

As for the P85 ECU reddy4bed is your man to have it decoded.

Ming



[centoproject]

Ok thank you cinq box is in good nick replacing oil wen its in gave it abit more of a clean aswell



[centoproject]

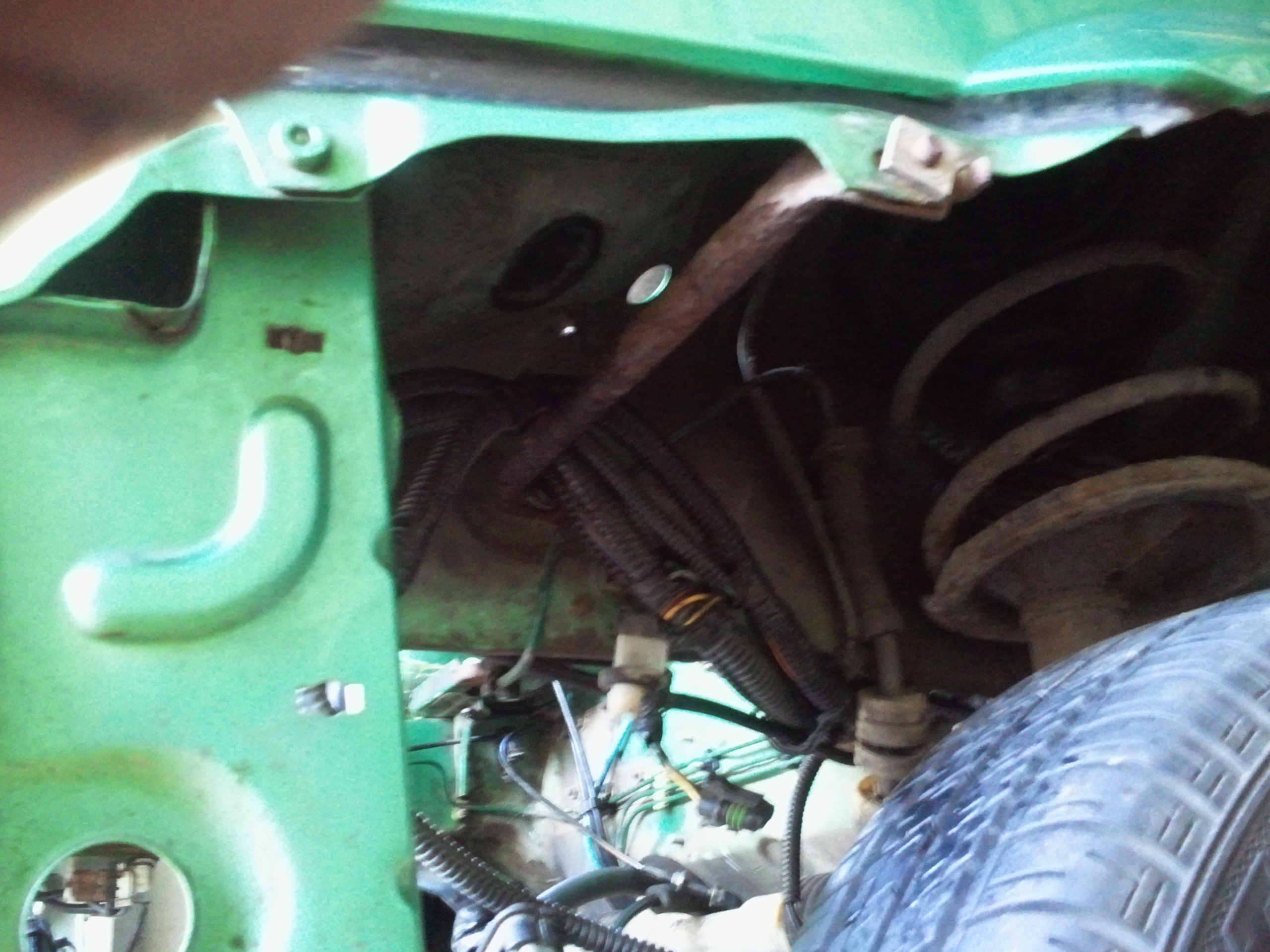

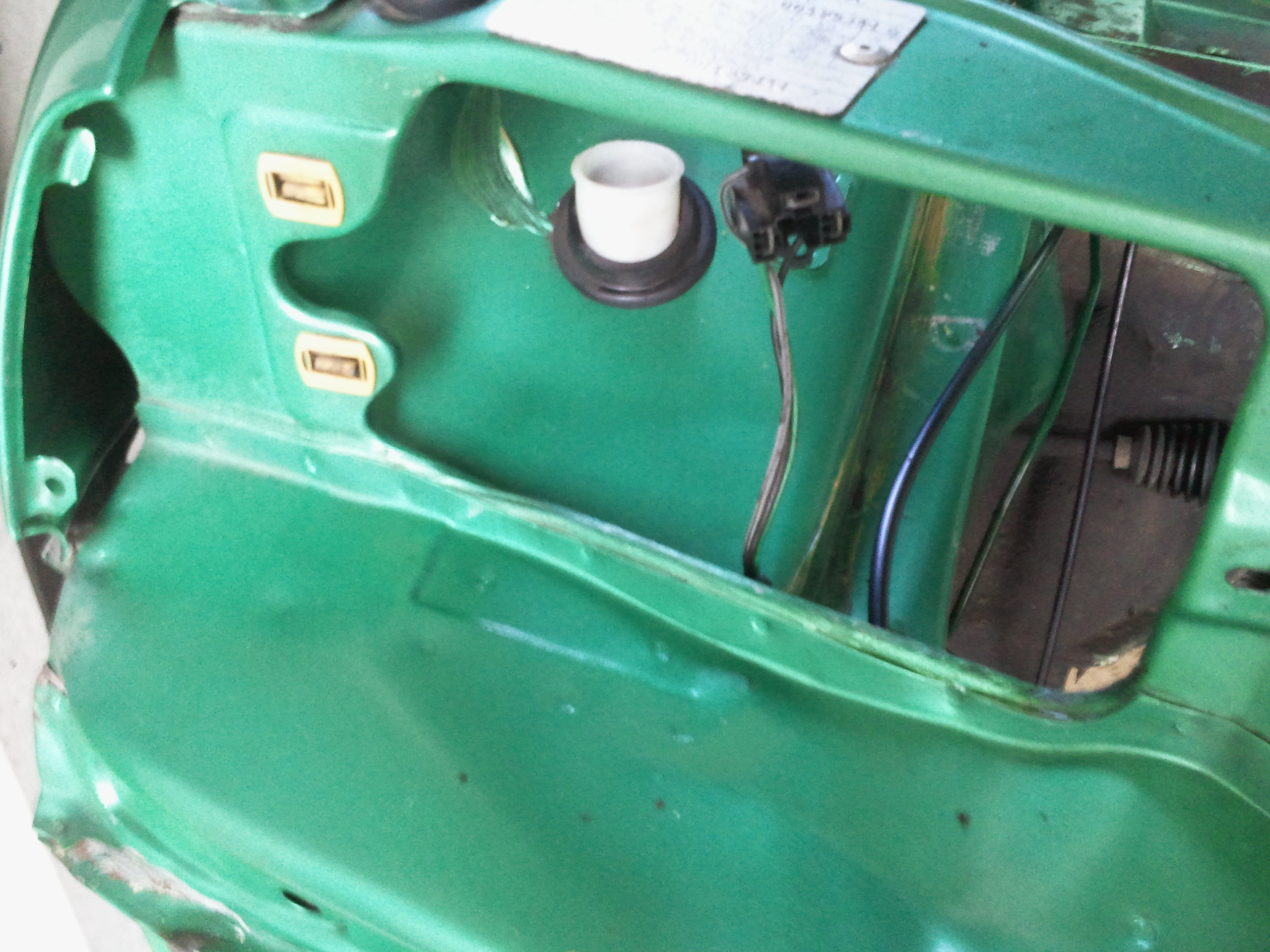

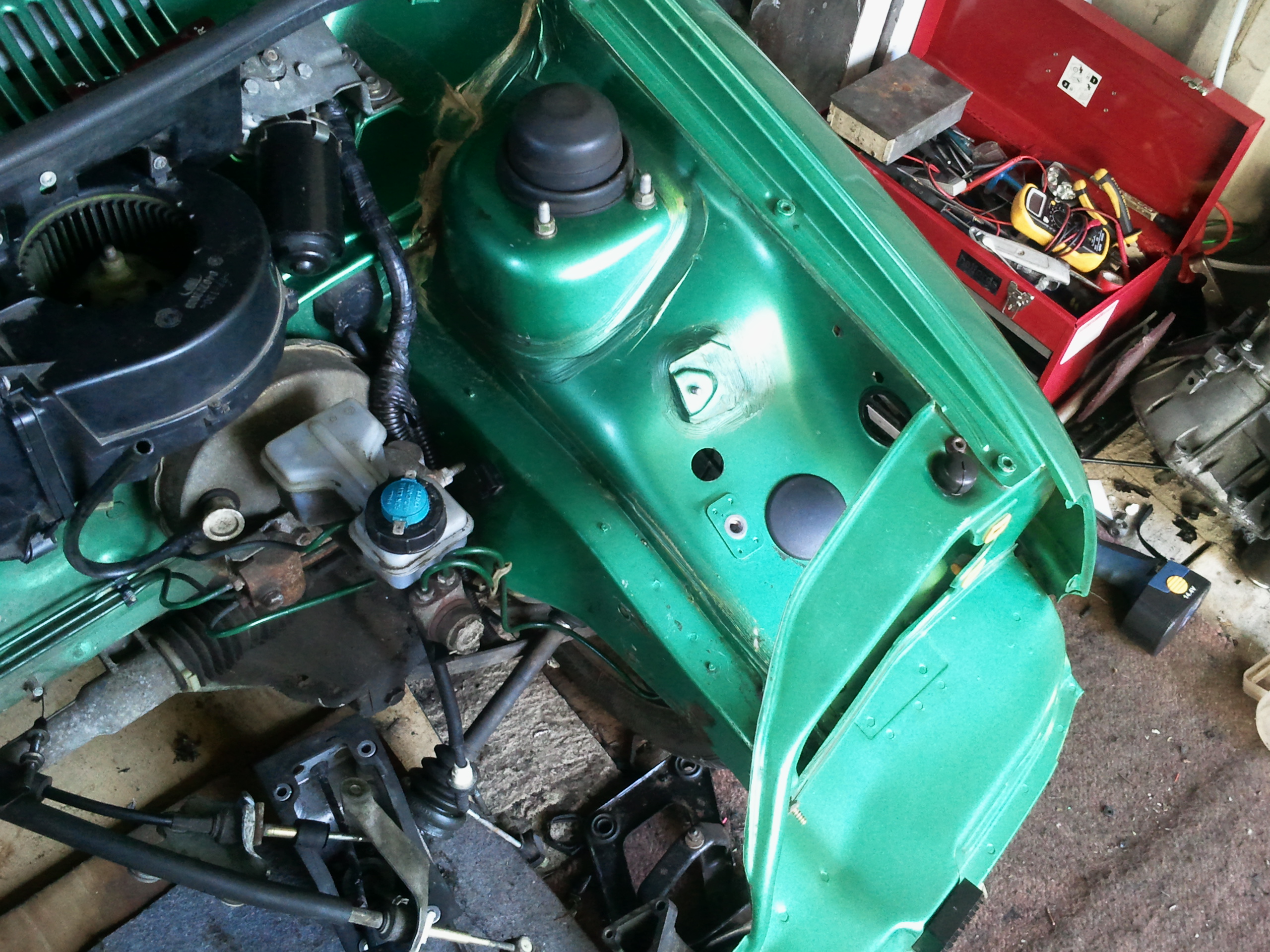

made another attempt at wire tucking



wires tucked and not cut as much as before just extending





no wires visible except the headlight ones



[centoproject]

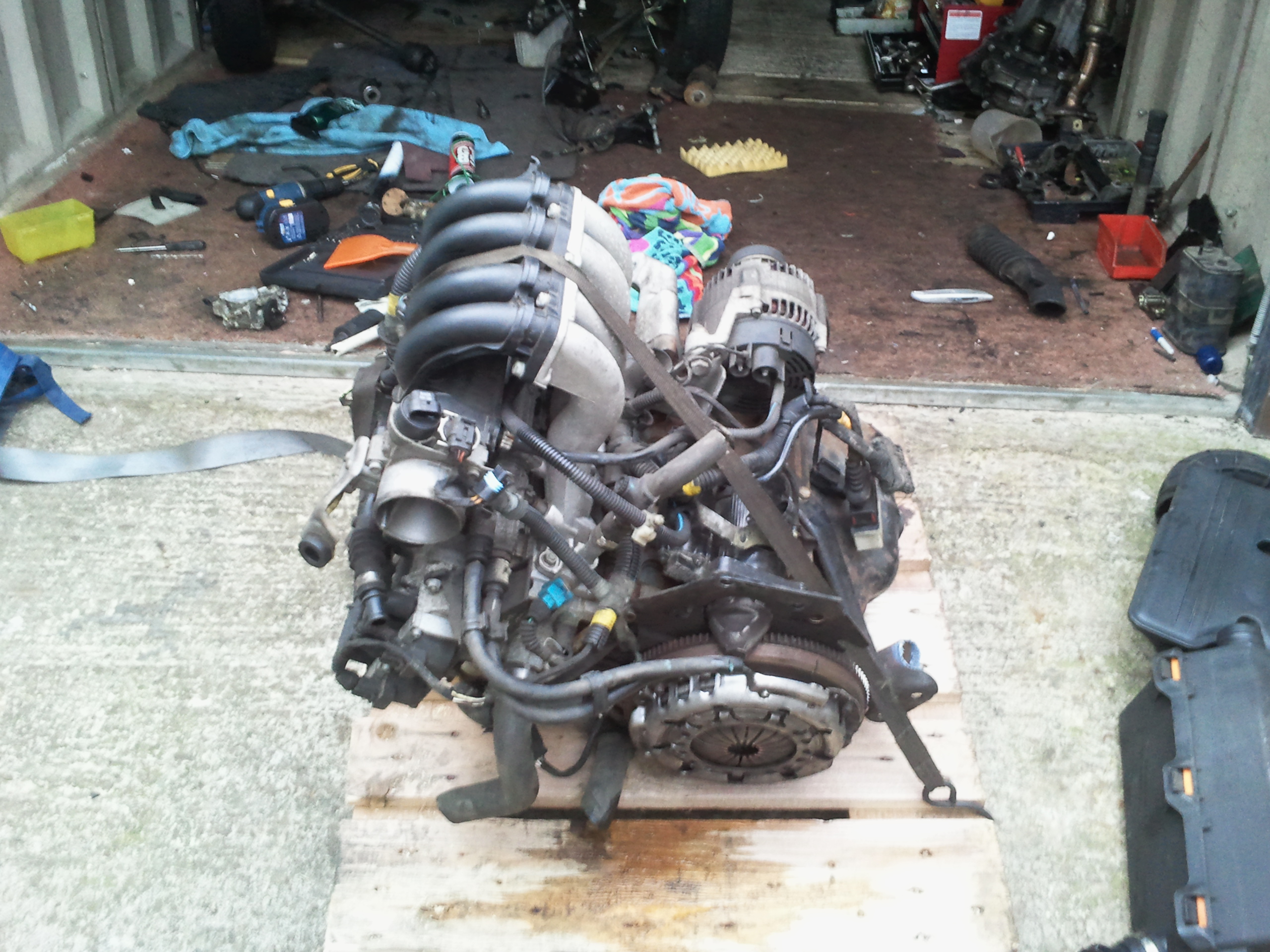

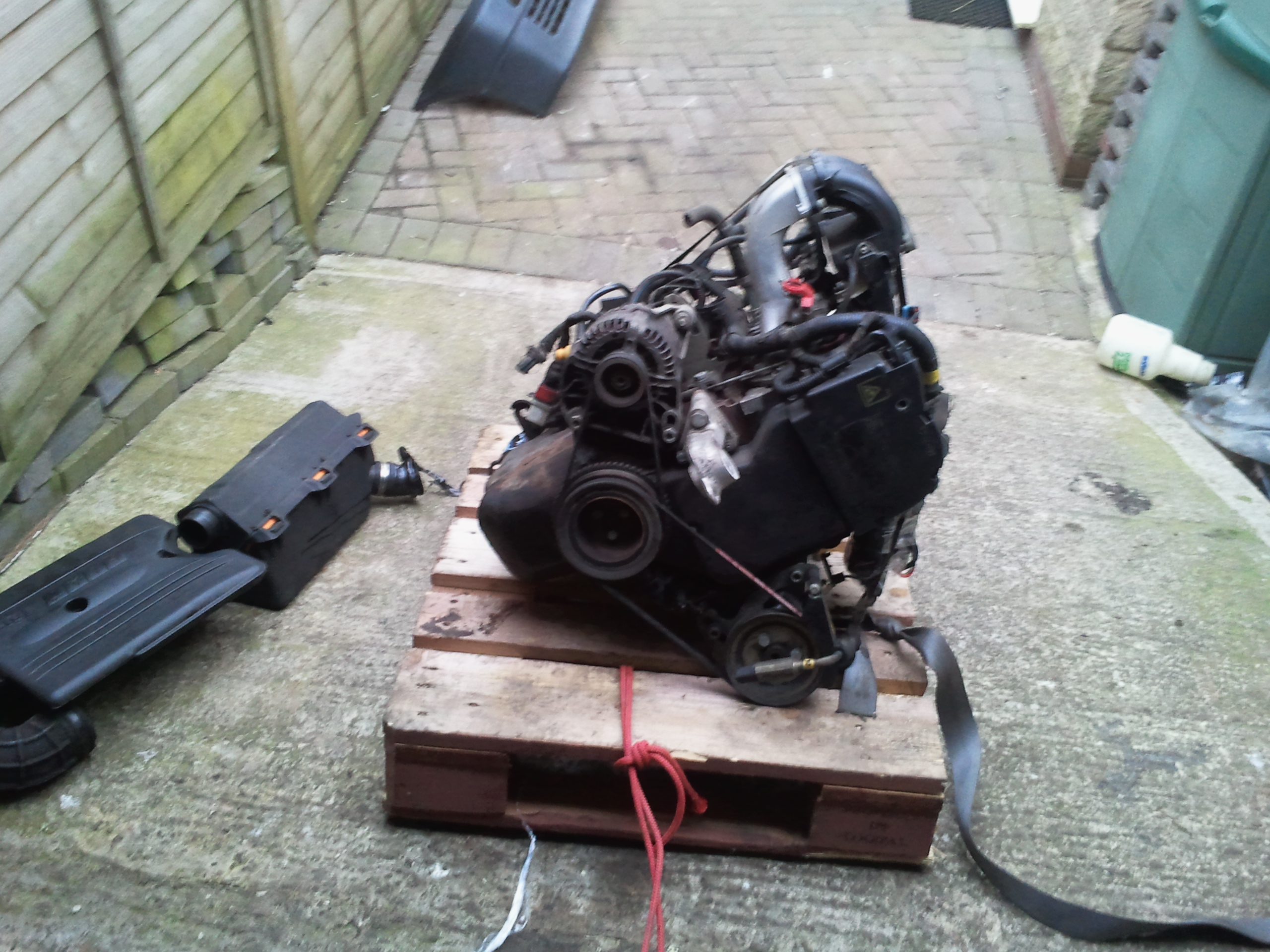

engine came today at 7:30





striped it down from all punto parts and replaced with cinq parts

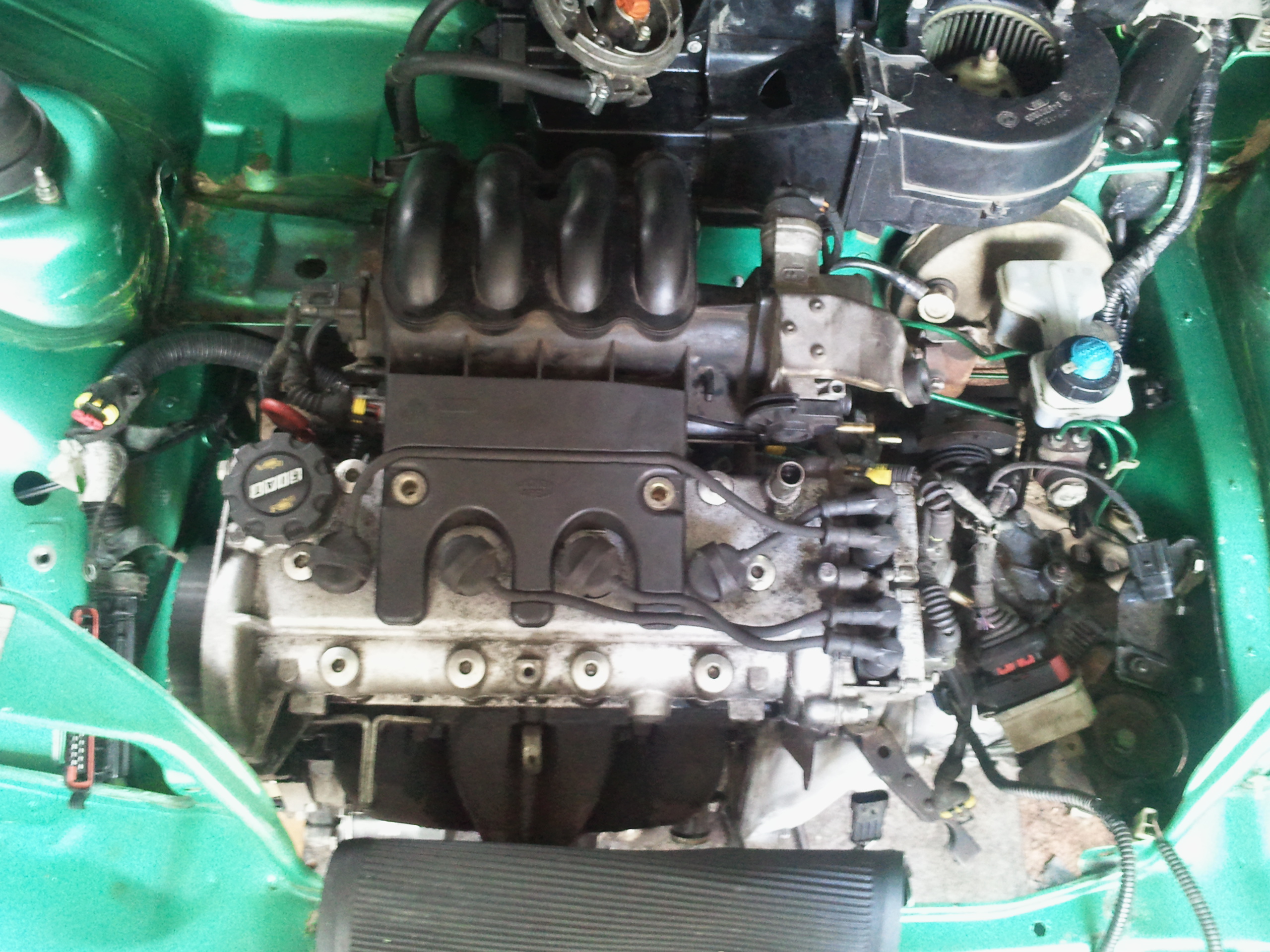

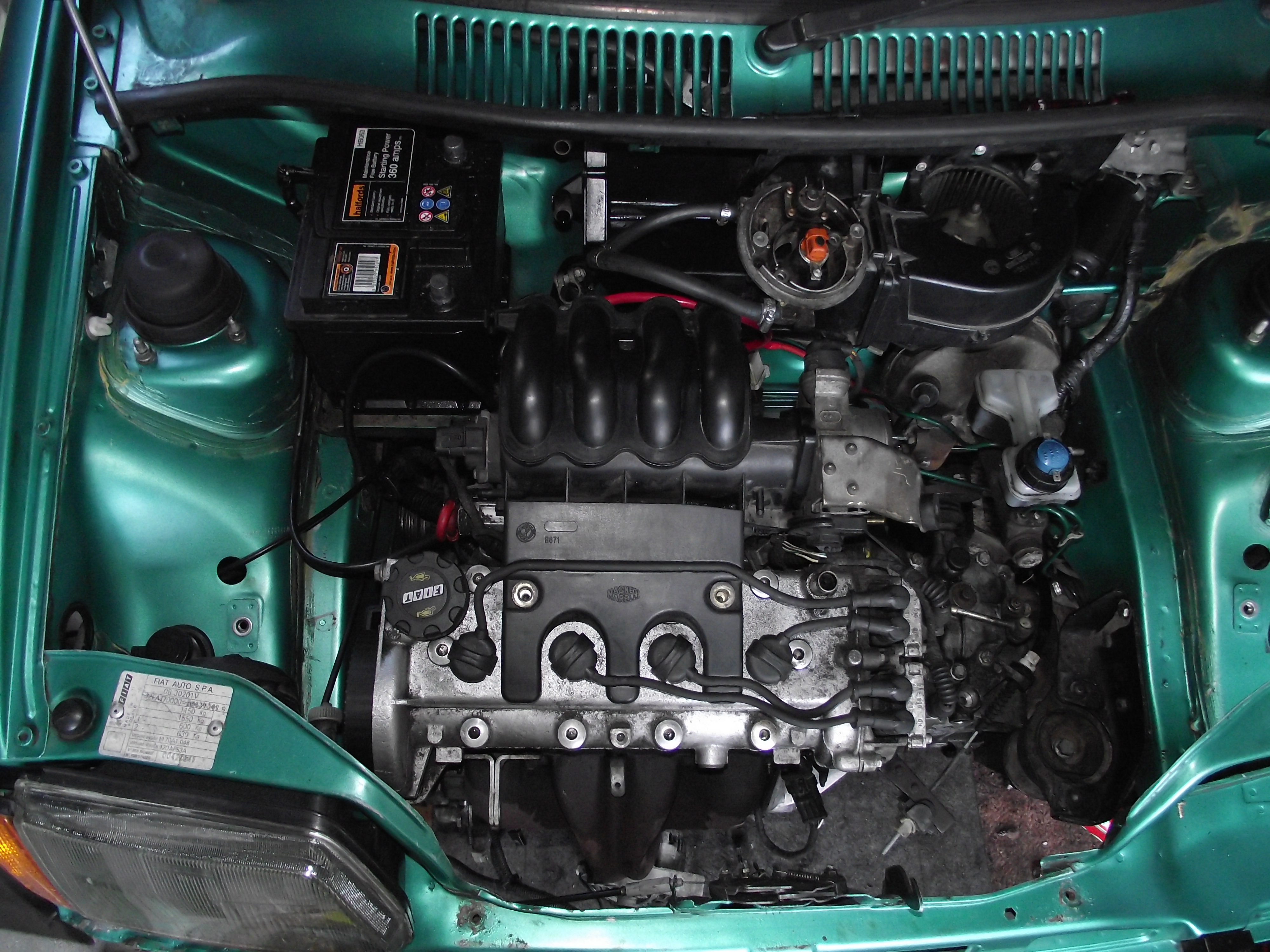

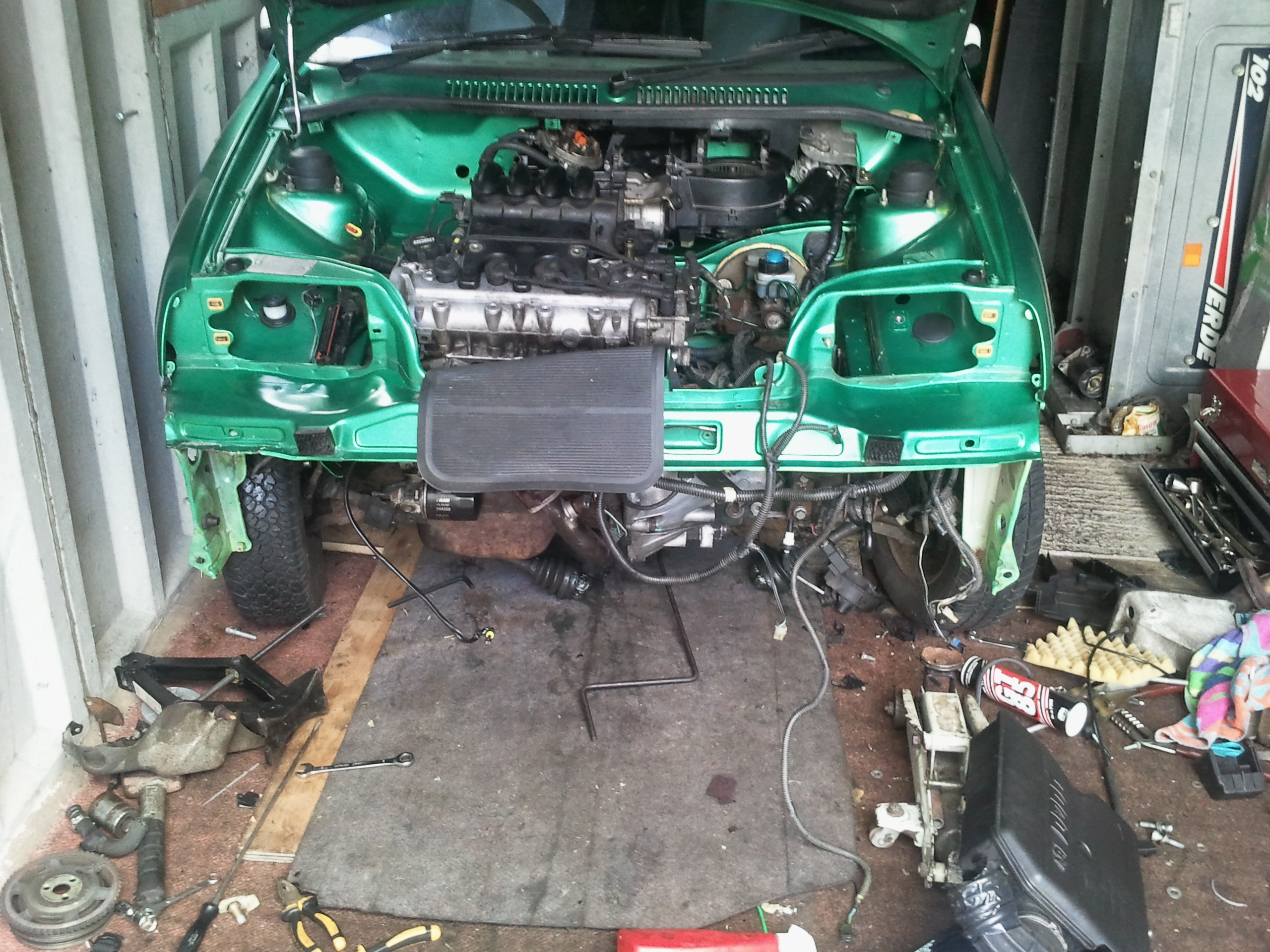

engine and box are in :slayer:



[centoproject]

very tight lol



[centoproject]

right hers my problem ive gone through punto mk1 haynes and cinq haynes

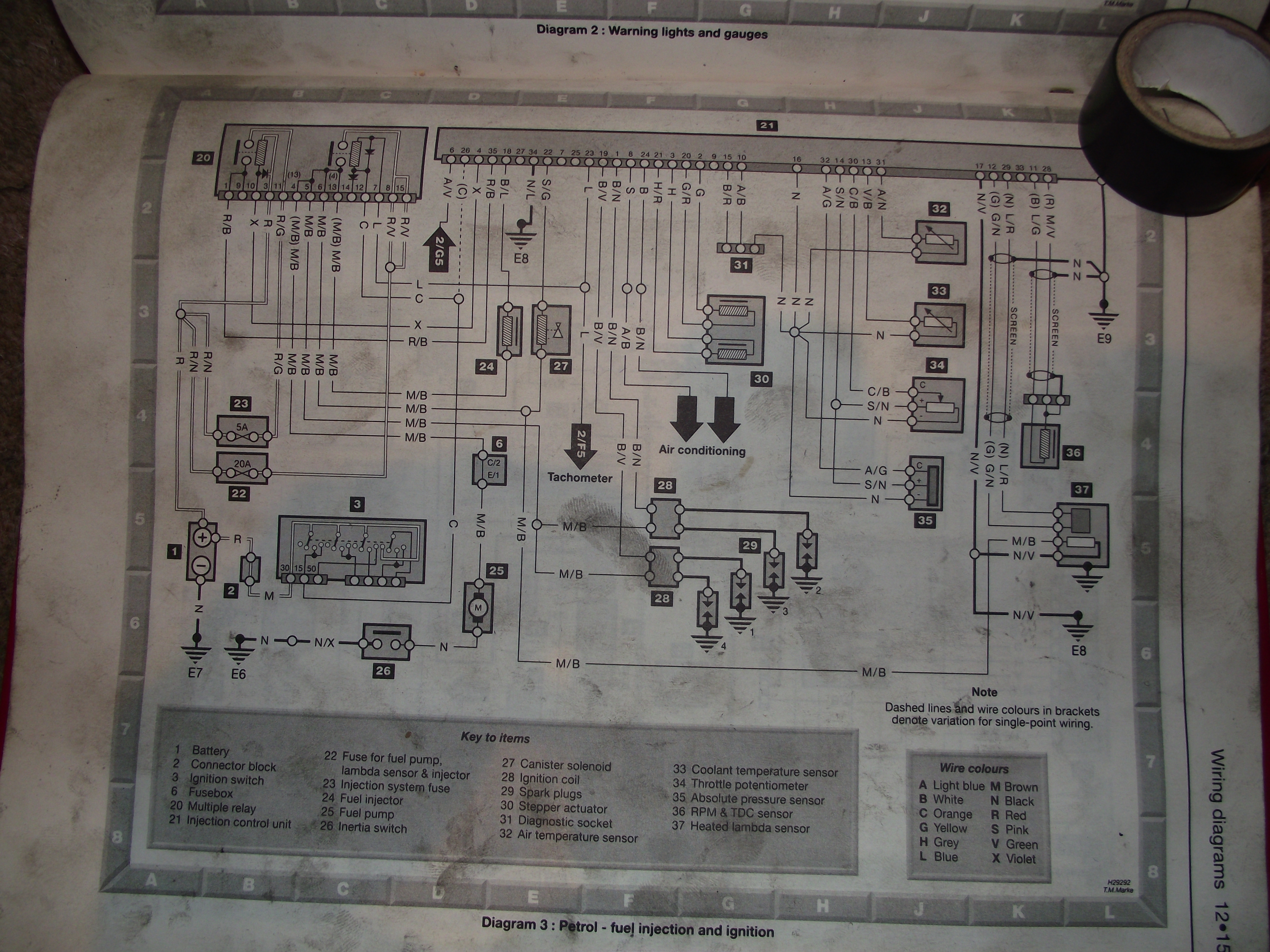

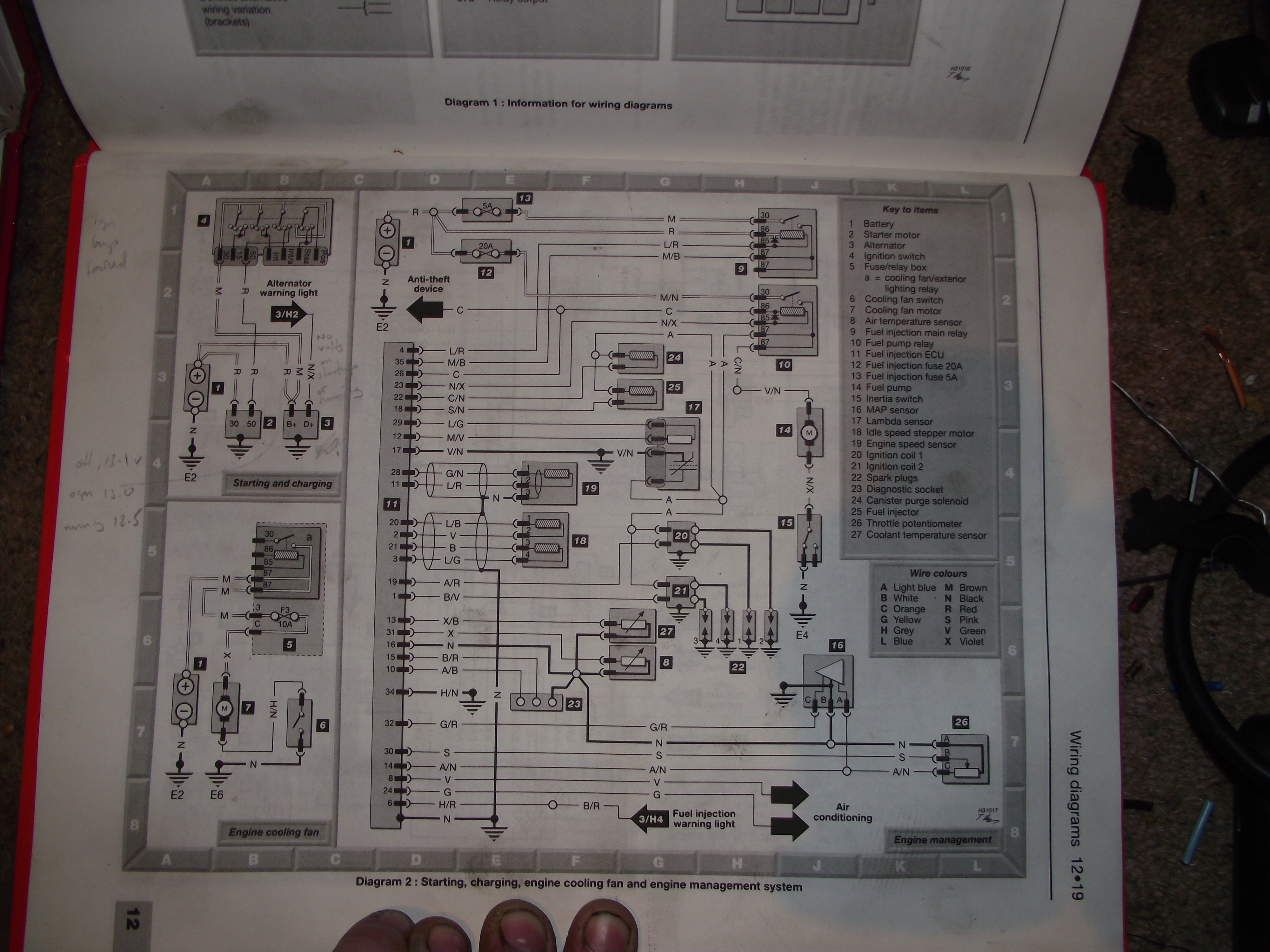

hear are some high resolution pictures of wiring diagram

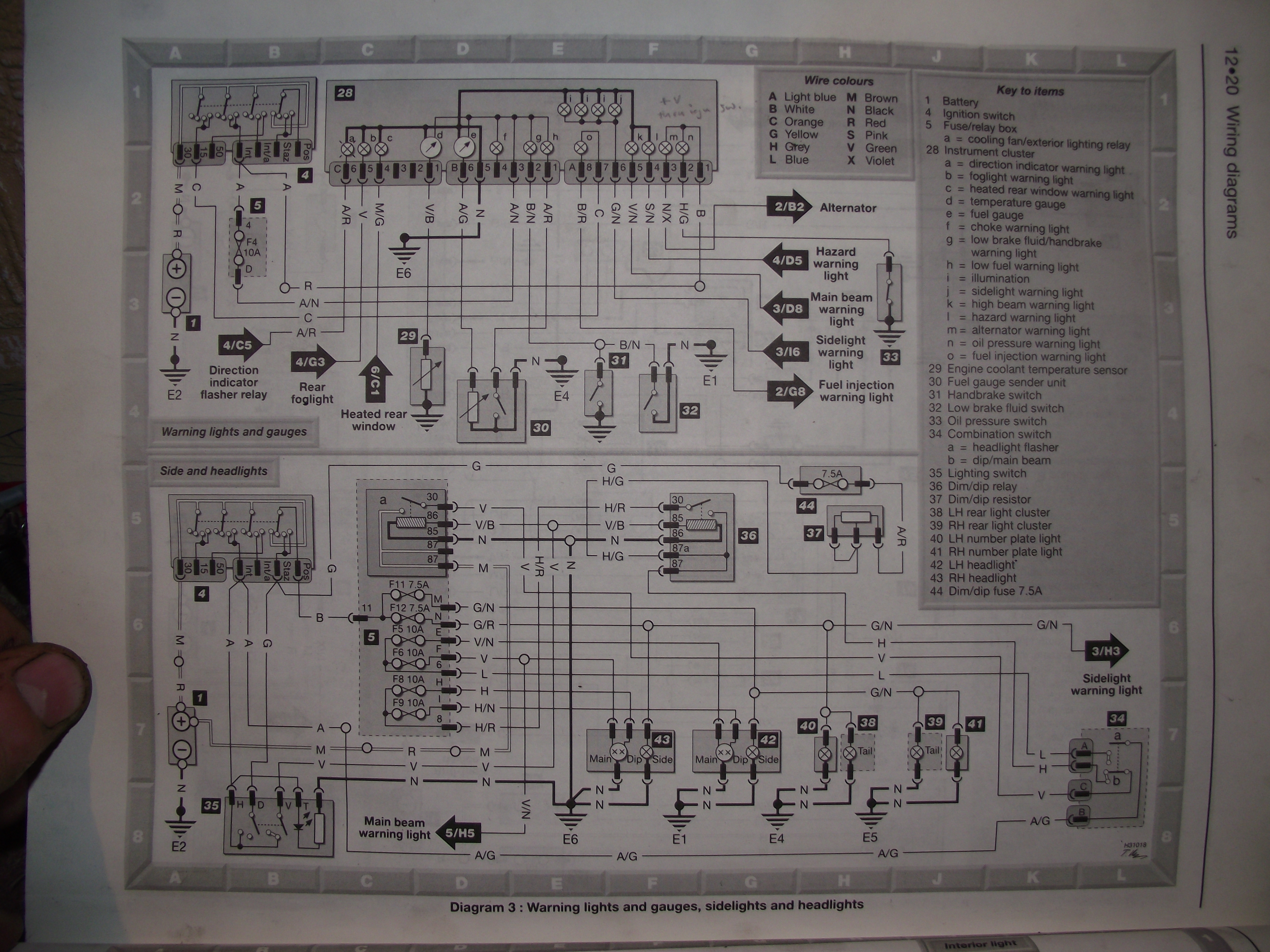

cinq diagrams

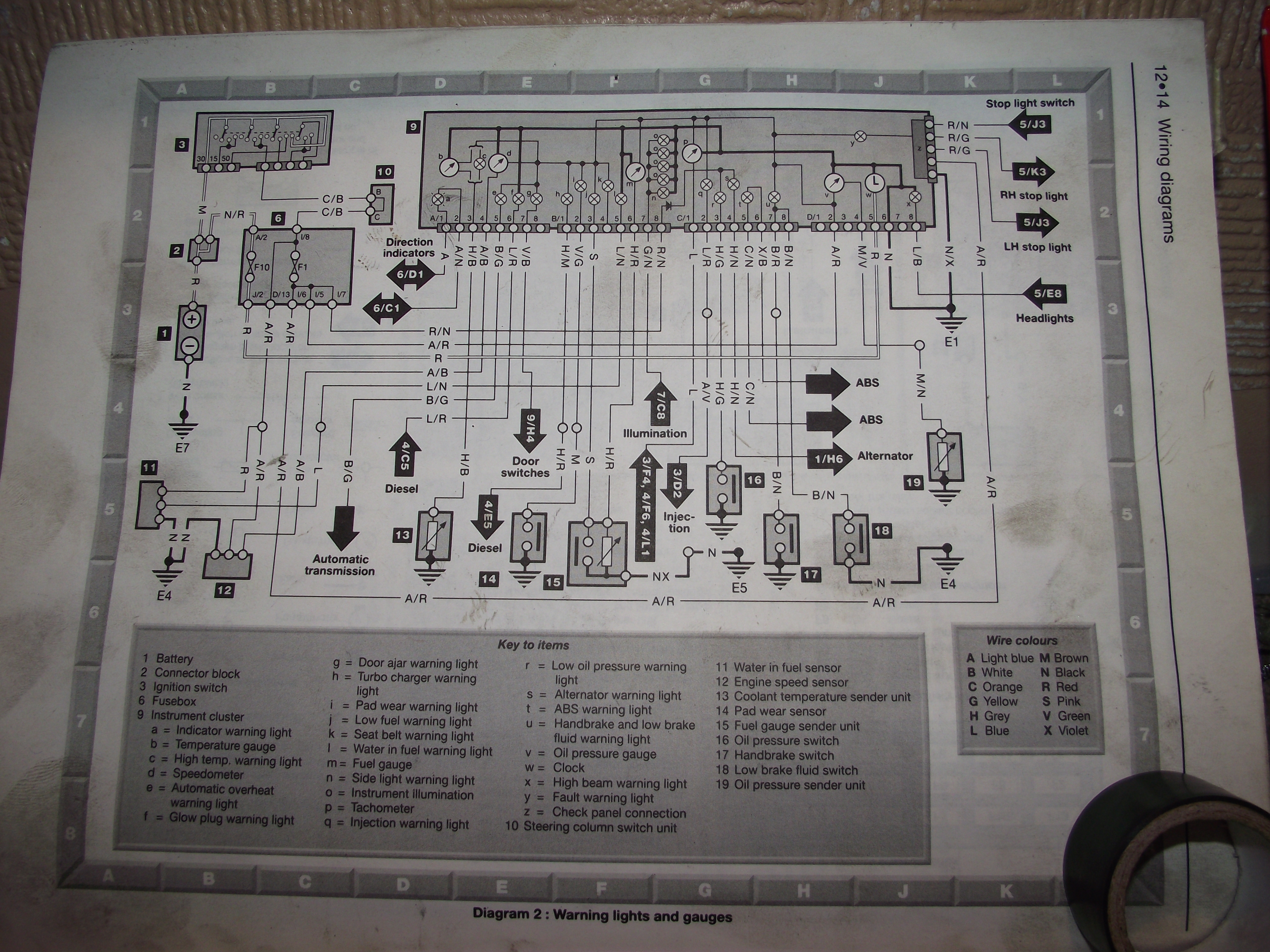

punto diagrams





and hear is the connections i have made

punto-cinq
orange-orange
black/blue-grey/red
red-red
grey/green-grey/green
blue-2 light blue and white
pink/yellow-black/orange
brown/white-green/orange
yellow/grey-yellow/grey
black/grey-violet/black
white/grey-green/white

and on punto side red/black green violet/black unconnected
and for cinq side black/white orange/green unconnected



[centoproject]

ho lives in Huddersfield and has a grinder ?



[purf]

Nice project, wire tuck is nice work.

does this help?

https://www.fiatforum.com/cinquecento-seicento/273230-start-abarth-rebuild-1-4-16v-conversion-25.html?p=2925966



[centoproject]

ive made the loom now i think just got to send ecu off to get immo cleared and thankyou i like it to



[slugworth1987]

We did it without a D4 much easier on an 899 6F loom LOL just not got a rev meter



[centoproject]

lol all you need is a wire from one of the coils from what i remember

and update time

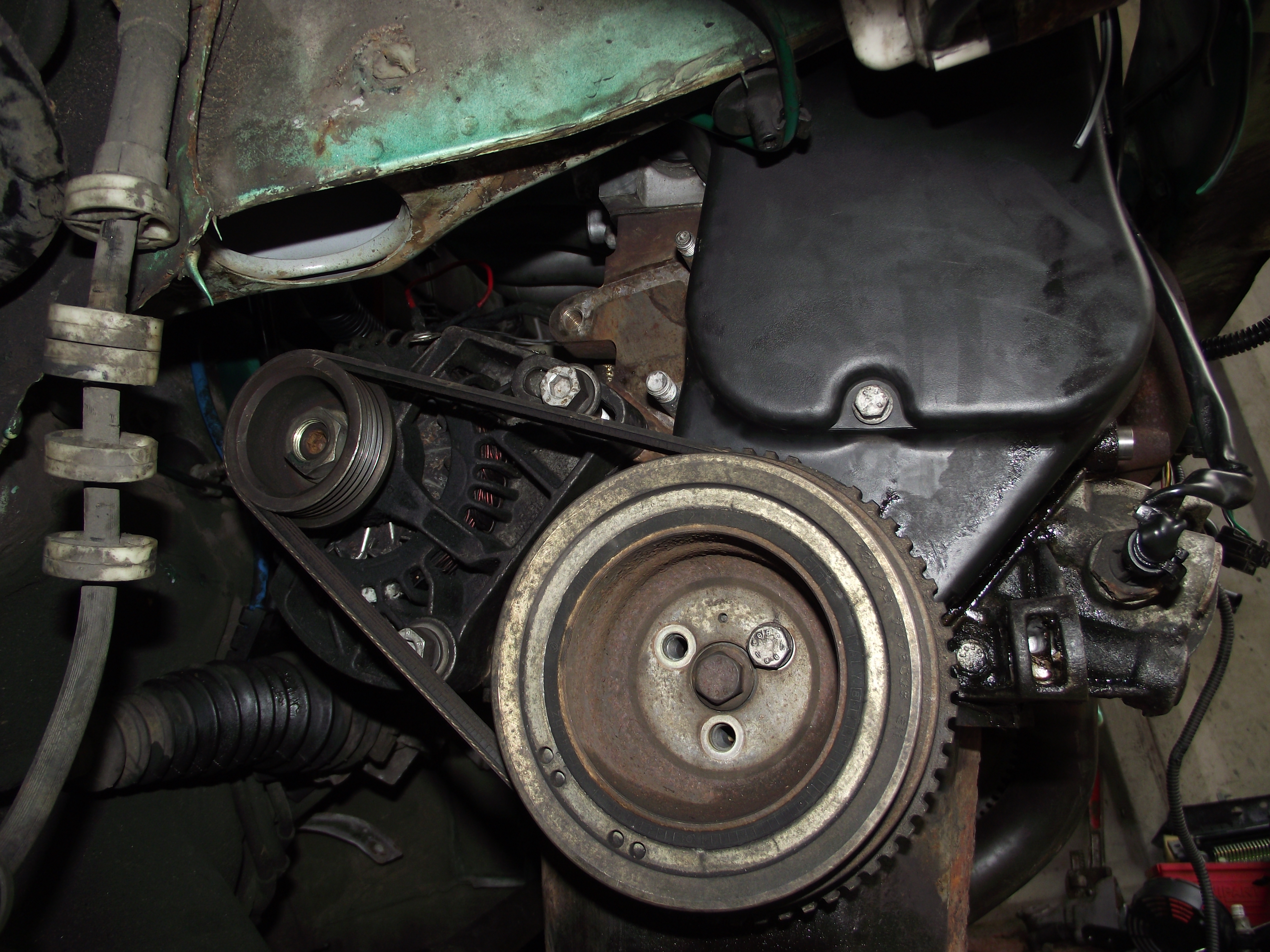

first thing got the altinator sorted out all pulley swapped over because the bearing was gone in 16v one looking good

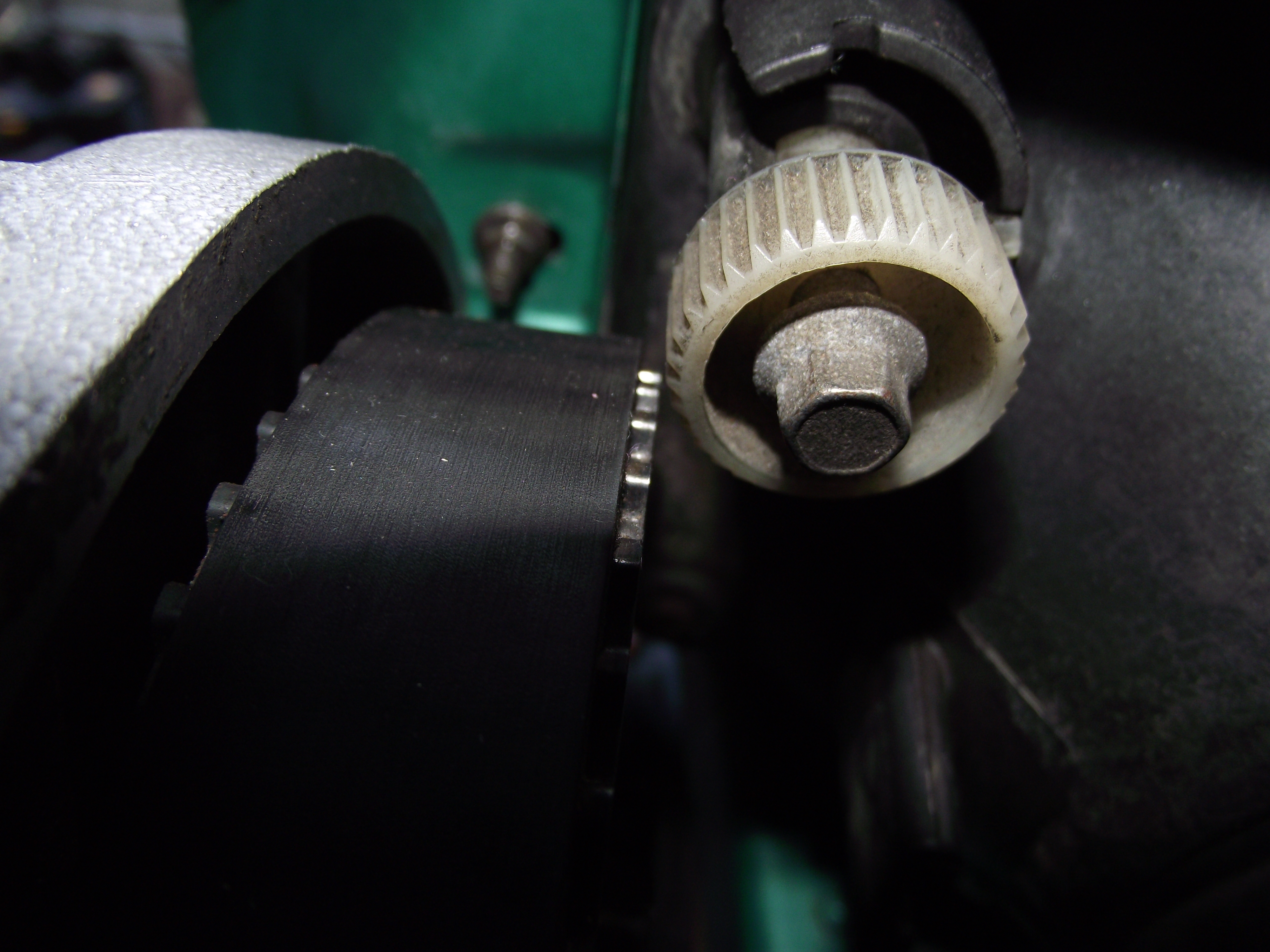

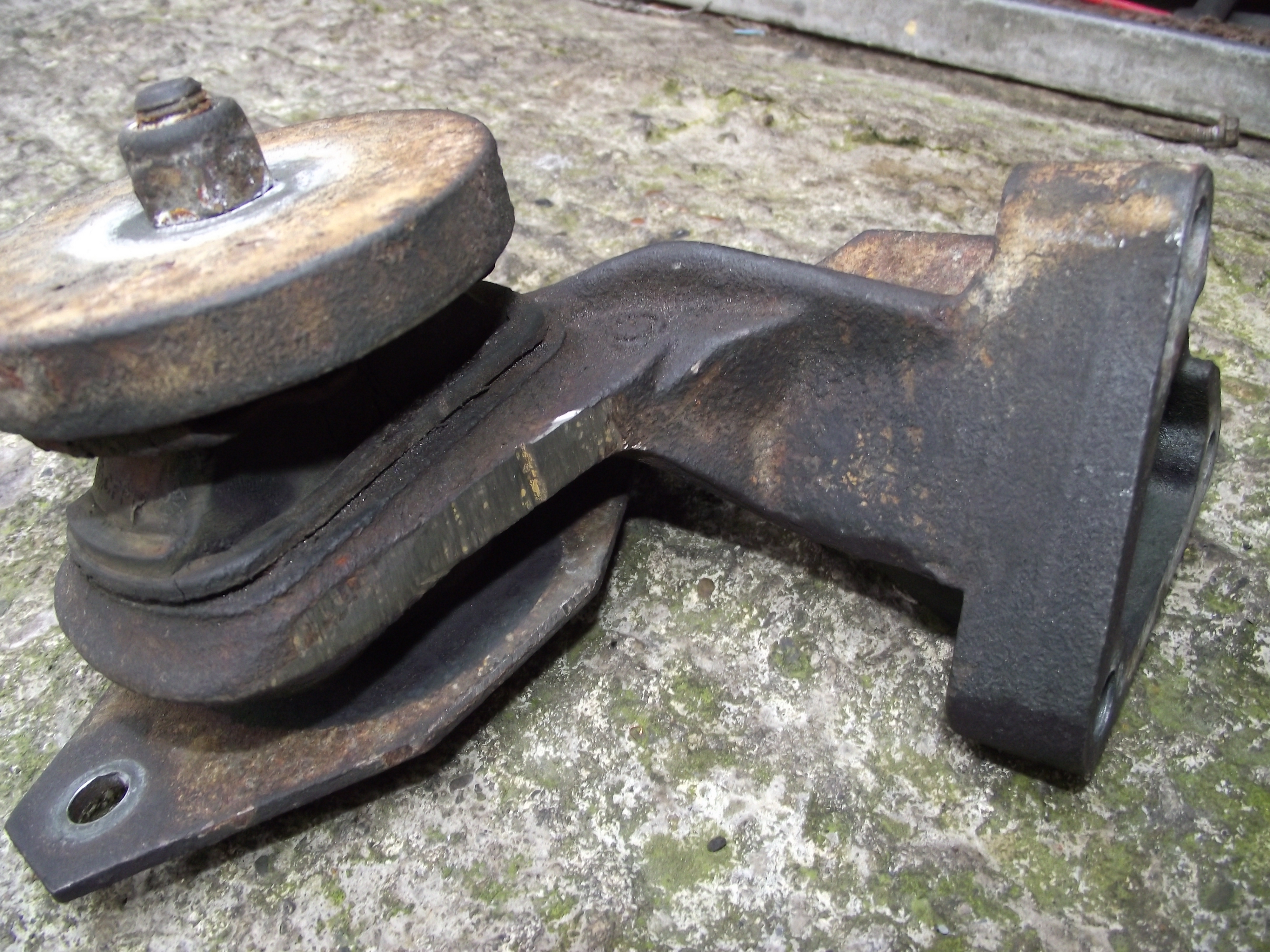

then a bit of fettling on the mount to clear the belt and pulley

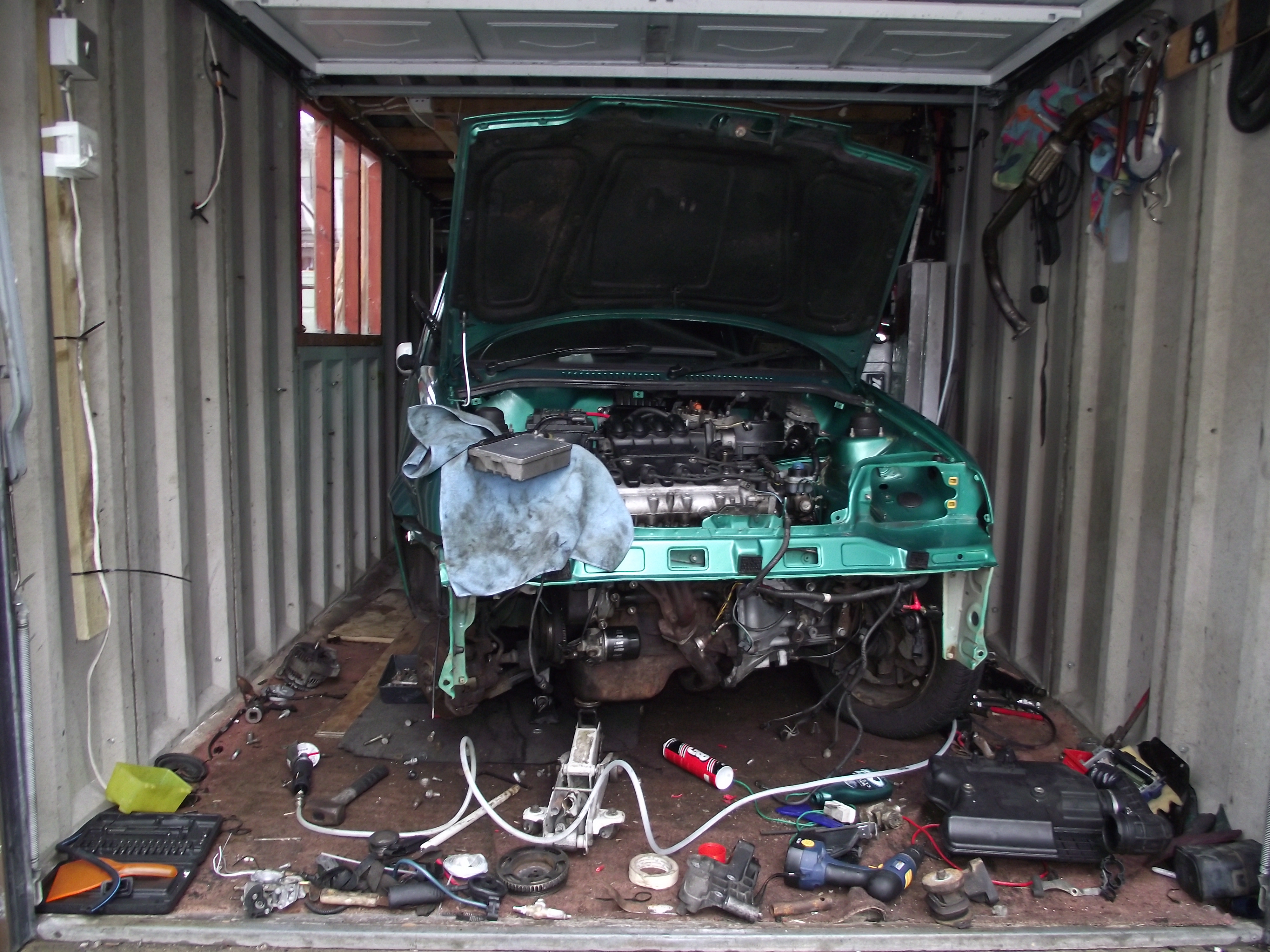

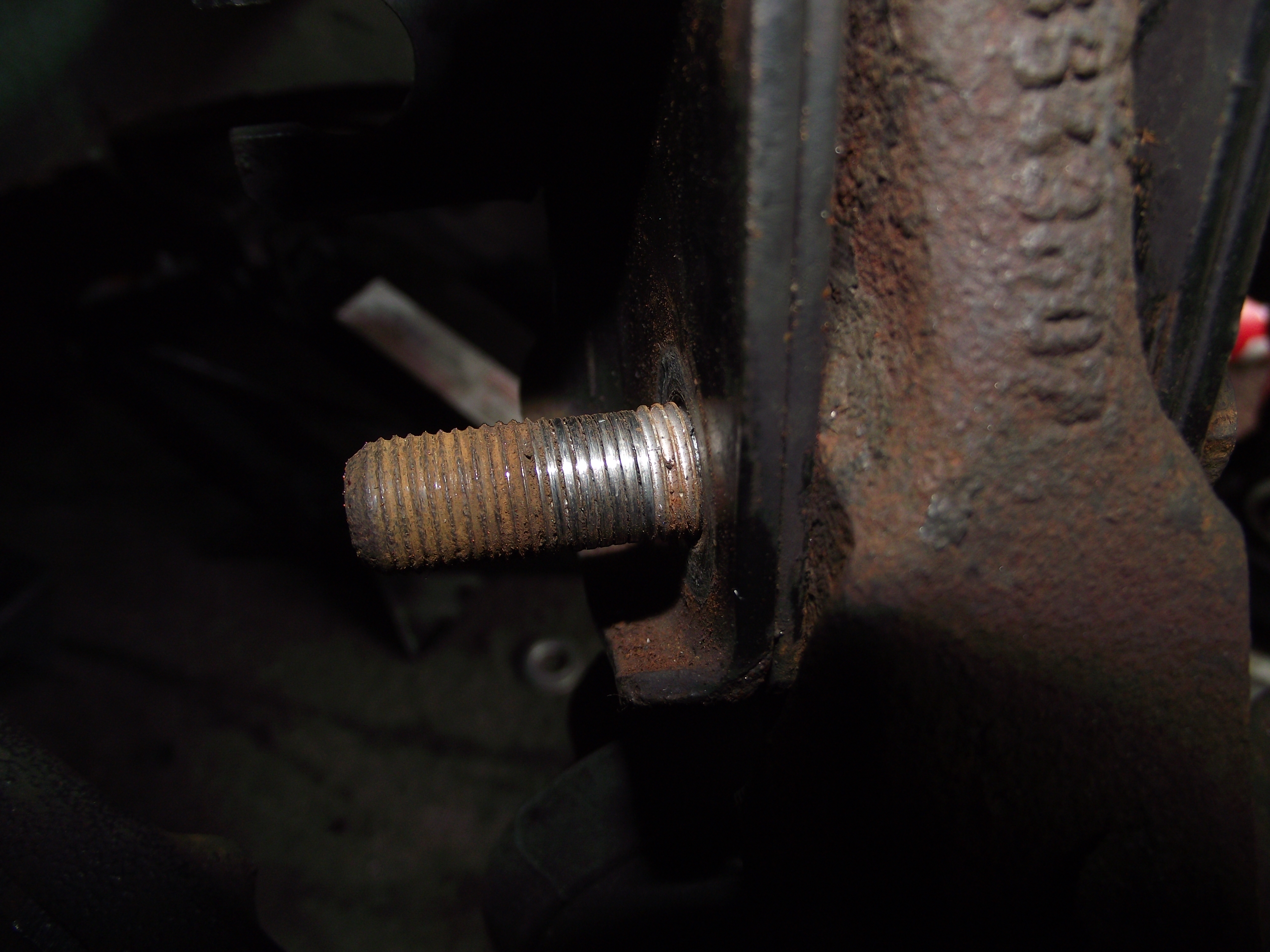

while i had strut undun i found this :bang:





hears how it looks for now until i get a new nut and bolt not very tidy tho lol



[centoproject]

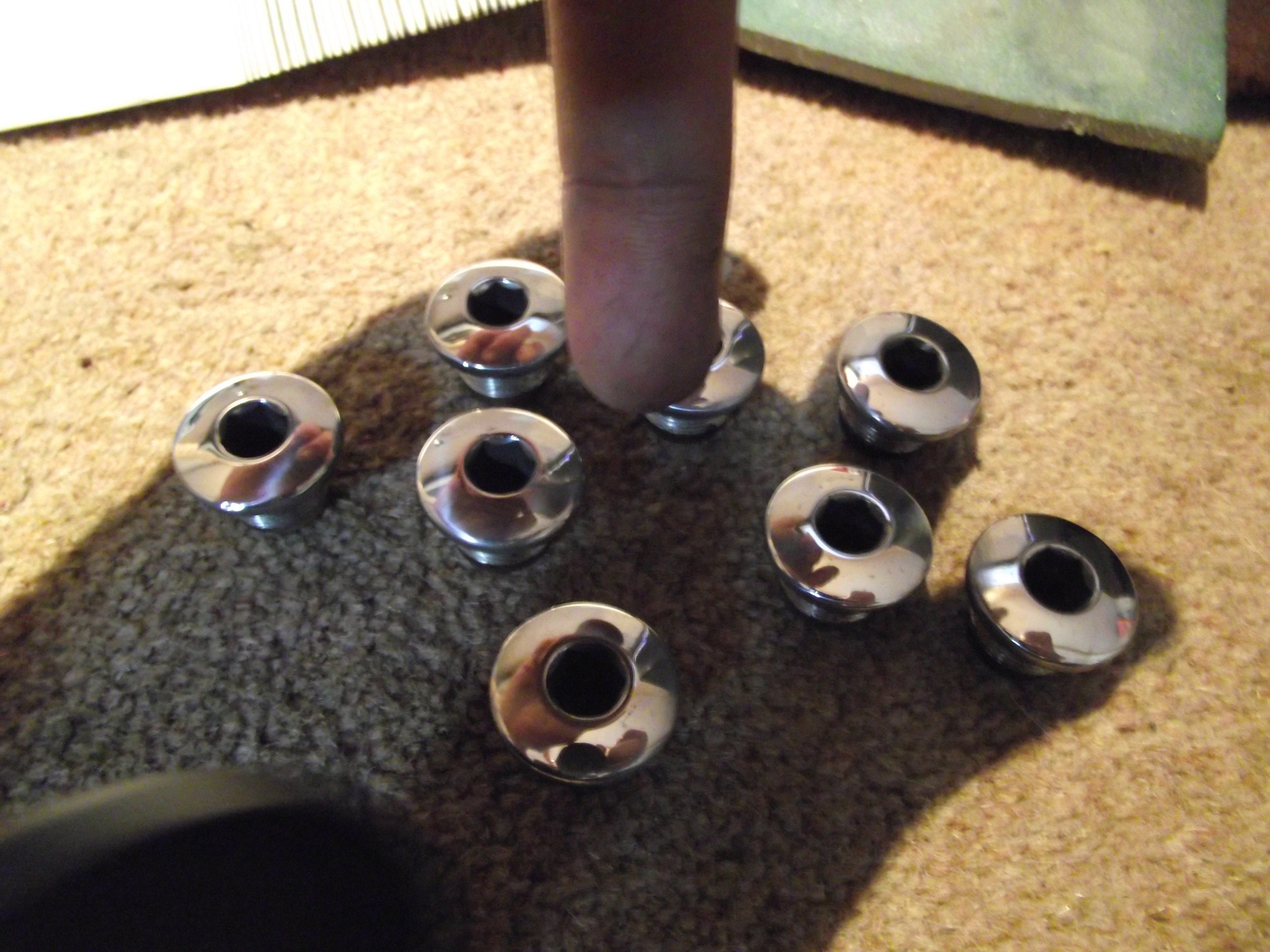

polishing



im going to start polishing heads for people soon and other parts



[BlueDan]

Ooh, very nice

What did you do, tape some glass paper to a worktop and run them around on that face down? Then polish up?

I know your finger is there to show how reflective they are, but it kinda looks like you are pointing them out as if we'd be distracted by something else in the picture



[whitz]

polishing

View attachment 102100

im going to start polishing heads for people soon and other parts

its on

Ash



[centoproject]

i purchased a nice bench metal polisher does a very nice job it takes 3 steps of compound for this effect lol



[centoproject]

oh and ecu is ordered with code box and key
