General TwinCharged Marea

[claymore2k]

And so we start again, this is day one of the sleeper build

The only mod on the outside will be the wheels, and the change from a 2ltr hlx front bumper to a lowly 1.6 bumper and 1.6 badges.

The unsuspecting engine bay

and even more unsuspecting aircon pump

got to squeeze this in there somehow

don't need this bit.

Well that wasn't to difficult, was it?

that's a bit more subtle

and this is the throttle-body's new home

Next part of the jigsaw



[bulldog5046]

looks interesting, a challenger for the MareaT?



[Adrian Bravo]

Cool subscribed,
Is there anyroom to put the supercharger behind the block? like that pic I posted the other day. (Unknown engine) The position and the way the top of the charger goes straight into the intake looks clever to me.



[claymore2k]

Cool subscribed,
Is there anyroom to put the supercharger behind the block? like that pic I posted the other day. (Unknown engine) The position and the way the top of the charger goes straight into the intake looks clever to me.

Probably enough room, but there would be no chance of getting a drive belt to it, plus I need to go from the supercharger to an intercooler then into the turbo and then another intercooler, although I might just go straight from the SC to the turbo and use the nitrous or co2 to cool the charge.



[claymore2k]

Re: TwinCharged Marea STi

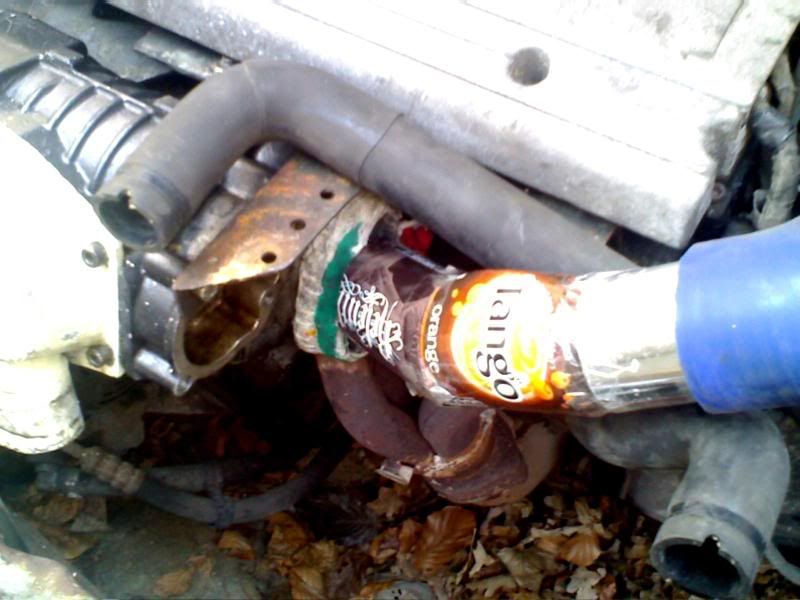

Looks like I'v been tangoed......lol

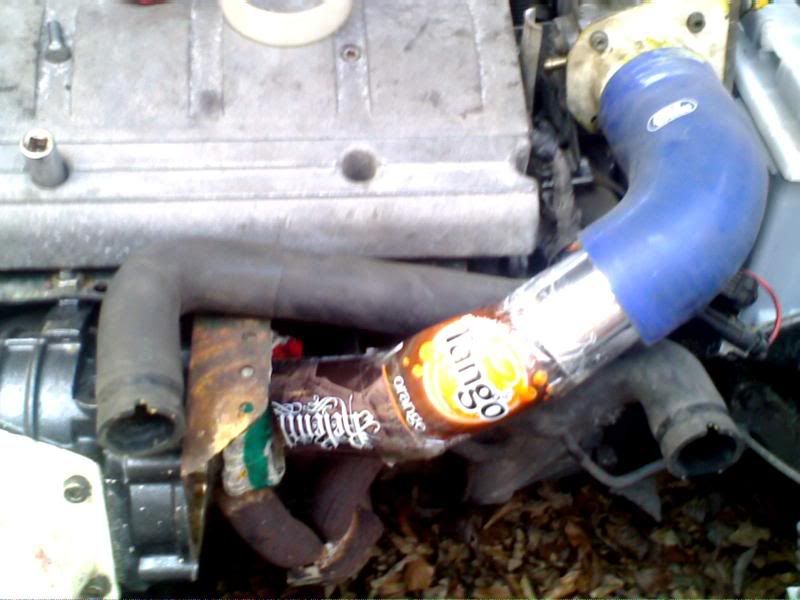

a quick mockup of the intake, it's a bit tight past the top hose

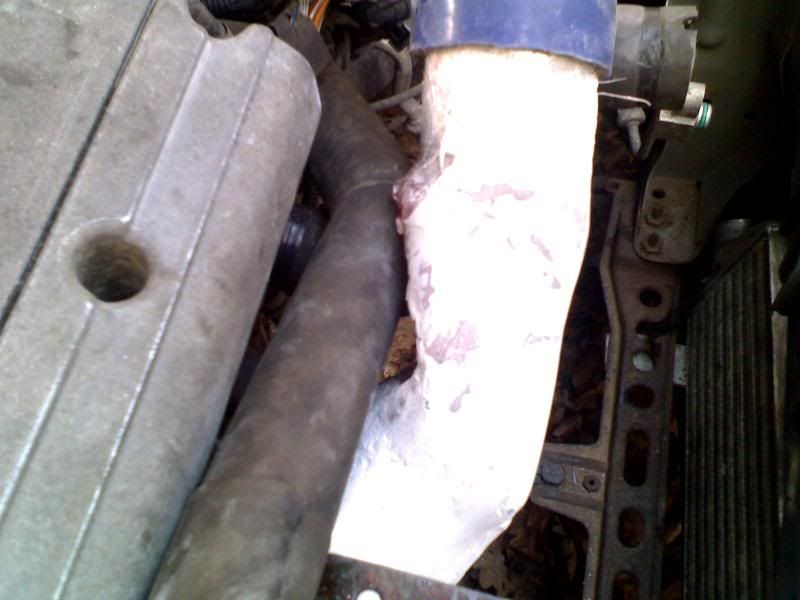

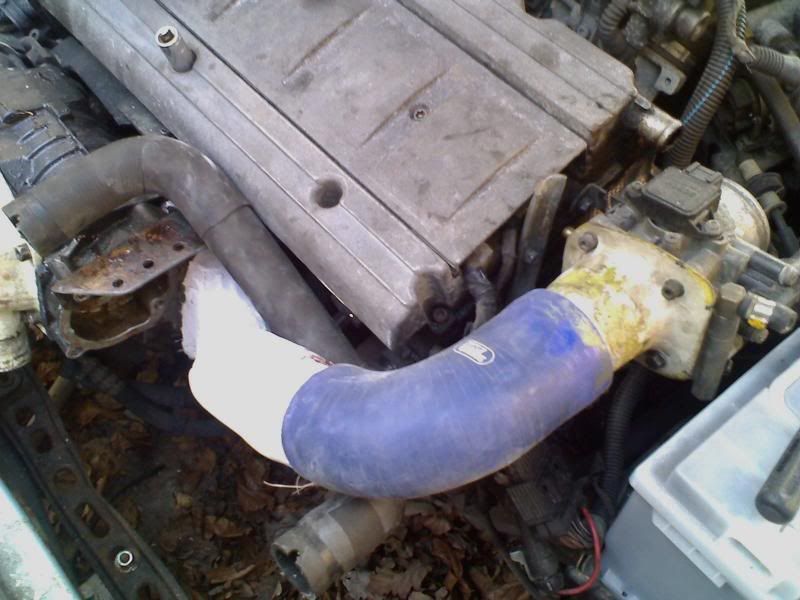

two hours later and we have a rough fibreglass intake pipe, now it just needs to be made pretty

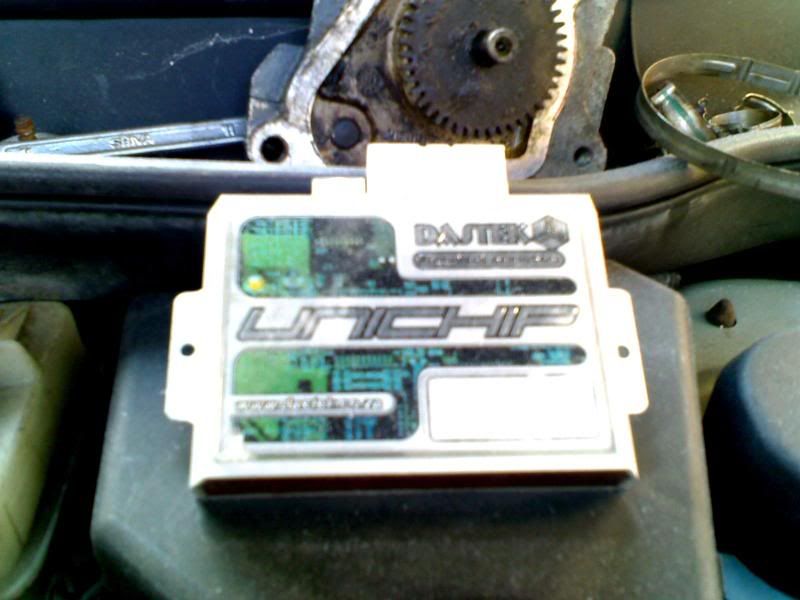

And the dastek which will hopefully controle everything



[Venters]

So I'm assuming you have done your maths. What's the planned boost?



[claymore2k]

So I'm assuming you have done your maths. What's the planned boost?

Hell No, Just suck it and see



[bulldog5046]

i dont really know anything about superchargers but you may want to revise your choice of turbo.

you can make things easy for yourself if you go for a TB28 turbo (the one from the coupe not the 200sx) as you will be able to get a manifold thats already available and a downpipe all very easlily, hell, you can even use the SMIC and pipe work.

unless your plan was to use the supercharger to spool the turbo?

Ry



[claymore2k]

Yes , the plan is to use the SC to spool the Turbo.
I'v lookd at the coupe manifold, and your right it would make life easyer, but I dont think ther's enough room for the coupe turbo setup and the SC, but I haven't discounted it yet.
dont suppose you'v got a spare manifold (even a cracked one) lying around?



[bulldog5046]

Yes , the plan is to use the SC to spool the Turbo.
I'v lookd at the coupe manifold, and your right it would make life easyer, but I dont think ther's enough room for the coupe turbo setup and the SC, but I haven't discounted it yet.
dont suppose you'v got a spare manifold (even a cracked one) lying around?

i'm afraid i sold my cracked one on, you can get a tubular manifold for £200 or a normal one for £100-130

what boost level does the SC put out?

Ry



[claymore2k]

6psi, good for about 200bhp, the plan is to use this engine as a test bed, then replace it with a coupe engine, but use all the NA fittings as it were,



[bulldog5046]

6psi, good for about 200bhp, the plan is to use this engine as a test bed, then replace it with a coupe engine, but use all the NA fittings as it were,

just wondering if you run them both at the same time, the turbo will end up pushing air back into the SC rendering it useless....

dont forget to fit 20vT injectors & fuelpump otherwise you get the same problem, the boost level will prevent any fuel coming out of the injectors lol

Ry



[claymore2k]

already got a pump and injectors, dont know about it pumping air the wrong way back into the SC. If it does that will be another problem to overcome..lol



[Hellcat]

Lancia S4 in a Marea



[FCP]

Nice poject! If you want to get the most out of turbo/supercharger then you'll need to change pistons and/or run a decompression plate (unless you go straight to the turbo engine).

Forget the Unichip, for this type of project it will cause you more problems than it can handle.



[claymore2k]

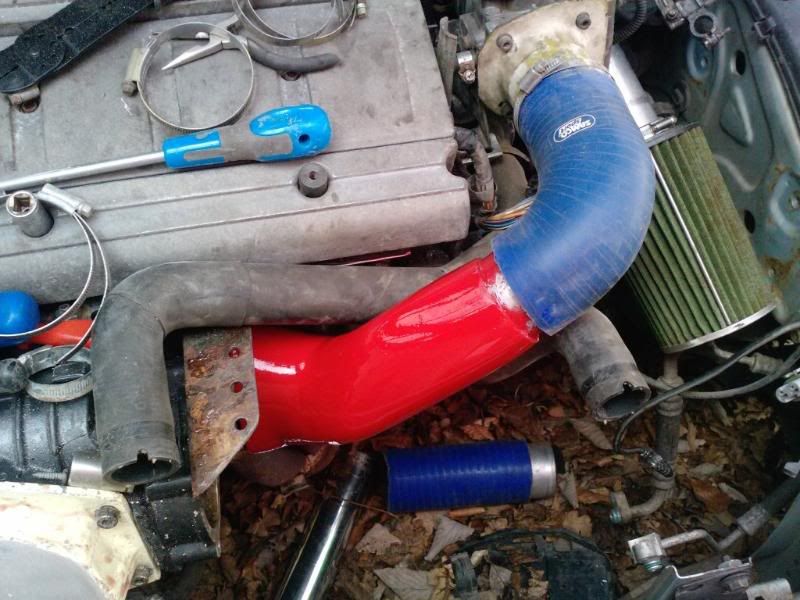

That looks a bit more like it

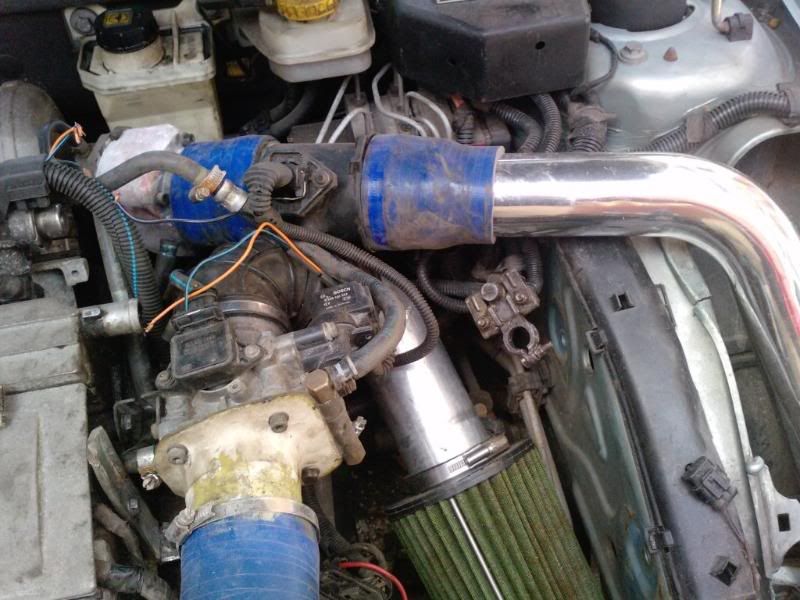

All the water and electrics now done, and initial layout of the boost
pipes,
I think I'll get it running properly with the supercharger before I fit
the Turbo.



[CinquePunto]

Won't it need some sort of BOV setup?

I can't see one? I know davethetrike needed 2 BOV's to cope with the pressure of a roots charger.



[claymore2k]

Won't it need some sort of BOV setup?

I can't see one? I know davethetrike needed 2 BOV's to cope with the pressure of a roots charger.

Throttle body is before the supercharger, so it shouldnt need one this time.



[bulldog5046]

Throttle body is before the supercharger, so it shouldnt need one this time.

do you mean that?

the engine will stall at idle if this is true, the TPS will register no throttle but MAF will be going mad.

Ry



[claymore2k]

maf will also be before the tb and charger
