Rear brake Conversion Guide

[Shaun Cook]

Indeed the guide is here.

Parts:-

Rear brake Caliper and frames with pistons and bolts etc.
Brackets to secure the Caliper into the frames/calipers to the car.
Dust covers to stop general dirt getting to the discs aswell as stoping the brake dust going all over
extended brake cable, handbrake cable, otherwise it wont reach the caliper.
HGT/Marea 20v washer to space the unit out.
remember,be patient and take note of where everthing goes so that u can put it all back together.

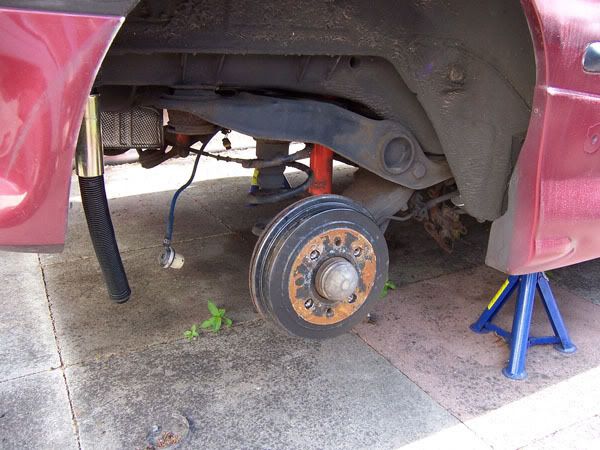

step1, strip the rear hub completely:

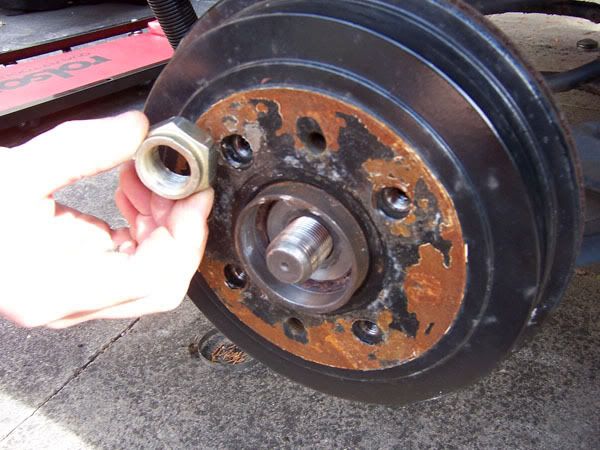

undo the bolt

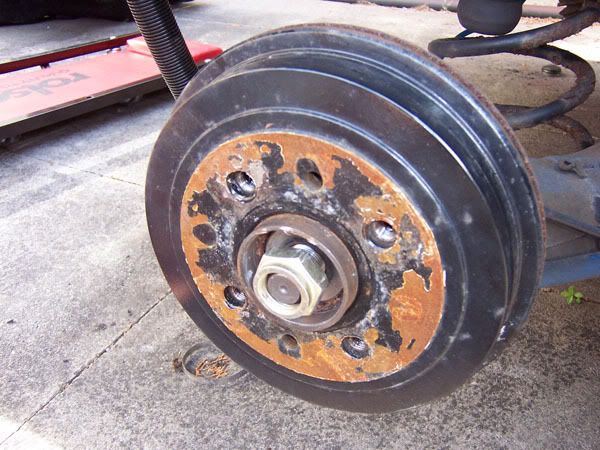

and take hub off:

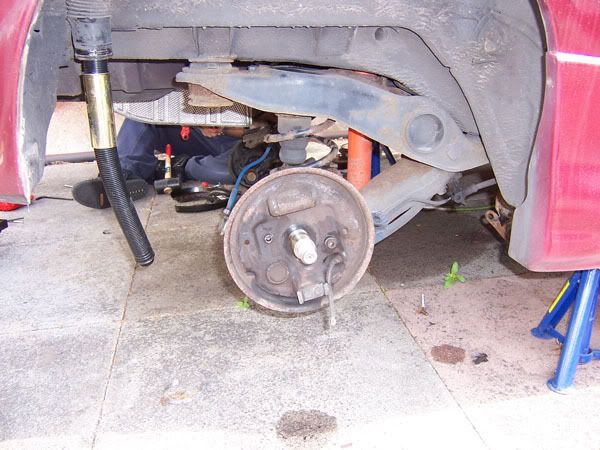

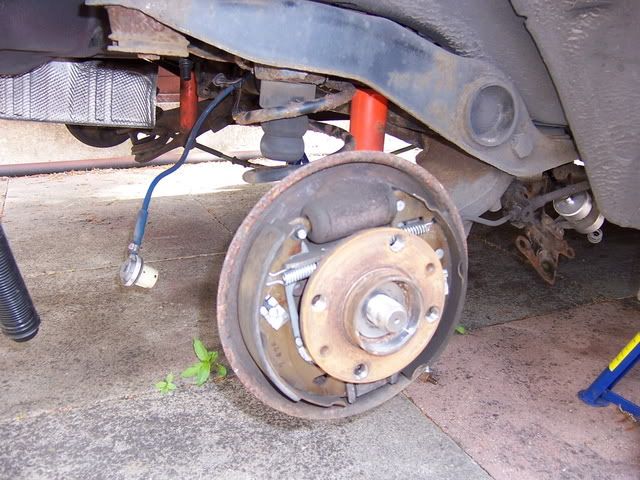

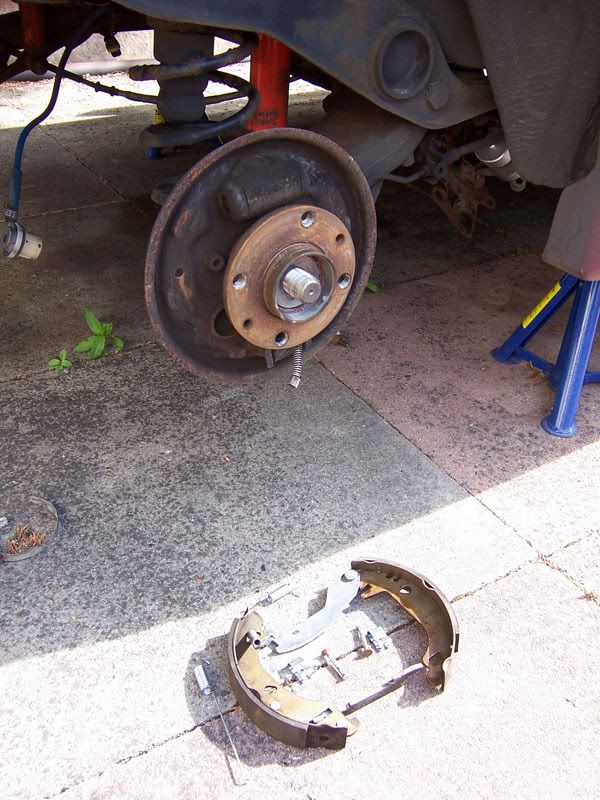

strip all shoes and cmponents off

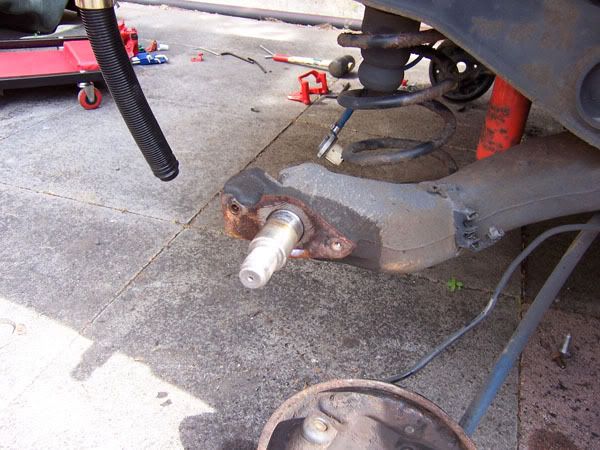

Step 2: take the hub backing plate off, with 2 simple bolts.

now u can start to put the caliper together:

1st what ull need to do is tofit the bracket 1st, then the dust cover and then the caliper, but it would be usefull to get it all as 1 unit so u dont need to take forever putting it back together.

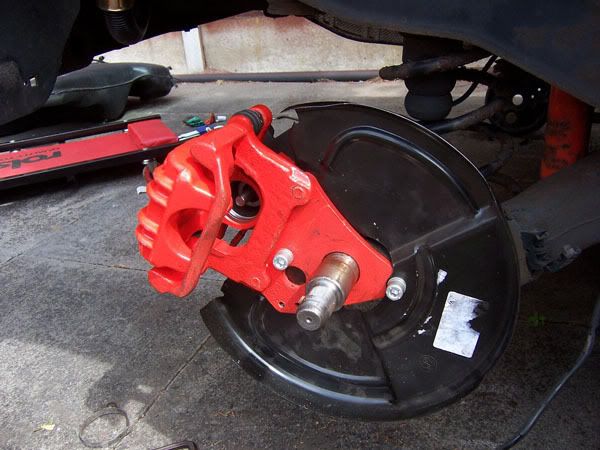

then put all rest on the way u took it off:

and thats it...just need to connect the brake pipes up, will update when its done.
