Technical Mini ISO

[Fire326]

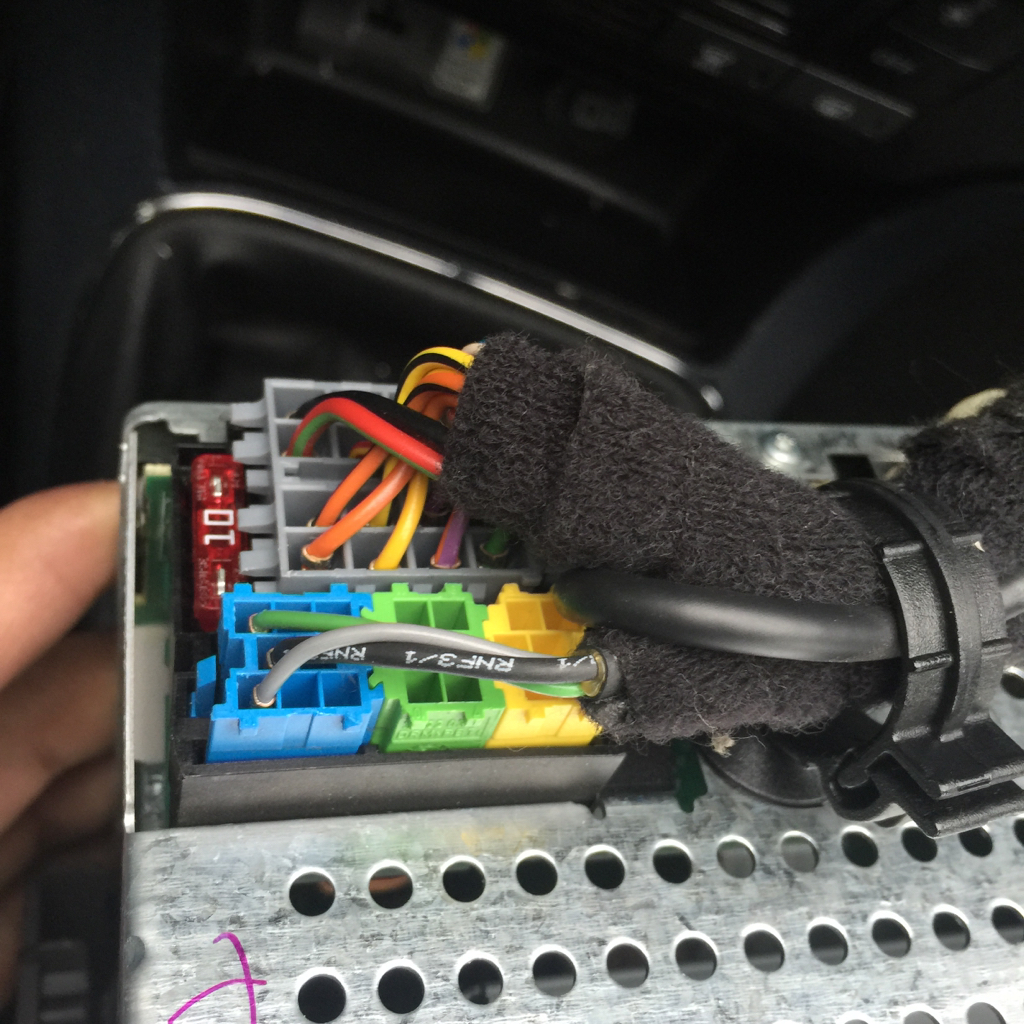

Hi guys need some help been trying to find out what the blue ISO cable is and I can't seem to find anything. If someone can help me out it will be much appreciated. Thanks



[Tad-bravo]

That's the audio input that comes from the blue&me unit.

you can replace that with an aux input cable.



[Fire326]

Thank you. Much appreciated.



[Tad-bravo]

You're very welcome mate.

Just as a side note, if you're gonna use that as an AUX input, you still need the blue&me to run a silent mp3 so that the head unit would switch to media player mode and let the audio through.

I fiddled with those other pins but nothing made the HU switch to media player mode, if anyone knows a way, I'd love to hear about it.



[Fire326]

I don't think no one has come up with a solution. I have been reading the Alfa forum but it seems it's not possible until someone comes up with something.

Also with the headunits that has the media button is the wiring different?



[Matthewr1990]

The head unit from an Active bravo, has an Aux in option, as they don't have a blue and me system to start with. It may be that they're different models of head unit. Or it's software related which would probably need hacking in order to put the None blue and me version of the software on
