Technical Fiat ducato 2007 fuse box wiring diagram

[Alistair414]

Hi I have 2007 citroen relay but I understand its a re badged ducato, my heater just decided to give up the ghost one night, working fine at night then nothing next morning. I'm hoping its just a fuse but if I remember rightly from an earlier model there was more than one fuse box. I've located the one under the bonnet but all the fuses seem ok. Is there another fusebox hidden away somewhere? Does anyone have a fusebox diagram I could take a look at please? I'm reticent to fork out for a Haynes manual as everyone says they're a waste of money. Also my near side main beam bulb keeps going pop, does anyone else have this problem, the bulb is seated correctly. Any help greatly appreciated thanks



[rayc]

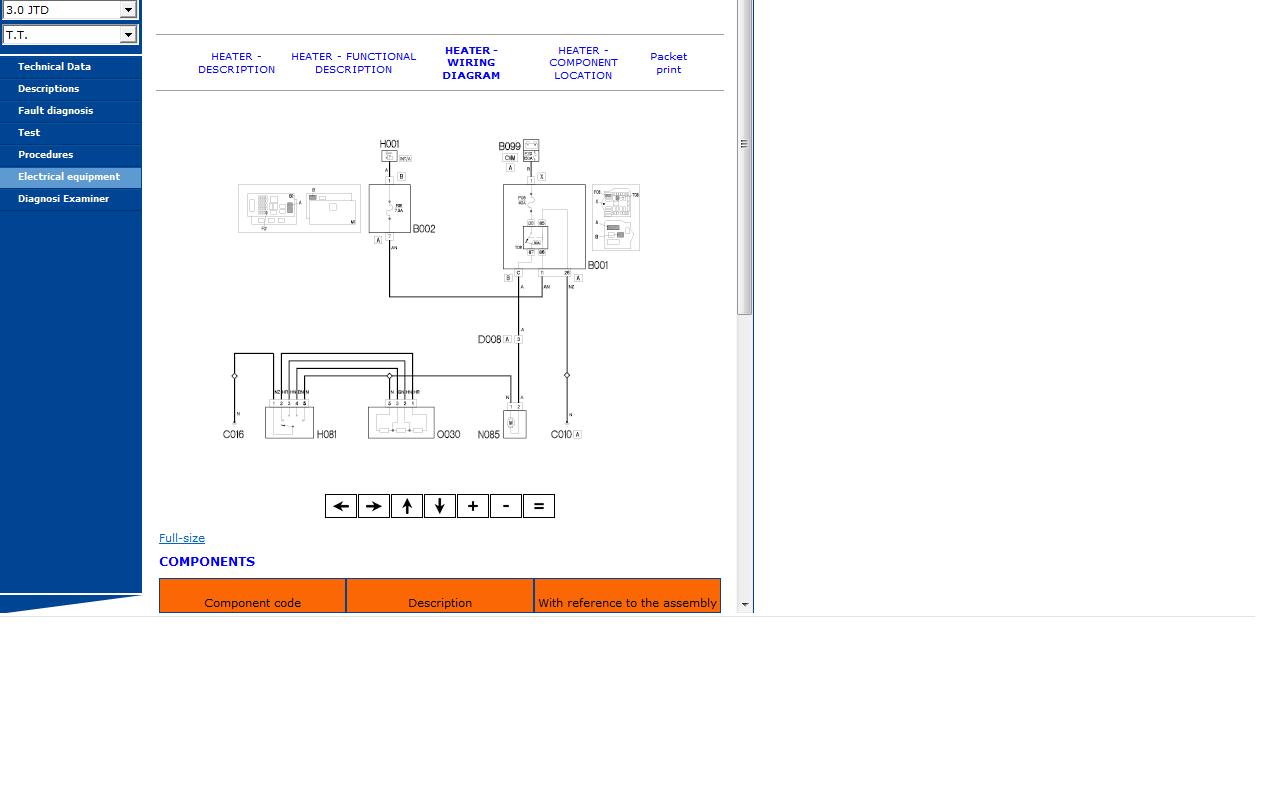

The heater positive supply is fed via a fuse and relay in the engine fuse box. The relay is operated when the ignition is on. This goes directly to the heater motor via the relay. The negative supply goes via the blower switch and resistor pack. it is unlikely to be the resistor pack if you have no full speed as that bypasses it. A schematic attached, any questions feel free to ask.
https://www.fiatforum.com/attachment.php?attachmentid=130226&d=1391532379



[Alistair414]

Thank you very much



[Swelephant]

Hi on my 2013 Ducato there is a fuse box just above the drivers feet.



[Swelephant]

morning rayc would you know where i can get a wiring diagram the for the central locking on a 2013 Ducato I have a problem with mine.
cheers
