Central Locking Module-Location????

[davide]

hi guys/gals. i have an after market alarm and i want to link it to my central locking module. i have a punto mk2 2002 model. does anyone know where this module is located? i think its where the fuse box is but i have no idea what it looks like.



[dave]

its part of the body computer


Connections for 40 pin black connector in the front of fusebox.

CDL unlock, connect to pin 24

CDL lock, connect to pin 34

Indicators, connect to pins 13 and 3



[davide]

i noticed that there are a few alan keys screws on the fuse box. should i remove the fuse box and the module will be behind that?



[dave]

40 pin black connector in the front of fusebox



[davide]

kk i think i have an idea. il hv a go at it tomorrow. thx for your help.



[davide]

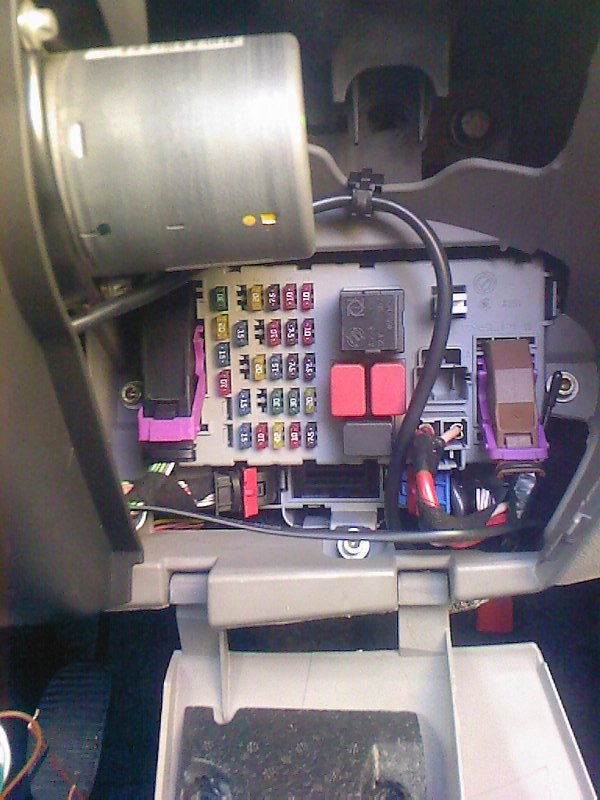

iv found the 40 pin connector but i dont know how to connect the wires to these pins. i have removed the plug and i seriously dont have a clue. iv attached a photo, i removed the black plug on the far left hand side.



[dave]

splice into the wires going to them pins



[MR_TOAD_INSTALLER]

iv found the 40 pin connector but i dont know how to connect the wires to these pins. i have removed the plug and i seriously dont have a clue. iv attached a photo, i removed the black plug on the far left hand side.

Solder together
dont connect to pins follow wires out and connect outside of plug
pin numbers are for reference

Ian



[davide]

i have had a look at my connector and it is only 32 pin and not 40. so i wont be able to use this connector to link up with the wiring. im looking at the wiring in the door and thinking about the wires there/. does anyone know which colour wire does what?



[MR_TOAD_INSTALLER]

i have had a look at my connector and it is only 32 pin and not 40. so i wont be able to use this connector to link up with the wiring. im looking at the wiring in the door and thinking about the wires there/. does anyone know which colour wire does what?

Go to loom from door they will be white/green or white/black to lock
and mauve or blue/violet

use negative locking if colours dont match test with test light when you hit the right one it will lock etc

ian



[davide]

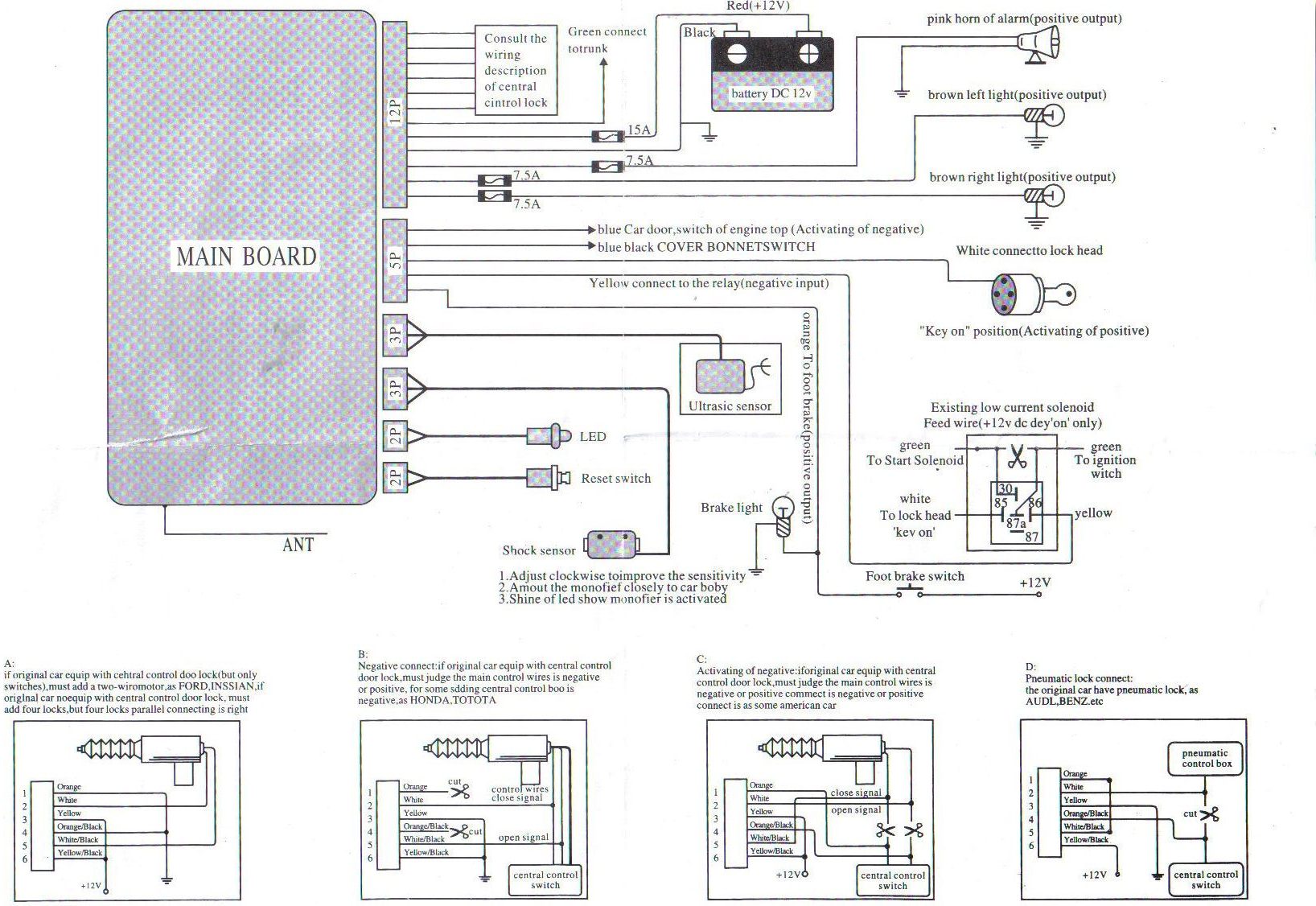

iv seen the coloured wires your talking about. i have uploaded the diagram of the car alarm. i am not sure which wires to connect to it. can u make sense of this diagram?



[MR_TOAD_INSTALLER]

iv seen the coloured wires your talking about. i have uploaded the diagram of the car alarm. i am not sure which wires to connect to it. can u make sense of this diagram?

Cant tell mate just set for neg locking
Diagrams to small

Ian
