Technical 9 speed auto oil level

[Andyshep]

Dose anyone know the oil level for the zf 9 speed auto. I have a drive shaft oil leak, so am going to replace the seal. I’ve ordered the required dipstick to check the level. But need the info re level / temperature.

Thanks



[the green vanper]

Hello,

I have no idea, but perhaps @vladandrei83 has



[vladandrei83]

Hi, I still don't know either, but I'll come back with information as soon as I find out.



[vladandrei83]

Btw, If you need to add, what kind of oil do you plan to use? Now I've upgrade from manual to zf9 (for 2.3 2019-2020), gearbox is almost empty. We'll fill ~6L, after that with diagnose connected we will check the level and temperature. There are some steps to follow to check level. I have zf lifeguard fluid 9. It is also Mopar 8&9 speed ATF.



[Abarthmultijet]

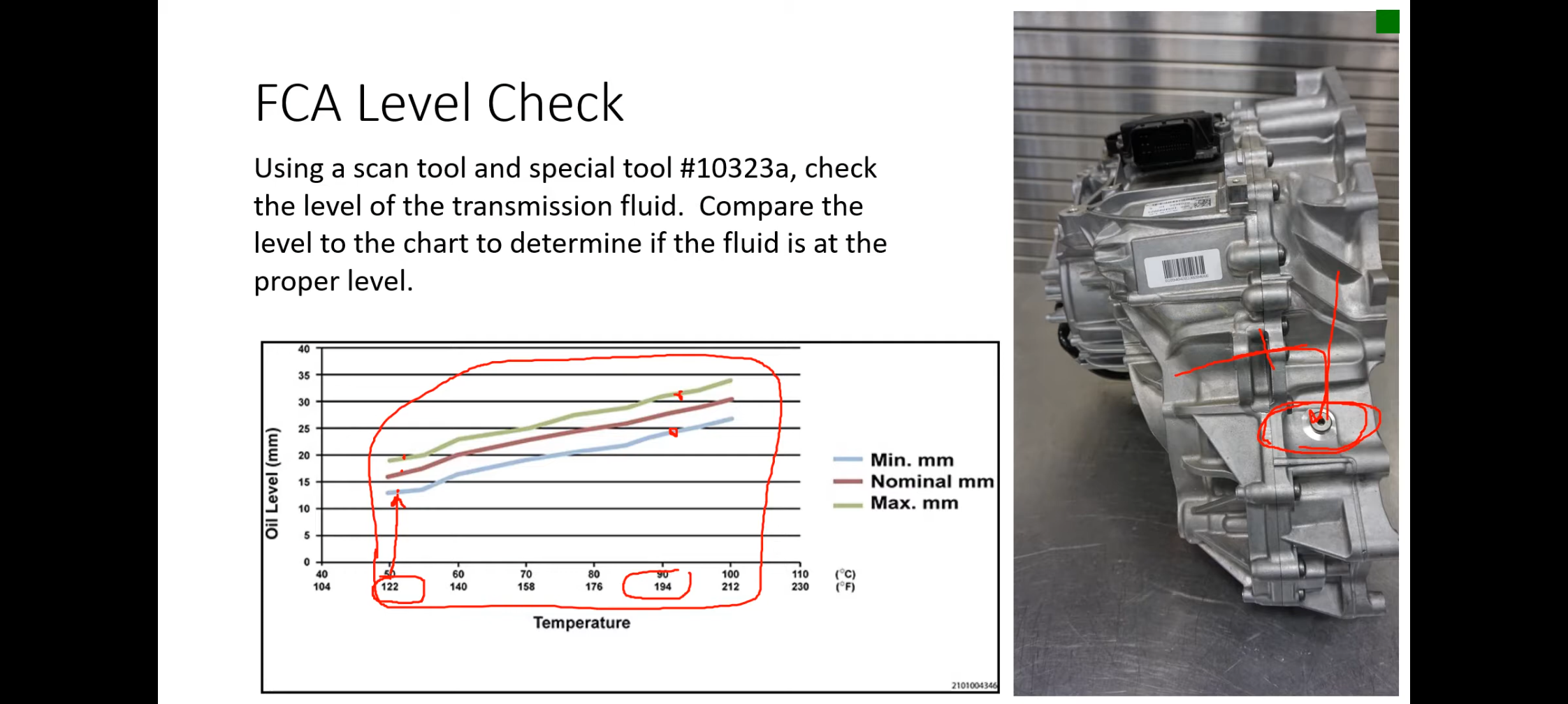

Found this one at the ram promaster forum, but don't know from where the measurements are taken



[vladandrei83]

Few precious informations here:



[Andyshep]

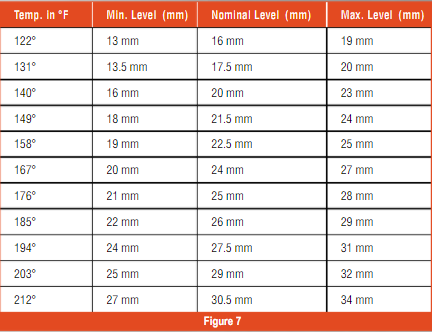

Found this one at the ram promaster forum, but don't know from where the measurements are taken



View attachment 460991

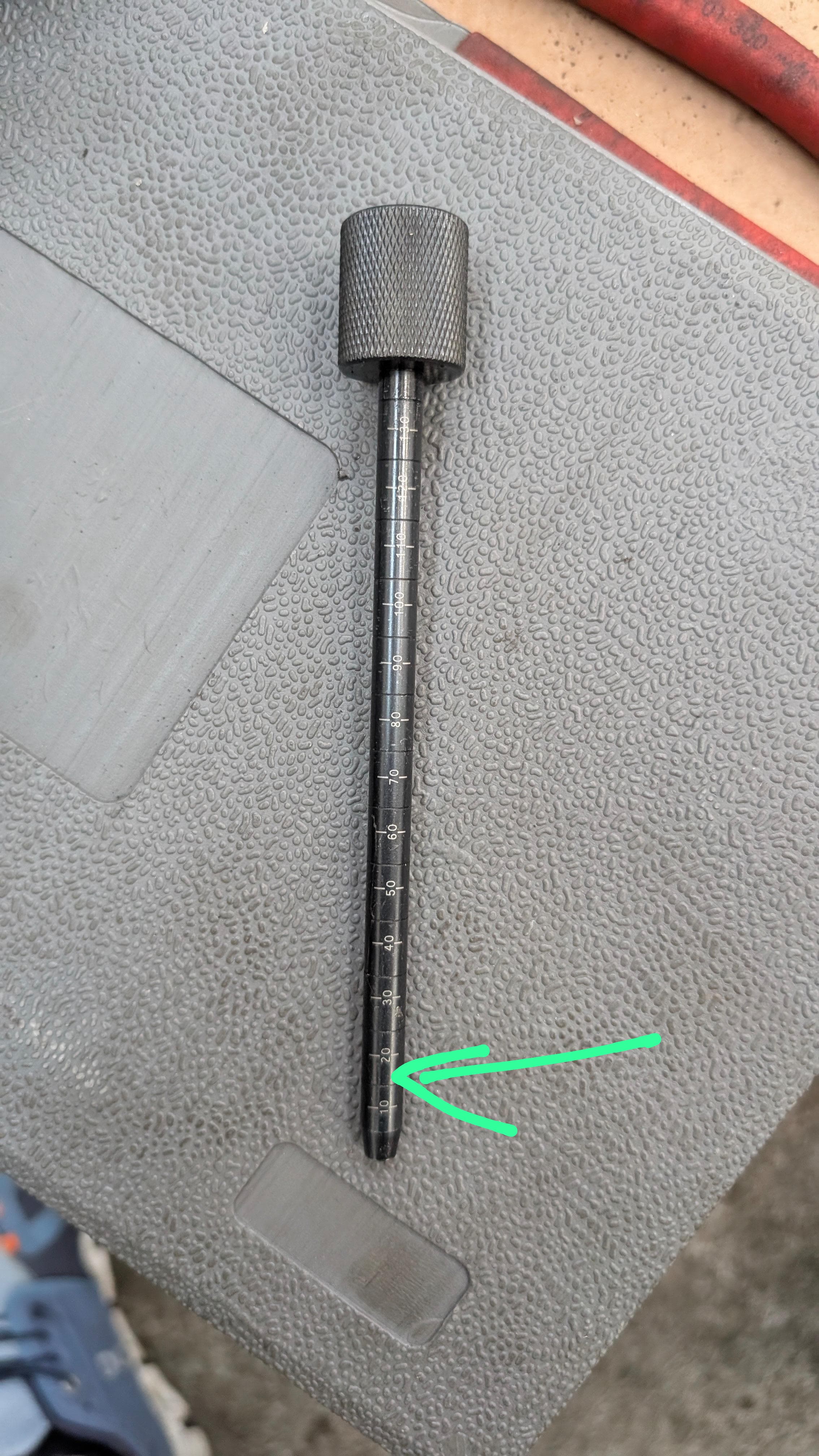

The level is check with a calibrated dipstick. It is marked from 10mm to 130mm.



[Andyshep]

Btw, If you need to add, what kind of oil do you plan to use? Now I've upgrade from manual to zf9 (for 2.3 2019-2020), gearbox is almost empty. We'll fill ~6L, after that with diagnose connected we will check the level and temperature. There are some steps to follow to check level. I have zf lifeguard fluid 9. It is also Mopar 8&9 speed ATF.

I’m hoping to order a litre from Fiat when I order the seal.
My local Fiat agent is having problems identifying the seal, hopefully they will have the correct part number tomorrow.

Thanks for your help



[vladandrei83]

Maybe will help you to identify easier by yourself.



[vladandrei83]

Now I try to find required dipstick to check the level, we also need it.



[the green vanper]

Now I try to find required dipstick to check the level, we also need it.

I have no idea about it, but I know who has

I’ve ordered the required dipstick to check the level.



[vladandrei83]

@Andyshep please help me with the part number for dipstick. Do you have 2.3 2019-2020?



[the green vanper]

I assume it's a piece of crappy plastic, ooops, a FIAT special tool and that they charge heavily for it...



[vladandrei83]

Of course it's a plastic stick with markings, in Romania is above 80 euro), but i don't have delivery. First of all i need to know if is the proper tool. Let's see the answer from @Andyshep. PN should be: 2000040963



[vladandrei83]

I've found from BGS technic , Transmission Oil Dipstick | for Fiat, Dodge, Jeep
Art. No.: 74234
EAN: 4048769079468
13 euro



[Andyshep]

£10 on eBay U.K.
