Technical 1.2 8V & 1.8 Cylinder Head Instructions

[Shaunyboyuk]

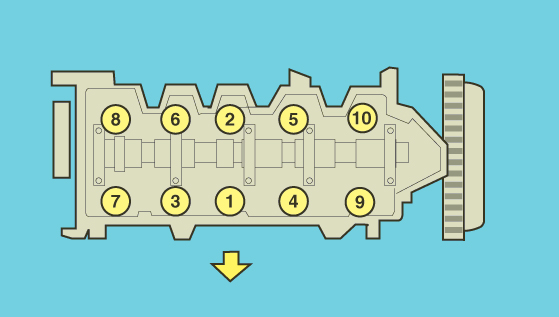

1.2 8V:



Renew Head Bolts: NO

Stage 1: Tighten: 20NM
Stage 2: Tighten: 30NM
Stage 3: Tighten: 90°
Stage 4: Tighten: 90°

1.2 16V:



Renew Head Bolts: NO

Stage 1: Tighten: 20NM
Stage 2: Tighten: 30NM
Stage 3: Tighten: 90°
Stage 4: Tighten: 90°

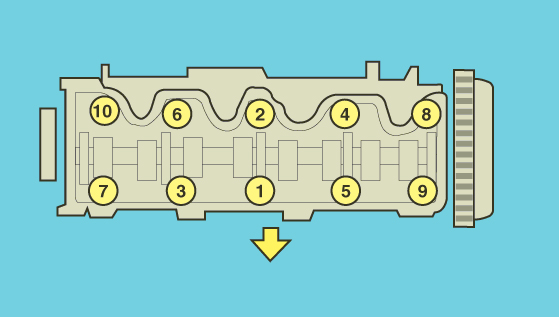

1.9



Renew Head Bolts: NO

Stage 1: Tighten: 20NM
Stage 2: Tighten: 65NM
Stage 3: Tighten: 90°
Stage 4: Tighten: 90°
Stage 5: Tighten: 90°



[dave]

where that from? should always use new head bolts



[crabbo_1]

I wouldn't replace or refit a head without new bolts



[Shaunyboyuk]

Thats the info streight off autodata, il do a print screen if you dont believe me. I mean i have heard allways use new bolts when doing the head. :S



[DanGil]

There stretch bolts, you've got to replace them.



[Oldschool]

On the FIRE steel head gaskets you should have another 90 degree turn as the fifth stage.
