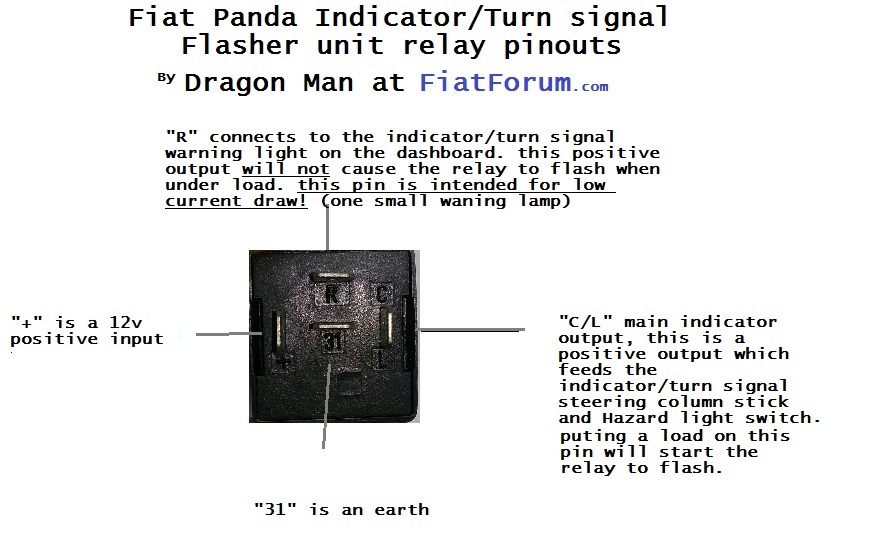

Fiat Panda Flasher Turn Signal Indicator Relay Unit Pinout
2015-06-23_19_58_07
2015-06-23_19_55_49
panda_ignition
Fiat Panda Flasher Turn Signal Indicator Relay Unit Pinout
2015-04-30_04_27_53
2015-03-26_15_16_091
panda_ig_switch
Dragon Man

Fiat Panda Flasher Turn Signal Indicator Relay Unit Pinout

Pin 31 always refers to an earth on relays.
