Technical 51 reg 1.2 punto door pin needed please

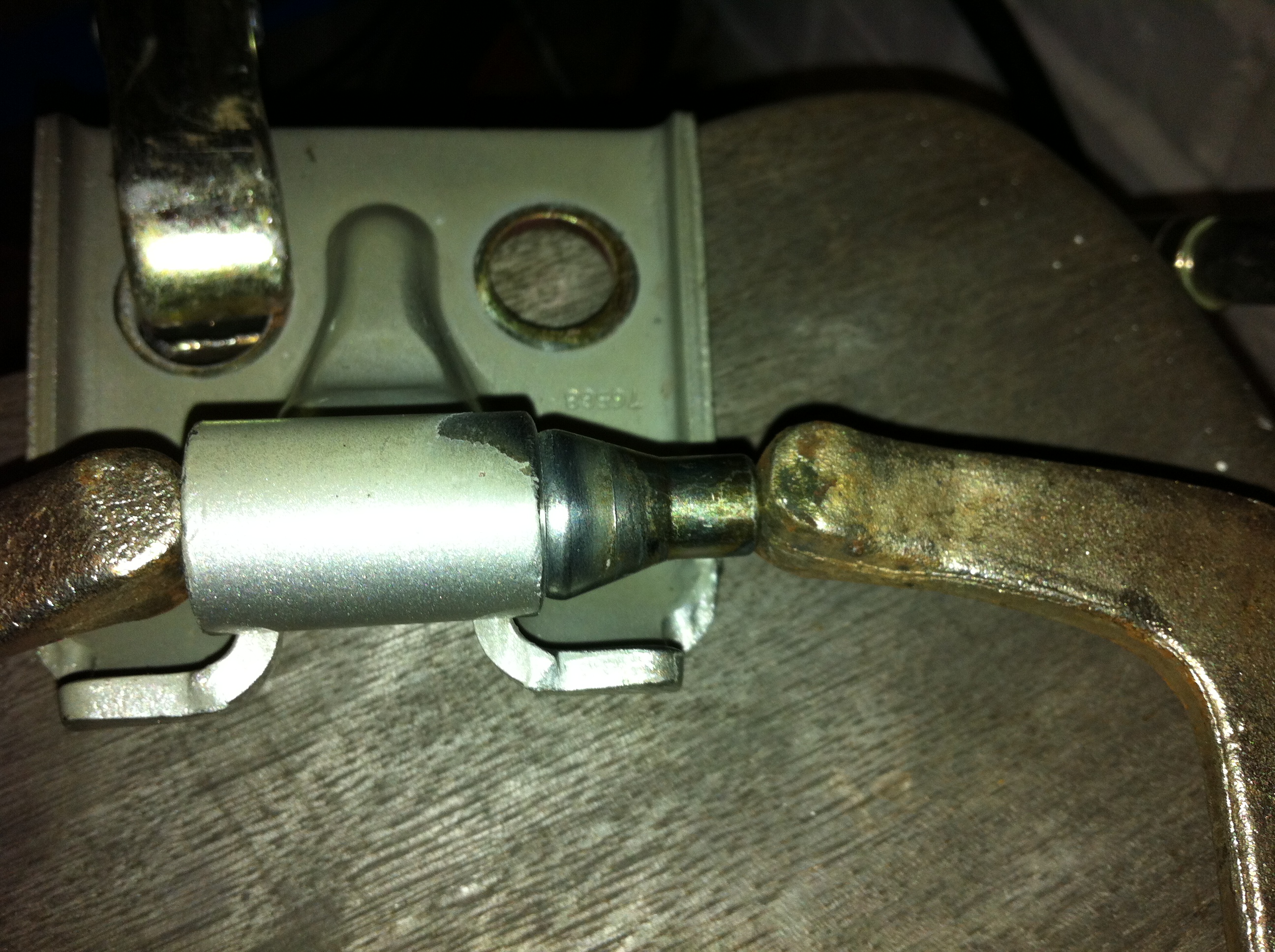

Mine went this week! the pin didnt look replaceable, not sure if you have to get a new hinge? I needed to get back to uni so welded the top cone part back onto the hinge and it sits fine! Il attatch a pic, its before i welded it but you can get the idea! I didnt know it was a common problem!
Hope you can get it soted!
Hope you can get it soted!
Attachments
- Joined
- Mar 13, 2011
- Messages
- 7,620
- Points
- 1,453
post up a picture
ive had to weld a few back onto the door frame
basically they are very heavy doors
fortunately they are fairly easy to weld back in the right place if you take off the door
ive had to weld a few back onto the door frame
basically they are very heavy doors
fortunately they are fairly easy to weld back in the right place if you take off the door
- Joined
- Sep 14, 2009
- Messages
- 19,492
- Points
- 3,294
Knock the broken bits out with a pin punch, measure it and get a suitable bolt or roll pin replacement from a fasteners factors. Do both as the other one wont be much better condition.
That bit is the pin! Its not just a pin, the door sits on that cone part, i thought it was going to be a simple job, just replace the pin for a bolt or somthing but its a wierd shape. Its threaded in the top of that cone and a 10mm bolt screws in from the bottom in your case, mine was the bottom hinge but its same just upside down.
No its pressed in and the the end is riveted back over so it cant come out. Not sure if anyone will make a replacement type that is the same shape but fastens differently?
There's no way you could replace that pin, only other way It would be possible is if a new pin had a threaded extension on the bottom that could be screwed up tight with an nut, but not sure if these are available? If you take it a part you will see what I mean by it being riveted in.
Hi, go up to PDH Findon & ask I'am sure this part is available!, as for the mirror, http://www.aceparts.com/wing-mirror...-black-driver-off-side-manual-mirror-unit.htm.
- Joined
- Mar 13, 2011
- Messages
- 7,620
- Points
- 1,453
go to a scrappy
take a scrap door off that they cant sell
and knock some bells out of the pin
if it comes out you have a pin
if it doesnt you need a new inge welding on or a new door
take a scrap door off that they cant sell
and knock some bells out of the pin
if it comes out you have a pin
if it doesnt you need a new inge welding on or a new door
PDH have pins on their parts list but reckon need the whole hinge part and get it welded on?
euro car parts have pins listed but over 100mm whereas I've measured as about 60mm...and different diameters.
Anyone use the pins and do I really need a hinge and reweld job?
euro car parts have pins listed but over 100mm whereas I've measured as about 60mm...and different diameters.
Anyone use the pins and do I really need a hinge and reweld job?
