Technical Starter motor location (FIRE engine)

[capers626]

Hi all,

I'm having trouble locating the starter motor on my 1992 Uno with 1108cc FIRE engine , which is now being dismantled for parts.

If needed, I am planning to transfer the used starter to my other Uno (1993, 1 litre FIRE engine), or keep it as a matching spare. At the moment, I have the classic grating noise after the car fires up but hopefully this is just the engagement lever in need of a clean and grease, assuming the brushes are not too worn.

I found some info from a previous thread when Alex mentioned the motor is held in place by 3 x 13mm bolts (battery disconnected first), and can be accessed from the top rather than jacking up the car.

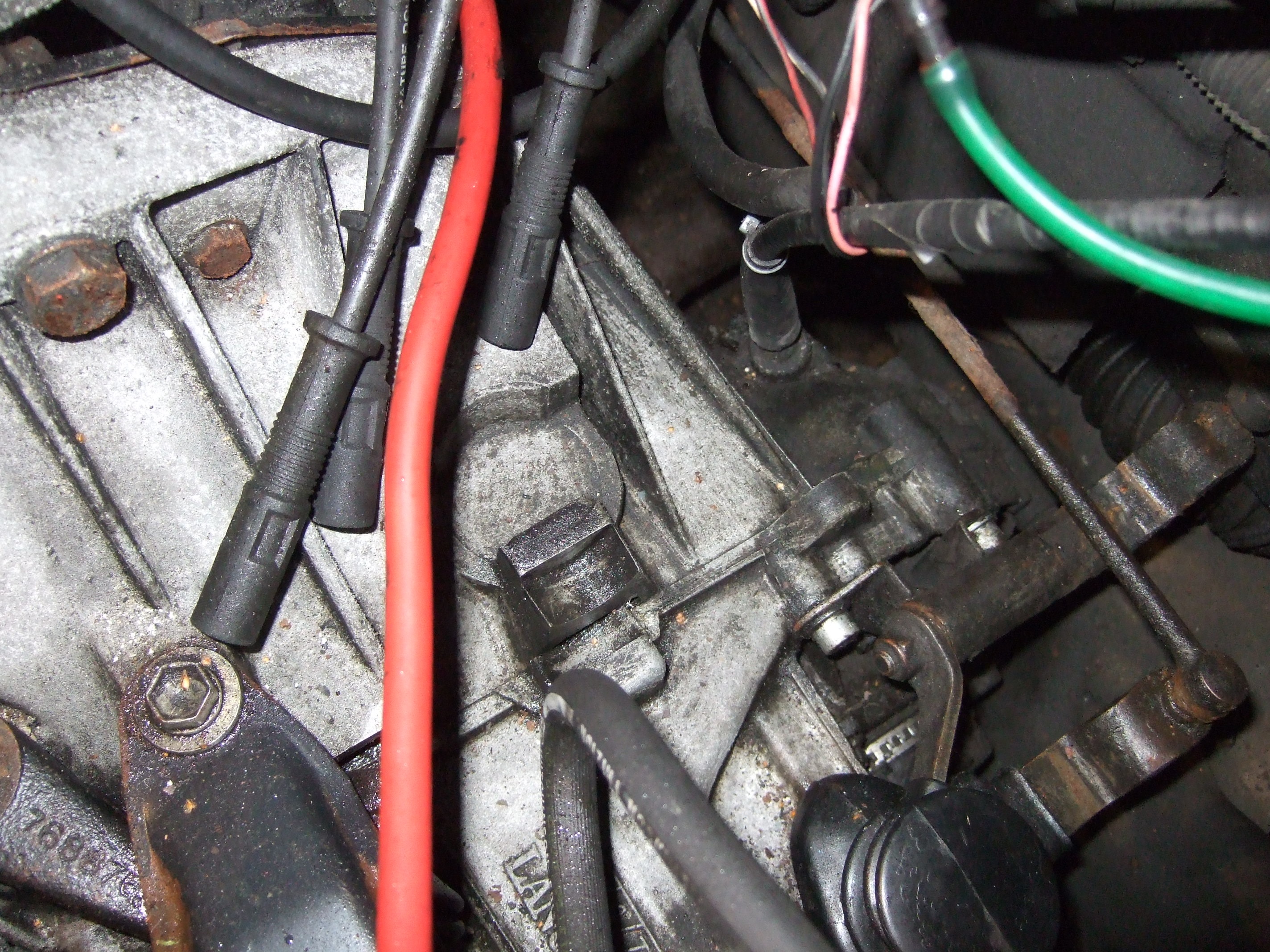

A couple of photos are attached showing the area where I thought the starter might be (Haynes manual not much help this time).

A nudge in the right direction with the location would be appreciated

.

Cheers,
Andy



[Steve145]

It's just a bit above the first pic. I think the smaller of the two bolts in the top left is one of the starter bolts.



[capers626]

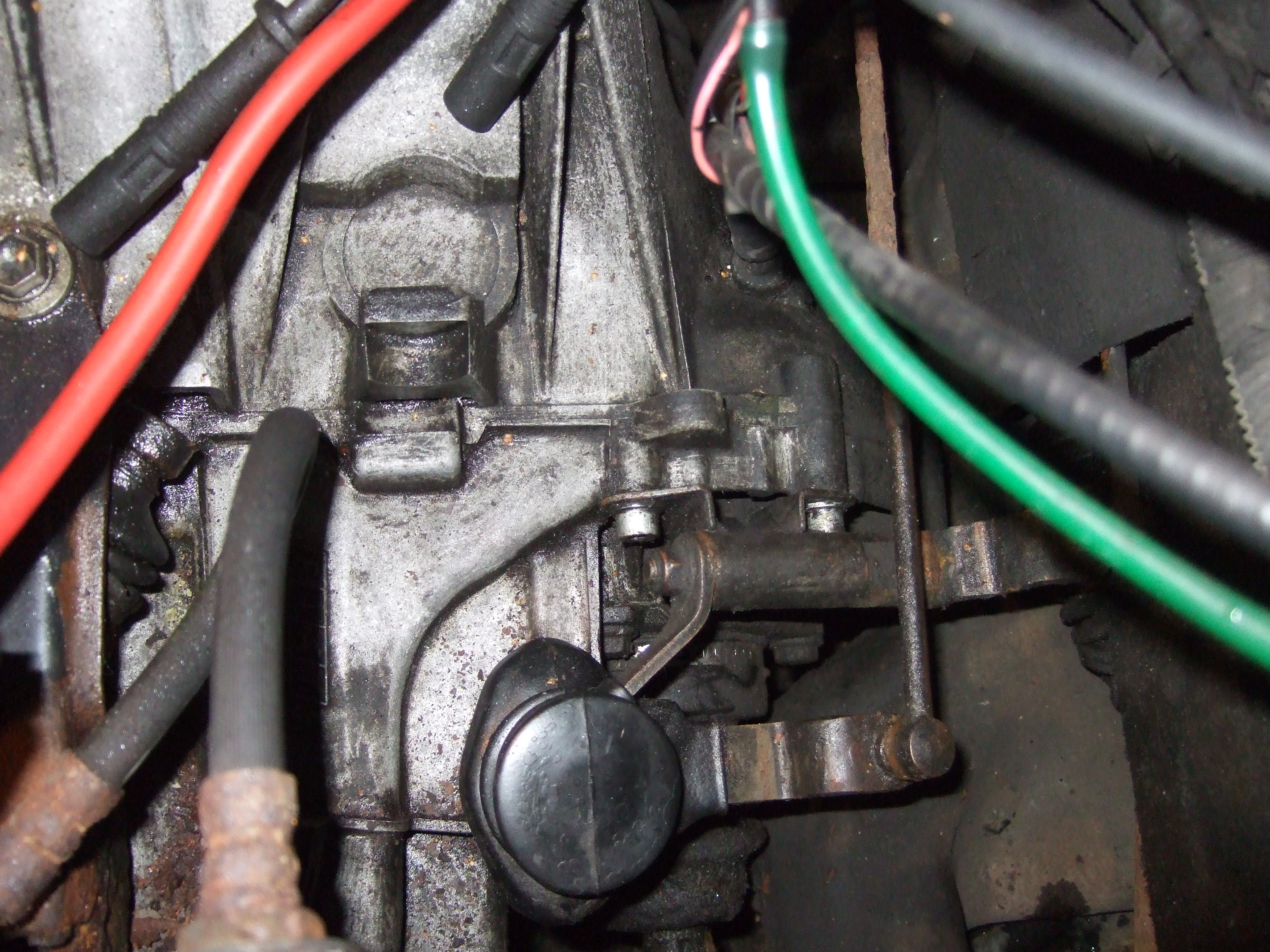

Thanks for the info Steve, further photo attached showing what looks like the starter.

Cheers,
Andy
