Pin outs for MCD36

[Steve]

Does anyone have the pin-outs for the 8 pin DIN connector that's on the MCD36?

I've got a Grundig WKS5300 headunit with a DCR200 DAB unit that came from a Fiat dealer a few years ago. I've just bought a MCD36 to go with it, and I'm using the short link lead from a MK1 Bravo. The changer isn't talking to the head unit, and when I meter out the cable it's different wiring to the one shown in the audio section on this site. I've got the pin outs for the head unit from the manual, and if I can find the ones for the changer I can re-wire the cable if it is incorrect.



[misar]

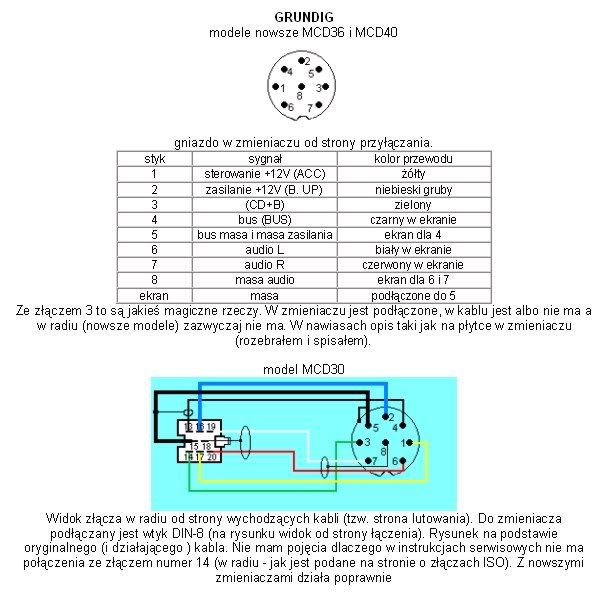

Maybe this will help you.
Image is in Polish, but you can manage.



[Anonymous]

Thanks for that, confirms my cable is OK, just means my MCD36 is faulty.
