Technical Panda 4x4 Cross "wheel" info.

[The Pretender]

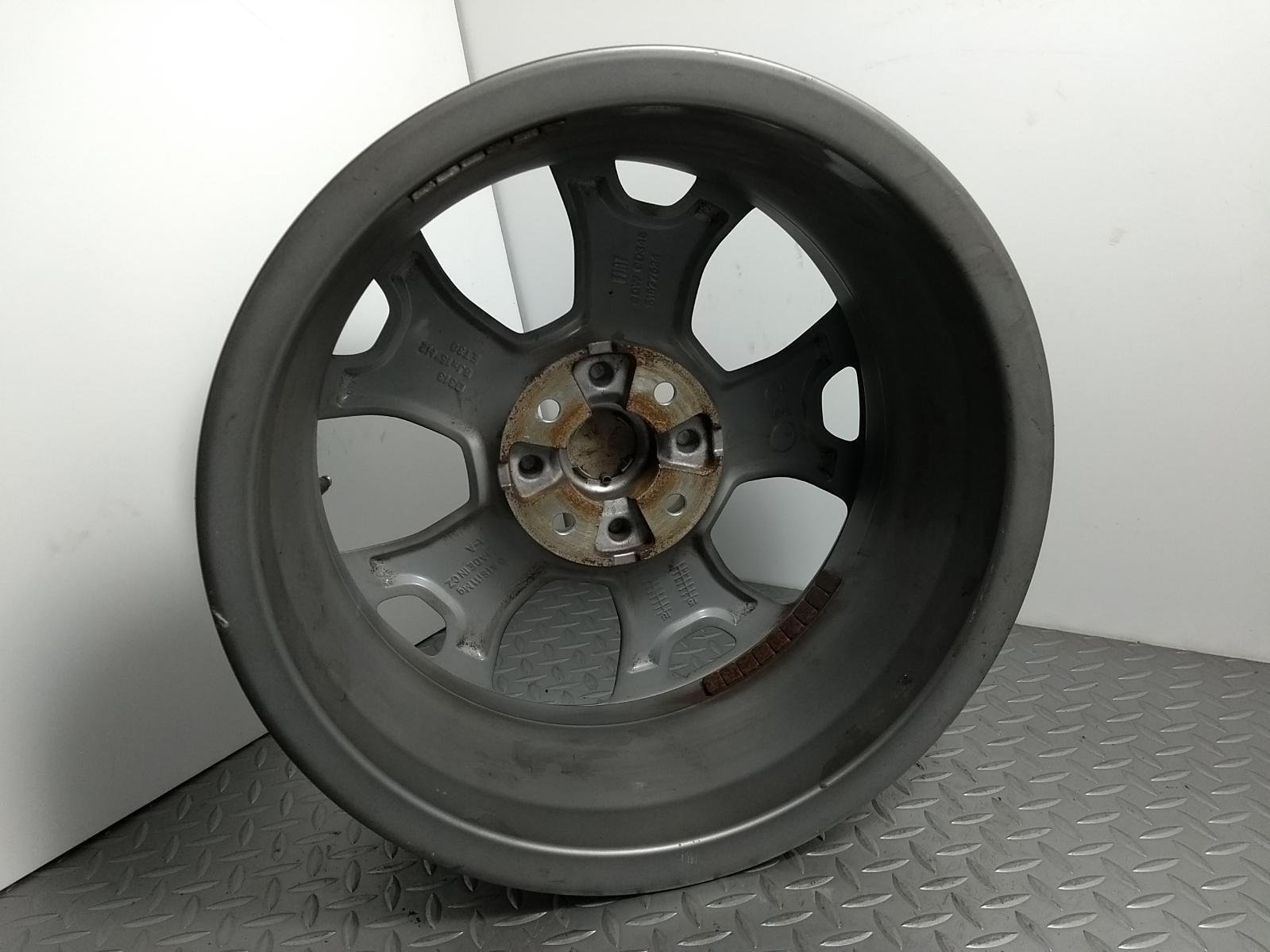

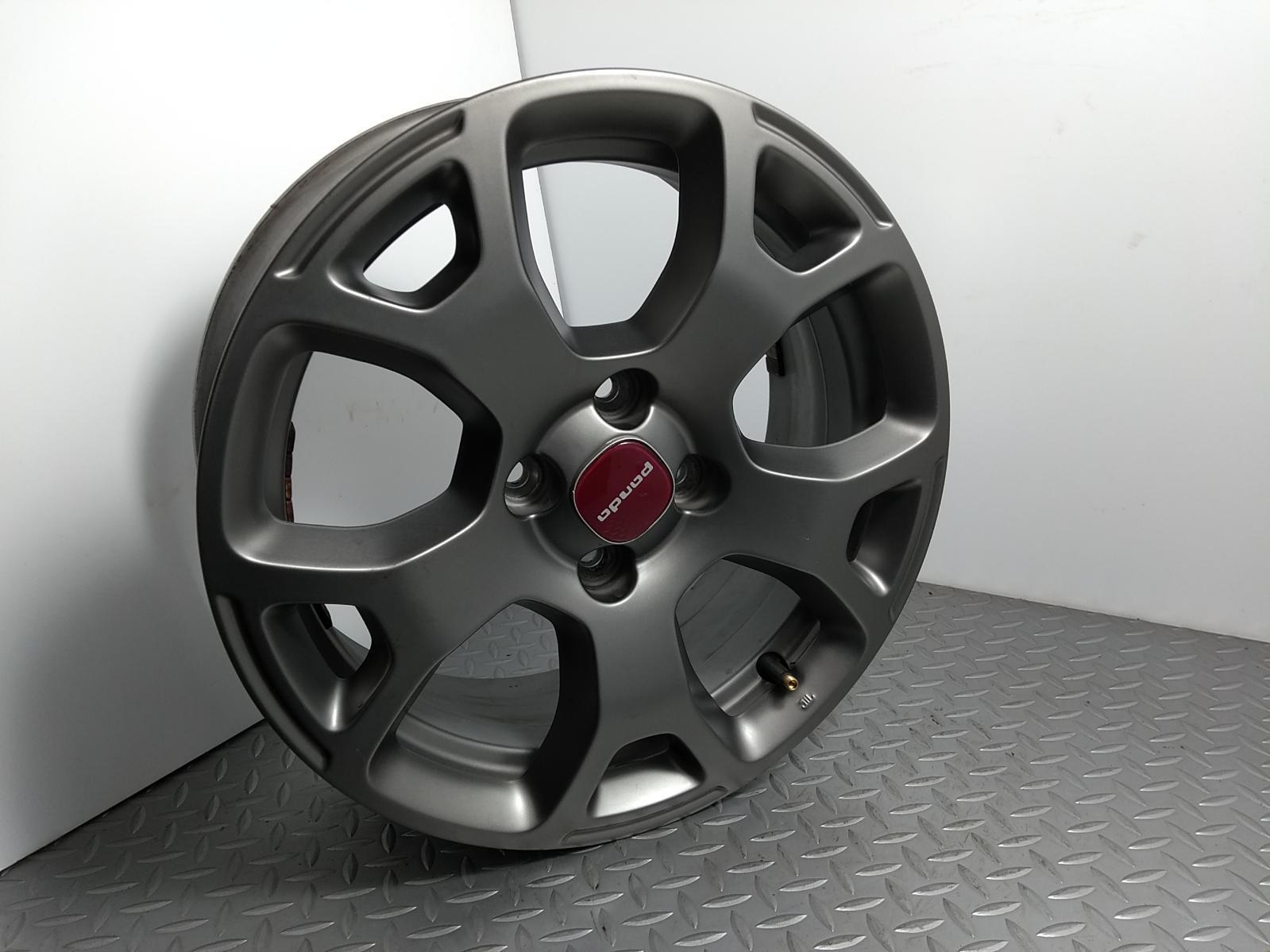

I came across some tech info about the Panda 4x4 Cross wheel.

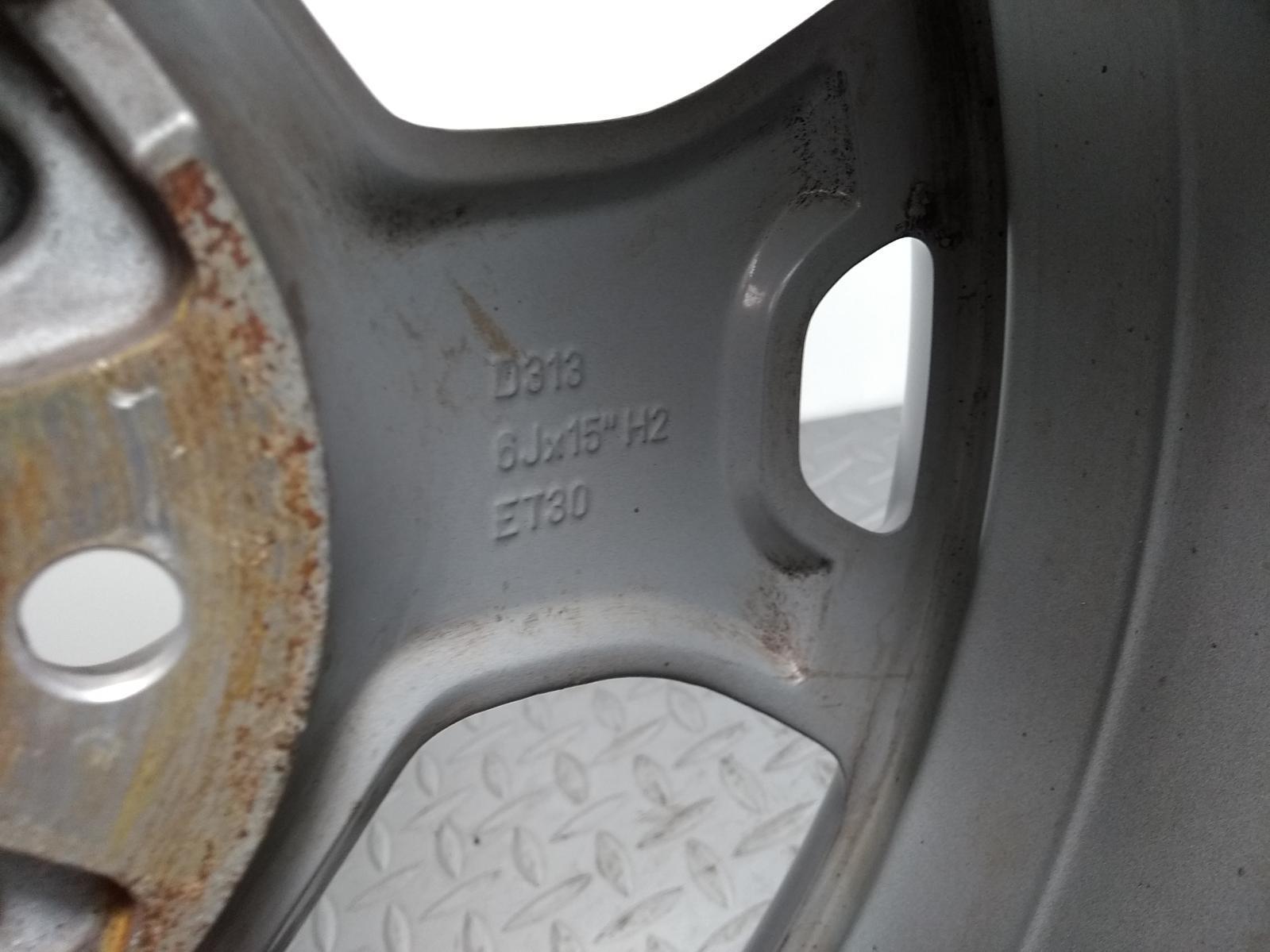

I found out that this 6Jx15" wheels has a offset/ET30. (i didn't know that)
All other 6Jx15" Panda wheels have ET35.



[Herts Hillhopper]

...and the Cross uses 185 section tyres (the 'normal' 4x4 has 175, both on 15" wheels) - maybe this is why?



[The Pretender]

...and the Cross uses 185 section tyres (the 'normal' 4x4 has 175, both on 15" wheels) - maybe this is why?

Most likely, 185 need more space on the inside.



[chr1s]

Most likely, 185 need more space on the inside.

But the Lounge alloys are 6Jx15H2-ET35, with 185/55R15 tyres.
Would the Cross (or 4x4) need more clearance for their suspension ?



[The Pretender]

But the Lounge alloys are 6Jx15H2-ET35, with 185/55R15 tyres.
Would the Cross (or 4x4) need more clearance for their suspension ?

Big difference between 185/55R15" and 185/65R15" on a 6J wheel.



[chr1s]

Big difference between 185/55R15" and 185/65R15" on a 6J wheel.

OK. I didn't know the Cross was 185 with 65% aspect ratio, so a much bigger diameter. I assumed 55% aspect ratio like the lounge.
37mm bigger diameter ! (185 x (0.65-0.55) x 2)
