Technical Fuel Pump Relay

[Philip Collard]

Can anyone tell me where this fuel pump relay 01340680080 is located on a 2014 2.3 Multi-jet ? I have located the Fuse & ecu relay in the Engine bay fuse box



[Anthony489]

Hi Philip

For the slightly earlier vans, the fuel pump relay T10 is a plug-in type mounted in the B001 Fuse/Relay/Junction box which is under a plastic cover in the engine bay on the right hand side as you look at it (UK passenger side). It is very likely that your vehicle is the same. See drawing attached.

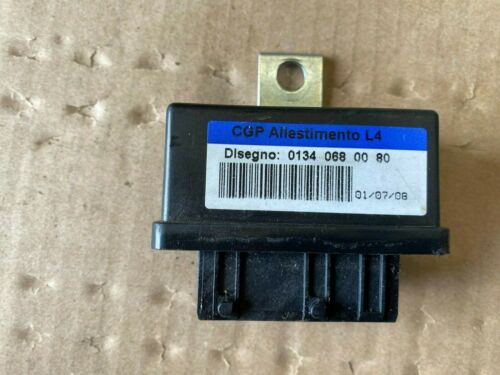

The relay you have pictured is one of a family of universal high current relays used for central locking and possibly radiator fan control, and mounted at various places. I have no idea why many used part sellers wrongly list it as a fuel pump relay, maybe they all copy each other.

Gm6vxb recently deciphered and listed the central locking functions

134-596-40-80 (marked L1) is for two doors only
134-596-30-80 (marked L2) is for two doors plus deadlock
134-596-20-80 (marked L3) is for two front doors plus side door.
134-068-00-80 (marked L4) can work four doors



[Philip Collard]

Hi Philip

For the slightly earlier vans, the fuel pump relay T10 is a plug-in type mounted in the B001 Fuse/Relay/Junction box which is under a plastic cover in the engine bay on the right hand side as you look at it (UK passenger side). It is very likely that your vehicle is the same. See drawing attached.

The relay you have pictured is one of a family of universal high current relays used for central locking and possibly radiator fan control, and mounted at various places. I have no idea why many used part sellers wrongly list it as a fuel pump relay, maybe they all copy each other.

Gm6vxb recently deciphered and listed the central locking functions

134-596-40-80 (marked L1) is for two doors only
134-596-30-80 (marked L2) is for two doors plus deadlock
134-596-20-80 (marked L3) is for two front doors plus side door.
134-068-00-80 (marked L4) can work four doors

First of all I would like to thank you for getting back to me,
If you put out a search on that google / ebay they all refer to it as a Fuel Relay? having found the fuse & relay in the B001 junction box I thought there must by another one/this somewhere else in the wiring?
Just going though fueling issues @ the moment to find out what's leading to the engine cutting out
One of the reasons I was looking @ the pump relay,, the in-tank pump only runs for about 5 seconds, looking @ other threads it should be more like 15 secs before it stops after cranking.
