Technical what's the difference between a fire 1.0 engine and my 1.0 i.e?

[chrissmith]

Hi What's exactrly different about the fire engines to the normal one. I have a fiat Uno 1.0 i.e I don't think it's a fire engine, but i'm intrigued as to the differences.



[Louie Bee]

The difference between a fire 1.0 engine and my 1.0 i.e?

Check if you have a rubber square Oil filler cap – If so, you have the FIRE.

Before the re-badge to 1.0 IE, the Uno 45 was available in 903 (OHV) or 999 (OHC) FIRE – both were carburettor versions. I reckon all 1.0IE unos are FIRE.

The non-fire was a 0.9 lol.



[chrissmith]

Mines definitely a 999cc i.e so I guess it's a fire!



[Louie Bee]

The difference between a fire 1.0 engine and my 1.0 i.e?

Its the rubber square Oil filler cap gives it away.

Same goes for the Uno 60 1108 FIRE vs. 1116 non fire - here both are OHC.

Regards All,



[pinkpunto]

A good article on the FIRE engine is at http://atschool.eduweb.co.uk/ajwebster/eng.html and this is a list (from a Polish site) of the FIRE variants:

FIRE poj.[ccm] ilość Moc[KM] zasilanie lata prod. modele Fiata

zaw.

750 770 8 34 gażnik 86-92 Panda

1000 999 8 50 gażnik 83-92 Uno,Panda

1000 999 8 45 SPI 93-03 Uno,Panda

1100 1108 8 60 gaźnik 83-93 Uno,Panda,Tipo

1100 1108 8 55 SPI 93-00 Punto,CQN,Seicento

1100 1108 8 55 MPI 01- Seicento ,Panda(2003)

1250 1242 8 60 SPI 93-99 Punto

1250 1242 8 75 MPI 93-01 Punto ,Siena,Palio

1250 1242 8 60 MPI 99- Punto II , Doblo ,Albea , Palio ,Panda(2003)

1250 1242 16 80-86 MPI 98- Punto , Punto II , Albea , Palio , Bravo/a , Stilo

1400 1368 16 95 MPI 03- Punto II ver.B



[lynsey20061986]

Re: The difference between a fire 1.0 engine and my 1.0 i.e?

Check if you have a rubber square Oil filler cap – If so, you have the FIRE.

Before the re-badge to 1.0 IE, the Uno 45 was available in 903 (OHV) or 999 (OHC) FIRE – both were carburettor versions. I reckon all 1.0IE unos are FIRE.

The non-fire was a 0.9 lol.

Hi, my Uno 1.0 i.e Start has a square rubber oil filler cap. what does this mean? thanks



[premrajeev]

hmm

It's definitely a FIRE !

SIMPLE!

Rajeev



[the mk1 kid]

Re: The difference between a fire 1.0 engine and my 1.0 i.e?

Hi, my Uno 1.0 i.e Start has a square rubber oil filler cap. what does this mean? thanks

??

Tom



[Pacer racer]

Are there 1.4 FIRE engines too? And if so, whats the diffrence?



[bowdizle]

Hi What's exactrly different about the fire engines to the normal one. I have a fiat Uno 1.0 i.e I don't think it's a fire engine, but i'm intrigued as to the differences.

Very old post but I need to clear this up. THE ENGINE WITH THE RUBBER FILLER IS THE NONE FIRE ENGINE, THE FIRE ENGINE LOOKS EXACTLY THE SAME AS THE TURBO WITH A ROUND SCREW IN OUL CAP, THE TIMING COVER IS YELLOW AND THE ROCKER COVER IS SLOPING DOWN WARD.



[bowdizle]

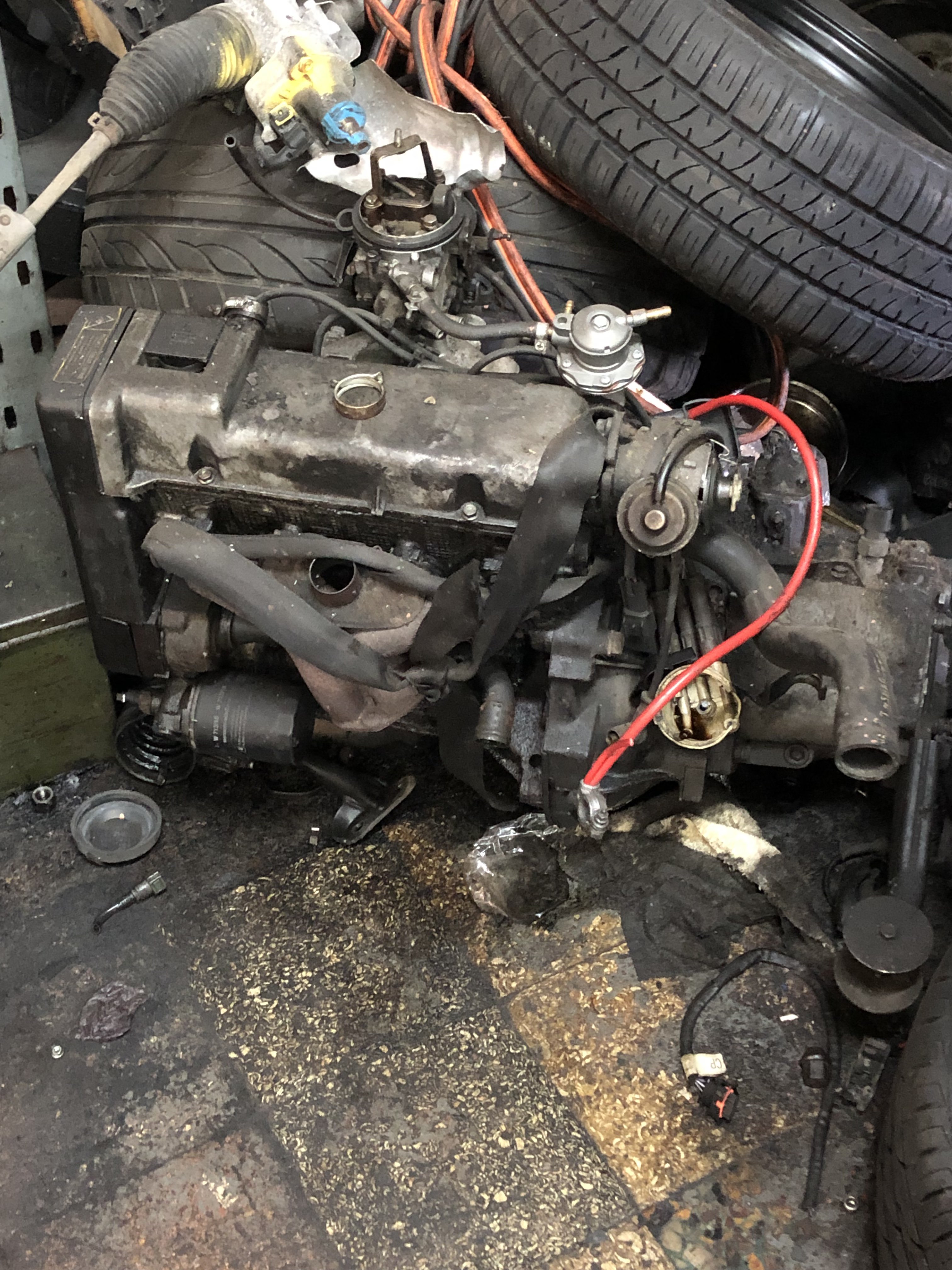

This is NOT a Fire engine.



[varesecrazy]

View attachment 435151This is NOT a Fire engine.

Why not.. I am intrigued



[StevenRB45]

Me too..given I had both this engine in my Uno and the spi 1108 in the mk1 Punto both had the same rubber bung.

First fire I had with an actual cap was a 1.2 16v..



[jackwhoo]

I don't want to step on toes but ......I had a 999c fire engined 1988year panda that looked exactly like the photo - bar the aftermarket looking fuel pump and breakerless distributor.



[varesecrazy]

To me.. That Polish list is misleading,

As it lists several at 999cc and none at 903cc

I belive all 999cs are FIRE

EARLY had a camshaft driven fuel pump,
later this was blanked in the same casting with the ie Models having the more modern in tank fuel pump



[porta]

View attachment 435151This is NOT a Fire engine.

It very definitely is a FIRE engine
