General weber 32 34 tlde technical data & Pics Required please

[hawk7595]

hi is there someone out there that can help me, i really need pics and tecnical data on a weber 32 34 tlde carburator for a uno paser sx 1400



[agismaniax]

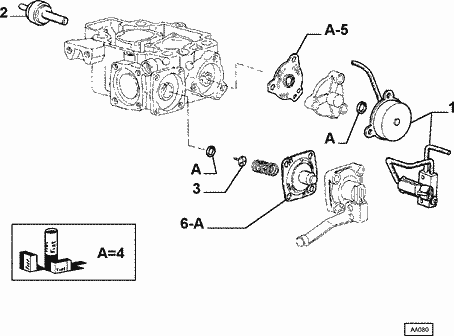

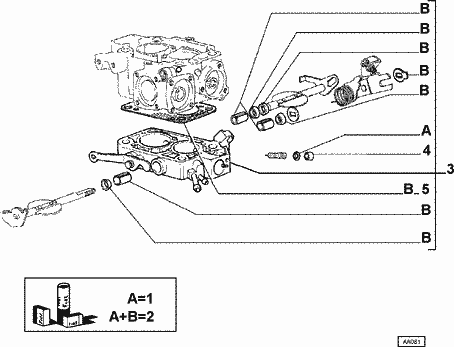

I only have pics from ePER.



[maddogmorg]

what do you want to know? i've got a haynes manual for my tipo which has the 32/34 tlde on a 1.4 too.
