General Tail light terminal pins

Currently reading:
General Tail light terminal pins

Liam1804

Member
Joined
Feb 23, 2019
Messages
128
Points
97
Does anybody know the correct name for these terminal connectors, it’s part number 12495154, I’ve searched online but I can’t get a name for them, I’ve found loads of sites that sell them but there polish site and I’m after a UK suppler like mouser but I haven’t got a clue what there called,

It’s for the rear tail lights, I want to fix a corroded pin and I don’t want to pay £30 for a new harness when it’s only the pin terminals that need replacing,

Last edited:
What's this: https://www.allcarpartsfast.co.uk/fiat-alfa-romeo/fiat-alfa-romeo-12495154-terminal/ ?
No pictures, but price is low, so it's pins maybe?

If you can't find the UK's source, maybe try to buy it from abroad, search eBay, worldwide.
It might be a custom Molex job for the Fiat (K1103 or 12495154 pins number, for connector it's 12495980).

Here is a 10 pieces pack for about 2 pounds (plus shipping, should be about 4-5 quid): https://www.e-connectors.pl/pl/p/Konektor-K1103-10szt/2443
But if you switch to English, item does not exist in the shop. Plus, it's broken-English. Looks "fishy".

Last edited:
What's this: https://www.allcarpartsfast.co.uk/fiat-alfa-romeo/fiat-alfa-romeo-12495154-terminal/ ?
No pictures, but price is low, so it's pins maybe?

If you can't find the UK's source, maybe try to buy it from abroad, search eBay, worldwide.
It might be a custom Molex job for the Fiat (K1103 or 12495154 pins number, for connector it's 12495980).

Here is a 10 pieces pack for about 2 pounds (plus shipping, should be about 4-5 quid): https://www.e-connectors.pl/pl/p/Konektor-K1103-10szt/2443
But if you switch to English, item does not exist in the shop. Plus, it's broken-English. Looks "fishy".


Nice one, If I can’t source them I’ll try and see if spade connectors will work as a temp fix,

Managed to get 2 second hand tail lights from scrappy, I also cut the wiring plugs off as well ?. I re-wired soldered the passeneger side to a new plug and it’s perfect, no flicking when indicating And braking at the same time so I know that has a good ground, The drivers side how ever, I didn’t change the plug on that because the pins were ok I just used sandpaper and come contact cleaner just for piece of mind, but when the side lights are on and you put a right indicator on I noticed the tail lights flicker ever so slightly, when I mean slightly, you can just about see it to the naked eye, it’s not a massive problem it’s just I’m a perfectionist and if I no it’s there I need to fix it properly, I take it this is a ground issue, does the drivers tail light have a separate ground to the passenger side?

Last edited:
Hi Liam,

yes they have two separate grounding points, see diagram ...

BRs, Bernie

If someone here helped You fix -or better, understand- your issue, hit the thanks icon @ bottom right corner, it's free and makes us feel helpy ;-)


Attachments

  • Brakelights wiring diagram.JPG
    Brakelights wiring diagram.JPG
    97.5 KB · Views: 427
Hi Liam,

yes they have two separate grounding points, see diagram ...

BRs, Bernie

If someone here helped You fix -or better, understand- your issue, hit the thanks icon @ bottom right corner, it's free and makes us feel helpy ;-)

Hi Bernie, I dont have any experience reading that kind of circuit diagram. Can you tell me what the B inside a square means? Is there some significance to the letters inside squares? What is the square describing?

Hi Liam, it's just to physically identify (locate) the connector, i.e: C015 "B" or C015 "C" are two different lugs (B & C) connected to grounding point C015 (which is in the left "A" pillar).
Might be much clear on this diagram:

BRs, Bernie

If someone here helped You fix -or better, understand- your issue, hit the thanks icon @ bottom right corner, it's free and makes us feel helpy ;-)


Attachments

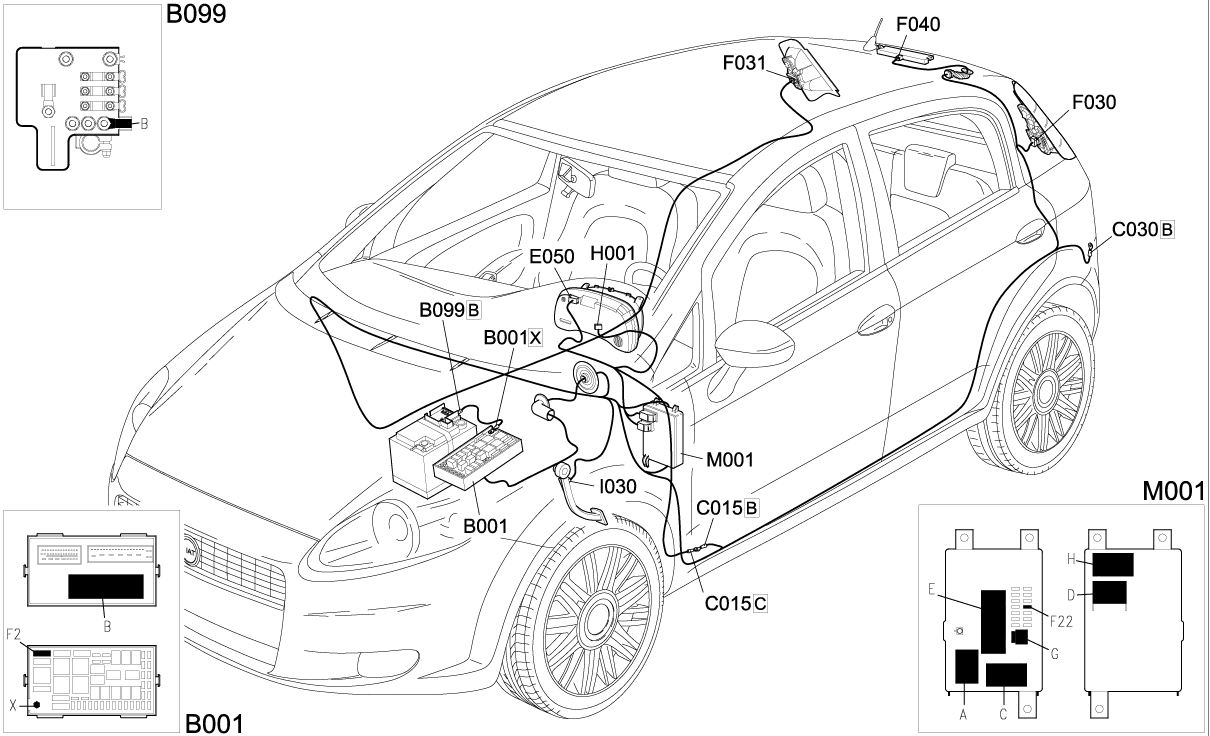

  • brakelights components.JPG
    brakelights components.JPG
    158.3 KB · Views: 153
Hi Liam, it's just to physically identify (locate) the connector, i.e: C015 "B" or C015 "C" are two different lugs (B & C) connected to grounding point C015 (which is in the left "A" pillar).
Might be much clear on this diagram:

BRs, Bernie

If someone here helped You fix -or better, understand- your issue, hit the thanks icon @ bottom right corner, it's free and makes us feel helpy ;-)

Thanks that is very clear now.

Cheers


Judderbar

That’s brilliant Bernie, I’ll print these off and have a look the week end, To test it’s a ground issue I suppose I can just get a strip of wire connected to the body of the car and just back probe the ground pin and see if the flicker is still there,

Am I correct to say the Ground for the drivers tail light runs all the way from the the passenger footwell, CO15B

Last edited:
Hi Liam,

regarding the harness path I can't tell how it's done on RHD cars but I think they did NOT mirrored everything so my guess is yes. To confirm just check the presence of C015 on the LEFT A pillar (@ the bottom), You'd have to remove some trims/carpet to find it.

BRs, Bernie

If someone here helped You fix -or better, understand- your issue, hit the thanks icon @ bottom right corner, it's free and makes us feel helpy ;-)
