Hi there, i want to know what chip should i read to get the dump for unlocking the radio.

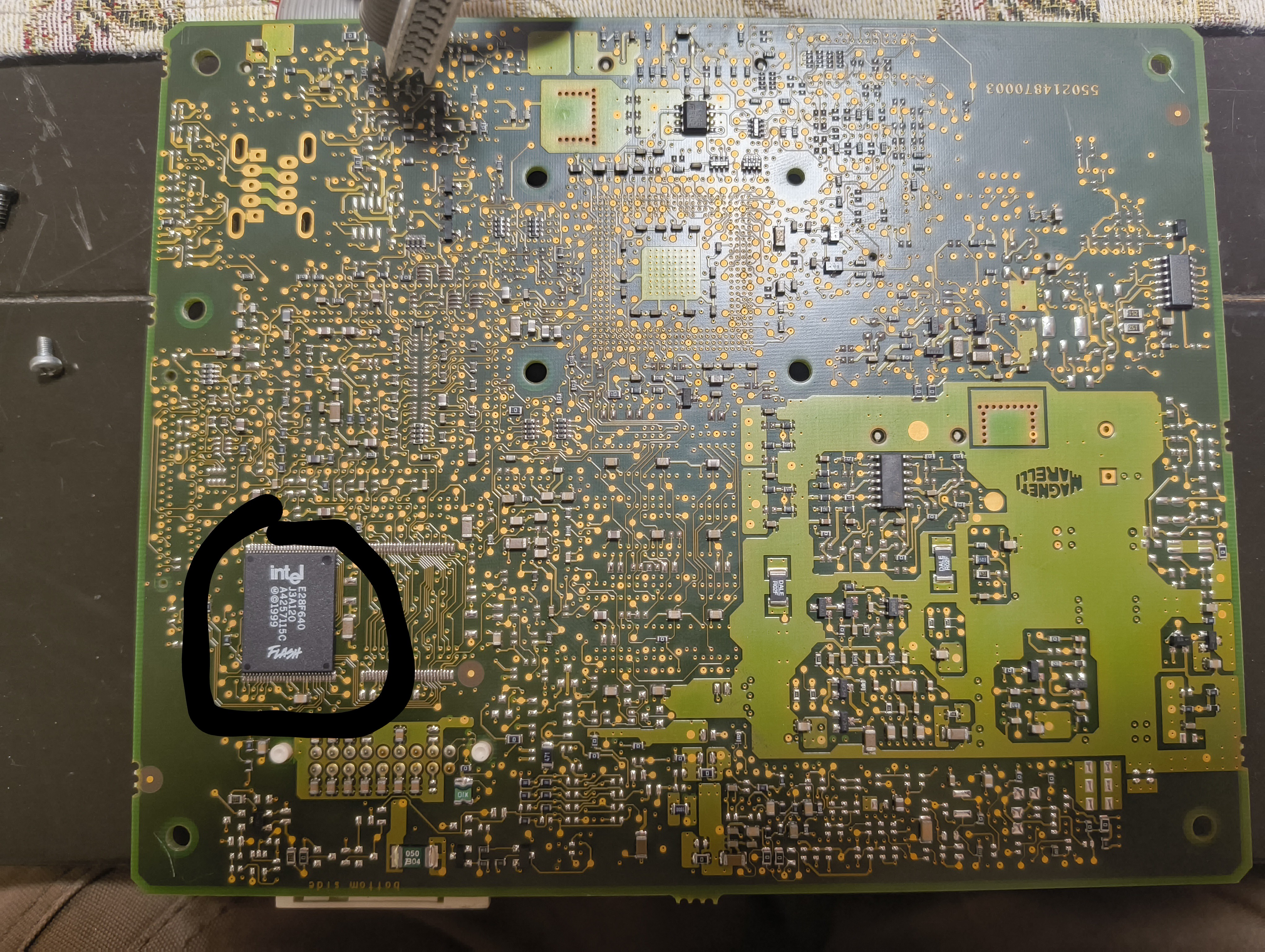

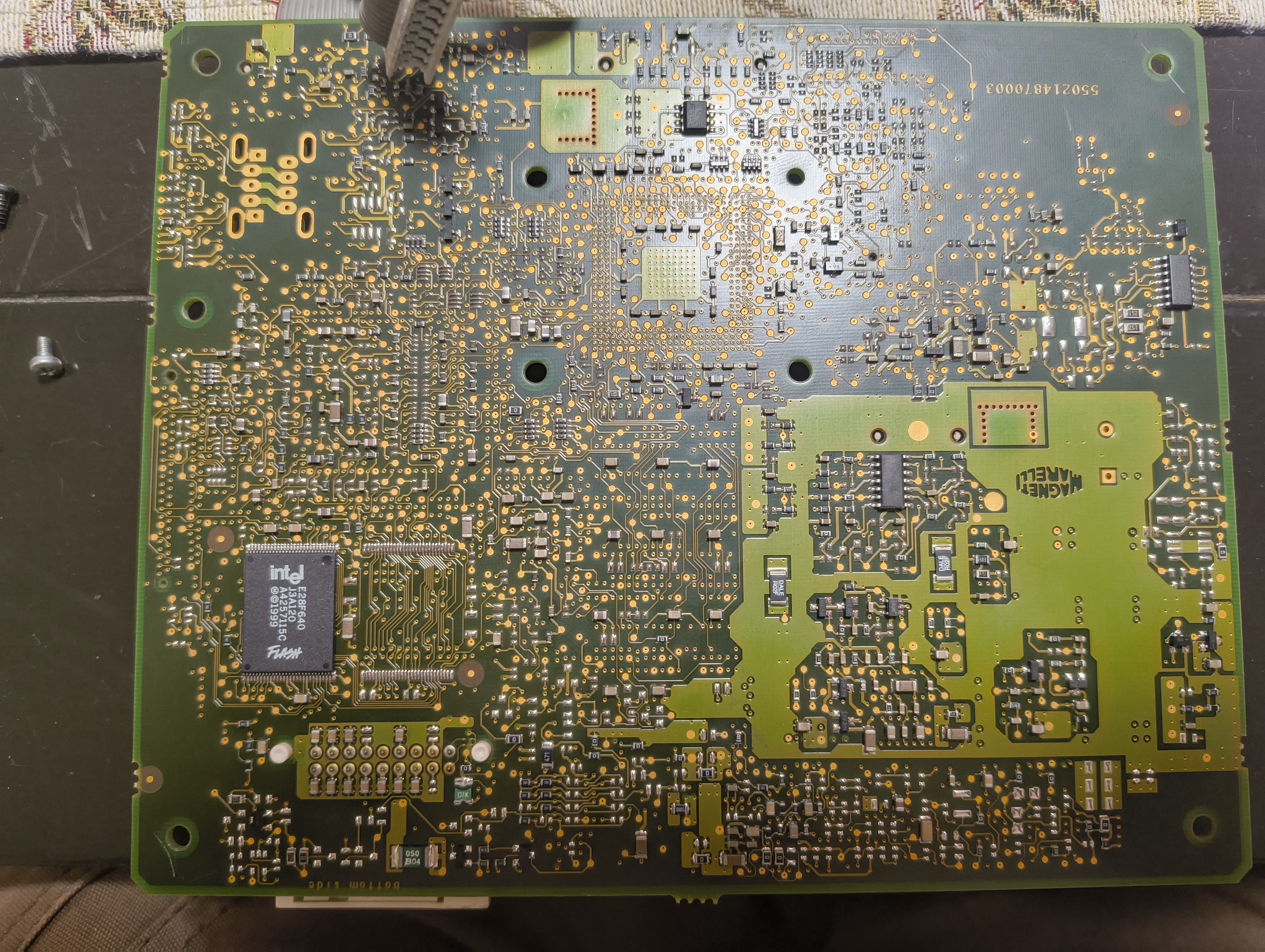

I see one chip on the back but i see some radios need two chips to be read.

It was from a Fiat Croma Diesel and the radio is a C141. I was reading up on the flash dump procedures but im just getting more confused.

If yall have any advice what i should use to read the dump or extract it i will appreciate it!

Model
1.9 TDI 150hp
Year
2007
Mileage
200000

Attachments

  • IMG_20250128_180438363~2.jpg
    3 MB · Views: 13
  • IMG_20250128_180438363.jpg
    4.2 MB · Views: 11
