Technical JTD 105 workshop manual?

[Prilliant03]

I've done a lot of searching on here but can't find any reference to a workshop manual for JTD Bravos/Bravas. EBay isn't turning up anything either.

I know Haynes only covers petrol models.

Anybody got any suggestions? I'd like to do a timing belt and tensioner change ASAP and a manual would be an immense help.



[craighgt155]

Hi hope this helps i think page 35 is what you are looking for.



[Prilliant03]

You, sir, are a true gentleman. Many thanks



[craighgt155]

Was it what you was looking for. I have the full fiat bravo/brava all engine models workshop manual on disc from a mate who works for fiat. Give us a shout if you need anything else. glad to help



[Prilliant03]

That should do very nicely thanks. I have a disc on order, but I'm an impatient bugger. Just wanted to get an idea of whether it's worth me doing the belt myself or should I leave it to my local specialist. Think I'll see how much I'm quoted before I decide.



[jimmyybob]

The belt is an easy job on the JTD as you dont need to worry about the pump timing,just line up the crank and cam and your away.



[Prilliant03]

Any special tools needed to do the belt? I remember reading about a clamp to hold the cams in place on Alfas and would assume the Fiat uses something similar.



[Davren]

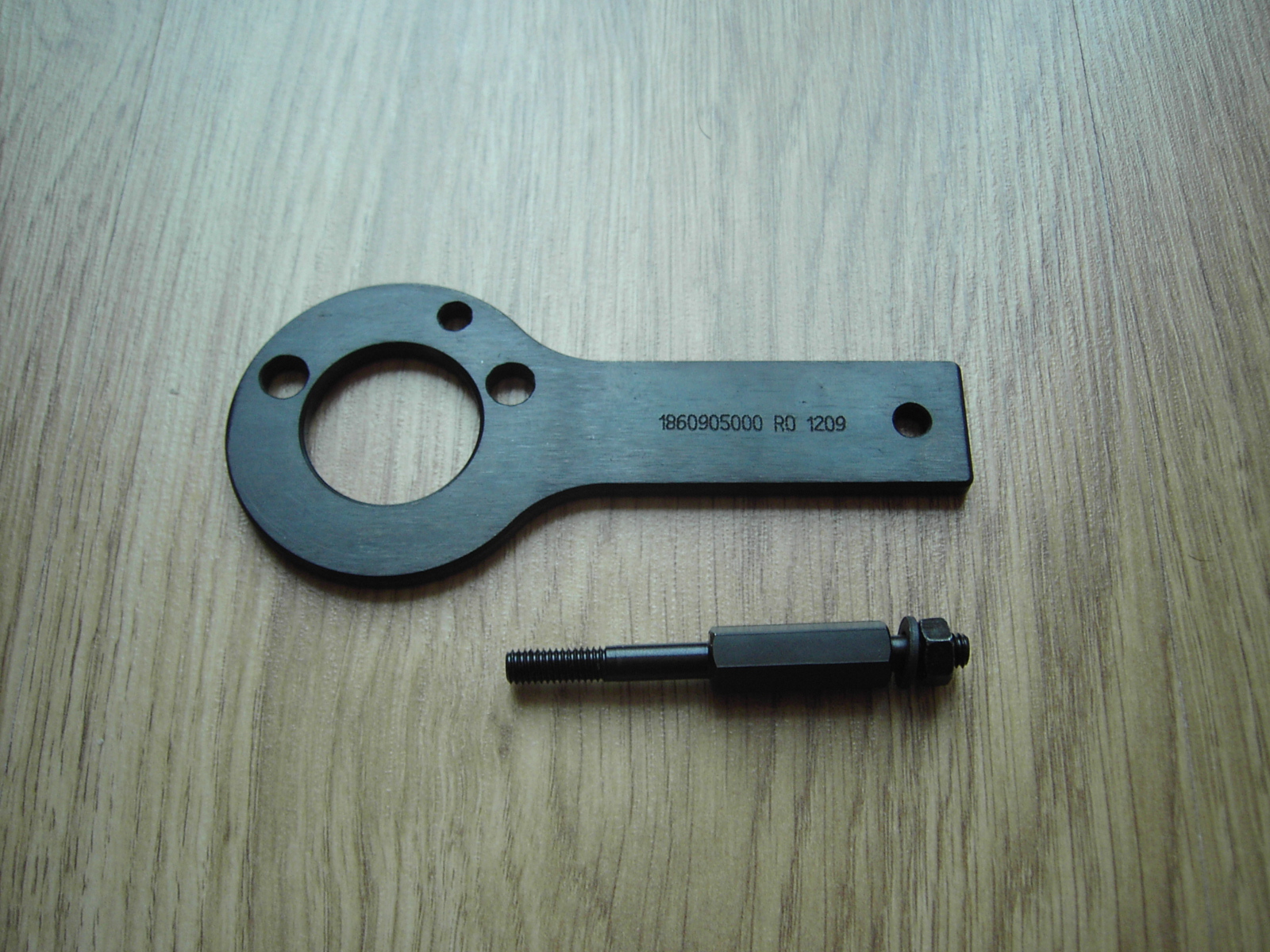

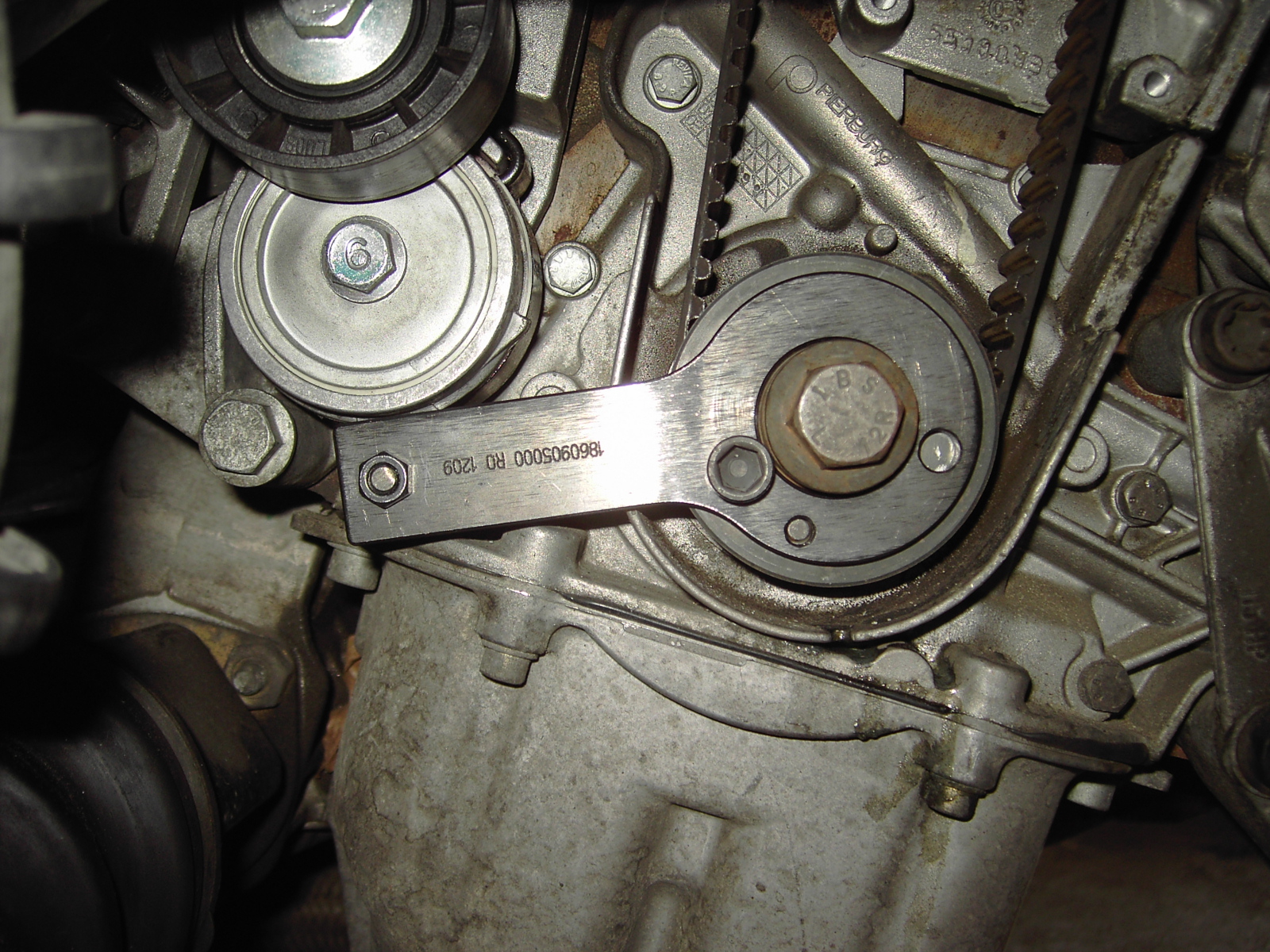

Camshaft sprocket has a mark on it to line up with a mark on the cover. Fuel pump sprocket doesn't need timing. Only tool you may need is a locking tool for the crankshaft sprocket. The locking tool is available to order from Fiat dealers for about £18.
.



[Prilliant03]

Excellent, that's really helpful! I think I'll be saving a few £££s and doing this myself.

Thanks again for the words of wisdom. I've been away from Italian cars for a while now. It's good to be back
