Technical Help Please, Stilo relay/ECU 71736005 where does it live.

Currently reading:
Technical Help Please, Stilo relay/ECU 71736005 where does it live.

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
Can anybody please help and tell me where this climate control ECU/Relay 71736005 is mounted in the car, I have practically disassembled the dash around the climate control/glovebox steering column this afternoon and just cannot find said ECU/relay.

If you can tell me where it is I would be most grateful. Thanks.


kuratage

Member
Joined
Nov 8, 2011
Messages
44
Location
Kuala Lumpur

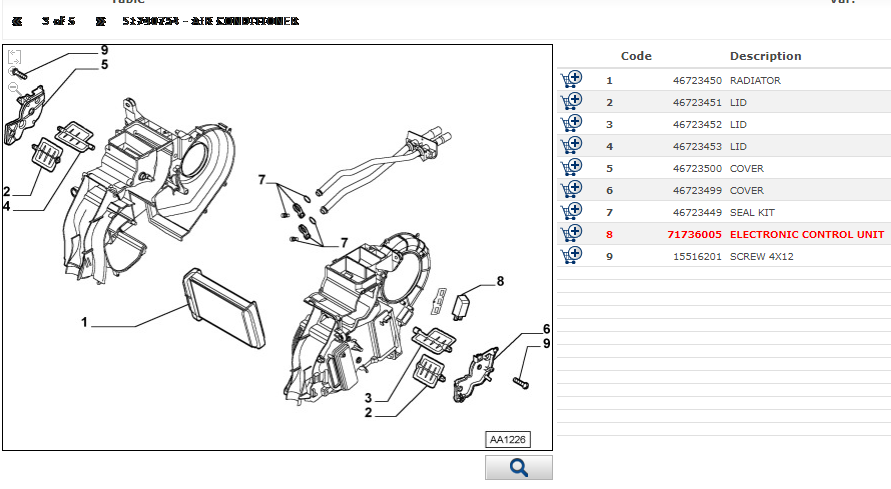

Please see the diagram. It s at no 8


Attachments

  • Screenshot_20230116_114113.jpg
    366.6 KB · Views: 35
OP
OP
Muppet1

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
Right so as I haven't had a reply to say where this sodding ECU is and having spent a couple of cold weeks without a heater, Can I just wire the fan up to a switch and if so which wires do I use. I can't go another week with no heat.

OP
OP
Muppet1

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
So I have taken the Fan out which I suspect is the problem, The circuit board is not very clean and I am reasonably sure the fan is knackered as I attempted to power it directly from the battery to the 2 outer terminals on the plug and nothing.
So the next question is that it's a Siemens fan 77370137 which appears to be a bit of a pain to get hold of but I have seen a post which says the later Denso ones are better and fit.
If so what would be the part number for it please, Anyone know??

OP
OP
Muppet1

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
This is my pcb, pretty dirty and knackered I would say. Can I clean it with anything?


Attachments

  • IMG_20230122_203240.jpg
    2.1 MB · Views: 16

Davren

Moderator
Staff member
Joined
Jul 6, 2008
Messages
16,080
Location
London, UK.
Looks like the PCB is encapsulated in varnish or electrical potting compound. Cleaning it wouldn't produce any benefit.
.

OP
OP
Muppet1

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
Think it's just dirty and nearly 20 years old. Found a used one which I have ordered so will try that.

OP
OP
Muppet1

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
So I fitted the 2nd hand fan and it worked for all of 30 seconds then cut out.

Would the control panel be knackered do we think.

OP
OP
Muppet1

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
And I see there is that Relay ecu 71736005 on ebay for an early 02 still so its a part that fits one but I have yet to find where its location is in the car so any advice on that would be good.
Although feels like I am talking to myself nowadays on here.


Davren

Moderator
Staff member
Joined
Jul 6, 2008
Messages
16,080
Location
London, UK.
Although feels like I am talking to myself nowadays on here.
Not many Stilos left on the forum now. Unfortunately, I don't know the answer to your problem.

Did the thread I linked to in post #6 above give any useful information?
.

OP
OP
Muppet1

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
Yes, it was a useful Thread thank you, but I can not find any mention of this ECU/Relay anywhere. And that's the annoying thing because on the bravo its on the drivers side of the heater box. I have seen a picture of it, However, I can not see a picture of the ecu anywhere in regards the Stilo.

OP
OP
Muppet1

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
And in typical Stilo fashion, Did a climate reset this morning and started the car and we have a working Fan!!!


s130

Moderator
Staff member
Joined
Dec 5, 2006
Messages
5,335
Location
Wrexham, North Wales
Looking on ePER it would appear to be on/in/around the main unit.

It may be a temeprature control device and may be located within the fan area to detect overheating etc. Try taking the fan out and haove a good look round the inside of the housing.


OP
OP
Muppet1

Muppet1

Springer Mad!!
Joined
Feb 8, 2008
Messages
1,052
Location
Somerset
Well I have changed the fan and have looked for this part and I just can't see it anywhere, I have only found one picture of the relay on a Bravo heater unit and it's plain to see, Not on the still it's not.
And I can't really see any mention of it in many posts either.


s130

Moderator
Staff member
Joined
Dec 5, 2006
Messages
5,335
Location
Wrexham, North Wales
Hmmmm. Puzzling.

Well we can try and rule out that your vehicle does or does not have this part. You will need to use the ePER on this site and enter your VIN. Alternatively you can PM me your VIN and I'll look on my later version of ePER.

I suspect this part will be listed but as to where Fiat put it is what you/we are interested in.

I do have the official Stilo eLearn. Not sure if that would reveal the location. I don't have that eLearn currently installed on my PC and would prefer not to as for me it is legacy and would take up precious space on my PC.

Let's see what emerges with waht we have already gathered.
