Technical Driver Door Wiring Harness Plug Won't Fit

Currently reading:
Technical Driver Door Wiring Harness Plug Won't Fit

Pilotdavo

New member
Joined
Apr 29, 2022
Messages
8
Location
Lincoln
I've had a look at the drivers door wiring harness and found 3 broken wires and some others damaged. This is a 2007 Fiat Grande Punto 1.3 Multijet.

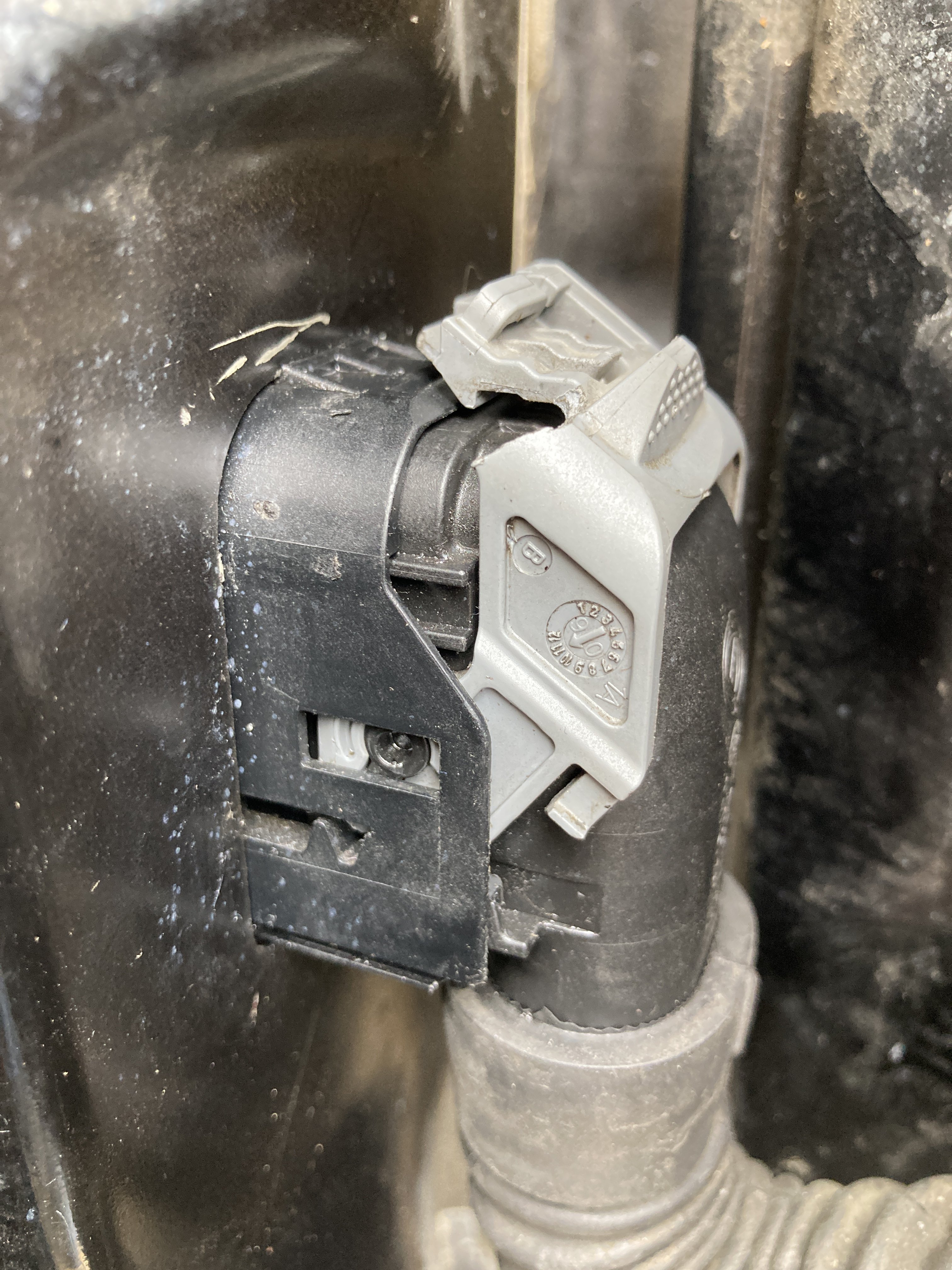

I've repaired them but now I cannot get the wiring loom plug to snap back into the receptacle on the car body. The grey clip (a small piece is broken) on top is no where near the locator and I cannot get it close. Any ideas why I can't get this back in place? It's about 4-5mm away from being secured but lines up perfectly....

Many thanks


Attachments

  • IMG_4057.JPG
    2.1 MB · Views: 139

J4MALD1N

Member
Joined
Sep 21, 2019
Messages
85
Location
London
I've had a look at the drivers door wiring harness and found 3 broken wires and some others damaged. This is a 2007 Fiat Grande Punto 1.3 Multijet.

I've repaired them but now I cannot get the wiring loom plug to snap back into the receptacle on the car body. The grey clip (a small piece is broken) on top is no where near the locator and I cannot get it close. Any ideas why I can't get this back in place? It's about 4-5mm away from being secured but lines up perfectly....

Many thanks
To confirm, you’re pulling the grey thing back till it’s perpendicular to the connector? This needs to be done and when the black part is seated, you latch the grey part.

OP
OP
P

Pilotdavo

New member
Joined
Apr 29, 2022
Messages
8
Location
Lincoln
The grey piece was pulled back to release the wiring plug (this is when a small piece broke off as it's brittle). I tried with the grey piece at 90deg and then pushing in but the plug won't get far enough in to the socket to allow the grey piece to close over the top.


J4MALD1N

Member
Joined
Sep 21, 2019
Messages
85
Location
London
The grey piece was pulled back to release the wiring plug (this is when a small piece broke off as it's brittle). I tried with the grey piece at 90deg and then pushing in but the plug won't get far enough in to the socket to allow the grey piece to close over the top.
As obvious as it is, there’s nothing blocking the connector from seating is there? i.e. A bent pin or broken clip etc. Those connectors can get fiddly on newer cars. Silicone grease usually helps however all I can do is tell you to keep fiddling with it; gently of course. 😅

I’ve found this ancient video that demonstrates how the connector is supposed to attach. May be helpful.

OP
OP
P

Pilotdavo

New member
Joined
Apr 29, 2022
Messages
8
Location
Lincoln

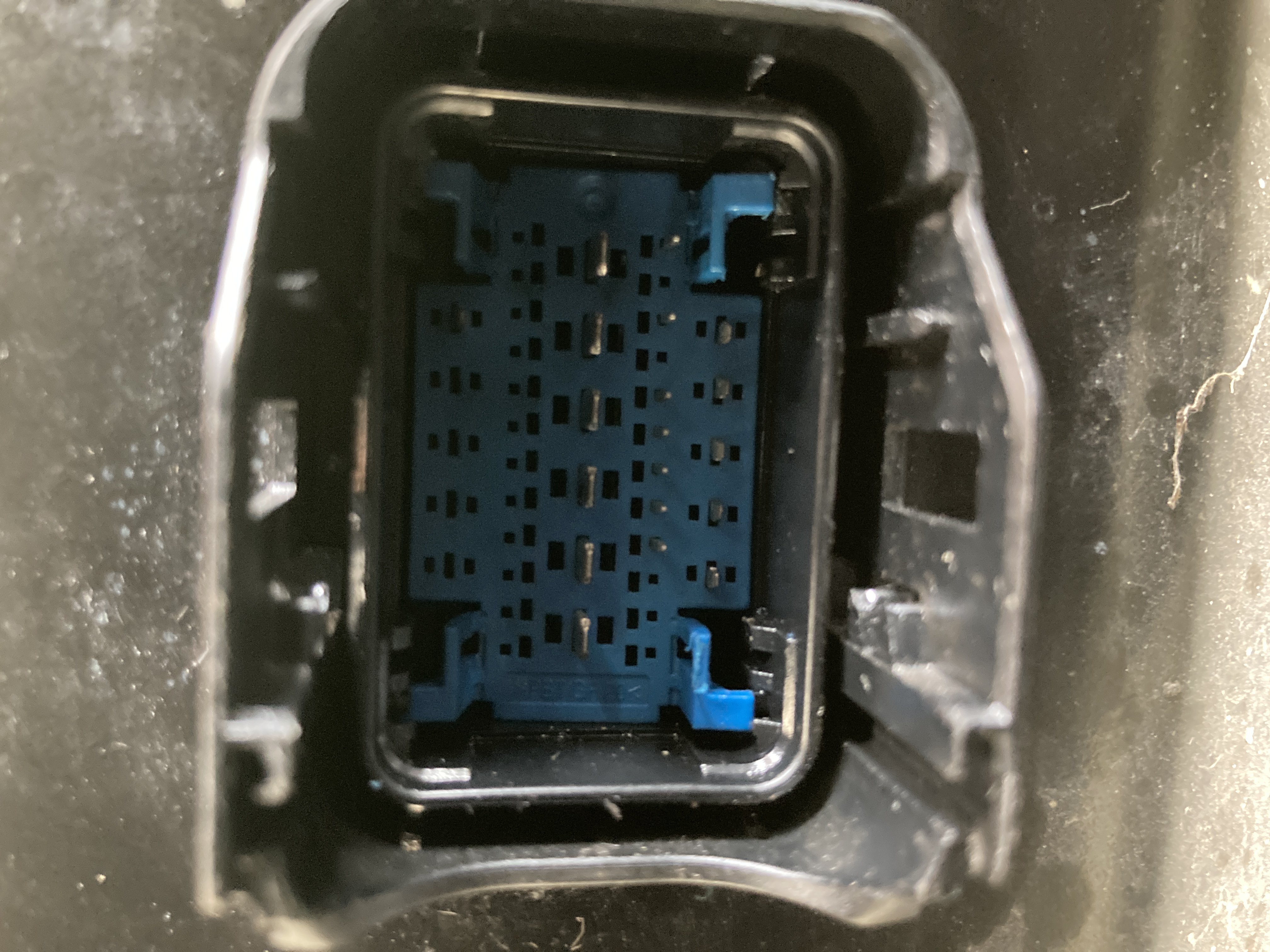

Thanks. I have taken a pic inside the socket to try to spot an obstruction. I saw that clip too and it's maddening how easy it looks! I'll keep fiddling and hope something changes?


Attachments

  • IMG_4058.JPG
    2 MB · Views: 11
Joined
Apr 27, 2011
Messages
31,668
Location
Near the M4

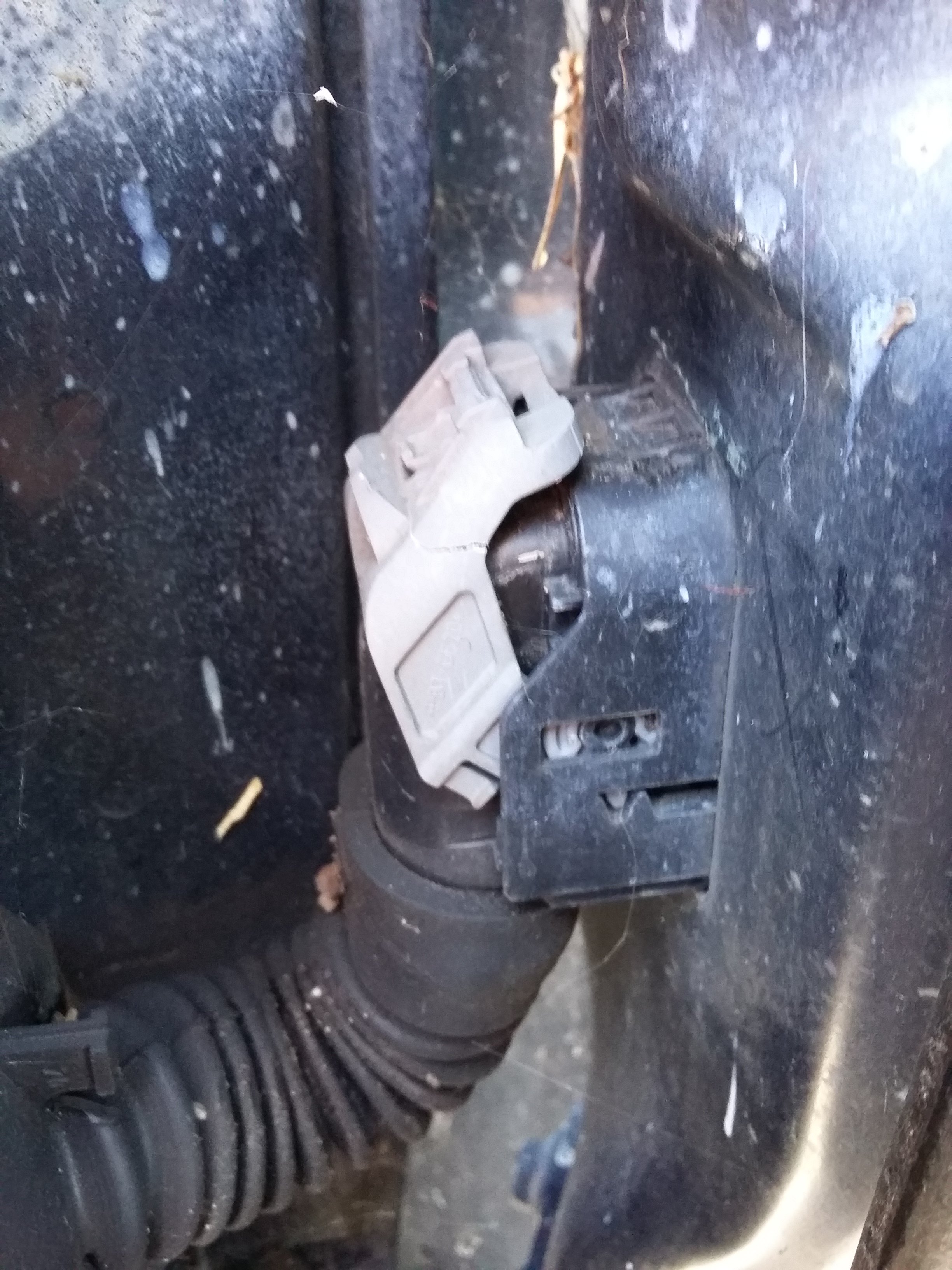

Tooth is visible here..

If it starts late in the rack it could show your problem..maybe

You can see my Grey hoop was cracked.. so I had to carefully wind both gears along whilst wriggling the plug

All worked 1st try though :)


Attachments

  • 20200912_135103.jpg
    1 MB · Views: 13
OP
OP
P

Pilotdavo

New member
Joined
Apr 29, 2022
Messages
8
Location
Lincoln
Ya beauty. 2 hours of struggling has come to an end! It was just as you said and needed a bit of encouragement to click in. My son very happy. 2 fixes today for the cost of some insulation tape and copper slip.
