Technical alloy wheel plastic pads size help

Currently reading:
Technical alloy wheel plastic pads size help

noope

New member
Joined
Jun 1, 2014
Messages
19
Hi, i have a 1.6 Stilo. I am prepering to winter and I Just realized that I lost my plastic pads i dont know whats its name in english it goes betwen wheel hub from inside and your car hub. And I dint know what size shoud I order. I attached my wheel size.

Last edited:
OP
OP
N

noope

New member
Joined
Jun 1, 2014
Messages
19
Pic
https://drive.google.com/file/d/0B3pm5vbU9QQ7YW5PcXZUTVJRaWc/view?usp=drivesdk

Last edited:
Joined
Apr 27, 2011
Messages
31,663
Location
Near the M4
Hi, i have a 1.6 Stilo. I am prepering to winter and I Just realized that I lost my plastic pads i dont know whats its name in english it goes betwen wheel hub from inside and your car hub. And I dint know what size shoud I order. I attached my wheel size.

Hi. Do you mean the small CENTRE CAP that knocks out.. for tyre changing...

IDEA: LOOK on ePER... or fiatdalys site for a good diagram,description and part number

Charlie


g8rpi

Moderator
Staff member
Joined
Nov 11, 2013
Messages
4,539
Location
Cambridge
Hi. Do you mean the small CENTRE CAP that knocks out.. for tyre changing...

IDEA: LOOK on ePER... or fiatdalys site for a good diagram,description and part number

Charlie

I think he is refereeing to a splash shield that goes behind the wheel.


Robert G8RPI.


wody21

New member
Joined
Feb 1, 2017
Messages
62
Location
Debrecen
Do you think about these things? (I also have one pair less than what would be ideal)

Last edited:

wody21

New member
Joined
Feb 1, 2017
Messages
62
Location
Debrecen

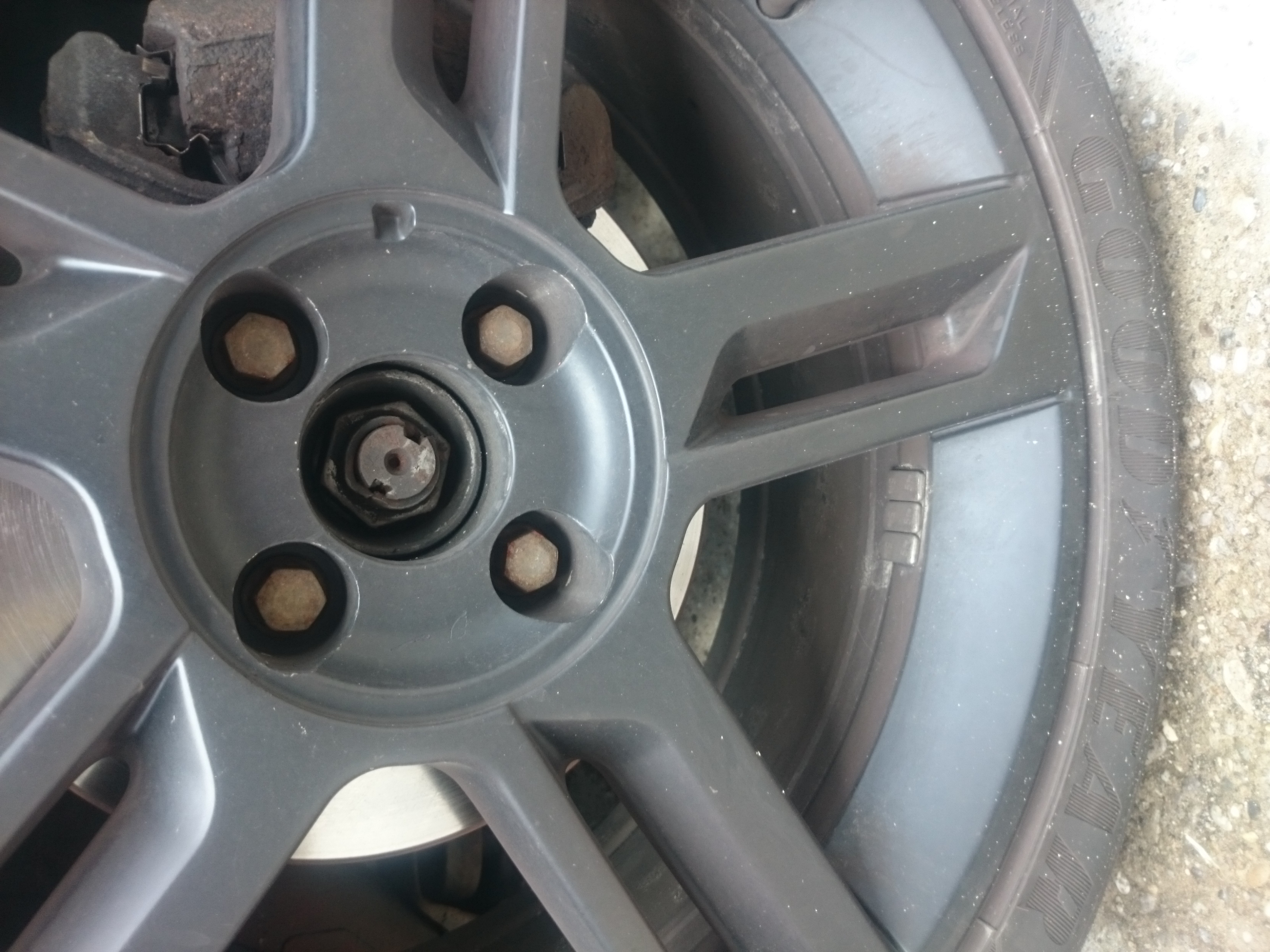

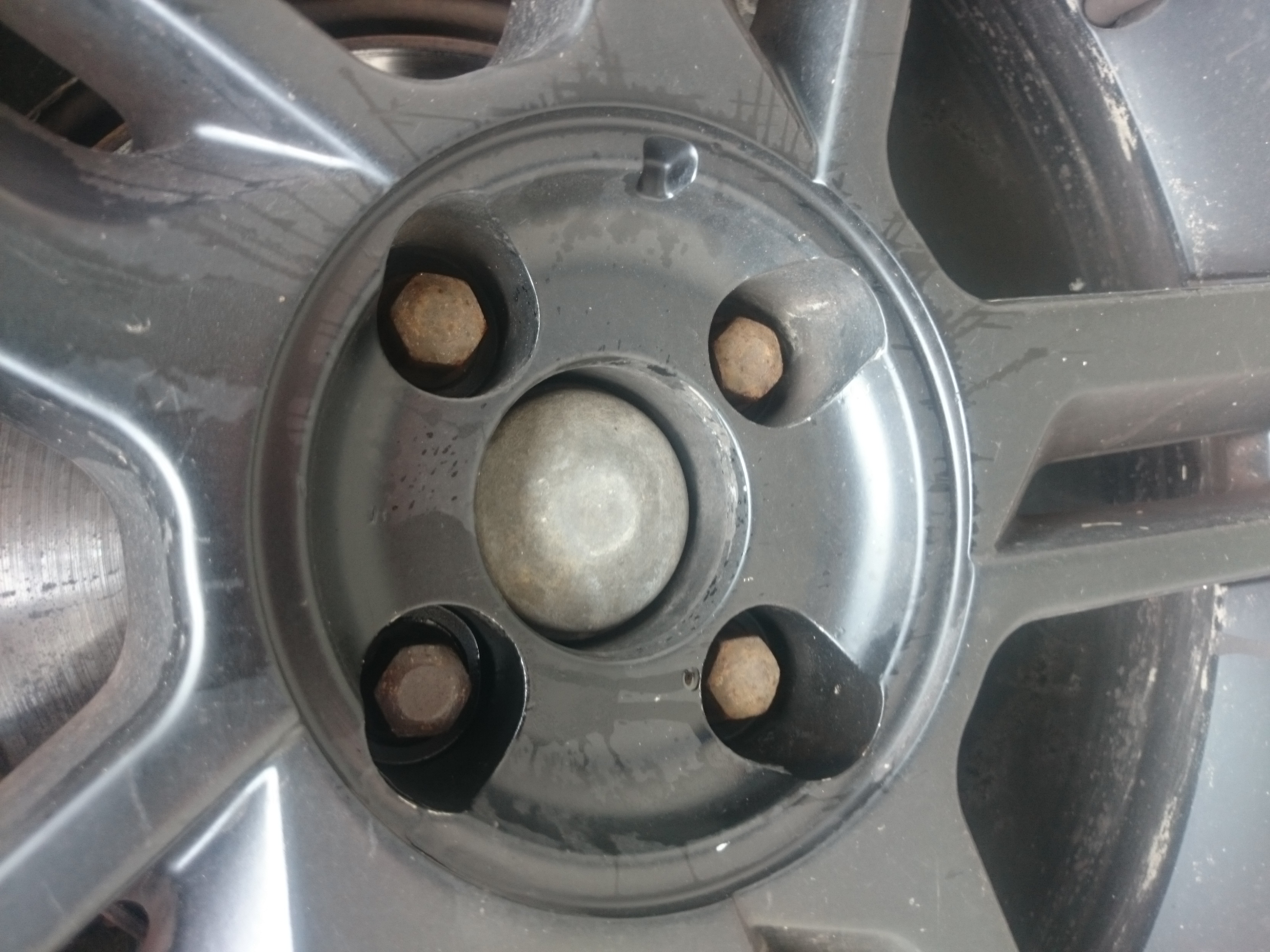

Photos...


Attachments

  • DSC_1743.JPG
    2.4 MB · Views: 20
  • DSC_1742.JPG
    2.3 MB · Views: 18
OP
OP
N

noope

New member
Joined
Jun 1, 2014
Messages
19
Sorry Guys I was at phone yesterday. I mean these little guys:


jackwhoo

Well-known member
Joined
Apr 8, 2017
Messages
4,825
My thoughts are they only help line up holes in wheel with holes in hub when changing wheel.


Artermis

New member
Joined
Jan 9, 2016
Messages
763
Location
Grimsby, England
They are known as spigot rings. They make sure that the wheel sits centered on the hub, where the centre bore of the wheel is larger than the hub of the car.

If you have factory fiat wheels you should not need a spigot ring to fit them, as they are made to fit the car.

If you've got aftermarket wheels then you may well need spigot rings.

The hub on the Stilo is 58.1mm; so you'll need a spigot ring to go from 58.1mm to whatever the centre bore of your wheel is.

For example, my 18" OZ wheels have a centre bore of 60.1mm, so I have 58.1mm to 60.1mm spigot rings.
