Hi there,
Thanks for looking...

I have two warning lights on my dash & the following error messages: ASR disconnected (HillHolder) & ABS unavailable.



Took it to my mate who has a garage & he put through the diagnostics machine & said the error was with the ABS Sensor.



The mechanic changed the sensor but it didn't resolve the issue... :bang:



Any help would be very much appreciated...



Kind Regards

Check brake switch. This is a small "push button" somewhere behind brake pedal. With faulty brake switch your brake light will on randomly even without pressing pedal. You can check this.

I believe that mechanic also cleared all error codes after replacement...

Thanks for all your replies...
So just got myself a new brake switch and have spent quite alot of time underneath the steering column.
For the life of me cannot seem to find anything that resembles closely to the brake switch...

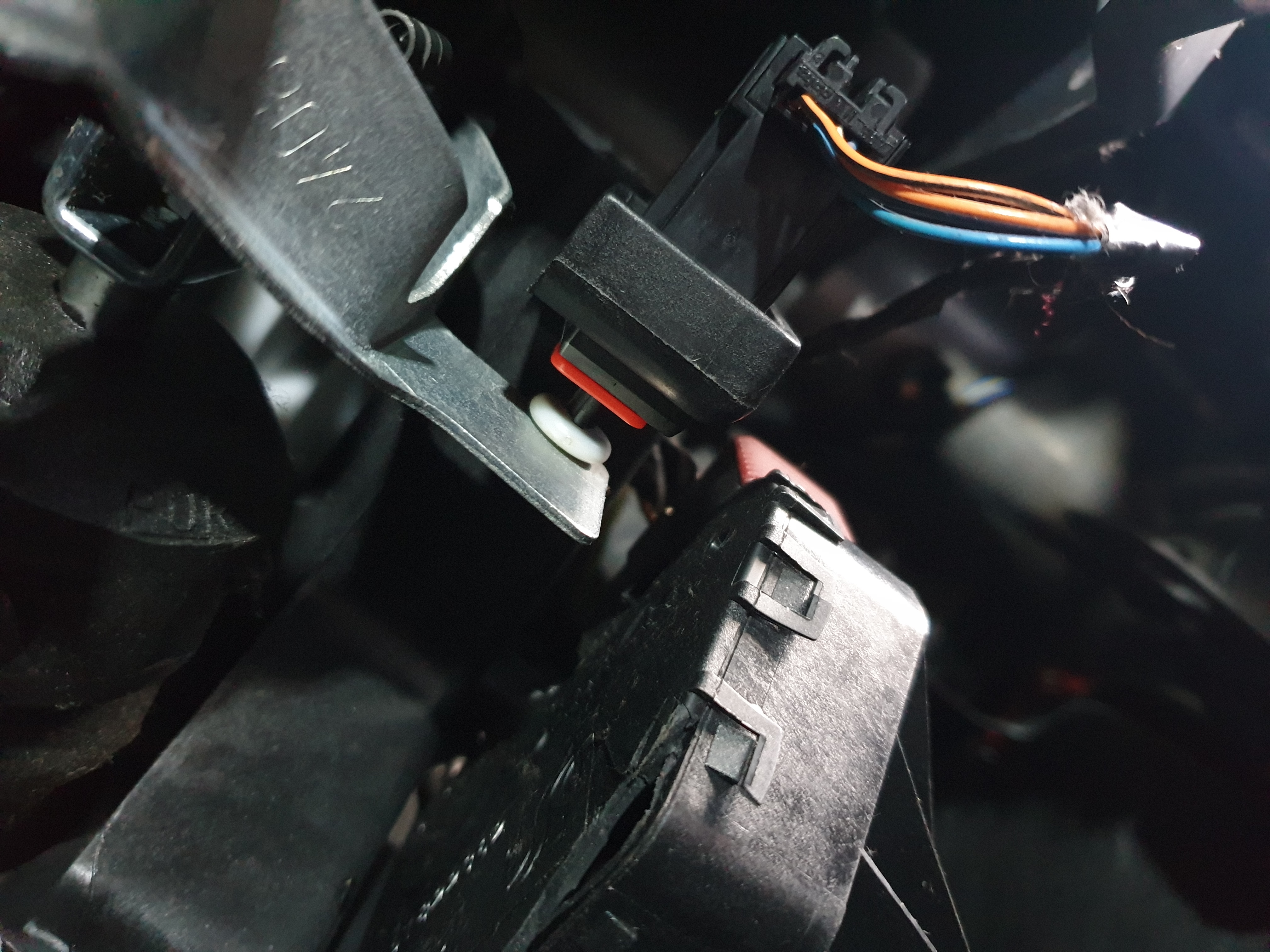

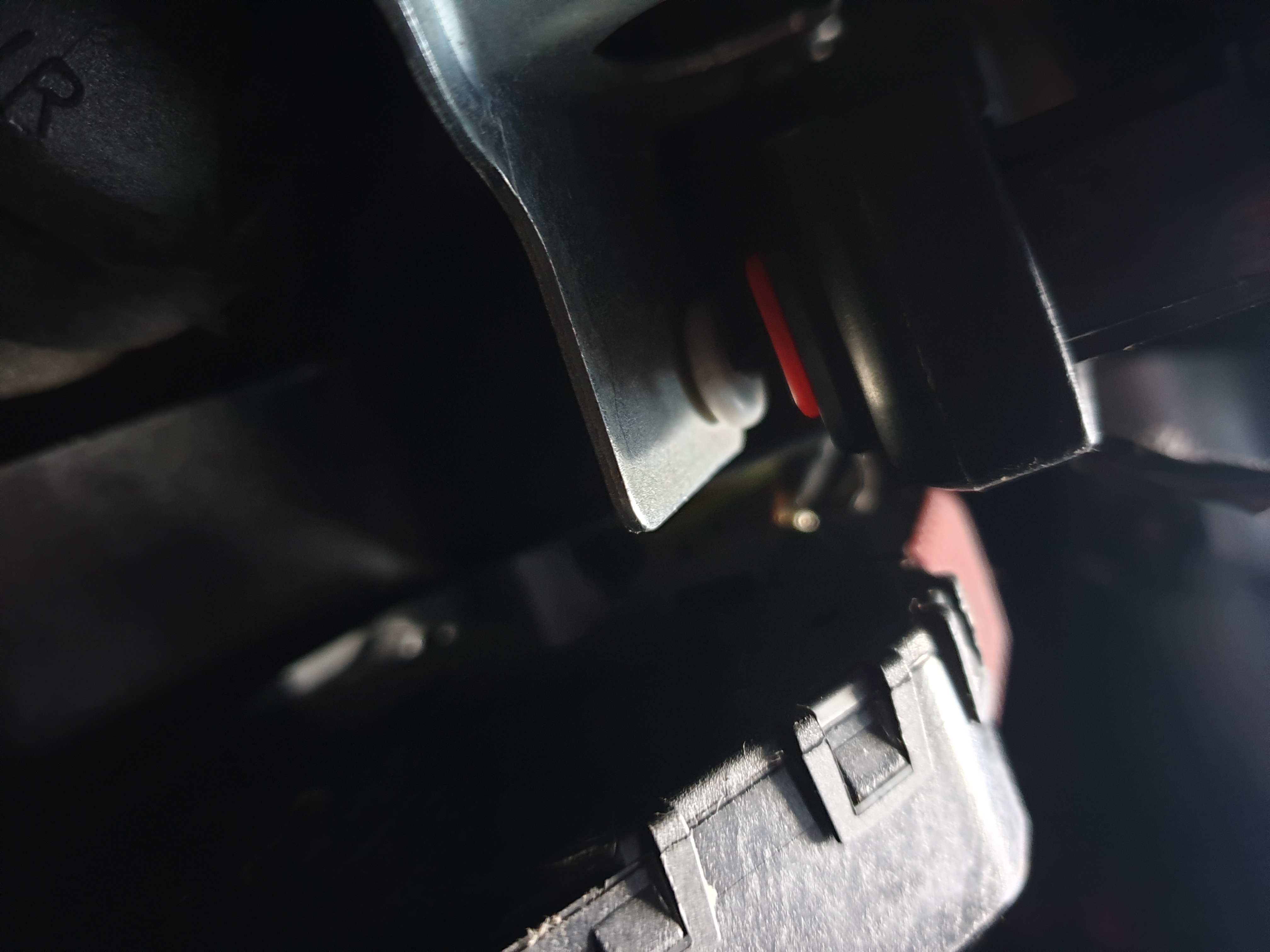

I've uploaded some pics, if anybody could help it would be very much appreciated...


Attachments

  • 20191130_154044.jpg
    3.8 MB · Views: 99
  • 20191130_154057.jpg
    3.7 MB · Views: 123
  • 20191130_150127.jpg
    2.7 MB · Views: 87
  • 20191130_150050.jpg
    3.6 MB · Views: 119
  • 20191130_155355.jpg
    5 MB · Views: 75
Last edited:

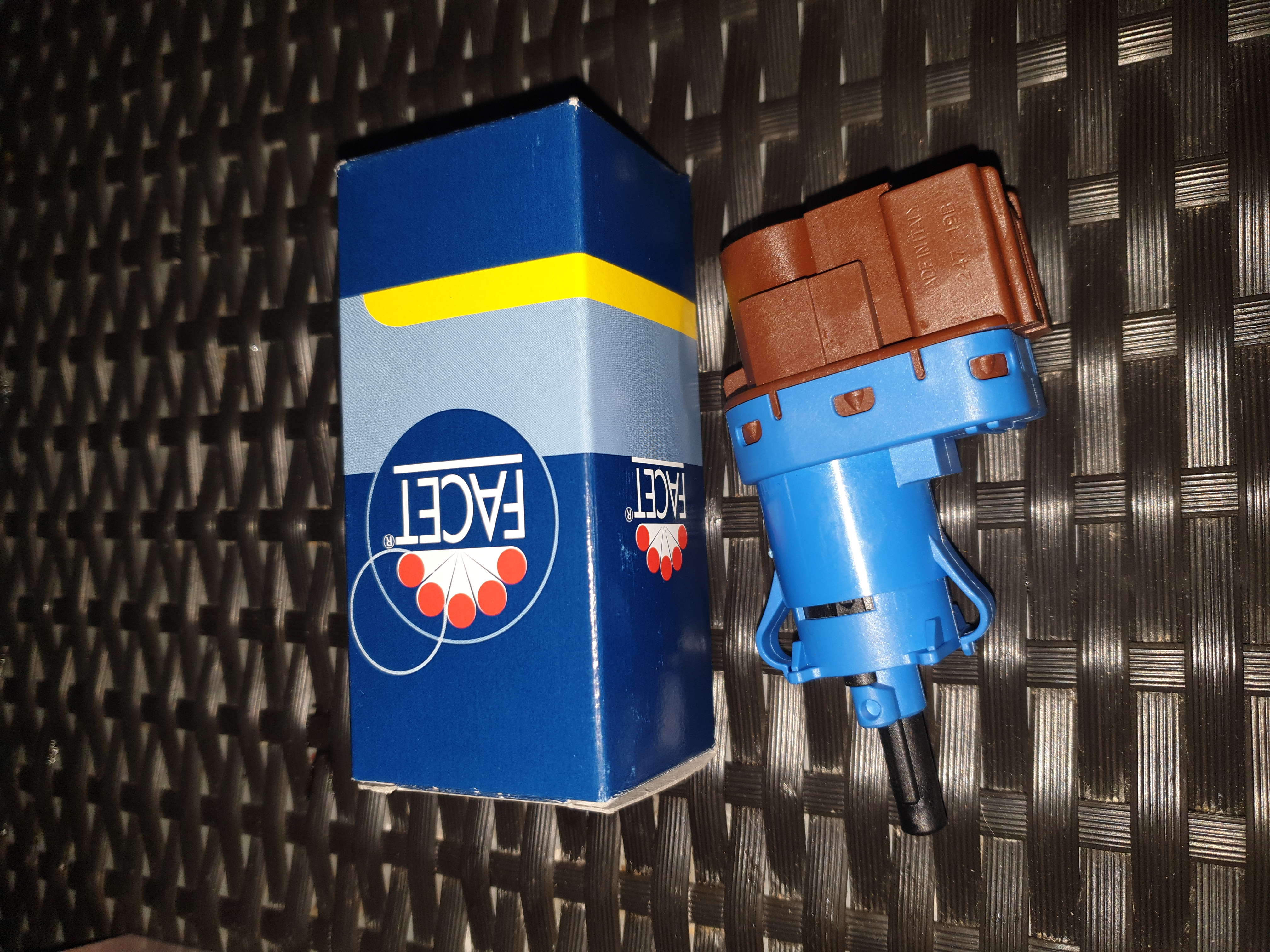

You've got the wrong part I'm afraid. There are two types of brake switch. The brake switch you have is in the top right photo. Grey end and red section

You've got the wrong part I'm afraid. There are two types of brake switch. The brake switch you have is in the top right photo. Grey end and red section

Hey
Thanks for the quick reply... I've been looking at the pics etc and thought exactly the same... So I've ordered the following part...

https://www.gsfcarparts.com/931gm0290

I think this is now the correct one...

Thanks again for the help...

Kind Regards
