Technical 1.9td timing locking tool doesn't work

[Ortensio]

Hello,
I am trying to set timing in my ducato 1.9td 1990. I purchased a timing locking set that is made for 1.7 and 1.9 diesel engines, fiat.

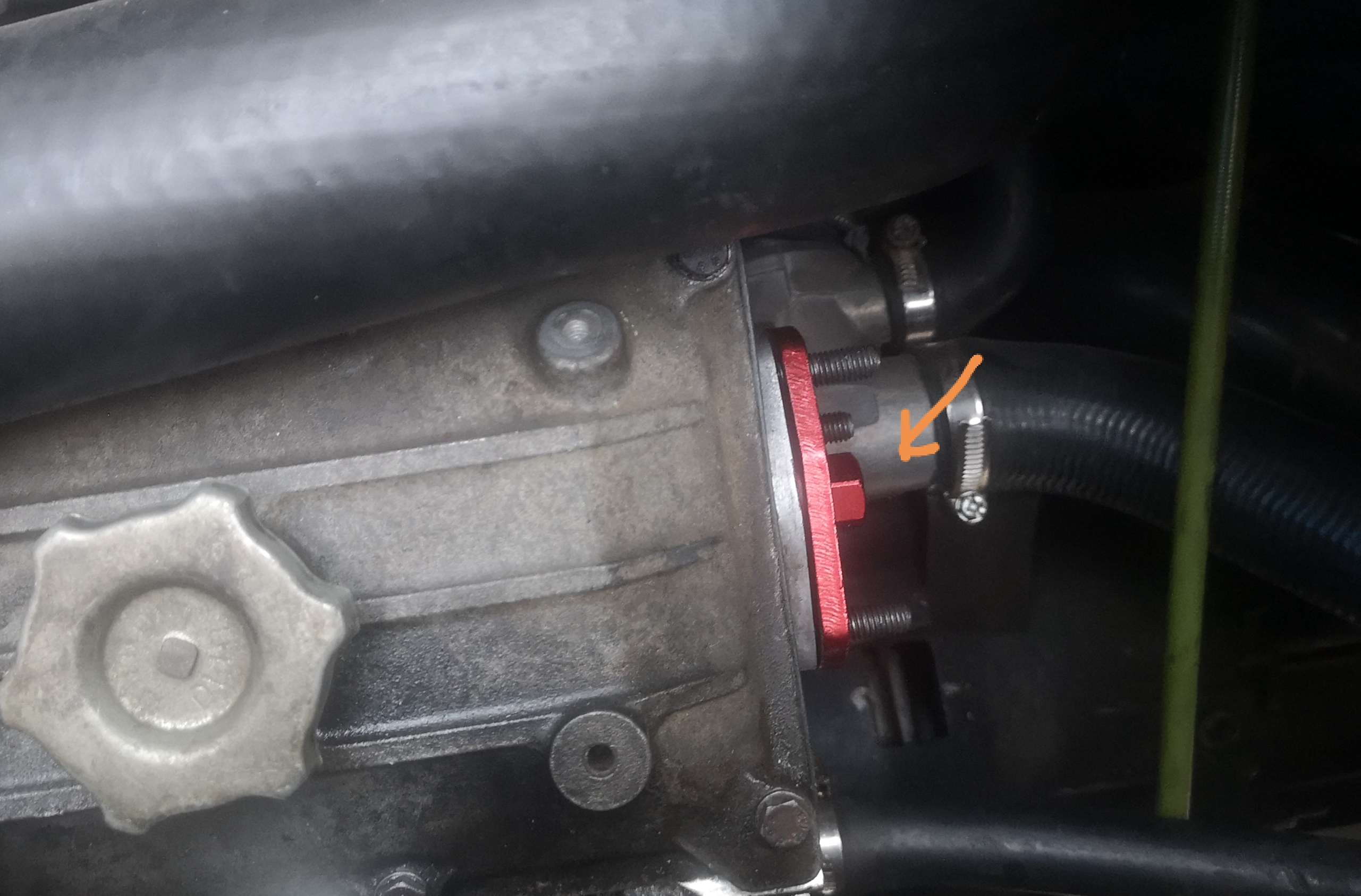

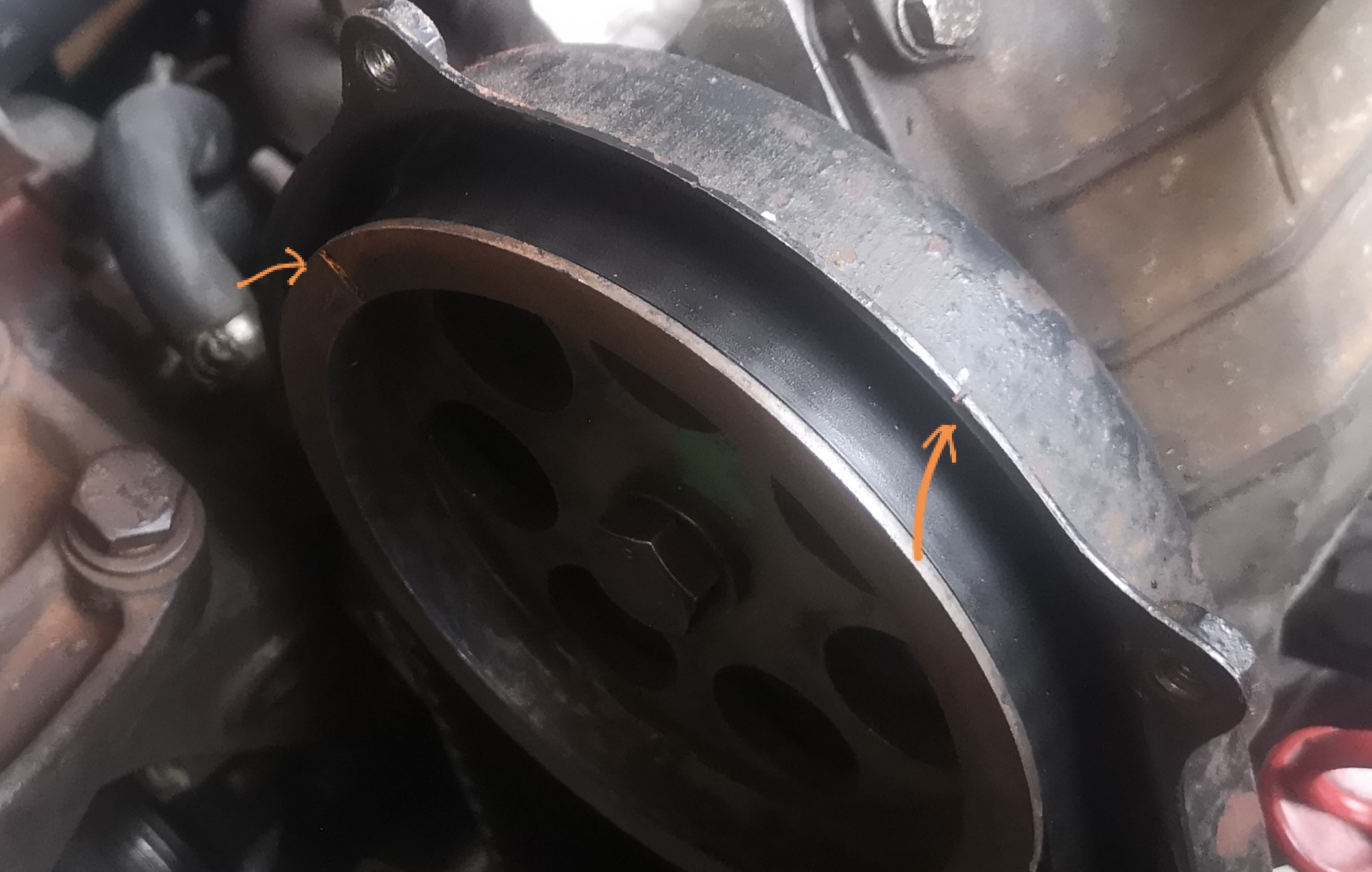

When I lock the camshaft, camshaft sprocket Mark is about 90 degrees off the block reference mark.

I believe that locking tool should match with the marks in sprocket And the block, doesnt it?



[Greasytrucker]

Give the crankshaft another full rotation and try again, the crankshaft and camshaft spin at different speeds



[Ortensio]

Hello.
Anyway I rotate the crankshaft, the camshaft tool always set the sprocket 90 degrees off the marks. Either way to the left or to the right.

Maybe that red tool can be tweaked or modified?



[Greasytrucker]

Hello.
Anyway I rotate the crankshaft, the camshaft tool always set the sprocket 90 degrees off the marks. Either way to the left or to the right.

Maybe that red tool can be tweaked or modified?

Not sure on that one. See if anybody else any ideas. Some much cleverer people than me on here!
