This is my diary of the restoration (all things being equal and not rotten) of a Sedivavole Mk1 Tipo.
Rate this Entry

Question time

Posted 26-06-2007 at 22:13 by Tony M

OK, it's about time I began to find out how to sort out the engine components...

In the following pics there are a number of items I need some answers so i can work out what for keeps etc...



A). what's this and can i bin it?
B). What's this and can I bin it?
C). If i am junking the EFI system (?) do i seal this?

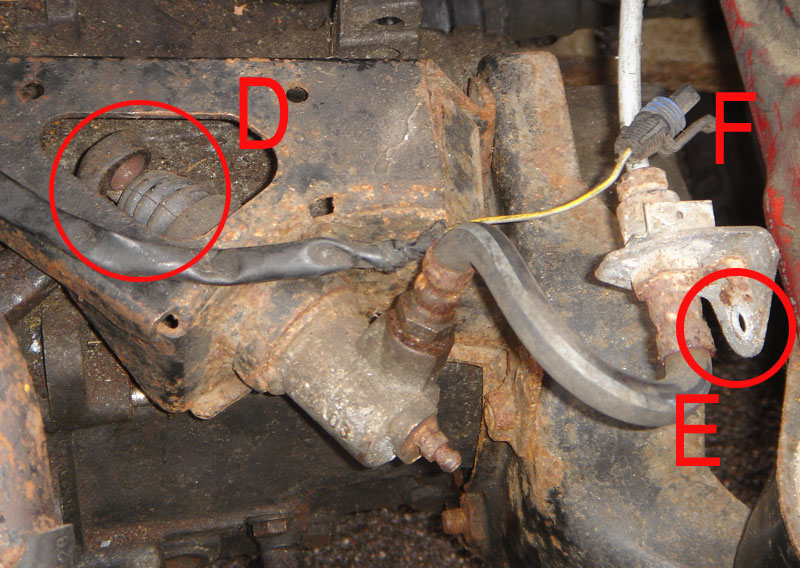

D). How do I get the clutch piston to sit in the clutch arms recess?
E). what does this secure onto?
F). single wire socket... what does this connect onto? it's on a 2foot wire.
Posted in Model Builds, Tipo
Views 1505 Comments 11 Email Blog Entry
Total Comments 11

Comments

  1. Old Comment
    hi tony.....Hope this is of some help mate.

    A.....
    No you cannot bin unless you are putting carbs on... Did you notice it has Ford stamped on it..... It is a re-circulating Valve for the emmition control the other 2 connections on the valve are for 1 blue pipe which should be located near the valve (goes on top connection), And the bottom connection is a black thin pipe which connects to the underneath the throttle body..
    permalink
    Posted 27-06-2007 at 20:57 by dazzo666 dazzo666 is offline
  2. Old Comment
    B...... No you cant bin this either again unless your putting carbs on... This valve is to do with the Fuel Pressure Regulator... One of the pipes connects from this valve to the regulator and the other, a really long pipe i may add connects to the Auxilliry air valve located on the cylinder head near the distributor
    permalink
    Posted 27-06-2007 at 20:59 by dazzo666 dazzo666 is offline
  3. Old Comment
    C..... this is you main fuel intake pipe from your tank, if you are putting carbs on you need this so dont blank it, You may need to chop it and extend it for a set of carbs...
    permalink
    Posted 27-06-2007 at 21:01 by dazzo666 dazzo666 is offline
  4. Old Comment
    D....... Try bleeding the clutch, If that dont work you may have to pull the piston out of the slave cylinder and clean it up as it could well be siezed..
    permalink
    Posted 27-06-2007 at 21:01 by dazzo666 dazzo666 is offline
  5. Old Comment
    E....... This secures to the chassis by a 13mm headed bolt located very neat to the bracket
    permalink
    Posted 27-06-2007 at 21:02 by dazzo666 dazzo666 is offline
  6. Old Comment
    F.....This wire im fairly certain its for the oil pressure guage switch near the oil filter.....
    permalink
    Posted 27-06-2007 at 21:02 by dazzo666 dazzo666 is offline
  7. Old Comment
    sediciRich's Avatar
    You clutch slave is mounted different to mine, but the cylinder is the same. The rebuild kei is a round 60p it has a new boot, clip and piston seals. Never buy those cylinders just rebuild them (fiat parts). You need to see if the bullet end of the piston comes out far.....
    permalink
    Posted 28-06-2007 at 10:13 by sediciRich sediciRich is offline
  8. Old Comment
    sediciRich's Avatar
    enough to meet the clutch fork lever, if not then the foork may not have the right release bearing inside the bell housing. But if its all tipo and andy put the release bearing in then it should be ok. Clean up the cylinder first and bleed the system.

    If you are going carbs then you will need a low pressure fuel pump not the efi one currently there.
    permalink
    Posted 28-06-2007 at 10:14 by sediciRich sediciRich is offline
  9. Old Comment
    sediciRich's Avatar
    You must speak to guy croft about the carb jetting, he will give you the sizes you need from the top of his head, and these ARE the sizes you must use!!

    That wire is not an engine loom item so dont fuss with it at the moment.

    rich
    permalink
    Posted 28-06-2007 at 10:14 by sediciRich sediciRich is offline
  10. Old Comment
    Ok, just answer a few points in one swoop... the car is keeping the injection system I don't want to go messing with carbs if i can help it.

    Quote:
    enough to meet the clutch fork lever
    more than enough the rod is extended beneath the arm at the moment... as of this time i don't think it requires rebuilding but then i haven't seen it move either yet.
    permalink
    Posted 28-06-2007 at 12:26 by Tony M Tony M is offline
  11. Old Comment
    Quote:
    You must speak to guy croft about the carb jetting, he will give you the sizes you need from the top of his head, and these ARE the sizes you must use!! That wire is not an engine loom item so dont fuss with it at the moment. rich
    The donor Thema used a Bosch system not the Magnetti Marrelli thing. I don't think there is any reason that Sumplug would have changed it from standard.

    only aloowed 500 characters for replies :P
    permalink
    Posted 28-06-2007 at 12:34 by Tony M Tony M is offline
